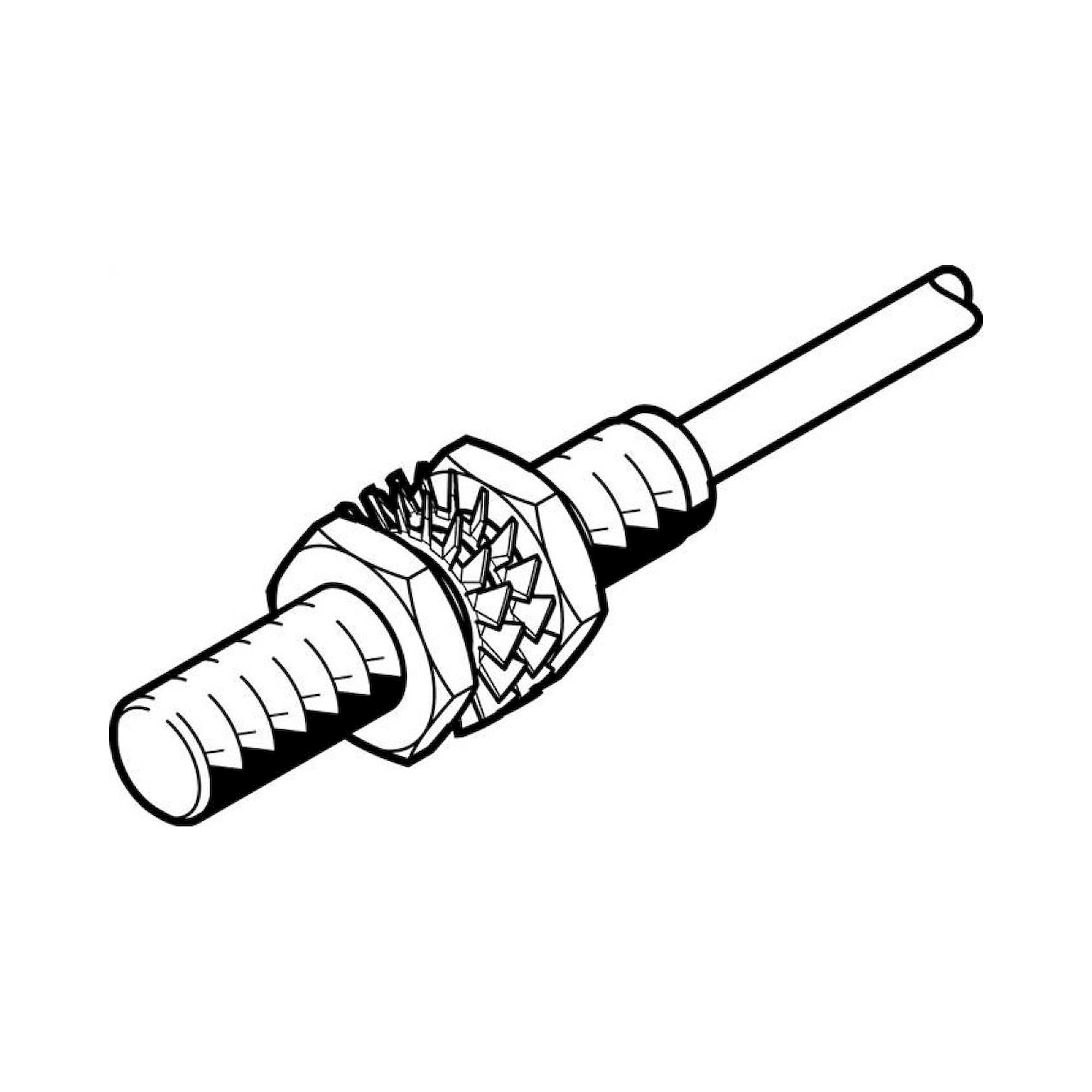

The product may differ from the illustration
Festo sensor for reliable monitoring of position, pressure or status in the pneumatic system.
Proximity Sensor SIEN-4B-PS-K-L - Festo 150362
FESTO
Original product
Net price (excl. VAT)
€72.55
Excl. 19% VAT ,
excl. Shipping Cost
Available
Fast shipping
Item
FES-150362
Manufacturer no.
SIEN-4B-PS-K-L
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.SIEN-4B-PS-K-L
EAN4052568068721
Customs tariff number85365019
ConditionNew
Article
FES-150362
Frequently Bought Together
-
This Item:
€72.55Excl. 19% VAT , excl. Shipping Cost
-
Proximity Sensor SIEF-M30B-PS-K-L - Festo 553550
€83.16Excl. 19% VAT , excl. Shipping Cost
-
Proximity Sensor SIEN-M18B-PS-K-L-PA - Festo 538325
€55.84Excl. 19% VAT , excl. Shipping Cost
Total price
Festo sensor for reliable monitoring of position, pressure or status in the pneumatic system. The key technical data of this genuine Festo article are listed below.
| Complies to standard | EN 60947-5-2 |
| Permission | RCM mark<br>c UL us - Listed (OL) |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Material information | Copper and PTFE-free |
| Measurement switching distance [mm] | 0,8 |
| Secured safety distance [mm] | 0,64 |
| Reduction factors | aluminium = 0,4<br>stainless steel St 18/8 = 0,7<br>Copper = 0.3<br>brass = 0,4<br>Steel pc. 37 = 1.0 |
| ambient temperature [°C] | -25 to 70 |
| Repeatability [mm] | 0,04 |
| Control output | PNP |
| Switching element function | NO contact |
| Max. switching frequency [Hz] | 3.000 |
| Max. switching frequency DC [Hz] | 3.000 |
| Max. output current [mA] | 200 |
| Voltage drop [V] | 2 |
| Short circuit resistance | Cycling |
| Operating voltage range DC [V] | 10 to 30 |
| residual ripple | 10 % |
| Empty run current [mA] | <= 10 mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | 3-wire<br>cable |
| Cable length [MTR] | 2,5 |
| Cable sleeve material | TPE-U(PUR) |
| size | 4 mm |
| Fastening type | clamped |
| Integration type | flush |
| Product weight [g] | 48,0 |
| Housing material | High-alloyed stainless steels |
| Switching status indicator | LED yellow |
| Protection category | IP67 |
| Manufacturer Nr. | SIEN-4B-PS-K-L |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568068721 |
| Weight | 0.048000 |
| HS-Code | 85365019 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
| Werkstoff | Edelstahl |
| Schutzart | IP67 |
