Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
Precision cutter for the finest cutting work with a narrow head of only 12.5 mm width. The induction hardened edges without bevel reach approx. 60 HRC and cut flush-lying wires from 0.2 mm dia., soft wire up to 1.6 mm dia. Burnished special tool steel, 125 mm at 55 g.

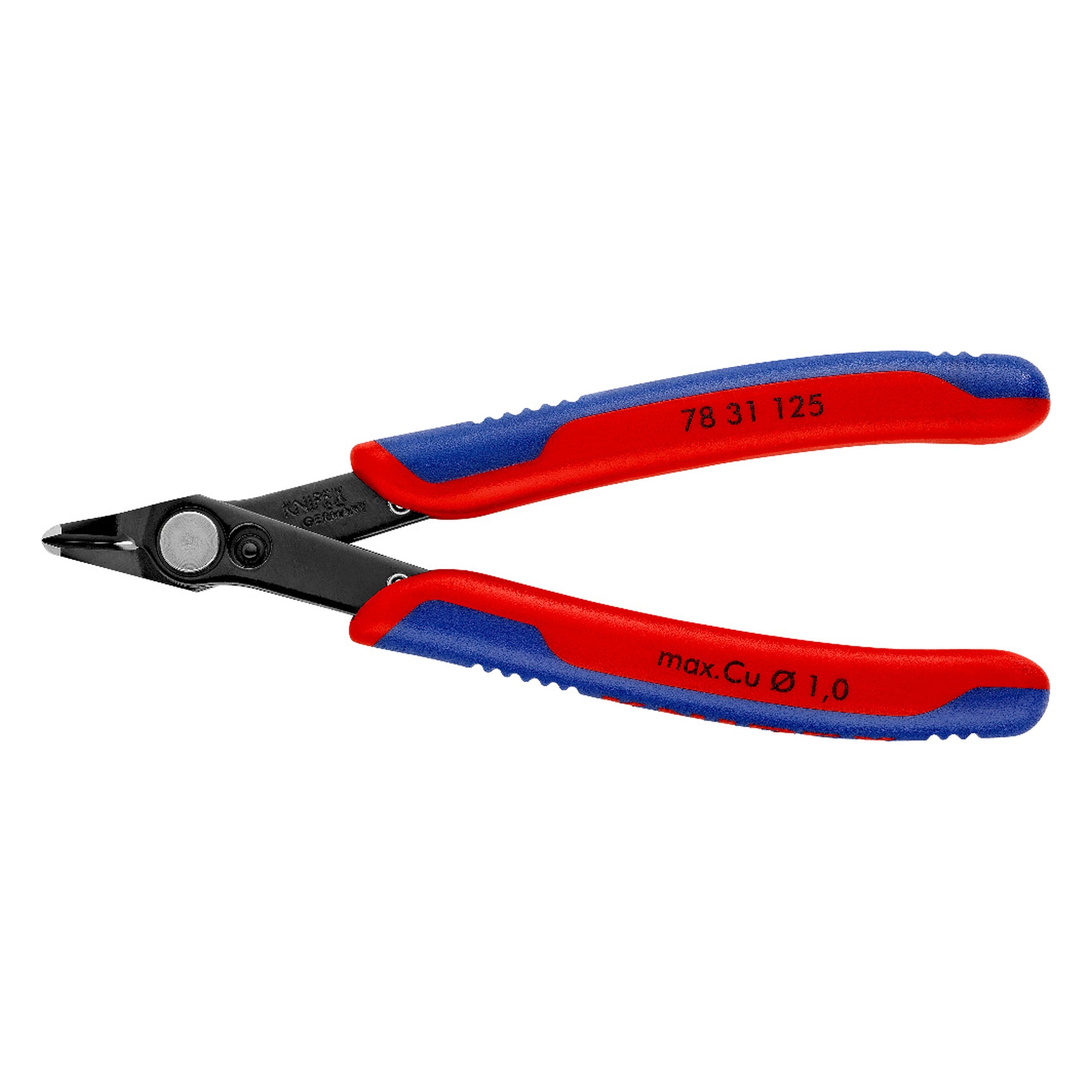

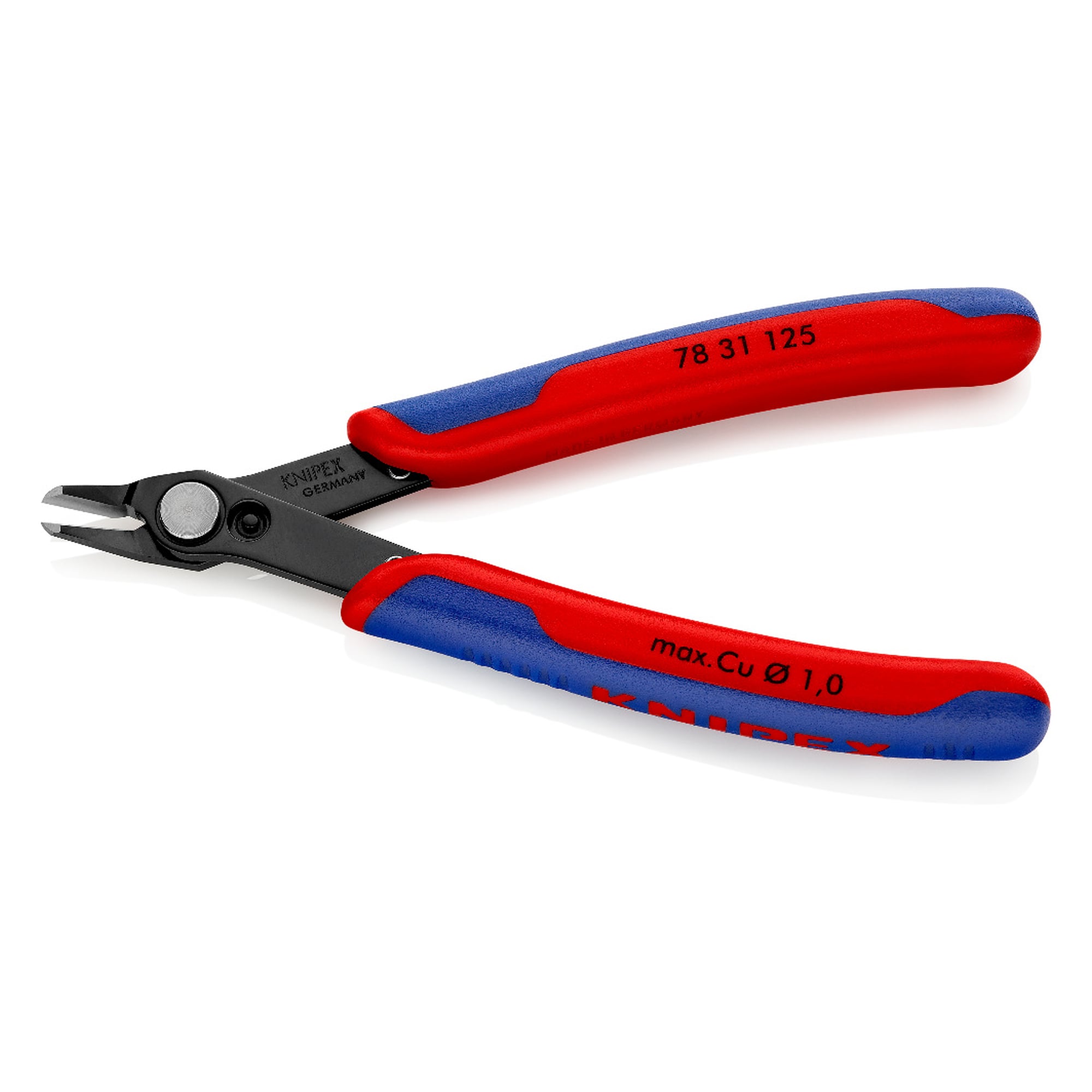

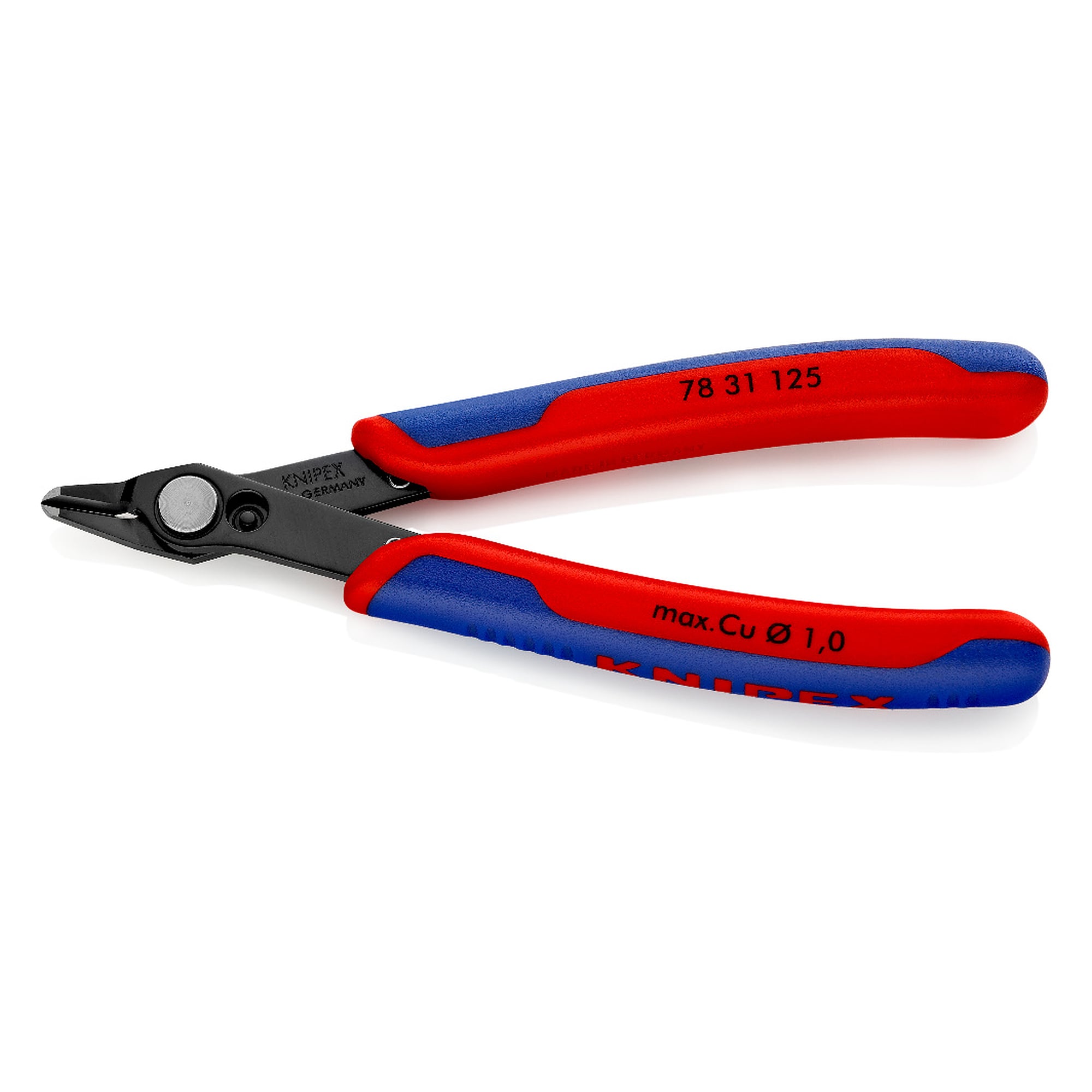

Electronic Super Knips with narrow head, edges approx. 60 HRC, 125 mm - Knipex 78 31 125
KNIPEX
Original product
Net price (excl. VAT)
€20.21
Item
WL13361
Manufacturer no.
78 31 125
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.78 31 125
EAN4003773039778
ConditionNew
Article
WL13361
Frequently Bought Together
-
This Item:
€20.21
-
Lindström 7190. Side cutters, Supreme series, pointed jaws, with bevel, 0.2-1 mm
€62.99
-
Lindström 8150 CO. Side cutters, 80 series, oval jaws, antistatic, 0.3-1.6 mm
€68.58
Total price
Between densely placed components the head width decides whether the tool can be applied at all. The 78 31 125 Electronic Super Knips is narrower than the standard version at 12.5 mm and cuts soft wire from 0.2 to 1.6 mm dia. with induction hardened edges of approx. 60 HRC.
Benefits
- Narrow head of 12.5 mm width for access between closely placed components.
- Cutting edges additionally induction hardened, hardness approx. 60 HRC, clearly higher than on the INOX version.
- Shear cut with a controlled micro offset of the cutting edge for long service life and an ultra precise cut even on the thinnest wires.
- Ground, very sharp cutting edges without bevel, exactly shaped tips for flush-lying wires from 0.2 mm dia.
- Extremely smooth action with opening spring and opening limiter for fatigue-free work.
- Special tool steel, burnished, joint with a stainless steel rivet, weight only 55 g.
Technical data
| EAN | 4003773039778 |
|---|---|
| Body | burnished |
| Head | burnished |
| Handles | with multi-component sleeves |
| Weight | 55 g |
| Dimensions | 125 x 60 x 13 mm |
| Standard | DIN ISO 9654 |
| Cutting capacity soft wire (diameter) | 0.2 - 1.6 mm |

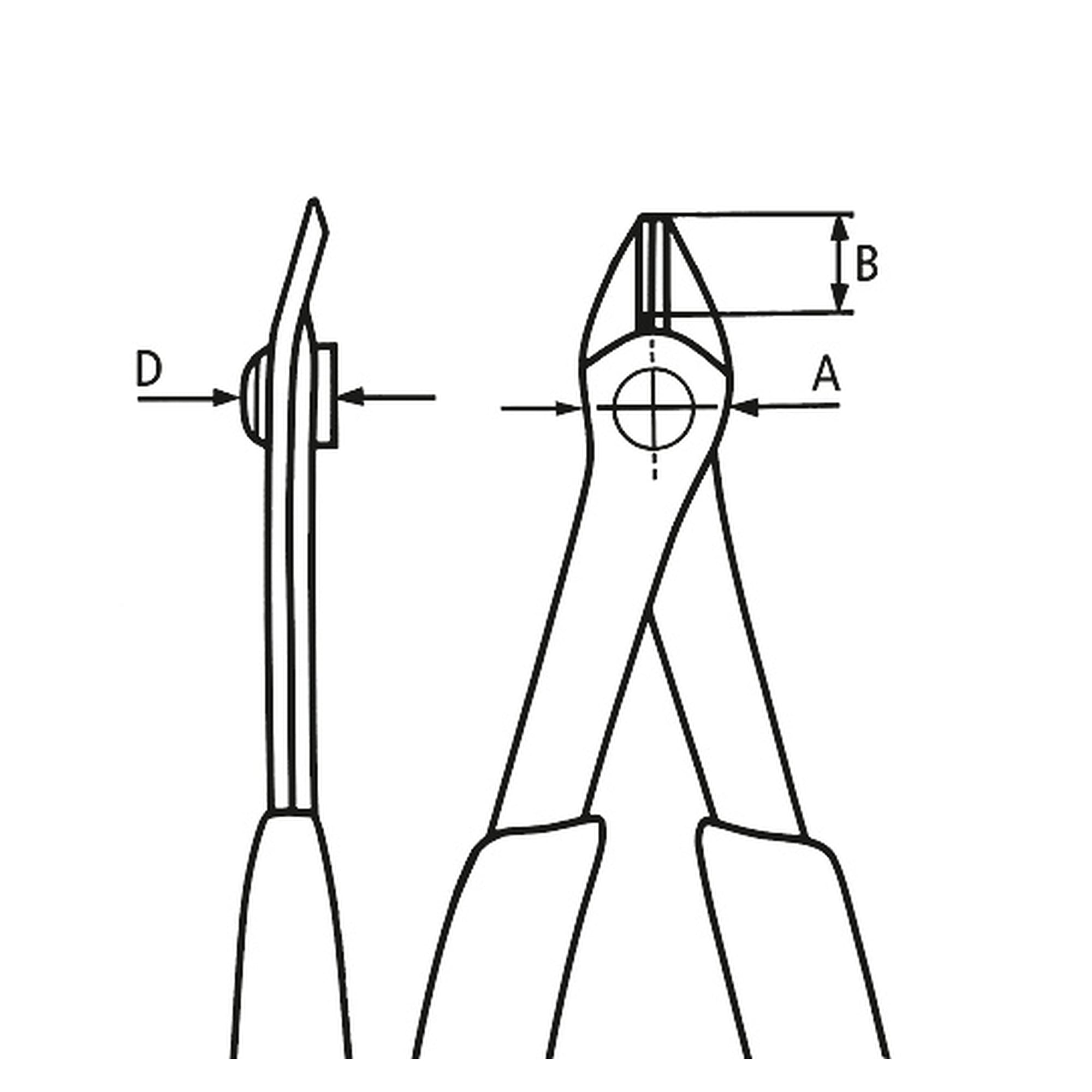

| Jaw length (B) | 9 mm |
| Jaw thickness at joint (D) | 7.5 mm |
| Head width (A) | 12.5 mm |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Areas of use
Board assembly and repair, precision mechanics, model making, laboratory work and prototyping. The narrow head pays off wherever several components block access to the lead.
Standards and conformity
The pliers comply with DIN ISO 9654. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
| Norm | DIN ISO 9654 |
|---|---|
| Manufacturer Nr. | 78 31 125 |
| Manufacturer | Knipex |
| EAN | 4003773039778 |
| Weight | 0.055000 |
| Height | 13 mm |
| Width | 60 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 125.000000 |
