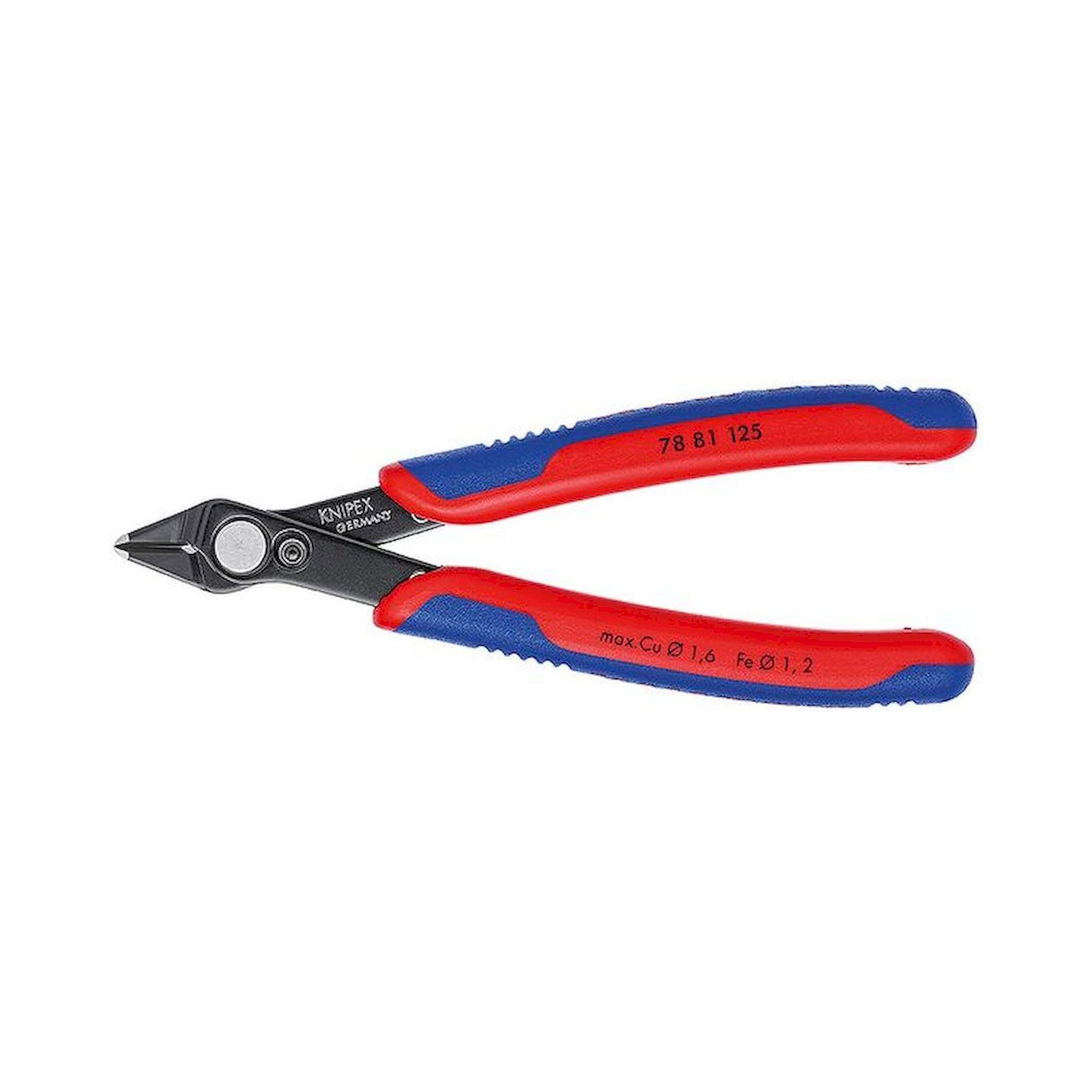

Electronic Super Knips® precision pliers for the finest cutting work, e.g. in electronics and precision mechanics. Ground, very sharp cutting edges without facet. Exactly shaped tips also cut adjacent wires from Ø 0.2 mm. Shear cut with controlled micro cutting edge offset for long life and ultra-precise cutting of even the thinnest wires. Joint with stainless steel rivet. Extremely smooth action for fatigue-free work. With opening spring and opening limiter. Precision-ground cutting edges with very small facet even for hard wire. Cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC. Special tool steel, burnished. - Shape: 8 - cutting values medium hard wire (diameter): Ø 1,2mm - cutting values hard wire (diameter): Ø 0,6mm - cutting values soft wire (diameter): Ø 0,2 - 1,6mm - jaw length (B): 9mm - jaw thickness (at joint) (D): 7,5mm - head width (A): 13,5mm
- Precision pliers for finest cutting work, e.g. in electronics and precision mechanics
- Ground, very sharp cutting edges without facet
- Exactly shaped tips also cut adjacent wires from Ø 0.2 mm
- Shear cut with controlled micro cutting edge offset for long service life and ultra-precise cutting of even the thinnest wires
- Joint with stainless steel rivet
- Extremely smooth action for fatigue-free work
- With opening spring and opening limiter
Product details
| item number | WL34555 |
| model | 78 81 125 |
| manufacturer | KNIPEX |
| manufacturer item number | 78 81 125 |
| dimensions (LxWxH) | 130 mm x 50 mm x 16 mm |
| dimensions with packaging (LxWxH) | 189 mm x 72 mm x 48 mm |
| Packaging volume | 0.637 dm³ |
| order unit | piece |
| type of packaging | single pack |
| standards | DIN ISO 9654 |
| product series | Electronic-Super-Knips® |
| RoHS conform | no |
| surface | burnished |
| VDE | no |
| ESD safe | no |
| Cut form | without bevel |
| tool length | 125 mm |
| type of side cutter | side cutter |
| type of handle | With multi-component sheaths |
| cutting value wire diameter hard | 0.6 mm |
| cutting value wire diameter medium | 1.2 mm |
| cutting value wire diameter soft | 1.6 mm |
