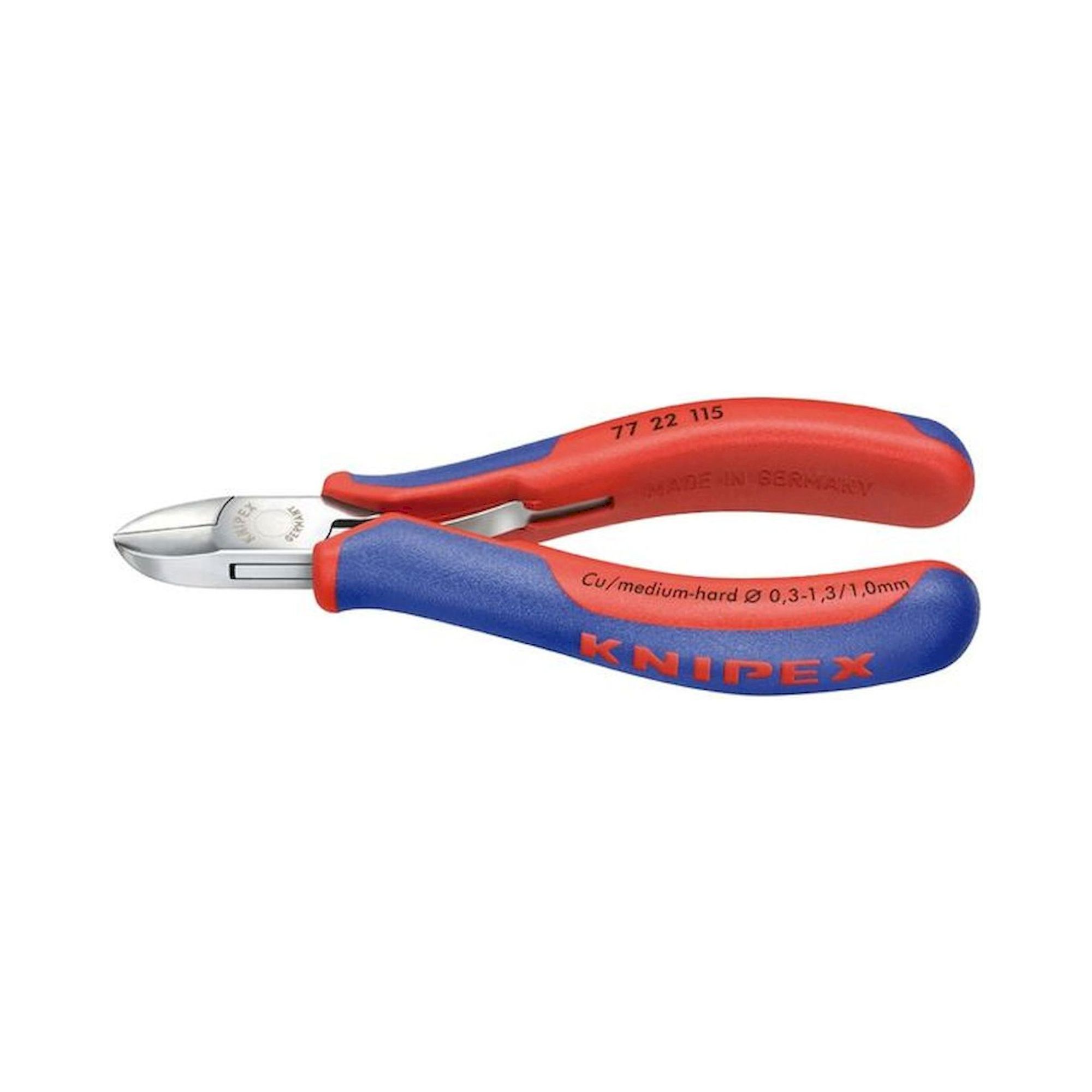

Electronics diagonal cutter, round head without bevel, 115 mm - Knipex 77 22 115

Wherever the lead has to end flush with the board, a bevel on the cutting edge gets in the way. The 77 22 115 electronics diagonal cutter therefore has a round head without bevel. It cuts soft wire from 0.3 to 1.3 mm dia. and medium hard wire up to 1.0 mm dia., the edges being laser hardened to approx. 62 HRC.

Benefits

• Durable, load-optimised design with a through-pinned, backlash-free box joint that gives a more direct feel when working.
• Slim sleeves drawn up towards the head allow fine and comfortable gripping between thumb and index finger.
• Less physical effort thanks to the high transmission ratio, plus a low-friction double spring for smooth and even opening.
• Round head without bevel for cuts flush with the board, head width 11 mm.
• Mirror polished head with a fine oil film protects against rust. No chrome flakes come loose that could cause faults in the circuit.

Technical data

Areas of use

Board assembly and repair, precision mechanics, laboratory work and prototyping. The cutter severs component leads, cable ties and thin strands wherever access between components is tight.

Standards and conformity

The pliers comply with DIN ISO 9654. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
