Statfree CV280 Conductive PVC Floor Roll, 2 mm x 1.2 m x 18.3 m, Black - Desco 80171

Walkways, machine fronts and the space under chairs and carts take the most wear, yet the floor still has to be part of the ground path for people wearing ESD footwear. Statfree CV280 in homogeneous conductive PVC generates no charge itself and sits in the conductive range at 1 x 10⁴ to 1 x 10⁶ ohms (Rtt). The roll measures 2 mm x 1.2 m x 18.3 m.

Key benefits

• Conductive: Rg and Rp-p < 1 x 10⁶ ohms per IEC 61340-4-1, the floor/footwear system stays below 3.5 x 10⁷ ohms per ANSI/ESD S20.20 Method 1.
• Tolerates dirt: the pebble-embossed surface remains low enough in resistance for the ground path with normal dirt build-up.
• Lays flat: edges do not curl, suitable for heavy foot traffic, chairs and carts.
• Protects existing ESD floors: works with ESD floor tiles and finishes and reduces their maintenance.
• Traceable: lot information for the full service life.

Applications

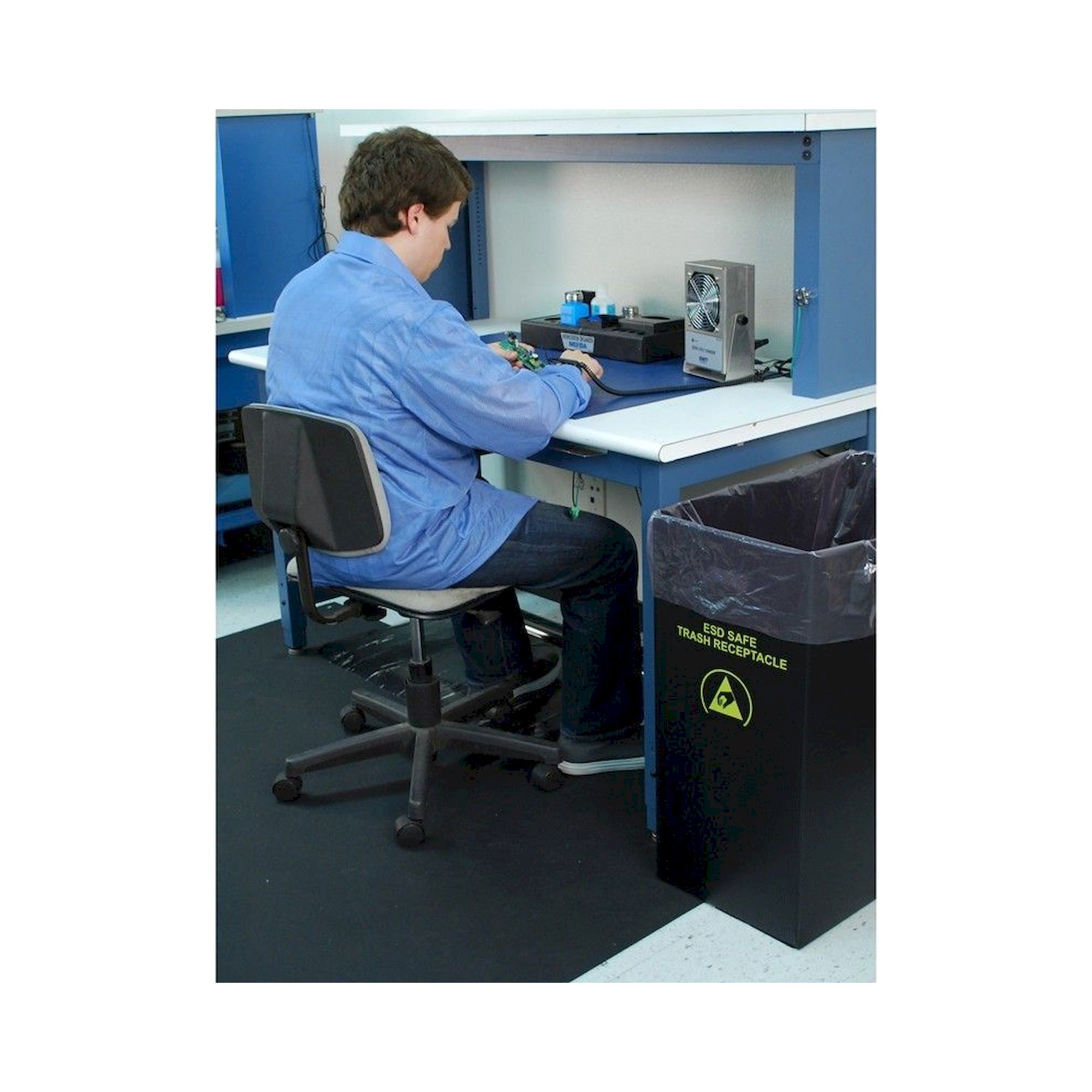

Conductive floor covering for aisles, standing workstations and cart routes in electronics production, also as a protective layer over ESD tiles. On a grounded substrate no separate grounding hardware is needed, otherwise connect it with a floor grounding kit. Resists inorganic and organic acids, mineral oil, aliphatic hydrocarbons, aldehydes and amines. Let the material relax for at least 4 hours before cutting.

Standards

Meets the ESD flooring requirements of EN 61340-5-1 and the floor/footwear limits of ANSI/ESD S20.20 Method 1. Verify Rg periodically with a surface resistance meter per EN 61340-5-1. RoHS compliant, lead-free.
