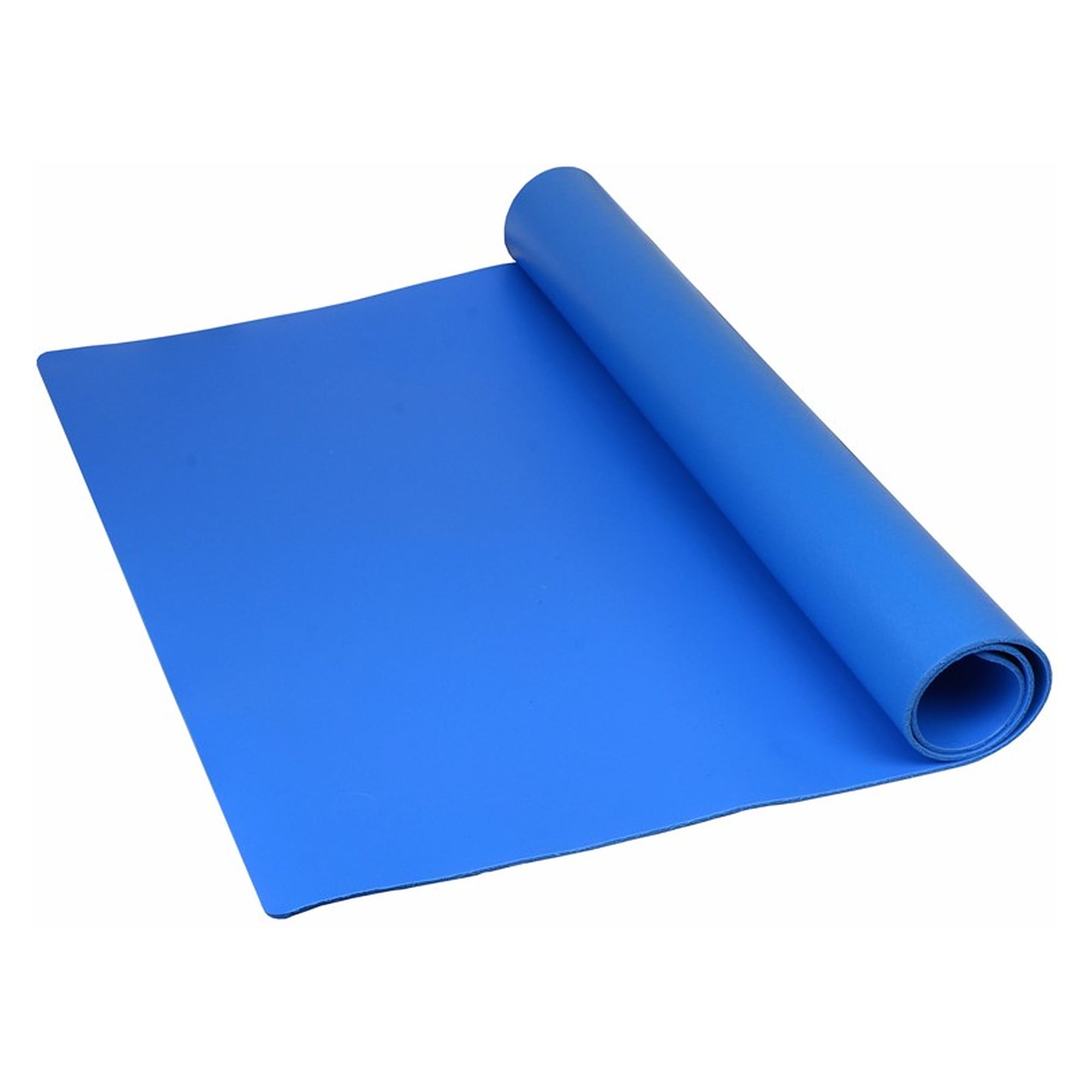

Statfree O ESD Mat, 3-Layer Vinyl, Cushioned, Blue, Roll 9.5 mm x 0.6 x 18.3 m - Desco 80530

Where assemblies need protection not only from discharge but also from being dropped or set down hard, a thin mat is not enough. At 9.5 mm, Statfree O is considerably thicker than standard bench mats: a cushioned bottom layer absorbs impact energy, while the dissipative top prevents charge generation and dissipates at 1 x 10⁶ to < 1 x 10⁹ ohms.

Key benefits

• 9.5 mm thickness with cushioned bottom layer protects products from physical shock
• Conductive mesh middle layer (< 1 x 10⁴ ohms) lowers resistance to ground, monitor compatible
• Electrical values do not drift over the life of the mat, limited lifetime warranty
• Laser engraved with ESD symbol, specs and manufacturer for auditing
• Works as table mat, shelf liner or cart liner, lead-free and RoHS compliant

Applications

Worksurfaces, shelves and carts holding sensitive assemblies, disk drives or modules. Let the material relax unrolled for at least 4 hours before cutting. Grounding hardware not included.

Standards

Meets the worksurface requirements of EN 61340-5-1 and the ANSI/ESD S20.20 required limit.
