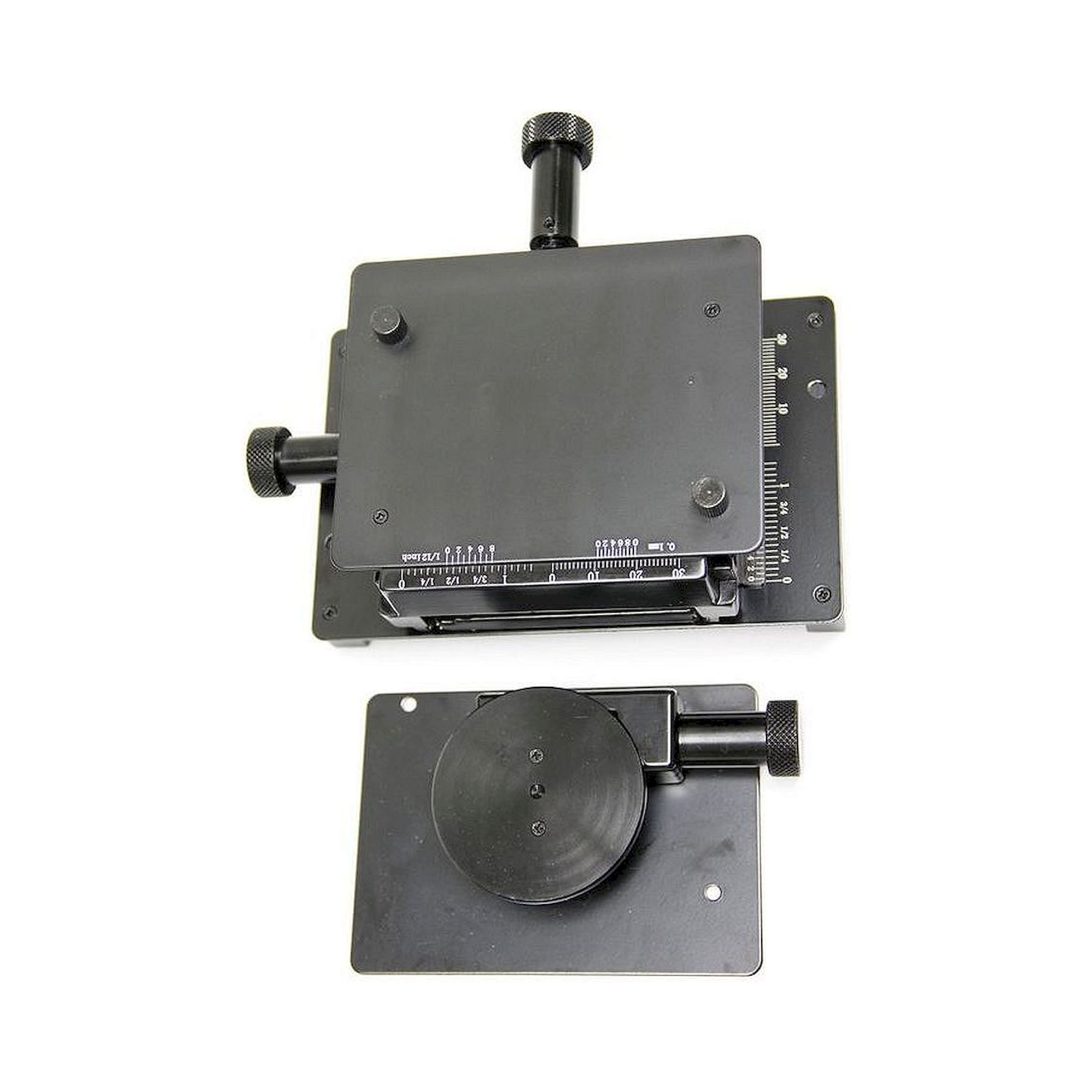

X/Y stage table with 360-degree rotating table - Dino-Lite MS15X
The Dino-Lite MS15X XY stage moves the object in X and Y with fine knobs, and the rotating table on top turns it through 360 degrees. It works stand-alone or clamps to the RK-06A and RK-10A stands with the included clamps. For all Dino-Lite handheld microscopes.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Pushing a sample around by hand under the microscope means losing framing and focus at high magnification. The Dino-Lite MS15X moves the object instead: fine adjustment knobs traverse the stage finely in X and Y, and a detachable rotating table on top turns the sample through 360 degrees. The microscope stays fixed in the stand.
The metal stage weighs 907 g and works stand-alone. With the included clamps it attaches to the RK-06A and RK-10A stands, so stand and stage act as one unit.
What it does in practice
- Follow component rows and edges without touching the sample.
- Change the viewing angle on the rotating table without re-clamping the sample.
- Clamped to an RK-06A or RK-10A, stage and microscope cannot shift against each other.
Works with
Microscopes: all Dino-Lite handheld microscopes according to the manufacturer, since the stage moves the object, not the microscope.
Stands: in Europe the manufacturer specifies mounting on the RK-06A and RK-10A. For the US version it also lists the RK-10FS and RK-06F (sold there as RK-06FA) and the MS35B, MS37B and MS45BX-D2 stand sets, using clamps or the MS15X-P4 mounting bracket. Without a stand the stage sits freely on the bench.
Technical data
| Property | Value |
|---|---|
| Type | XY stage with detachable 360 degree rotating table |
| Travel X x Y | 1.5 x 1.25 in (approx. 38 x 32 mm) |
| Table size | 3.25 x 4.25 in (approx. 83 x 108 mm) |
| Mounting | stand-alone or clamped to RK-06A and RK-10A |
| Material | Metal |
| Dimensions | 12.7 cm (W) x 15.2 cm (L) x 7.6 cm (H) |
| Weight | 907 g |
| ESD safe | No |
| Regulatory approval | CE, FCC |
| Warranty | 2 years manufacturer warranty |
| Package contents | XY base, rotating table, clamps |
| Manufacturer | Dino-Lite |
| Manufacturer Nr. | MS15X |
| EAN | 4712805472666 |
| HS-Code | 90119090 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment, info@esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Taiwan |
| ESD version | TEC |
| ESD equipment | USB Mikroskop |
