Flexible stand arm 30 cm for MS35 and MS36 stands - Dino-Lite MSAK810
The Dino-Lite MSAK810 flex arm attaches to the column of the RK-06A, RK-06-AE and RK-06F stands and holds a Dino-Lite microscope at up to 30 cm reach in any bent position. That puts a second microscope on the same stand. The HD-P1 holder is included.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

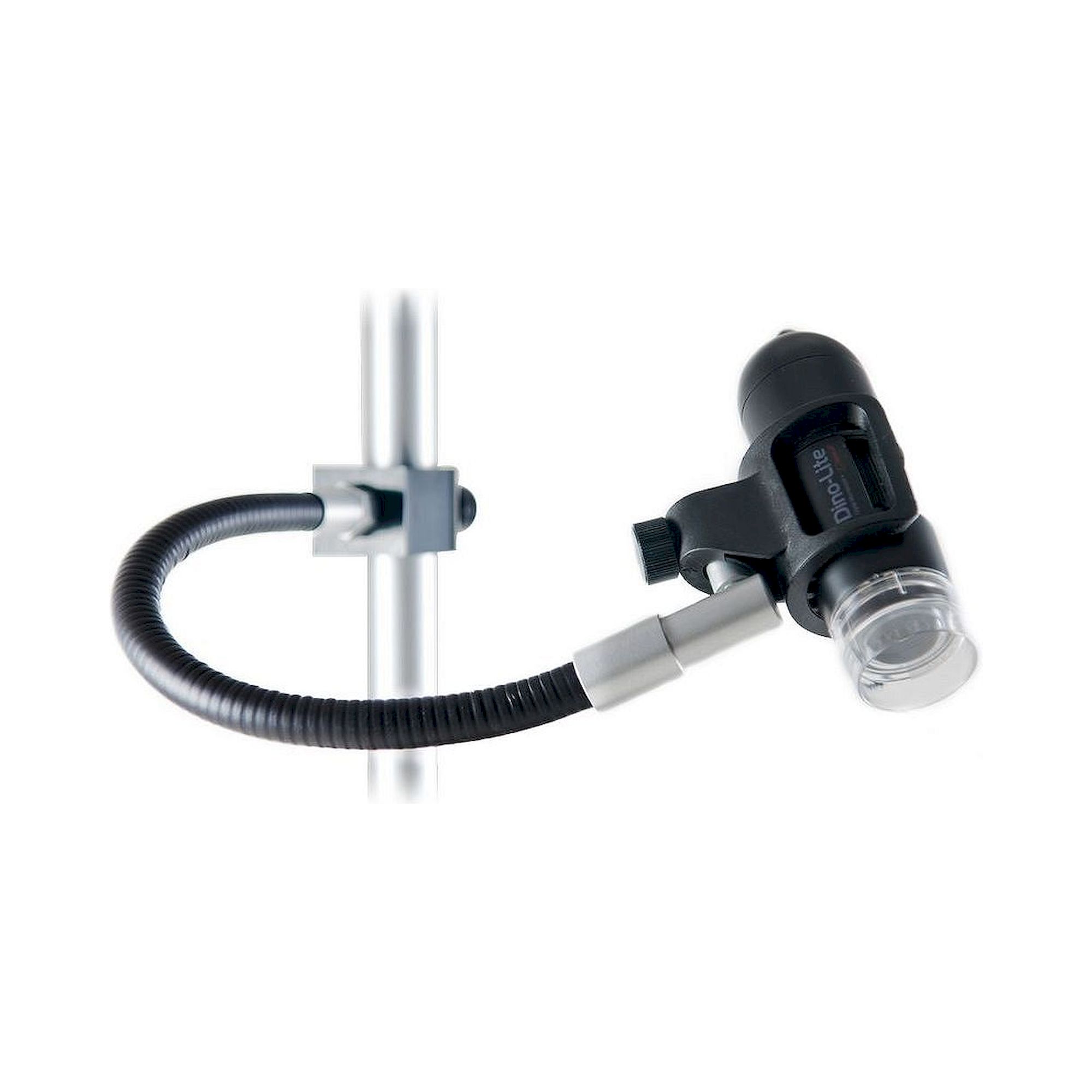

Some inspections need a second angle, for example a side view of a solder joint while the main microscope looks from above. The Dino-Lite MSAK810 is a flexible arm with up to 30 cm reach that attaches to the column of an RK-06A, RK-06-AE or RK-06F. Bend and twist it until the microscope sits where you want it, and it holds that position hands free.
What it does in practice

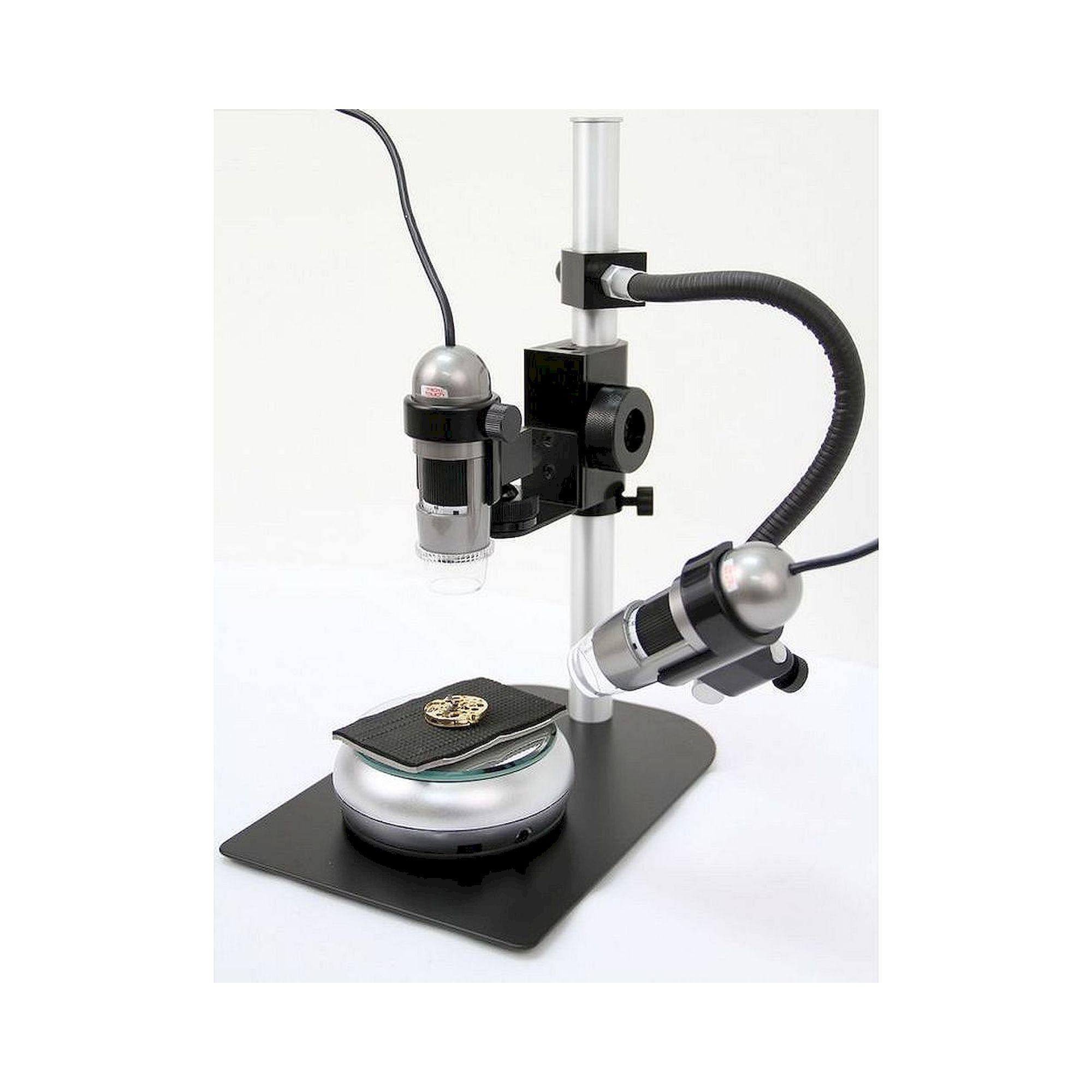

- Two Dino-Lite microscopes on one stand: one on the horizontal arm, one on the flex arm.
- Oblique and side views without rebuilding the stand.
- At 181 g it adds little load to the column.
Works with
Microscopes: all Dino-Lite models according to the manufacturer, meaning Edge, Edge PLUS, Edge 3.0, DinoConnect (AF), Basic and AD models.
Stands: the column of the RK-06A, RK-06-AE and RK-06F according to the manufacturer. The manufacturer does not list the arm for other stands.
Holders: the HD-P1 holder is included.
Not suitable: the arm is not ESD safe. That also applies when it is fitted to the RK-06-AE ESD stand.
Combines with: the RK-06-PL extension pole, which lengthens the column of the RK-06 stands.
Technical data
| Property | Value |
|---|---|
| Type | Flex arm for mounting on the stand column |
| Reach | up to 30 cm |
| Dimensions | 35.5 cm (W) x 3.1 cm (L) |
| Weight | 181 g |
| ESD safe | No |
| Warranty | 2 years manufacturer warranty |
| Package contents | Flex arm, HD-P1 holder |
| Manufacturer | Dino-Lite |
| Manufacturer Nr. | MSAK810 |
| EAN | 4712805476176 |
| HS-Code | 90119090 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment, info@esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Taiwan |
| ESD version | TEC |
| ESD equipment | USB Mikroskop |
Downloads
Datasheet
User Manual
Brochure
