Ersadur permanent soldering tip for i-Tool, straight pencil-point, 0.3 mm - Ersa 0102PDLF03

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Ersadur permanent soldering tip for i-Tool, straight pencil-point, 0.3 mm - Ersa 0102PDLF03

Name: Ersadur permanent soldering tip for i-Tool, straight pencil-point, 0.3 mm - Ersa 0102PDLF03
Brand: Ersa
SKU: ER-0102PDLF03
Price: 10.32 EUR
Availability: InStock

Ersa ✓ Original product Brand new Made in Germany

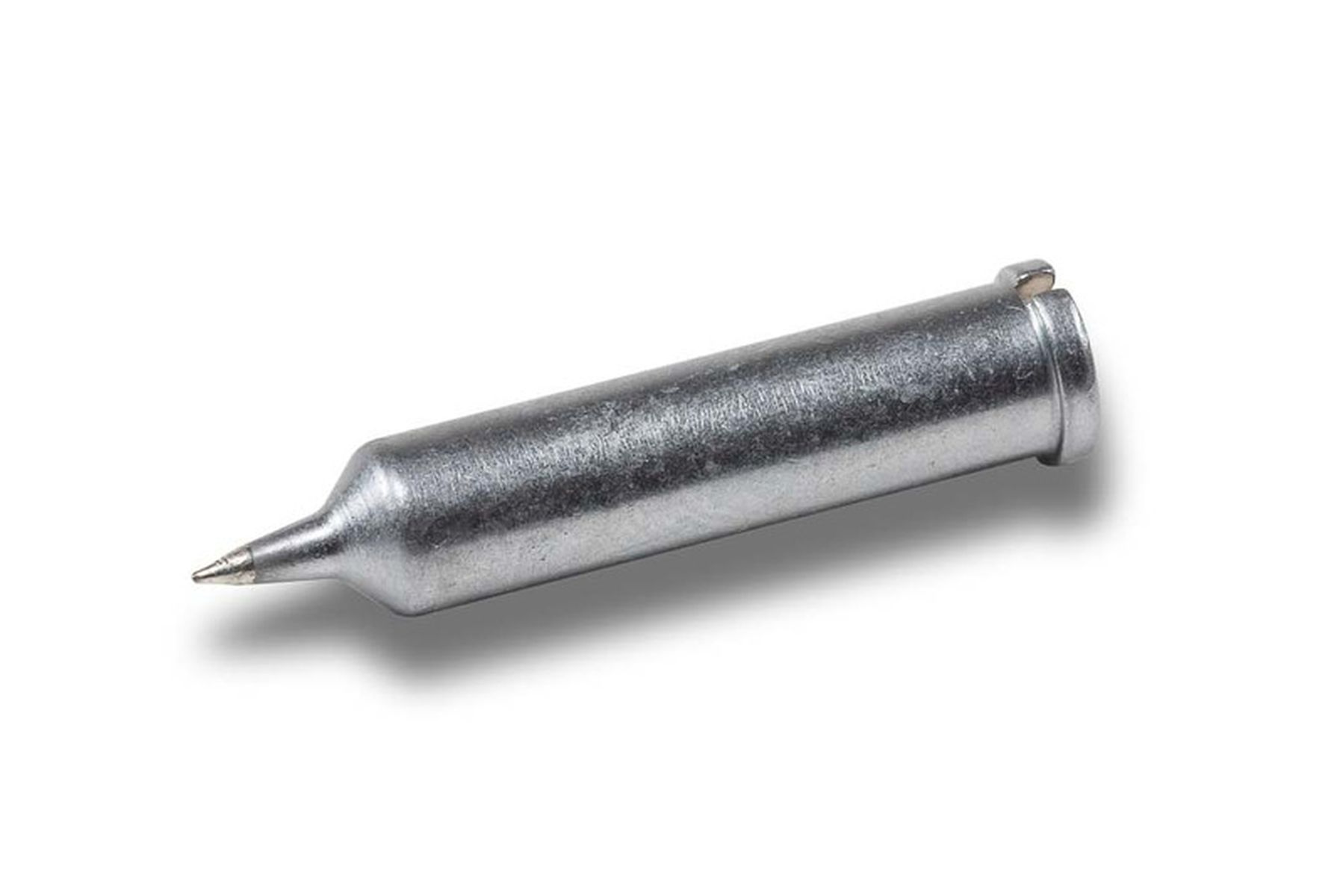

Ersadur long-life soldering tip for the ERSA i-Tool, straight version with a 0.3 mm pencil-point tip for fine, precise soldering work. The galvanic iron and chrome plating resists corrosion and ensures optimal heat transfer in continuous operation.

Net

€10.32

excl. VAT

Item ER-0102PDLF03

Manufacturer no. 0102PDLF03

Question about this item

Datasheet (PDF) Declaration of conformity User manual 9 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

ERSA i-Tip Ersadur long-life soldering tip, straight and pencil-point, 0.3 mm diameter, with Ersadur-LF coating.

Suitable for the i-Tool soldering iron (0100CDJ) of the i-CON soldering station in the versions 0IC1000A, 0IC1100A, 0IC1100V, 0IC2000A, 0IC2000AIT, 0IC2000AC, 0IC2000AXT, 0IC2200V, 0IC2200VC, 0IC2200VIT, 0IC2200VXT, 0IC2100VC and 0IC2100VXT.

Ersadur soldering tips are produced to a high standard and built for continuous operation. In a special process they are galvanically plated with an iron layer and protected against corrosion and oxidation by an additional chrome layer. Perfect heat transfer protects the heating element of the soldering iron from overheating and premature wear. ERSA offers a comprehensive range of soldering and desoldering tips for the ERSA i-Tool, i-Tool Pico and i-Tool Nano.

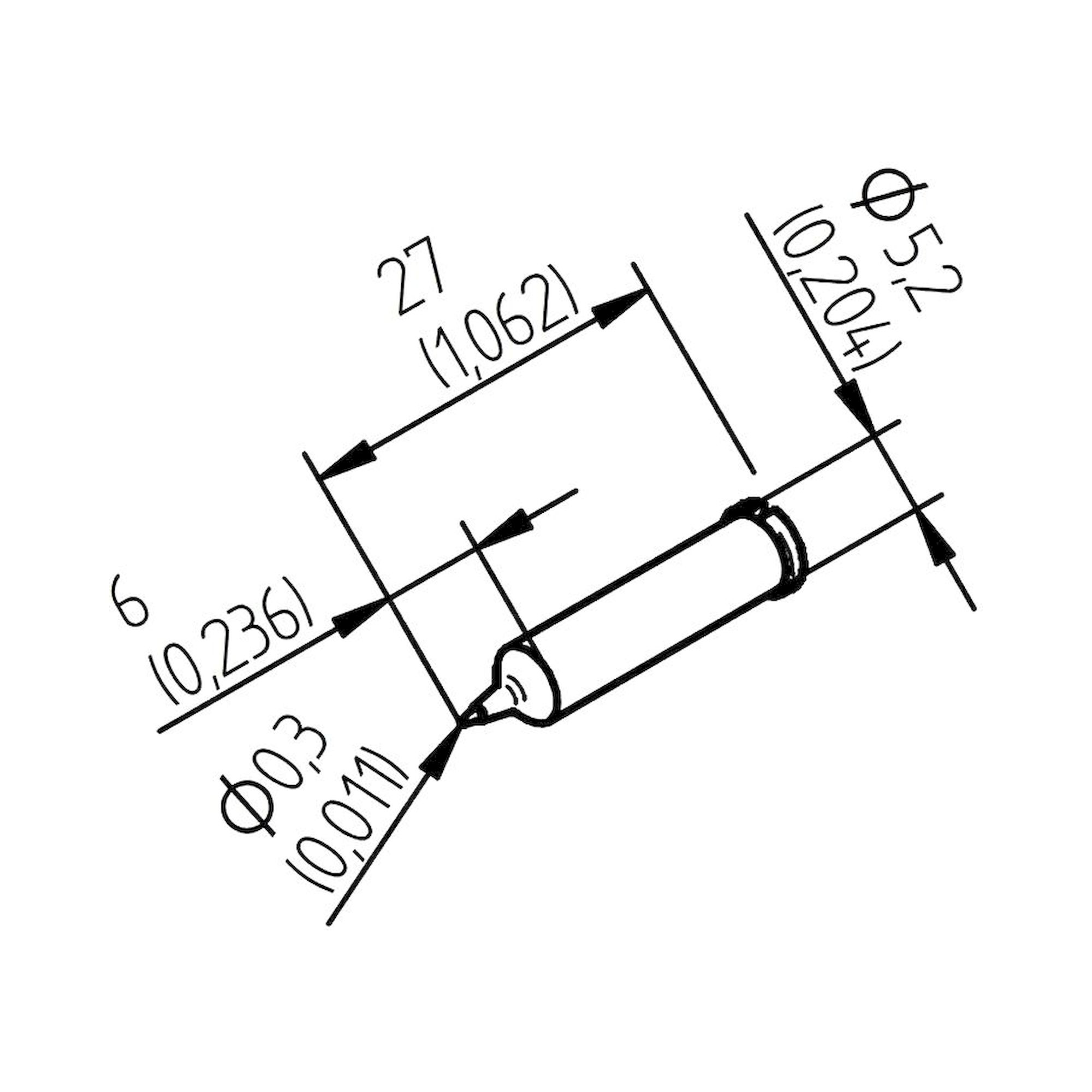

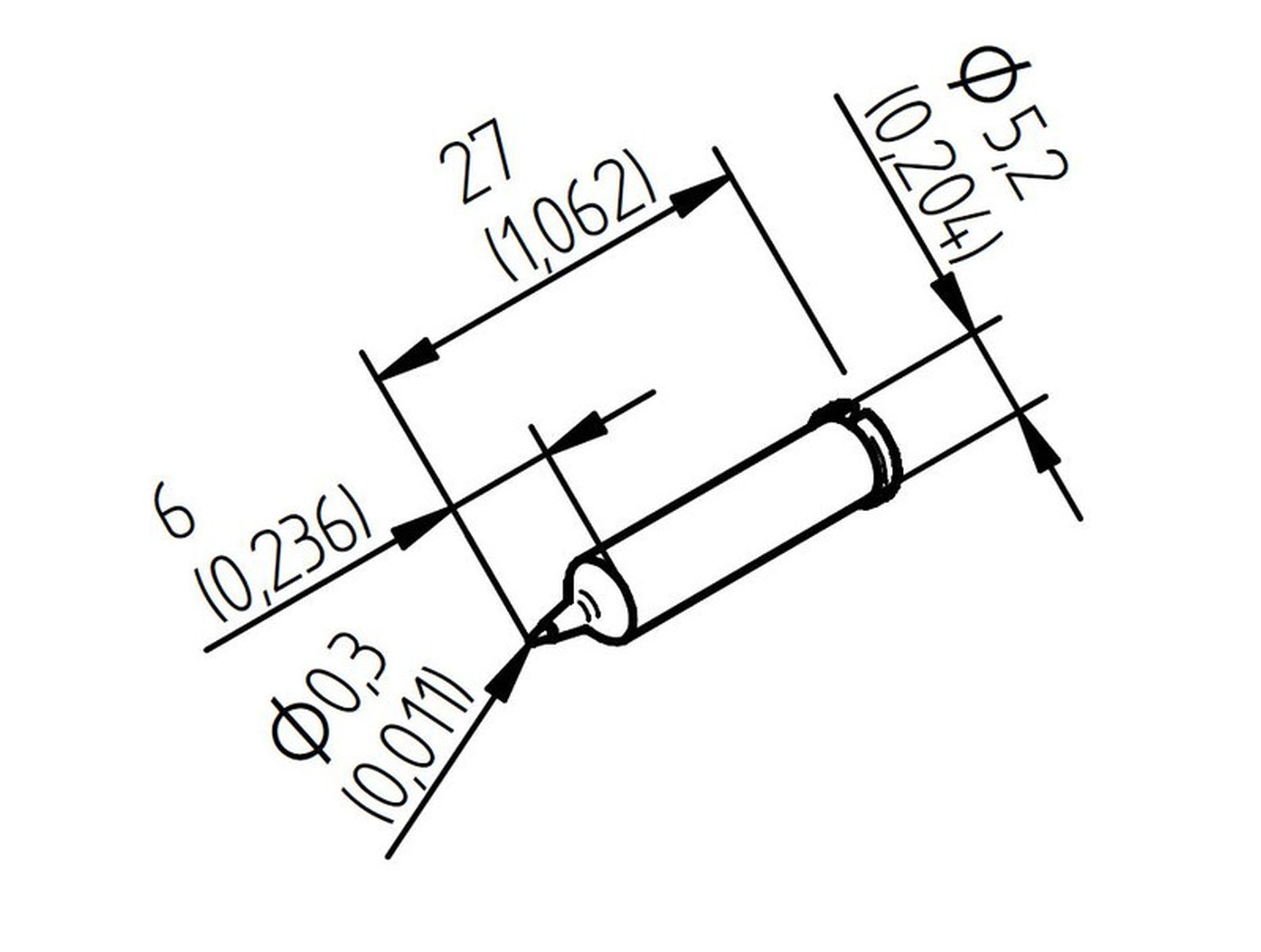

Technical data

RoHS compliant	No
Total length	27 mm
Tip coating	Permanent soldering tip
Outer diameter shank	5.20 mm
Inner diameter shank	3.00 mm
Tip series	0102
Version	Straight
Tip form	Pencil-point
Tip diameter	0.30 mm
Net weight	0.01 kg
Weight	0.01 kg
Manufacturer	Ersa
Manufacturer Nr.	0102PDLF03
EAN	4003008101348
GPSR manufacturer information	Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Ausführung	gerade
ESD version	TEC
Certification	RoHS 2011/65/EU
Tip diameter/width [mm]	0.3
Soldering tip coating	Dauerlötspitze
Soldering tip shape	bleistiftspitze
Overall length [mm]	27
Shank outer diameter [mm]	5.2
Shank inner diameter [mm]	3.5
Series	102
