Ersadur Soldering Tip for Ersa 150 S, straight, chisel-shaped, 5.3 mm - Ersa 0152KD
Ersadur long-life soldering tip for the ERSA 150 S soldering iron. Straight, chisel-shaped tip with a 5.3 mm width for precise soldering. Galvanic iron and chrome plating ensures optimal heat transfer and a long service life in continuous use.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

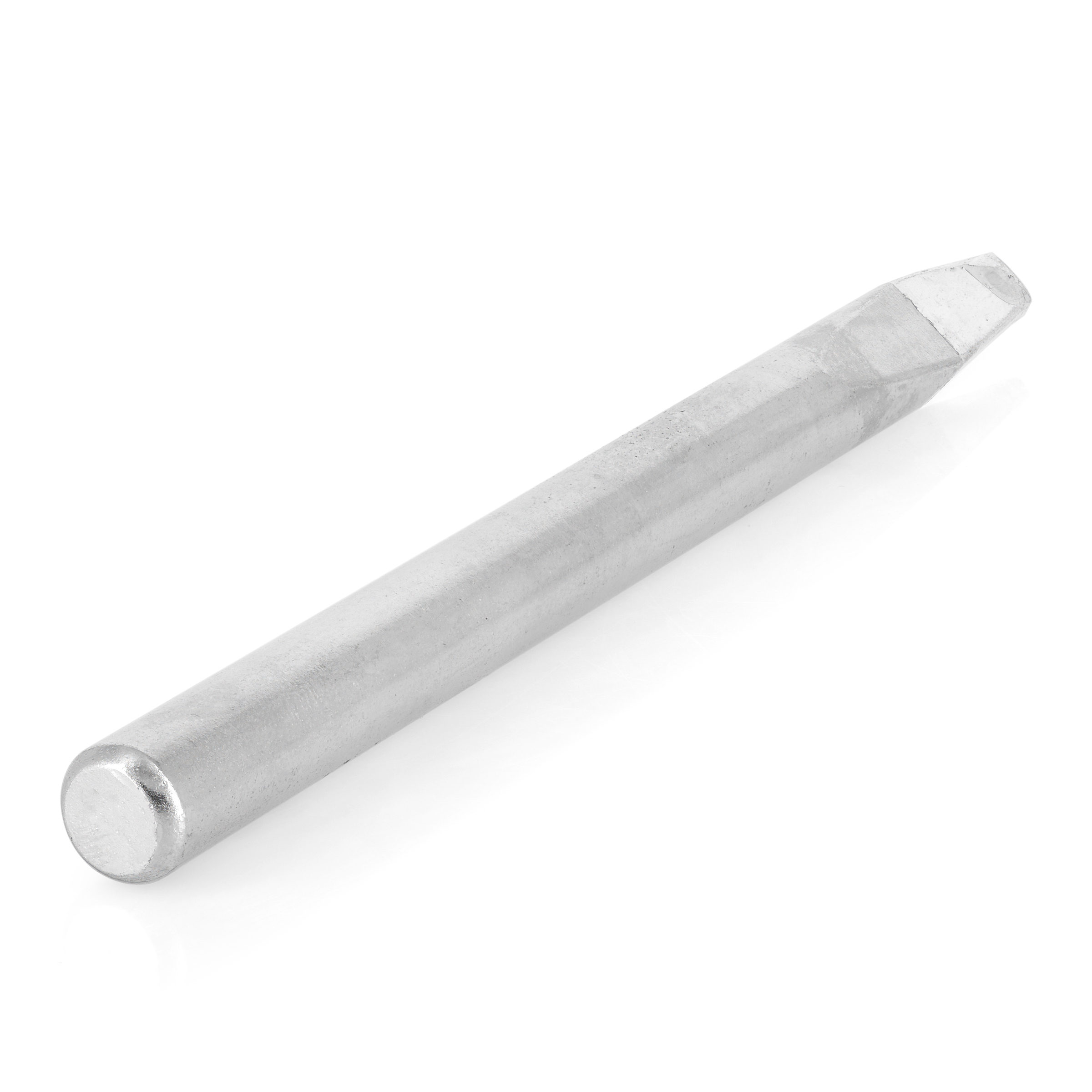

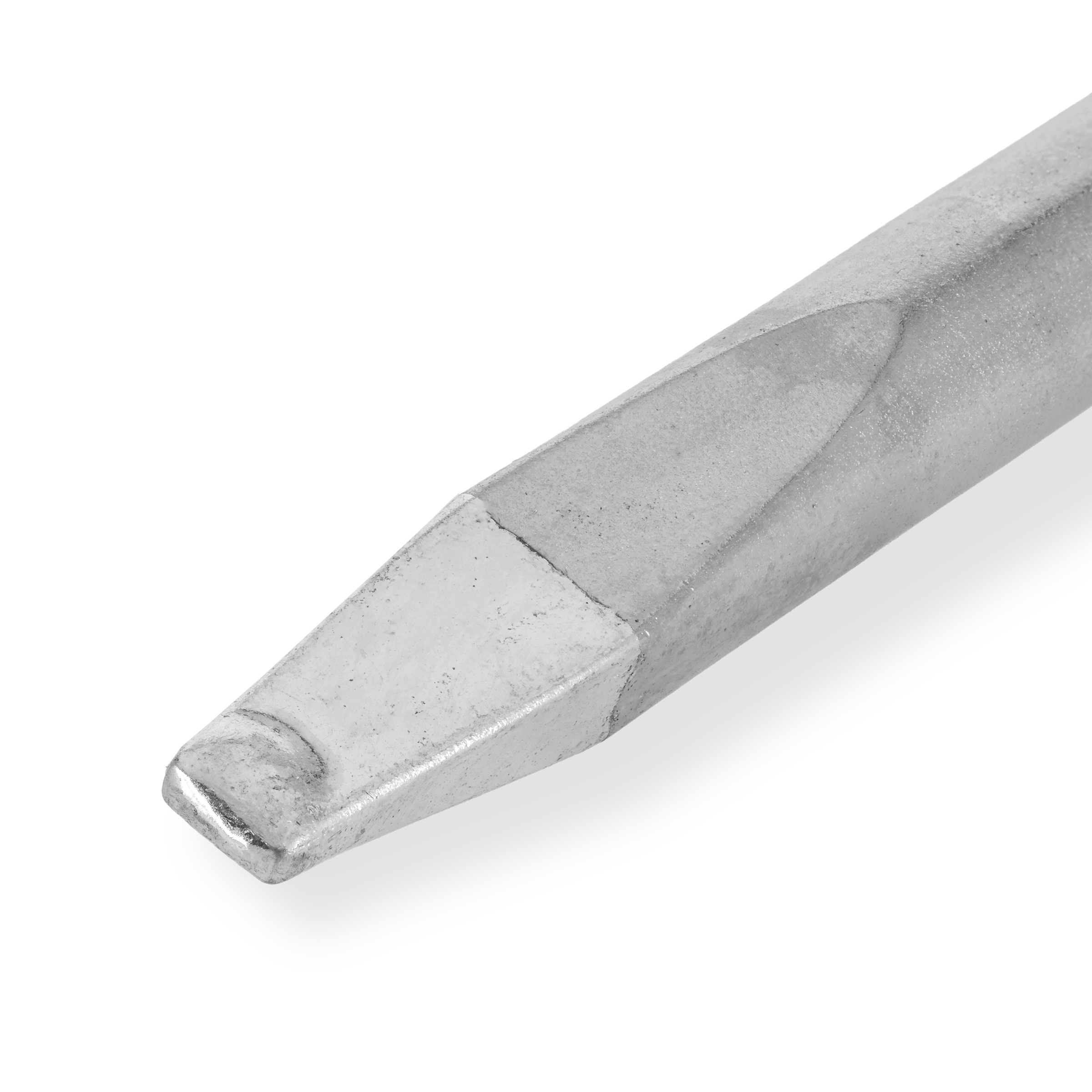

Straight, chisel-shaped soldering tip, 5.3 mm wide, with Ersadur plating for the ERSA 150 S soldering iron. Ersadur soldering tips are produced to a high standard and built for continuous operation. In a special process they are galvanically plated with an iron layer and protected against corrosion and oxidation by an additional chrome layer. Perfect heat transfer protects the heating element of the soldering iron against overheating and premature wear.

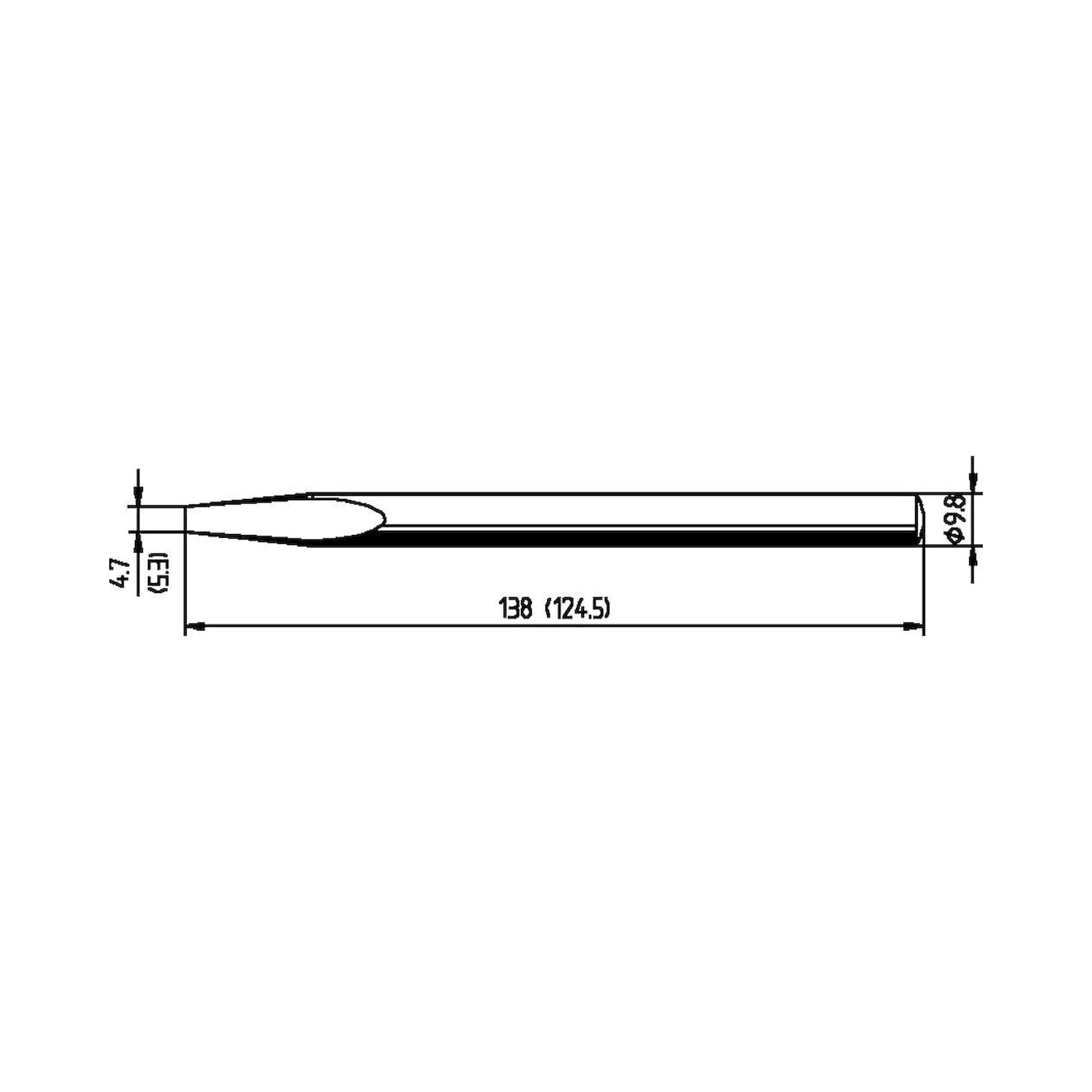

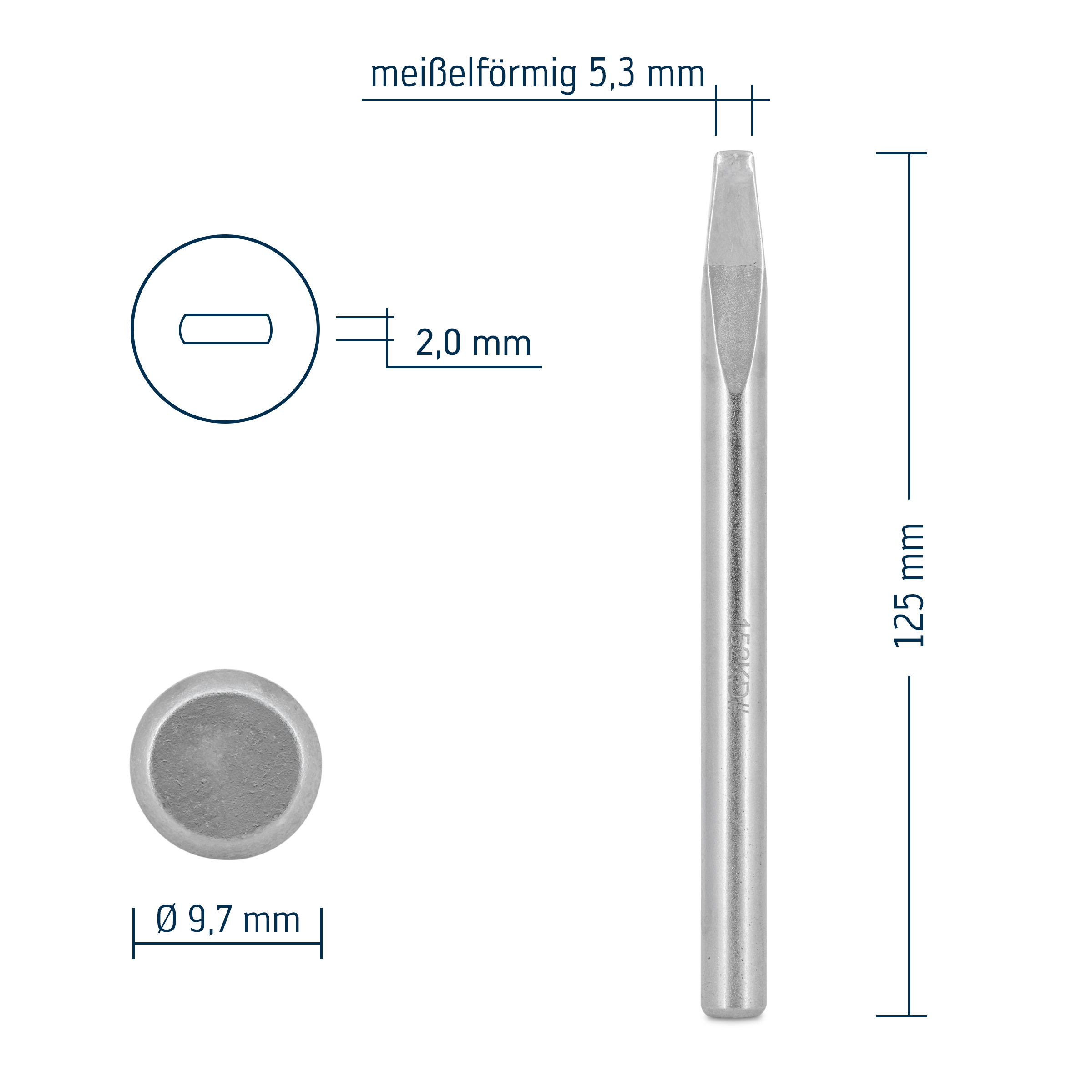

Technical data
| RoHS compliant | Yes |
|---|---|
| Design | straight |
| Tip plating | long-life tip |
| Tip shape | chisel-shaped |
| Tip diameter/width | 5.30 mm |
| Shank outer diameter | 9.80 mm |
| Overall length | 138 mm |
| Weight | 0.08 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0152KD |
| EAN | 4003008052909 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | gerade |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Certification | RoHS 2011/65/EU |
| Tip diameter/width [mm] | 5.3 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | meißelförmig |
| Overall length [mm] | 138 |
| Shank outer diameter [mm] | 9.8 |
