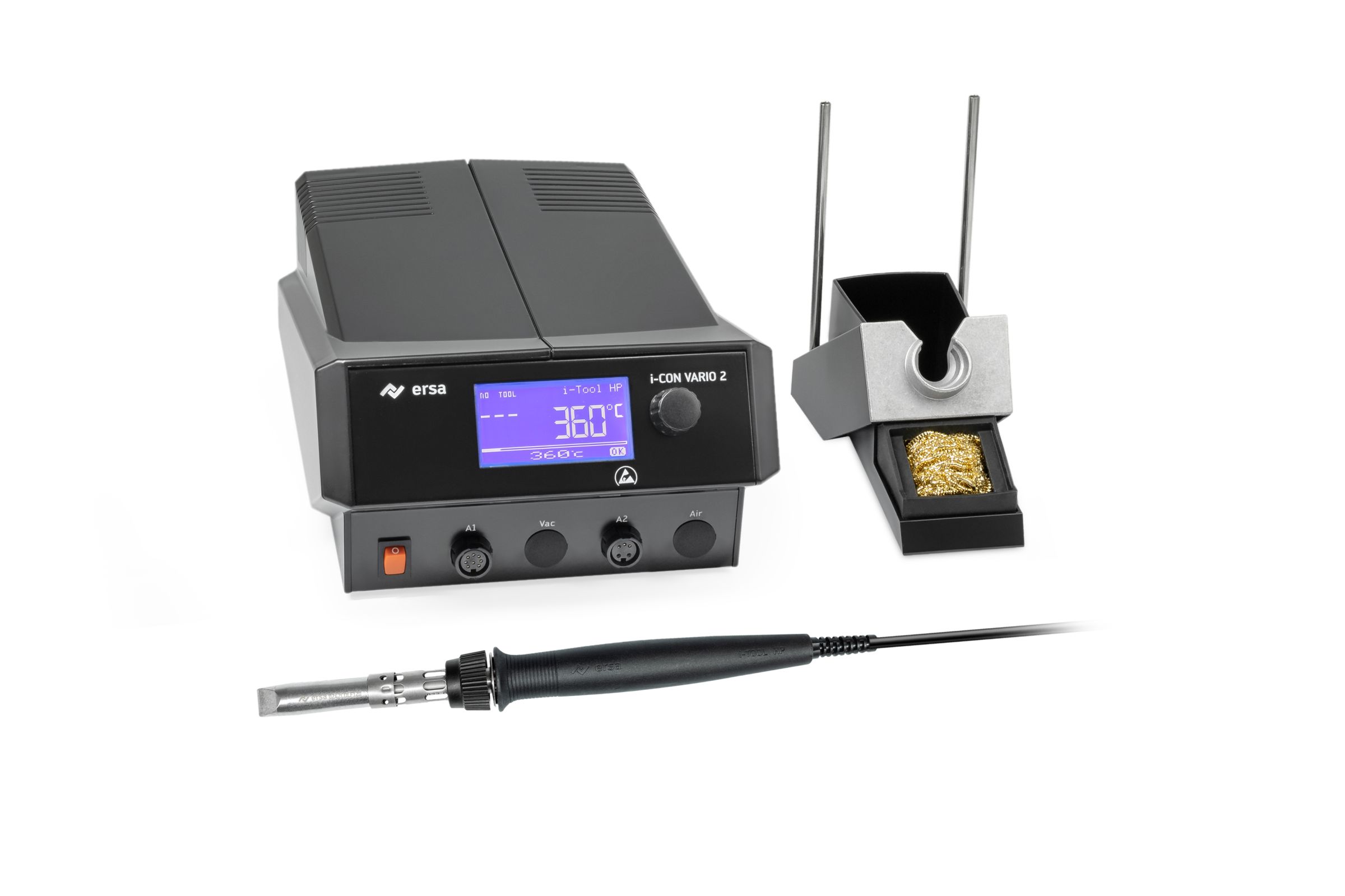

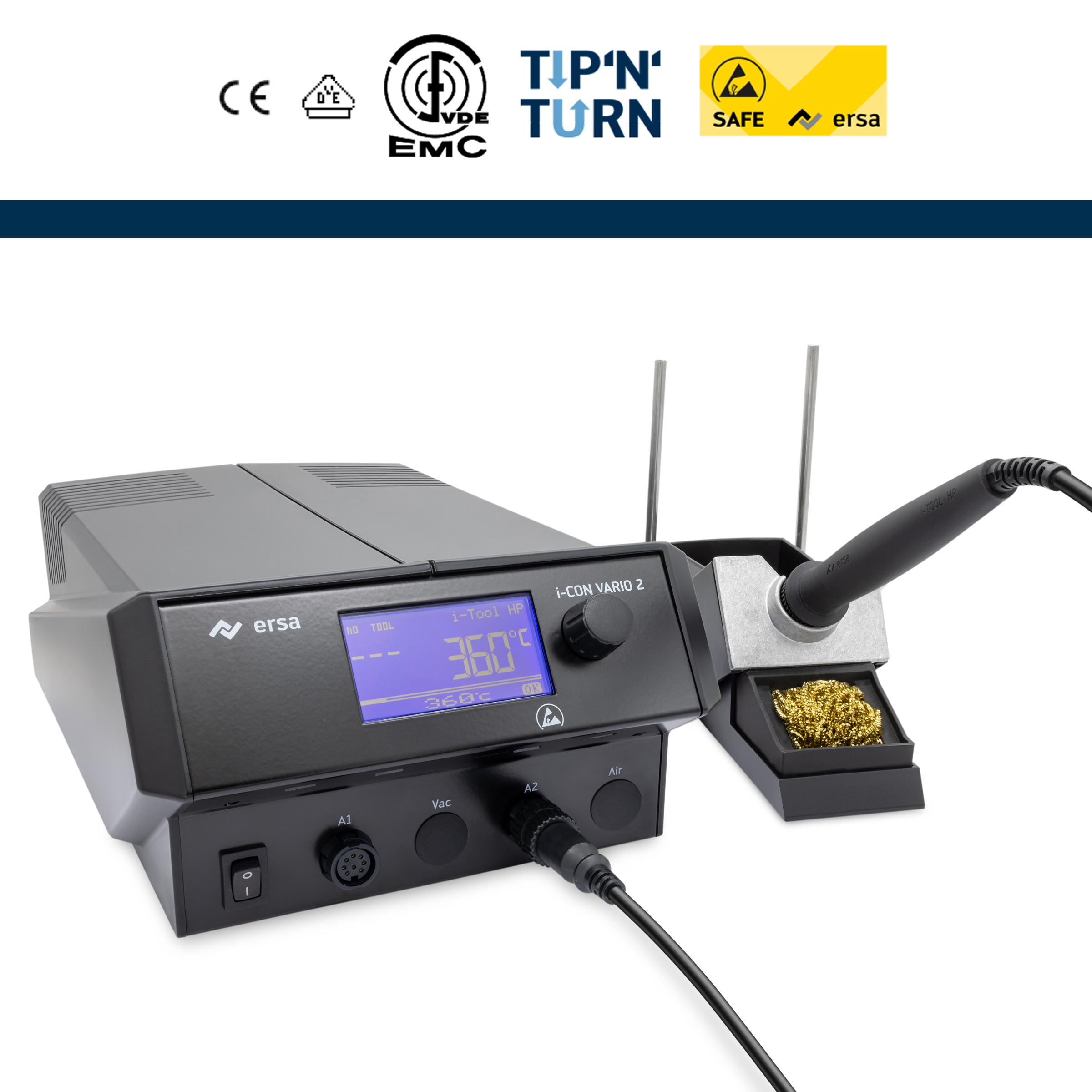

i-CON Vario 2 HP MK2 ESD 2-Channel Soldering Station with i-Tool HighPower 250 W - Ersa 0ICV2005HP
ESD 2-channel soldering station i-CON VARIO 2 HP MK2 supplied with the 250 W i-Tool HighPower and auto-standby. Ideal for heat-intensive joints on heavy cables, sheet metal and high-mass components. Compatible with many tools of the i-Con Vario family.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

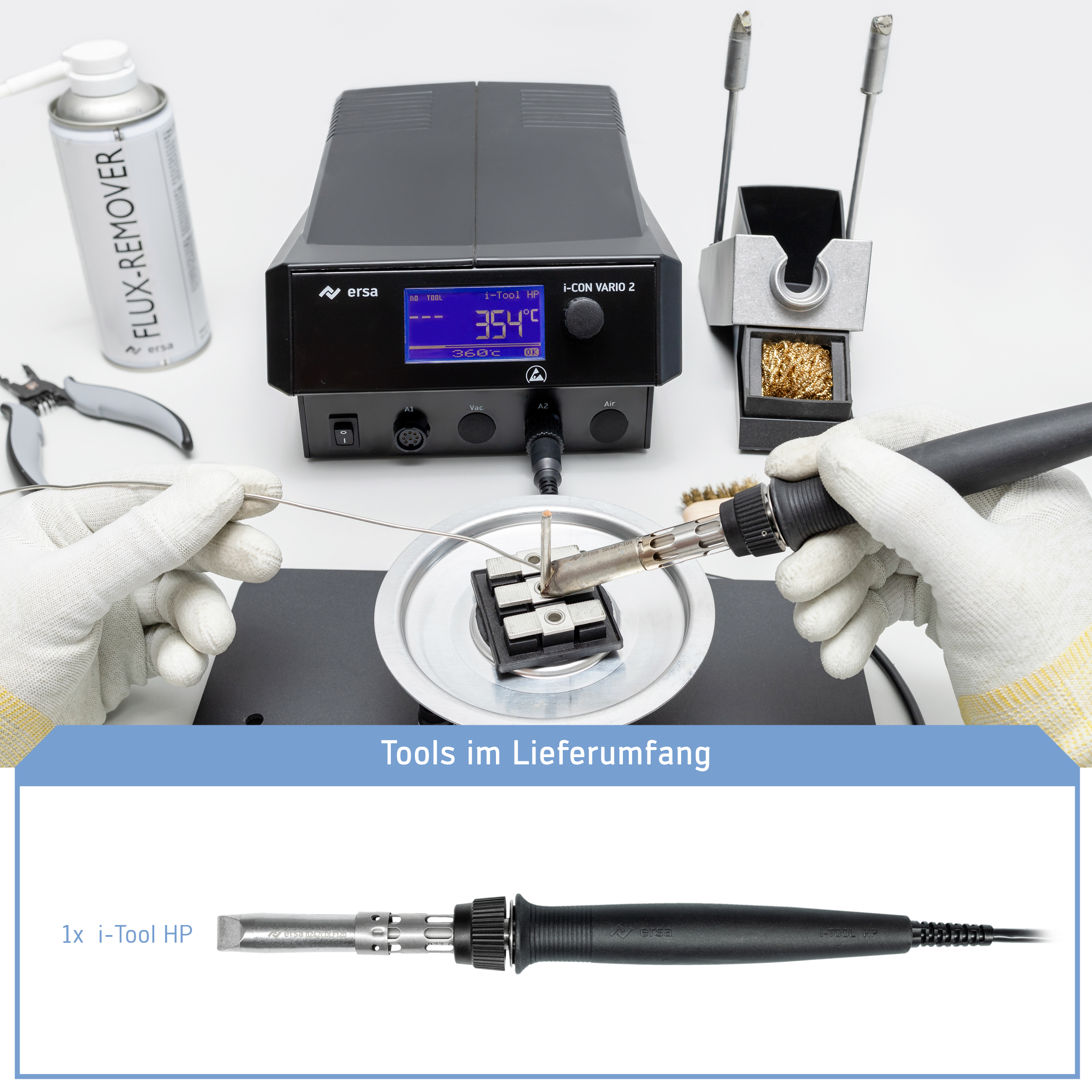

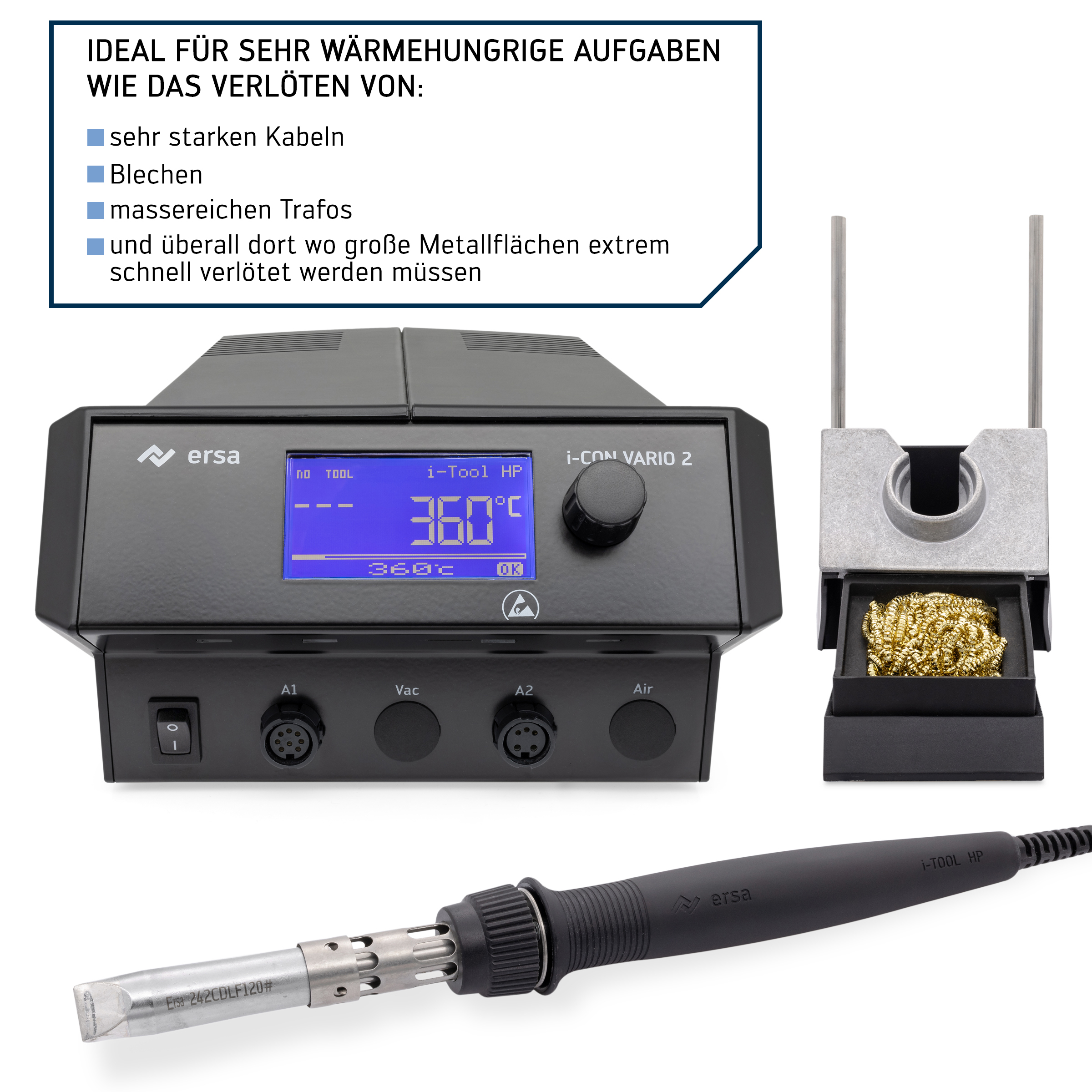

The Ersa i-CON VARIO 2 HP MK2 is an antistatic 2-channel soldering station supplied as standard with Ersa's most powerful soldering iron, the i-Tool HighPower (250 W heating output). It is ideal for very heat-hungry soldering tasks such as joining heavy cables, sheet metal and high-mass transformers, and anywhere large metal surfaces must be soldered extremely quickly.

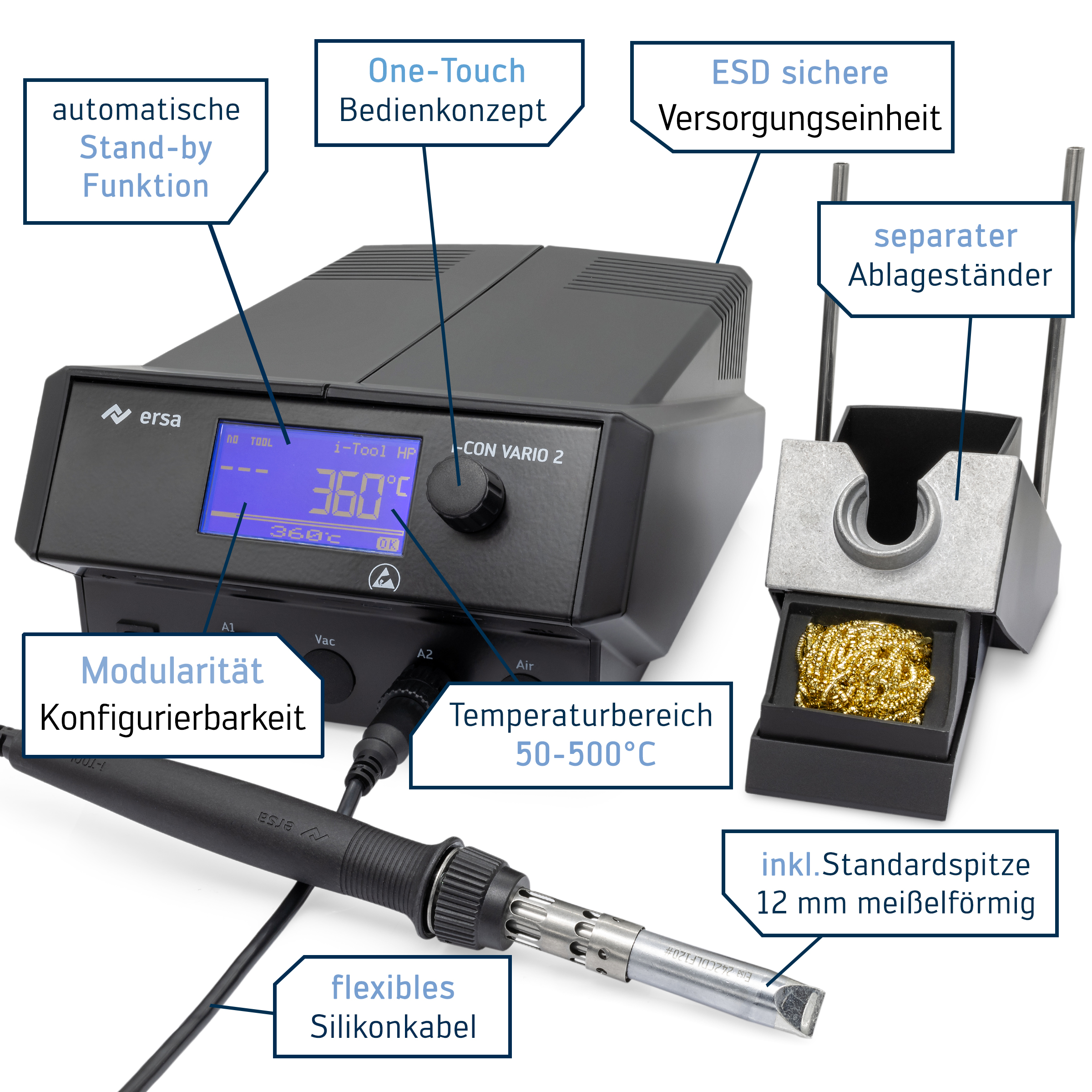

The compact, ESD-safe supply unit offers the simple, clear operation typical of the i-CON family. Interfaces to Ersa fume extraction units and preheating plates are included, as is straightforward and secure configuration of the station via a microSD memory card.

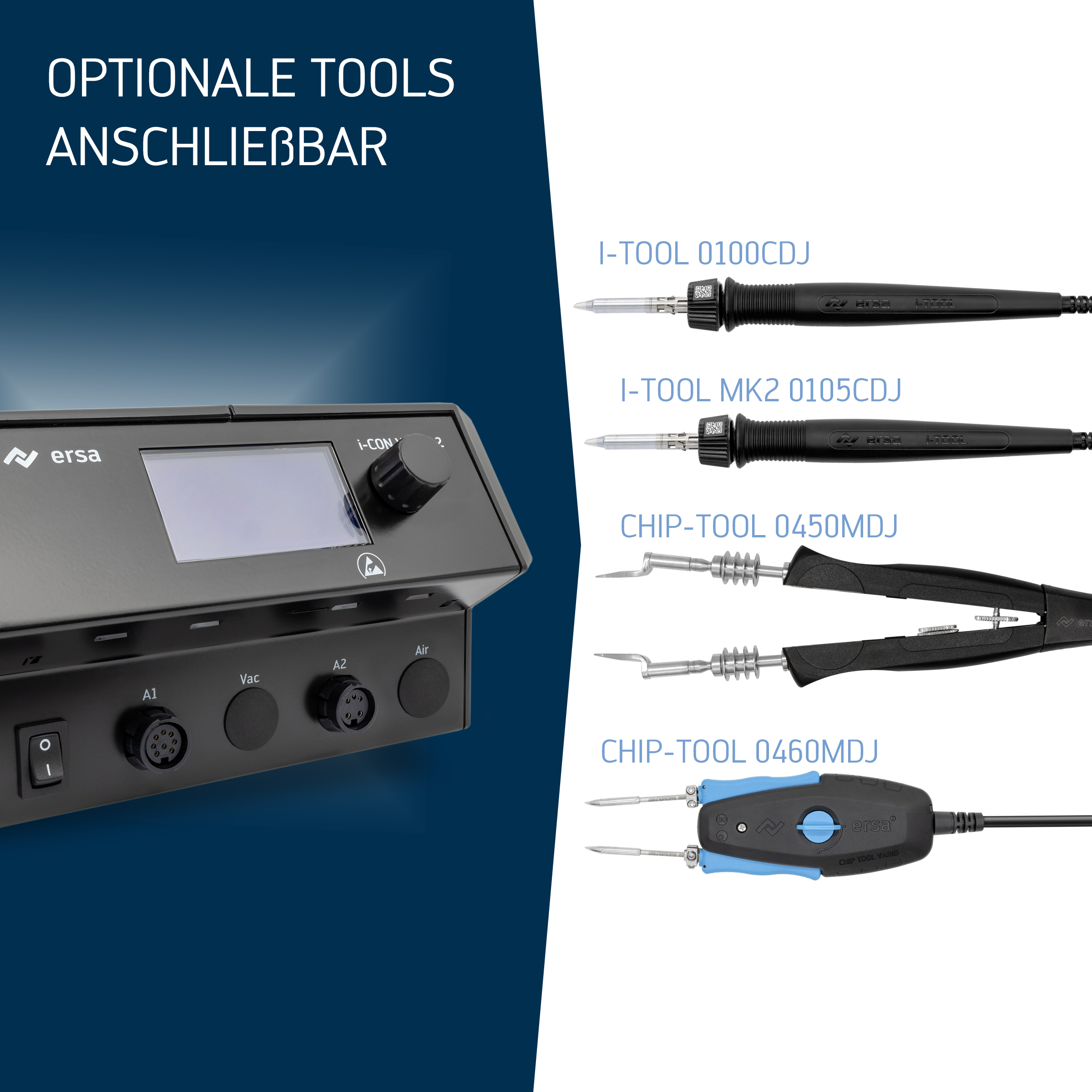

Compatible tools
- i-Tool HighPower (0240CDJ) - included
- i-Tool (0105CDJ)
- Chip-Tool Classic (0450MDJ)
- Chip-Tool Vario (0460MDJ)
- Micro-Tool (0270BDJ)
- Tech-Tool (0640ADJ)
- Power-Tool (0840CDJ)
Note: This station is optimised for the i-Tool HighPower. Operation of an Air-Tool or X-Tool (Vario) is not possible with this station.
Technical data
| Antistatic design | Yes |
|---|---|
| Digital display | Yes |
| Max. power | 250 W |
| Tip series | 242 |
| Soldering/desoldering tip | 0242CDLF120 |
| Tip diameter/width | 12.00 mm |
| Replacement heater | 024100J |
| Replacement iron | 0240CDJ |
| Standby power consumption | approx. 25 W |
| Weight | 0.1 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0ICV2005HP |
| EAN | 4003008153835 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | ESD (antistatic) |
| Power (W) | 250 W |
| Tip diameter/width [mm] | 12 |
| Series | 242 |

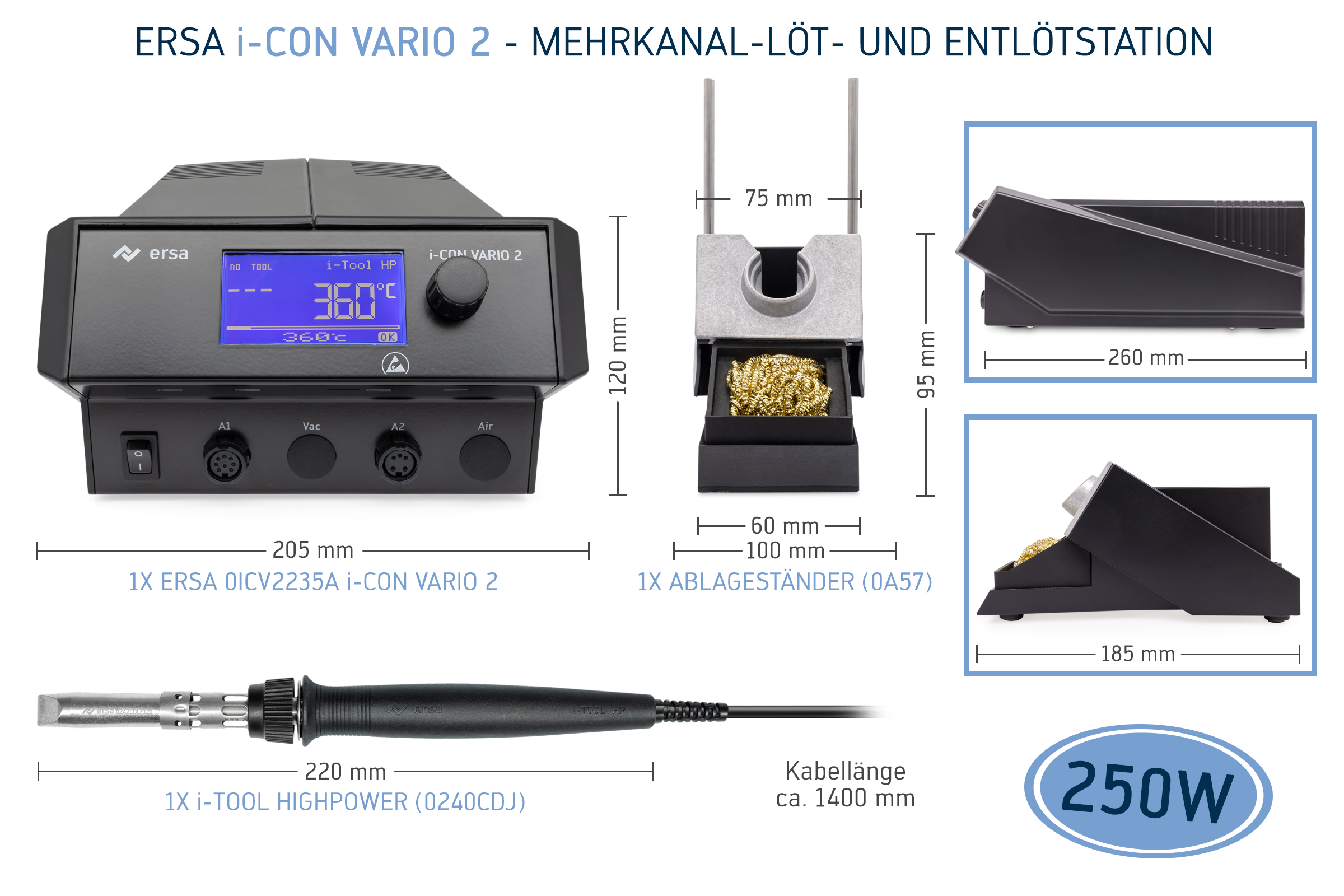

Scope of delivery
- Antistatic electronic station (0ICV2035HP)
- i-Tool HighPower 250 W (0240CDJ)
- Soldering tip, 12 mm wide (0242CDLF120)
- Holder stand (0A57)
