Precision rework system with 6200 W of heating power, of which 5400 W come from a six-zone bottom heater over 380 x 380 mm. The 800 W top heater works in two zones on 60 x 60 mm and placement accuracy reaches plus minus 25 µm. Delivered as a complete station with PC, a 23.8 inch monitor and HRSoft2, made in Germany.

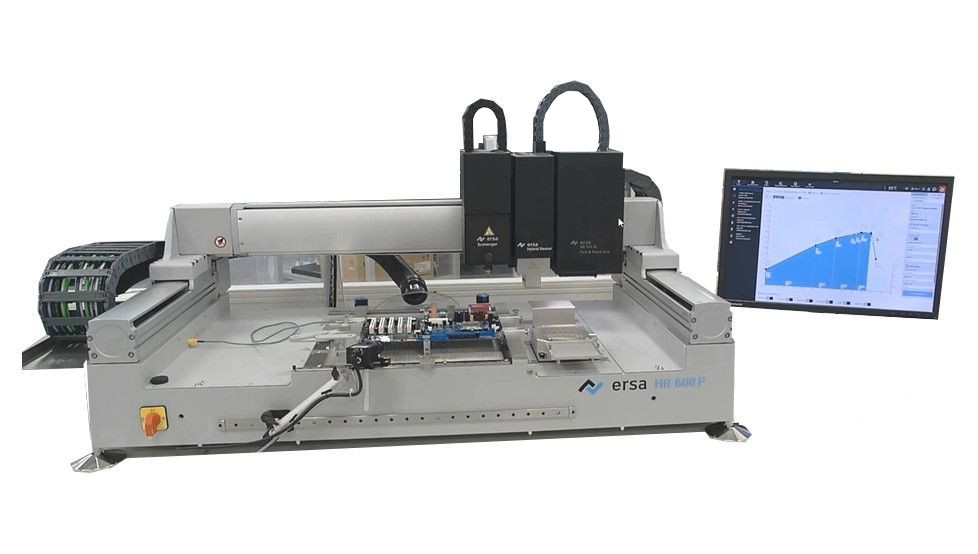

HR 600P Hybrid Präzisions-Rework System 6200W - Ersa 0HR600P
ERSA
Original product
Net price (excl. VAT)
€45,800.00
Item
ER-0HR600P
Manufacturer no.
0HR600P
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.0HR600P
ConditionNew
Article
ER-0HR600P
Frequently Bought Together
-
This Item:
€45,800.00
-
Robax Glass Plate for IRHP 200 Infrared Preheater - Ersa 0IR5500-33
€173.25
-
Nozzle Set 10 mm and 20 mm with Retaining Clip for HR200 Rework System - Ersa 0HR200-16
€136.50
Total price
Exchanging parts from 1 x 1 mm upwards on populated assemblies calls for a finely resolved bottom profile and placement in hundredths of a millimetre. The Ersa HR 600P puts 5400 W of bottom heat into six zones across 380 x 380 mm and places to plus minus 25 µm.
What defines the HR 600P
- 6200 W of heating power, split into a 5400 W six-zone bottom heater and an 800 W two-zone top heater over 60 x 60 mm.
- Placement accuracy down to plus minus 25 µm for components from 1 x 1 mm to 60 x 60 mm.
- Built-in digital contactless infrared sensor plus three type K thermocouple inputs and an Accu-TC sensor.
- Standard board size up to 380 x 420 mm, that is 15.4 x 16.5 inches, with a centre support rail.
- Complete workstation with a Lenovo PC on Windows 11, 16 GB RAM, SSD and two LAN ports, plus a 23.8 inch monitor.
- Ready to install at 120 kg including the SC600 and a footprint of 1450 x 880 x 600 mm.
Technical data
| Part number | 0HR600P |
| Total heating power | 6200 W |
| Bottom heater | 5400 W, 6 zones, 380 x 380 mm |
| Top heater | 800 W, 2 zones, 60 x 60 mm |
| Supply | 400 V AC, three phase, 50 to 60 Hz, 16 A, 6700 W |
| Compressed air | 1/4 inch quick coupling, 6 to 10 bar, oil free |
| Component size | 1 x 1 mm to 60 x 60 mm |
| Placement accuracy | plus minus 25 µm |
| Max. board size | 380 x 420 mm plus overhang, equal to 15.4 x 16.5 inches |
| Temperature sensing | 1 digital contactless infrared sensor, 3 type K inputs, 1 Accu-TC sensor |
| Interface | Ethernet RJ45 |
| Software | Ersa HRSoft2 |
| Computer | Lenovo PC, Windows 11, 16 GB RAM, SSD, 2 x LAN |
| Monitor | Lenovo, 23.8 inch |
| Dimensions W x D x H | 1450 x 880 x 600 mm |
| Weight | 120 kg including SC600 |
| Ambient temperature | 18 to 26 °C, constant |
| Humidity | 40 to 60 percent, non condensing |
| Origin | Made in Germany |
Scope of delivery
- Centre support rail with 1 pin
- Accu-TC sensor and thermocouple holder
- Air baffles 40 x 40 mm, 30 x 30 mm and 20 x 20 mm
- Nozzle Ø 5 mm with integrated 3.5 mm silicone cup
- Nozzle Ø 10 mm with integrated 8.0 mm silicone cup
- Placement nozzle Ø 5 mm and placement nozzle Ø 10 mm
- Lenovo PC with Windows 11 and a 23.8 inch Lenovo monitor
Use and compatibility
The system belongs in test areas, repair and prototype build where placement accuracy matters. The installation site needs a three phase 400 V, 16 A supply, oil free compressed air at 6 to 10 bar through a 1/4 inch quick coupling, and a stable environment of 18 to 26 °C at 40 to 60 percent relative humidity.
| Manufacturer Nr. | 0HR600P |
|---|---|
| Manufacturer | Ersa |
| GPSR manufacturer information | Bräunlich GmbH Am Heideberg 26, DE 06886 Lutherstadt Wittenberg, www.braeunlich-gmbh.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
