HR100A Hybrid Rework System with Heating Plate, 200 W IR/Hot Air - Ersa 0IRHR100A-HP

Ersa 0IRHR100A-HP. Hybrid Rework System HR100A mit Heizplatte

Skip to the beginning of the images gallery

The product may differ from the illustration

Microprocessor-controlled HR100A hybrid rework system for BGA and SMT work on small, high-pin-count components. It combines 200 W of IR radiation and hot air with a switchable 800 W bottom heater via the HP100A heating plate. Supplied with tripod, integrated VacPen vacuum gripper and IRSoft process control for repeatable soldering profiles.

HR100A Hybrid Rework System with Heating Plate, 200 W IR/Hot Air - Ersa 0IRHR100A-HP

Name: HR100A Hybrid Rework System with Heating Plate, 200 W IR/Hot Air - Ersa 0IRHR100A-HP
Brand: Ersa
SKU: ER-0IRHR100A-HP
Price: 7560 EUR
Availability: InStock

ERSA Original product

Net price (excl. VAT)

€7,560.00

Excl. 19% VAT , excl. Shipping Cost

Available Fast shipping

Item ER-0IRHR100A-HP

Manufacturer no. 0IRHR100A-HP

Personal expert advice

Brand new Specialist dealer since 2009 Original product Worldwide shipping

Product data

Manufacturer no.0IRHR100A-HP

EAN4003008084597

Country of originGermany

ConditionNew

Article

ER-0IRHR100A-HP

Frequently Bought Together

This Item: HR100A Hybrid Rework System with Heating Plate, 200 W IR/Hot Air - Ersa 0IRHR100A-HP
€7,560.00
Excl. 19% VAT , excl. Shipping Cost
Component Filter for All Nozzles, Pack of 10 - Ersa 0HR5521/10
€29.40
Excl. 19% VAT , excl. Shipping Cost
Suction Nozzle for HR550, metallic, diameter 2.0 mm - Ersa 0HR5520-10020
€236.25
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

The ERSA HR100A hybrid rework system is a microprocessor-controlled rework station for BGA and SMT work on small, high-pin-count components. Using hybrid technology it combines medium-wave IR radiation with hot air, and both the air flow and the IR power can be adjusted separately and infinitely. The switchable 800 W bottom heater of the HP100A heating plate supports the soldering process on heavy assemblies.

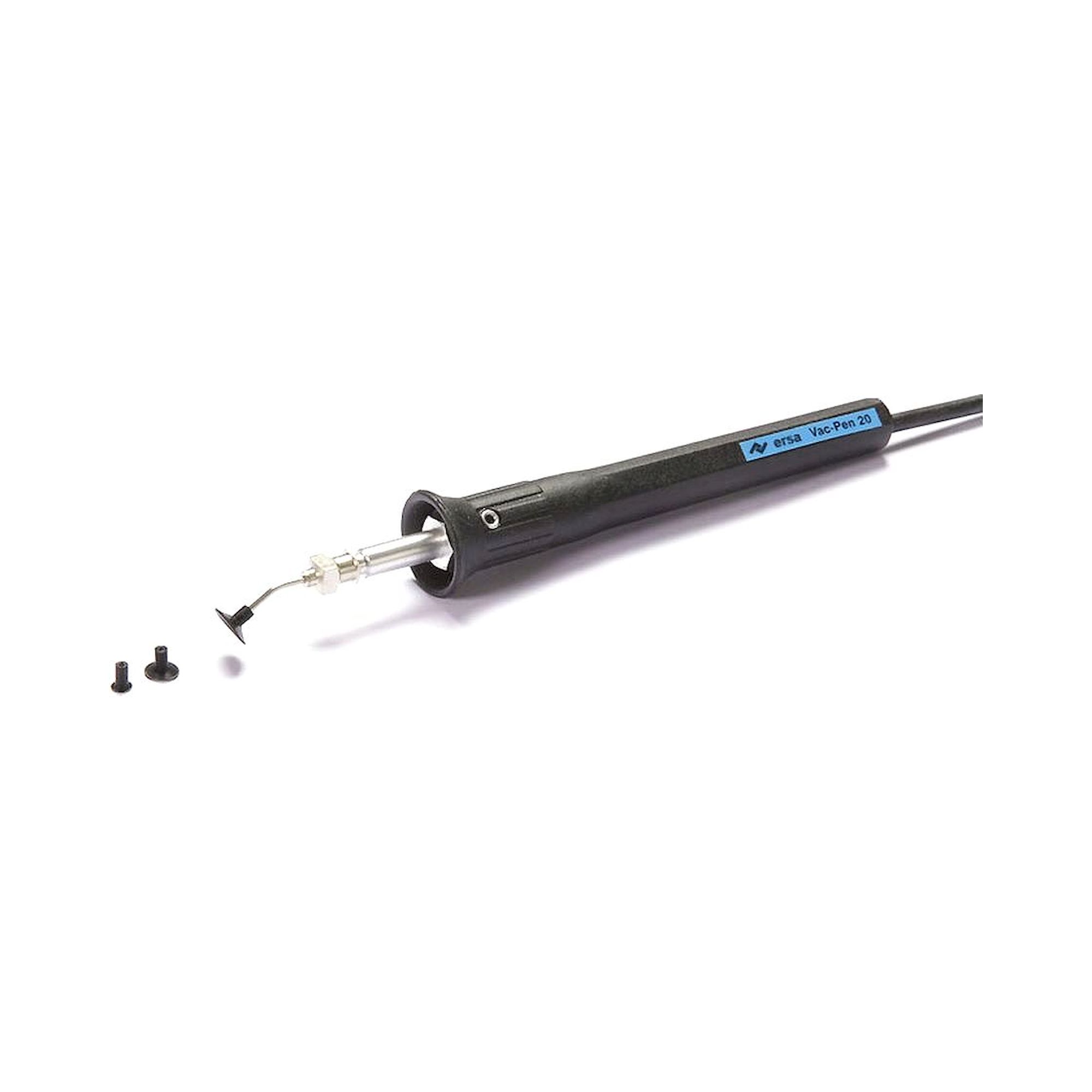

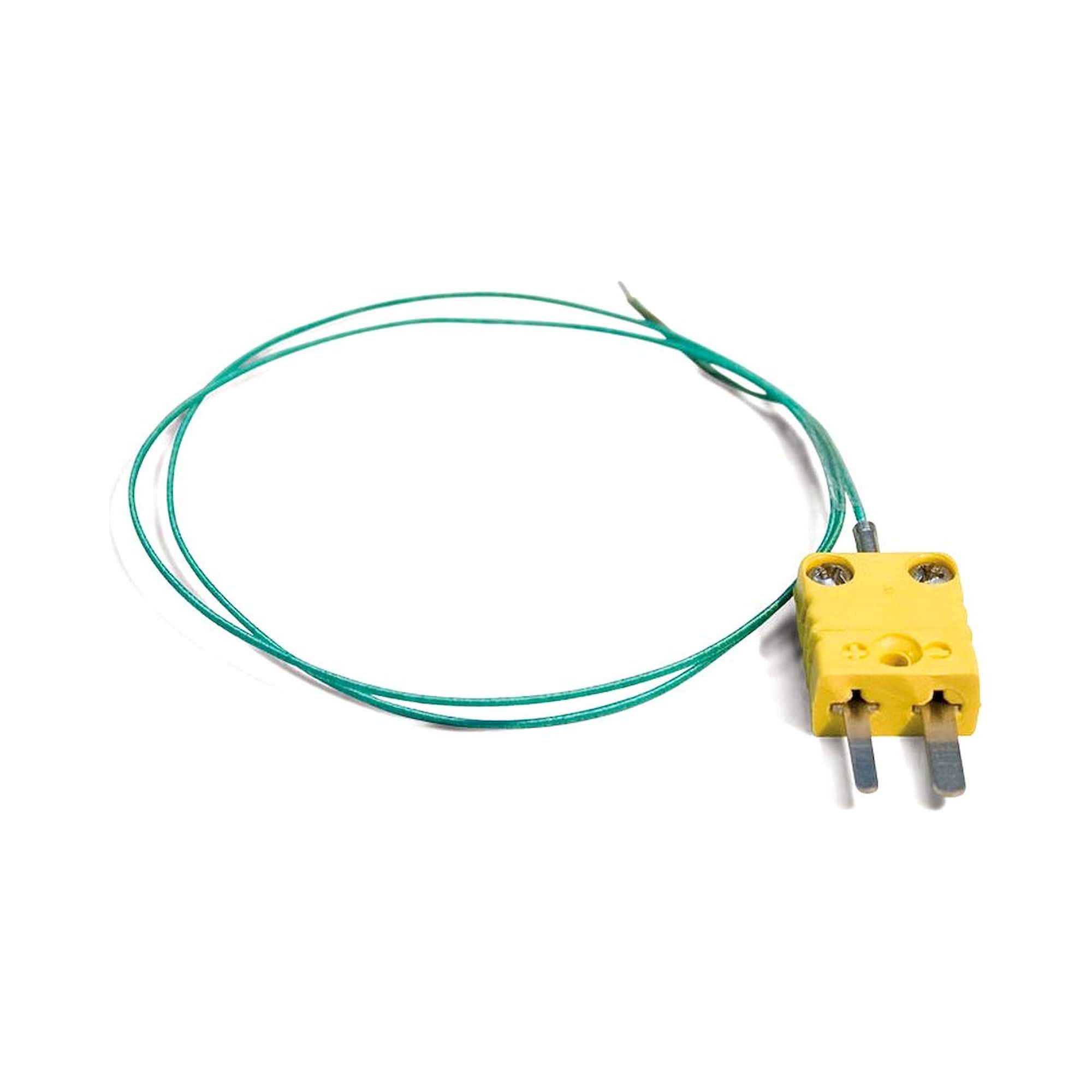

Three hybrid adapters with optimised process parameters cover different component sizes. The integrated VacPen vacuum gripper simplifies component handling, while the tripod holds the hand tool for stationary use. Closed-loop temperature control works contactlessly or via the external AccuTC thermocouple, allowing profiles with a ramp and maximum temperature. The IRSoft software controls, documents and archives the processes.

Technical data

Type	HR100A hybrid rework system with HP100A heating plate
Heating technology	Medium-wave IR radiation and hot air
IR and air heating power	200 W
Bottom heating power (HP100A)	800 W
Control	Air flow and IR power separately and infinitely adjustable
Temperature control	Closed-loop, contactless or via external AccuTC thermocouple
Component size	1 x 1 to 20 x 20 mm
Adapters	Three hybrid adapters
Handling	Integrated VacPen vacuum gripper
Mounting	Tripod for stationary use
Software	IRSoft for process control, documentation and archiving
Mains voltage	230 V
Application	BGA and SMT rework on small, high-pin-count components

Information

More Information
Execution	TEC
Manufacturer Nr.	0IRHR100A-HP
Manufacturer	Ersa
Country of Manufacture	Germany
EAN	4003008084597
ESD equipment	ESD Lötstationen
Weight	0.100000
GPSR manufacturer information	Ersa GmbH, Leonhard Karl Str. 24, DE-97877 Wertheim, www.kurtzersa.de
Article authenticity	Original product
Condition of article	New
