Microprocessor-controlled hand-held rework system for BGA and SMT components that combines IR radiation and hot air in a single hybrid process. Air flow and IR power are continuously and independently adjustable, and the integrated VacPen vacuum gripper simplifies handling of small, high-pin-count parts.
HR100A Hybrid Rework System, IR + Hot Air, 200 W - Ersa 0IRHR100A
ERSA
Original product
Net price (excl. VAT)
€3,150.00
Item
ER-0IRHR100A
Manufacturer no.
0IRHR100A
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.0IRHR100A
EAN4003008083514
Country of originGermany
ConditionNew
Article
ER-0IRHR100A
Frequently Bought Together
-
This Item:
€3,150.00
-
IRHP 100A Heating Plate with Stand, 800 W - Ersa 0IRHP100A
€3,885.00
Total price

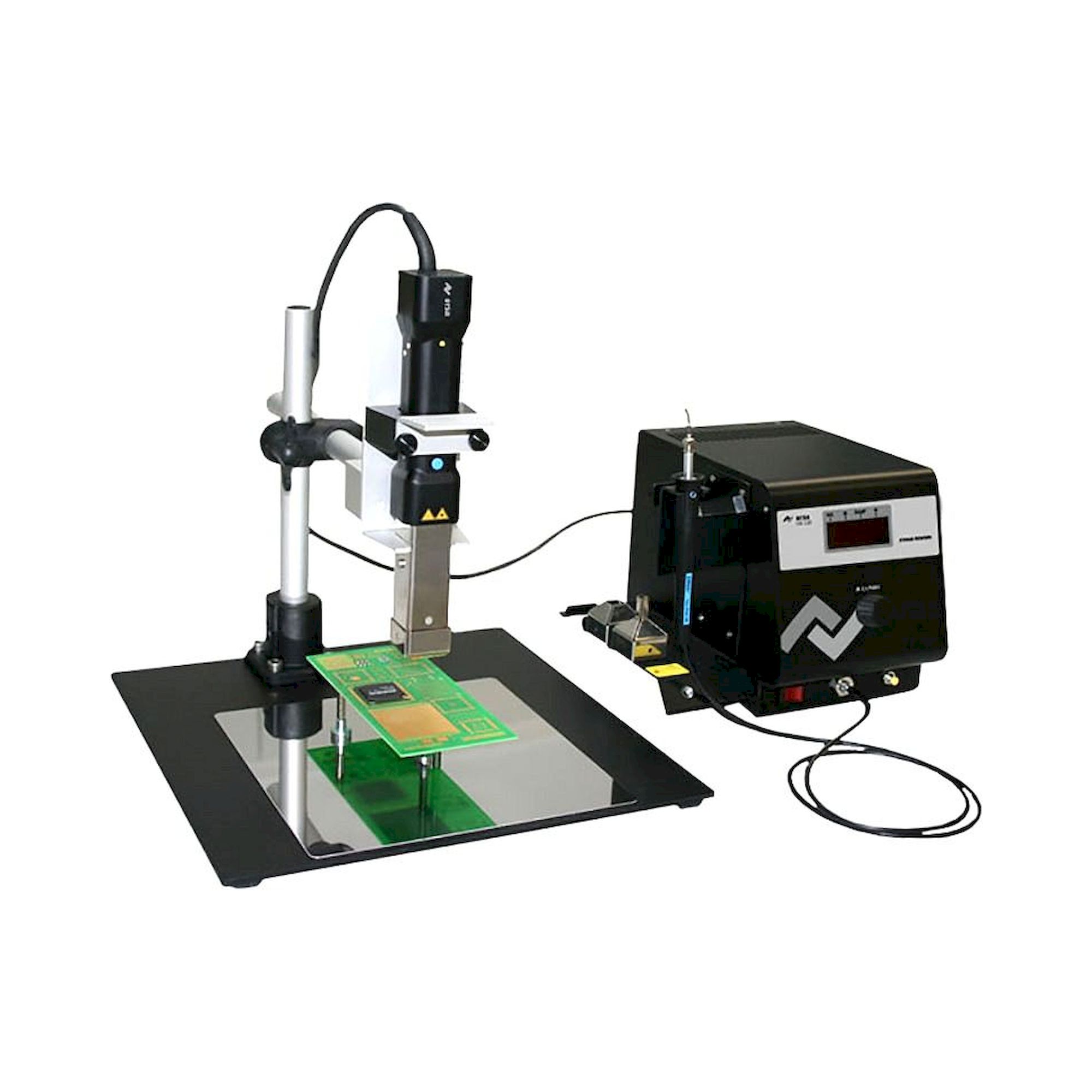

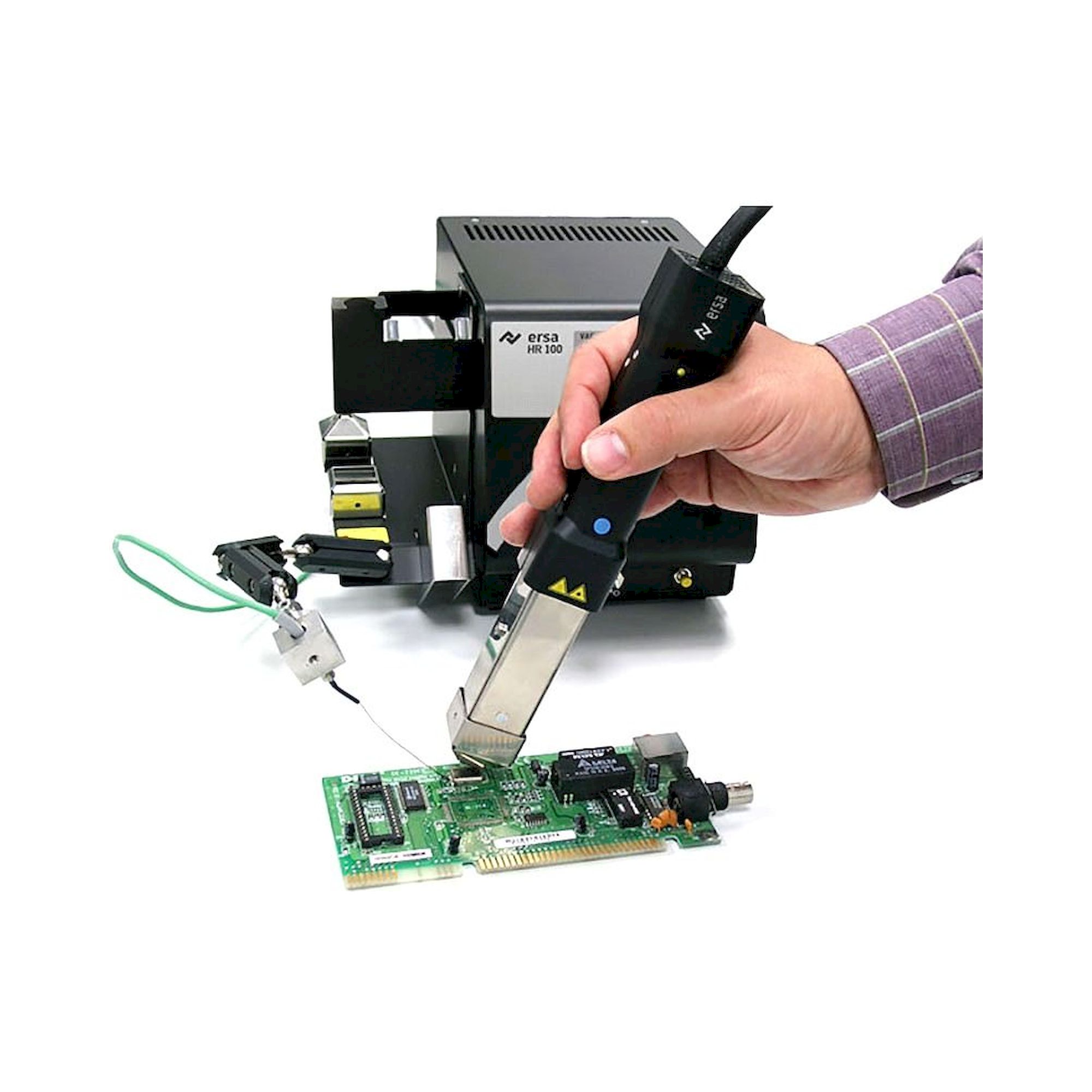

The HR100A is a microprocessor-controlled hand-held rework system for BGA and SMT applications on small, high-pin-count components. Using hybrid technology, it combines IR radiation with hot air, and both the air flow and the IR power can be adjusted continuously and independently.
Features
- Hybrid technology: combined use of IR radiation and hot air
- Air flow and IR power continuously and independently adjustable
- 200 watts combined IR and air heating power
- Three hybrid adapters with optimised process parameters for different component sizes
- Integrated VacPen vacuum gripper for handling electronic components
- Closed-loop temperature control with contactless temperature measurement or external AccuTC thermocouple to run a profile with ramp and maximum temperature

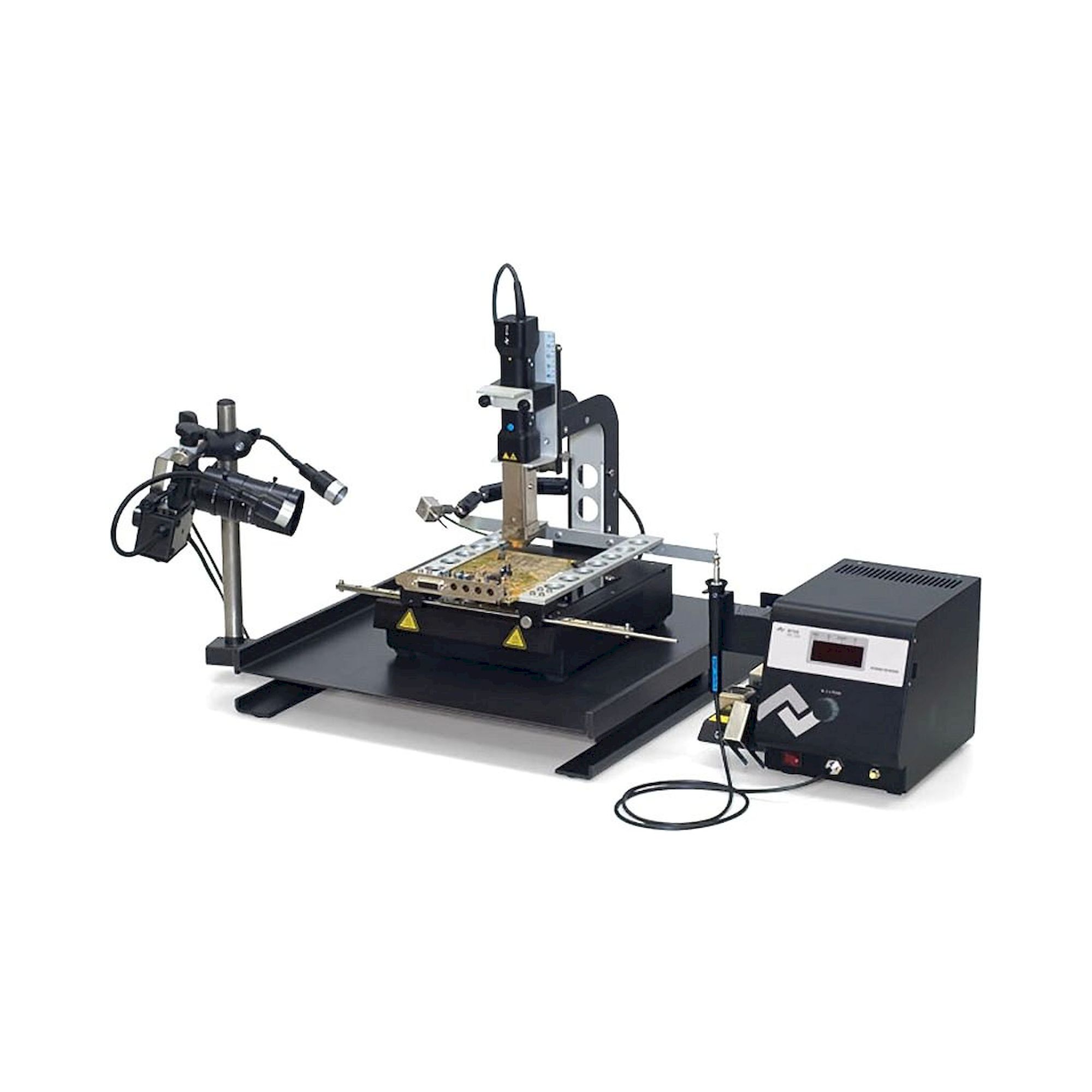

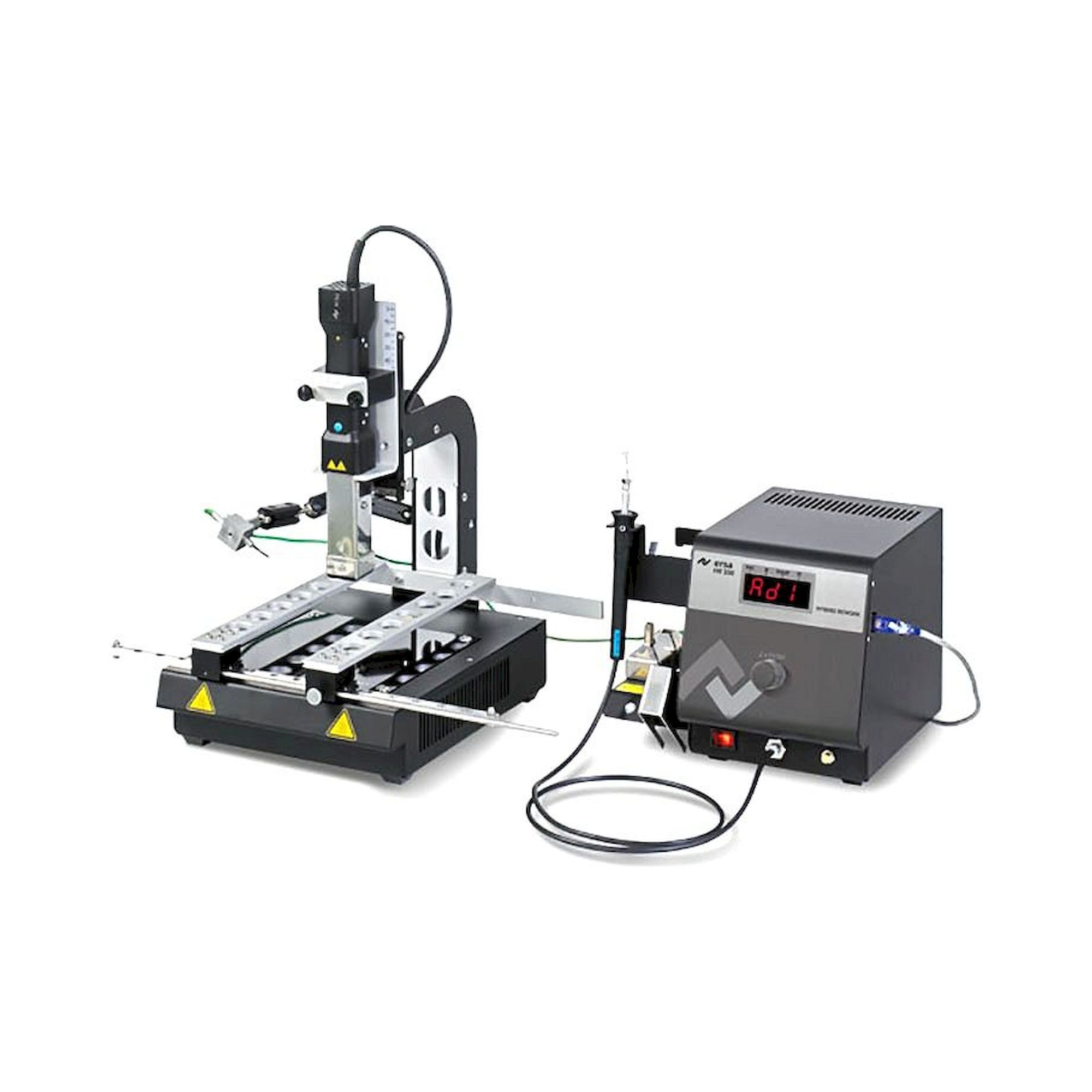

- Expandable to a stationary system with bottom heating and stand via the optional IRHP100A heating plate
- Process control, documentation and archiving of processes via the optional IRSoft software
Scope of supply
- Hybrid Tool heating element and VacPen vacuum pipette
- Three hybrid adapters 6 x 6 mm, 10 x 10 mm and 20 x 20 mm
- Fume extractor (without stand)
Technical data
| Property | Value |
|---|---|
| Combined IR and air heating power | 200 W |
| Mains voltage | 230 V AC |
| Component range | 1 x 1 to 20 x 20 mm |
| Station weight | 4.5 kg |
| Station dimensions (W x D x H) | 211 x 220 x 168 mm |
| Hybrid Tool weight | 0.3 kg |
| Weight | 4.500000 |
|---|---|
| Manufacturer | Ersa |
| Manufacturer Nr. | 0IRHR100A |
| EAN | 4003008083514 |
| GPSR manufacturer information | Ersa GmbH, Leonhard Karl Str. 24, DE-97877 Wertheim, www.kurtzersa.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
