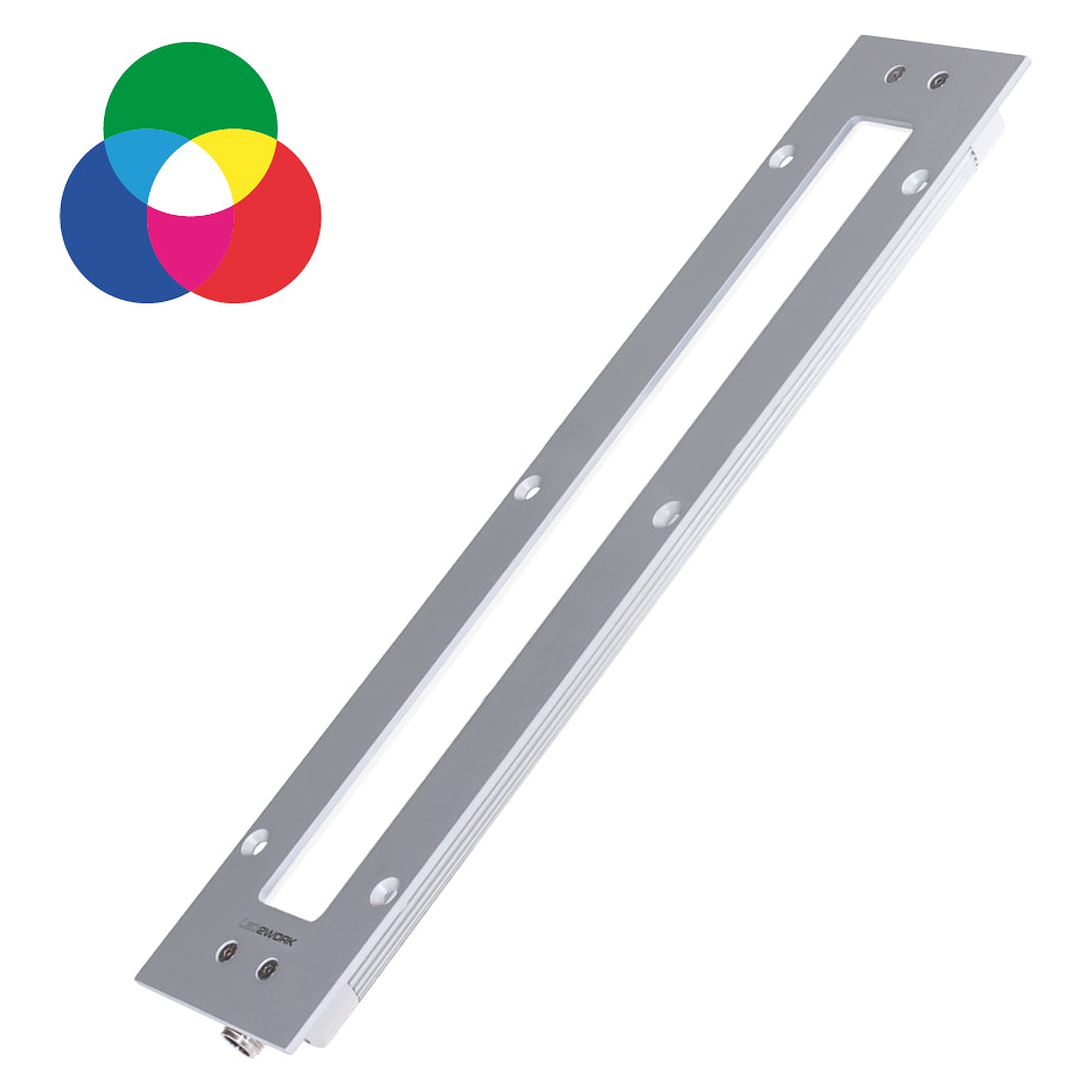

TUBELED_40 II Integrated RGB-W recessed machine light 745 mm, 19W white, IP69K - LED2WORK 151390-01

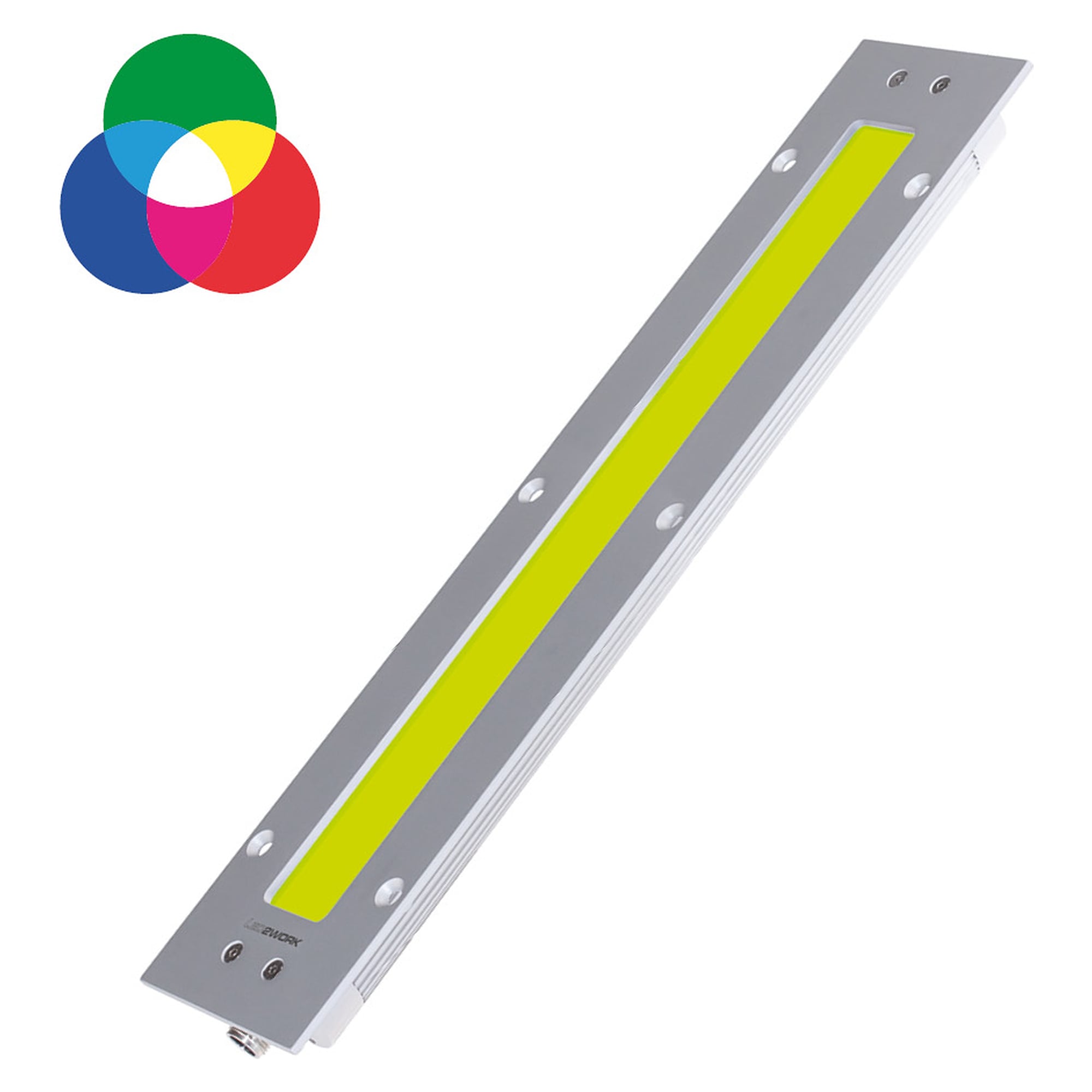

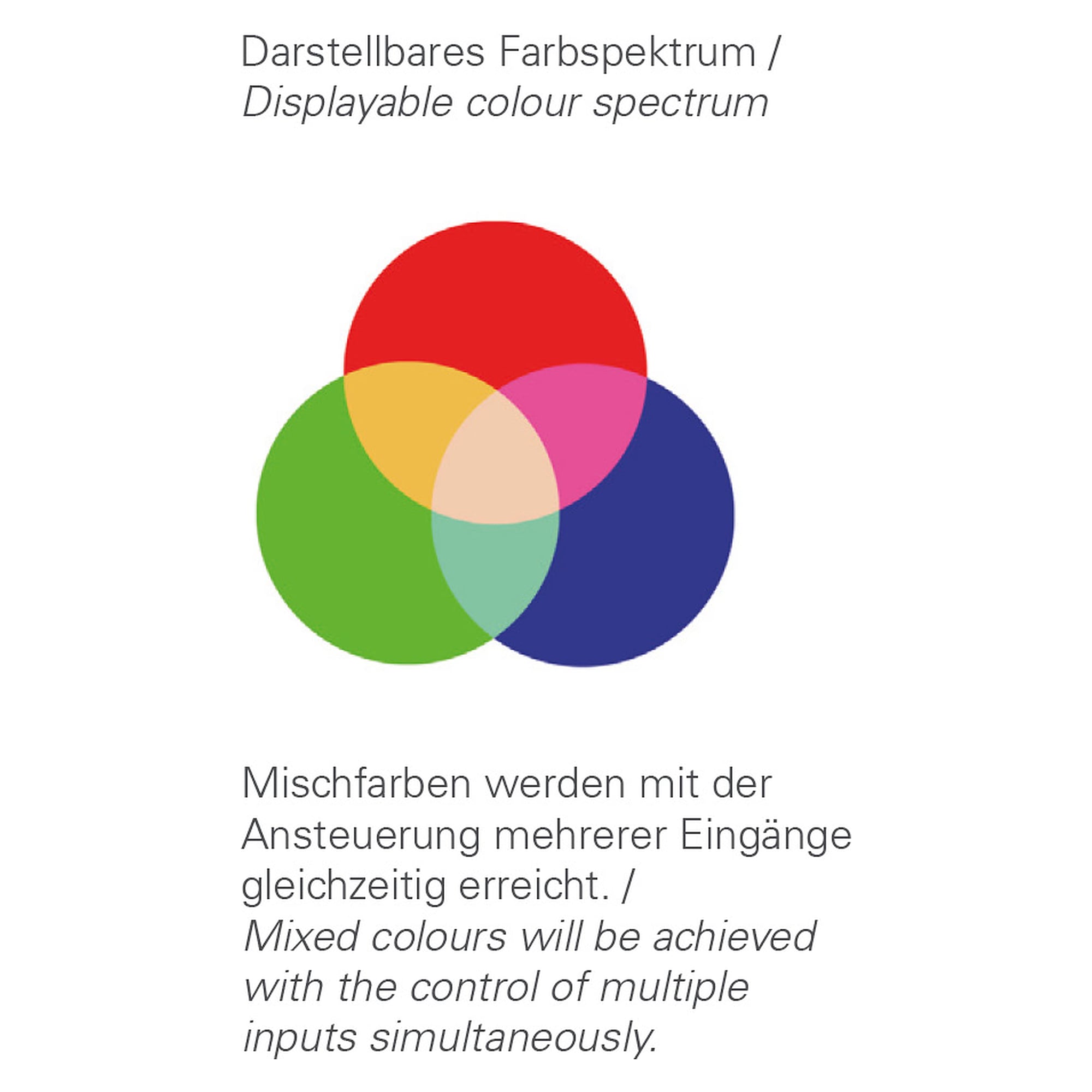

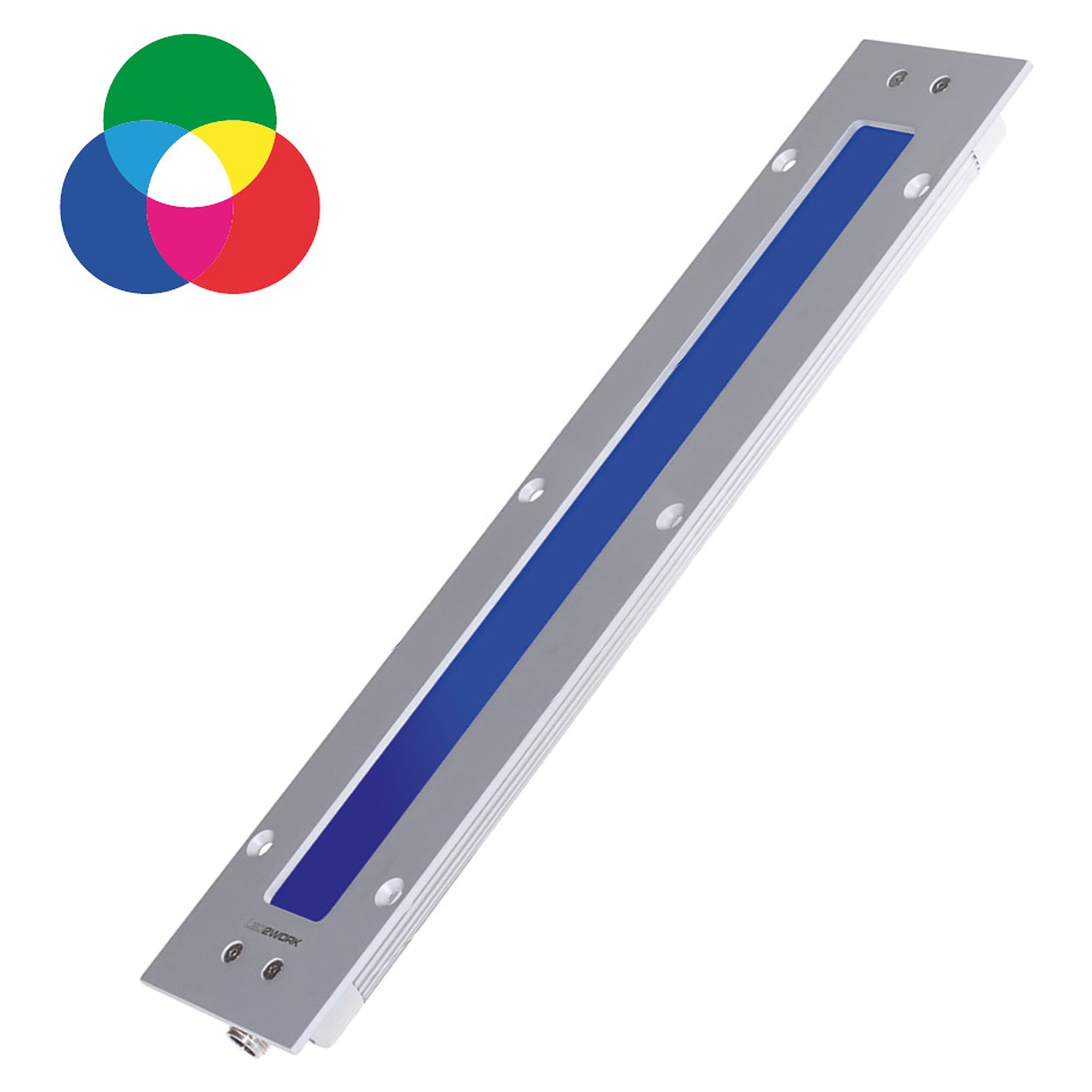

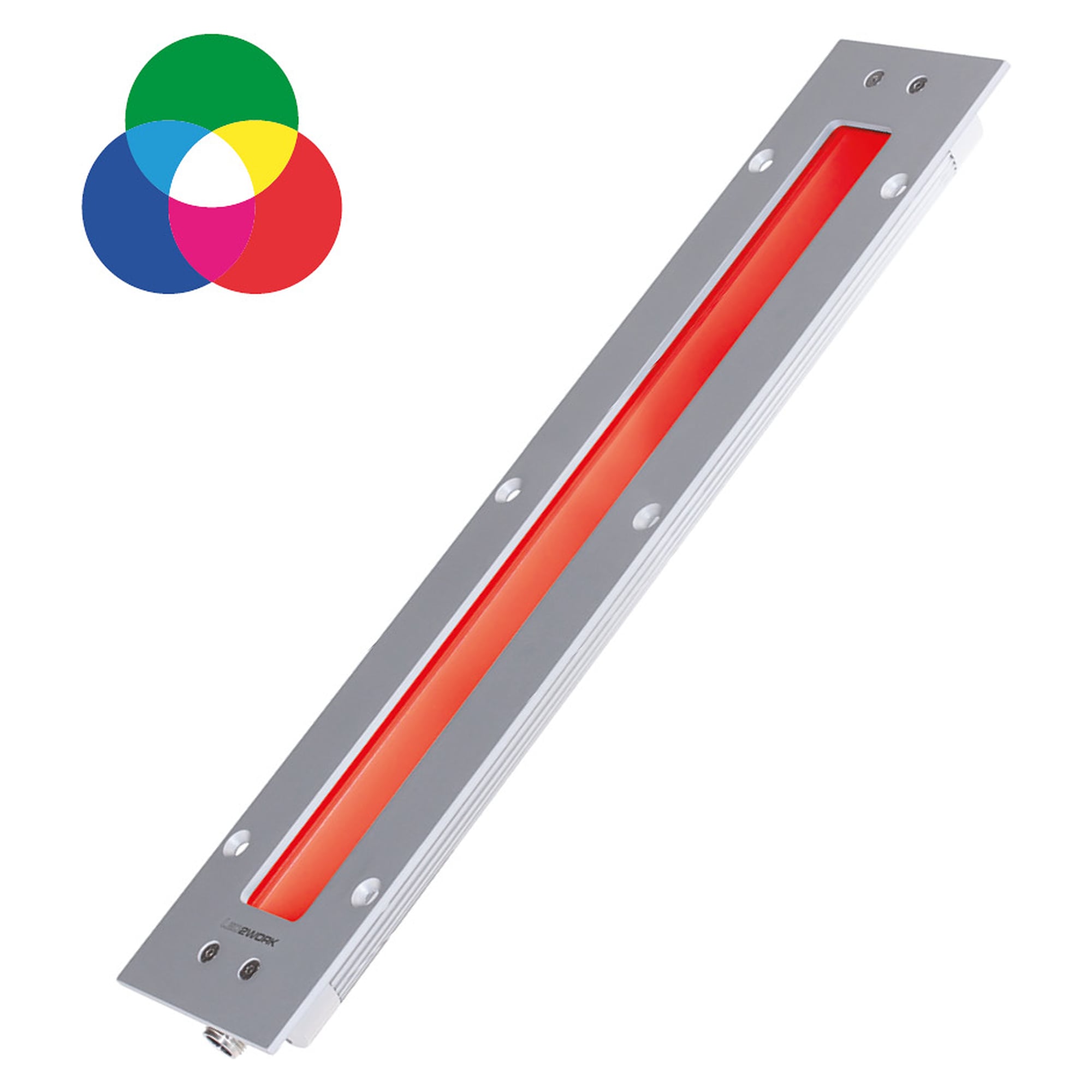

The TUBELED_40 II Integrated RGB-W does two jobs from one fixture: it lights the work area with 2430 lm of daylight white and signals status changes right where the action is, through blinking or a colour change driven by extra RGB chips. With a bezel that builds out only 3 mm, it fits into standard or prepared light channels of machines and plants.

Key benefits

• Lighting and signalling in one fixture, RGB-W cluster LED for clear status display
• 2430 lm white output at around 19 W, efficacy ~126 lm/W
• Daylight white 5000K with colour rendering Ra >80 for true-to-life work
• Bezel builds out only 3 mm, CNC-suitable and space-saving
• IP67/IP69K, oil-resistant and chip-strike-proof for harsh production
• Service life over 100,000 h (L80/B10), virtually maintenance-free

Technical data

• Model: TUBELED_40 II Integrated RGB-W
• Design: recessed LED light
• Light source: SMD RGB-W cluster LED
• White power: ~19 W, 2430 lm, ~126 lm/W
• Red/Green/Blue power: ~18 W (480 lm) / ~5 W (690 lm) / ~18 W (300 lm)
• White light colour: 5000K 3-step MacAdam
• Colour rendering (Ra): >80
• Beam angle: 100°
• Supply voltage: 24 V DC -10 %+7 % (RGB), 24 V DC ±10 % (W)
• Connection: M12 A-coded
• Protection rating: IP67/IP69K
• Protection class: III
• Operating temperature: -30 °C to +60 °C
• Service life: > 100,000 h (L80/B10)
• Housing material: aluminium
• Cover material: safety glass, shatter-resistant

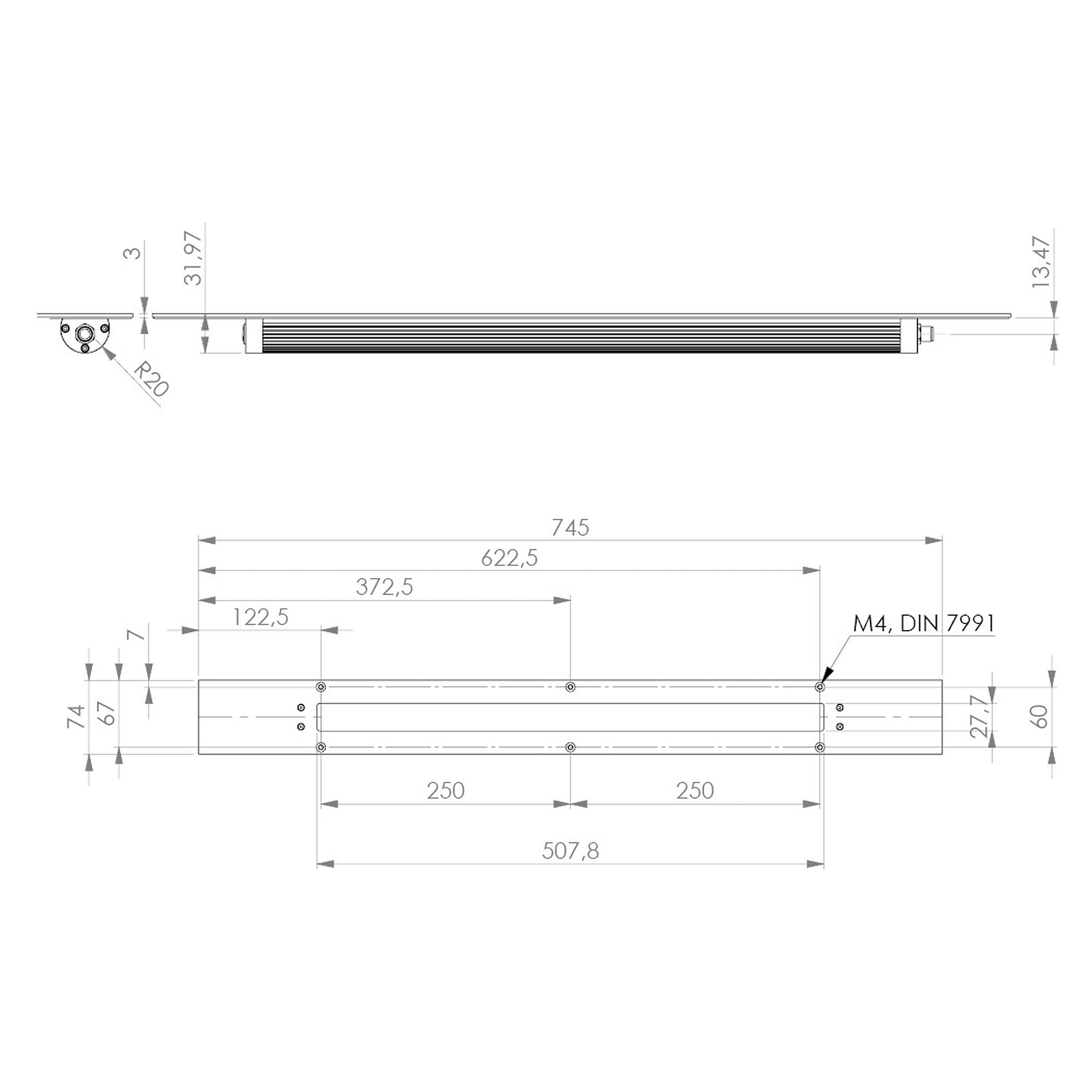

• Dimensions: 745 mm x 74 mm x 32 mm, bezel 3 mm proud
• Weight: 1200 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529), D mark
• Made in: Germany

Applications

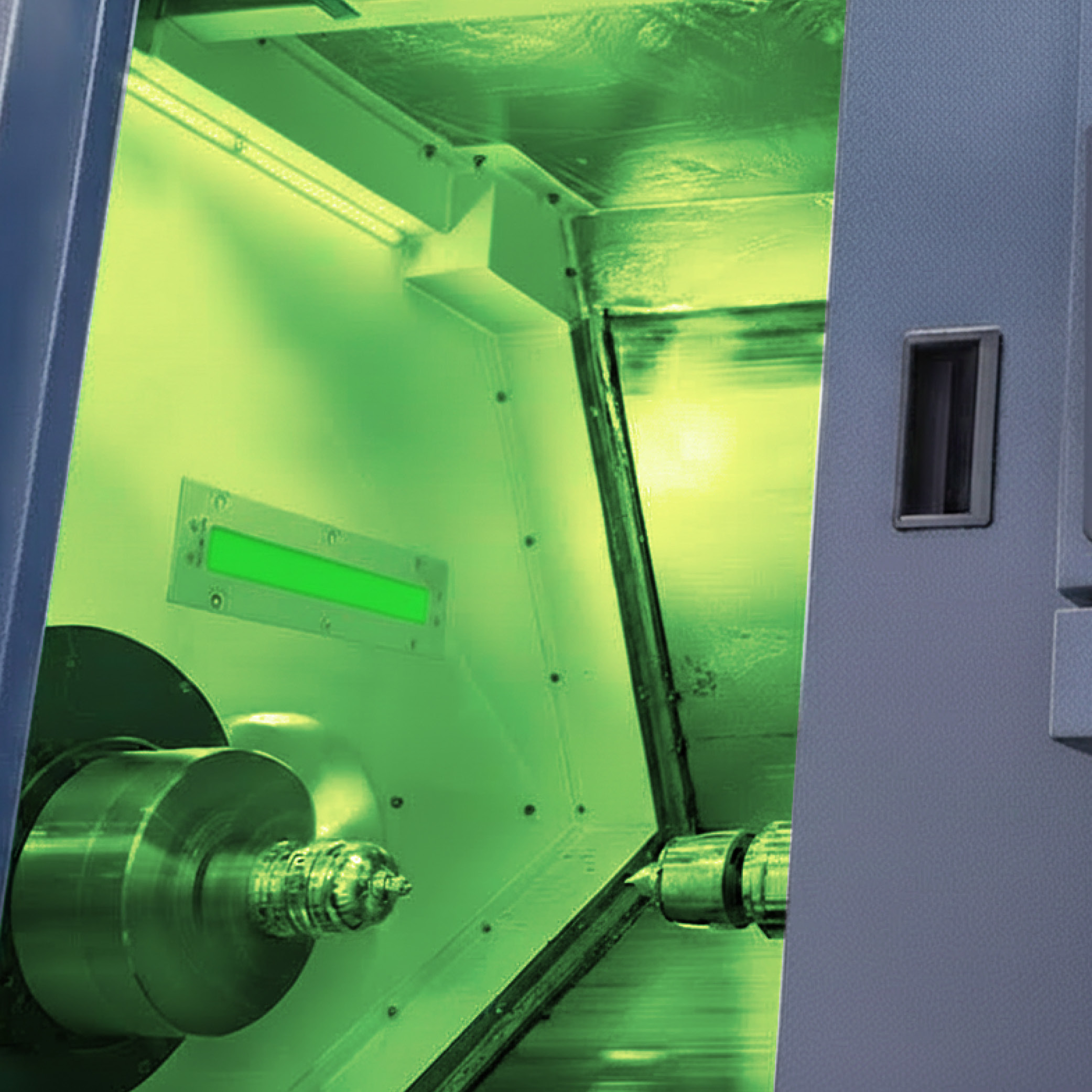

Ideal for lighting and status indication inside the working areas of machine tools, machining centres and plants where operators need to spot status changes fast. Suitable for first fit and retrofit of light channels.
