TUBELED_25 RGB-W IO-Link machine light 705 mm, 19.2W white, IP67 - LED2WORK 154490-11

The TUBELED_25 RGB-W with IO-Link combines lighting and signalling for the coming IoT generation in one fixture. In 705 mm length, RGB-W LED chips in clusters deliver 3065 lm of bright 5000K white light plus an IO-Link controllable signal colour, at a mounting height of just 23 mm.

Key benefits

• Illumination and signalling in one unit thanks to RGB-W LED clusters and IO-Link connectivity.
• Very low profile of only about 23 mm for tight installation spaces.
• 3065 lm white output at 160 lm/W efficacy for bright work areas.
• High IP67 rating, dust- and liquid-tight for harsh machine environments.
• Shatterproof safety glass and aluminium housing for a service life over 100,000 h.

Technical data

• Model: TUBELED_25 RGB-W IO-Link
• Type: LED surface-mounted light
• Light source: SMD LED RGB + W
• Power white: ~19.2 W
• Luminous flux white: 3065 lm
• Luminous efficacy white: 160 lm/W
• Light colour white: 5000K 3-step MacAdam
• Colour rendering white (Ra): >85
• Light distribution: direct
• Supply voltage: 24 V DC -5 / +10% [LEDs], 24 V DC +/- 25% [IO-Link]
• Connection: M8 A-coded
• Protection rating: IP67
• Protection class: III

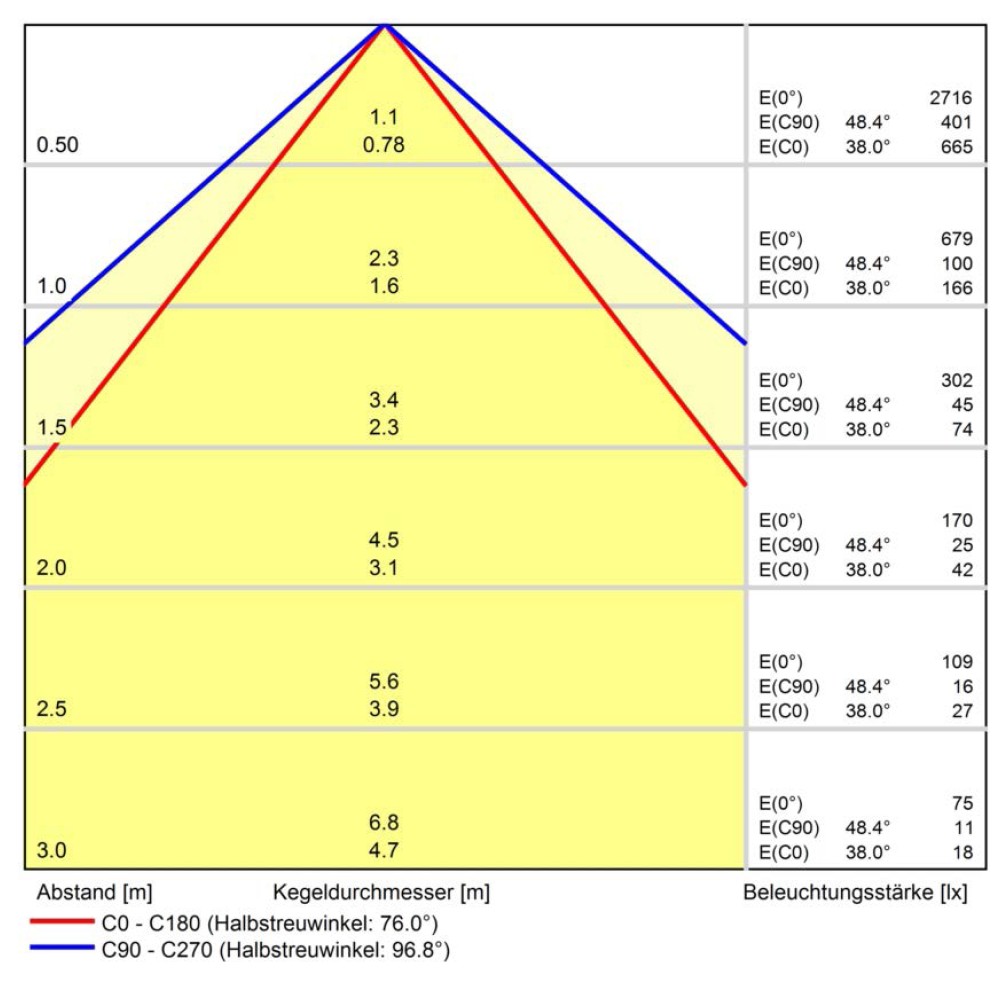

• Beam angle: 100°
• Operating temperature: -30 °C to +55 °C
• Service life: > 100,000 h (L80/B10)
• Housing material: aluminium
• Cover material: safety glass

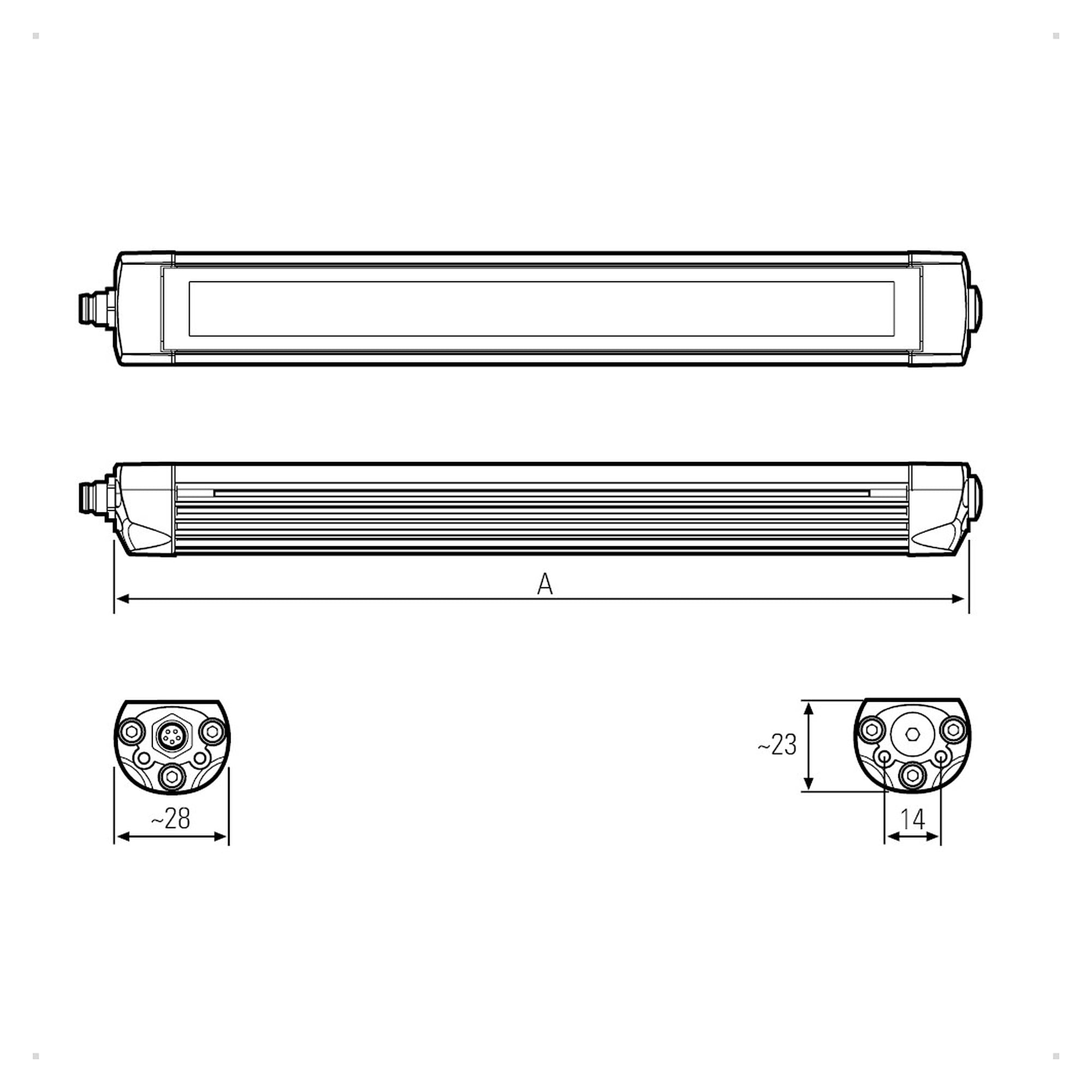

• Dimensions (H x W): ~23 mm x ~28 mm, length 705 mm
• Weight: 150 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Made in: Germany

Applications

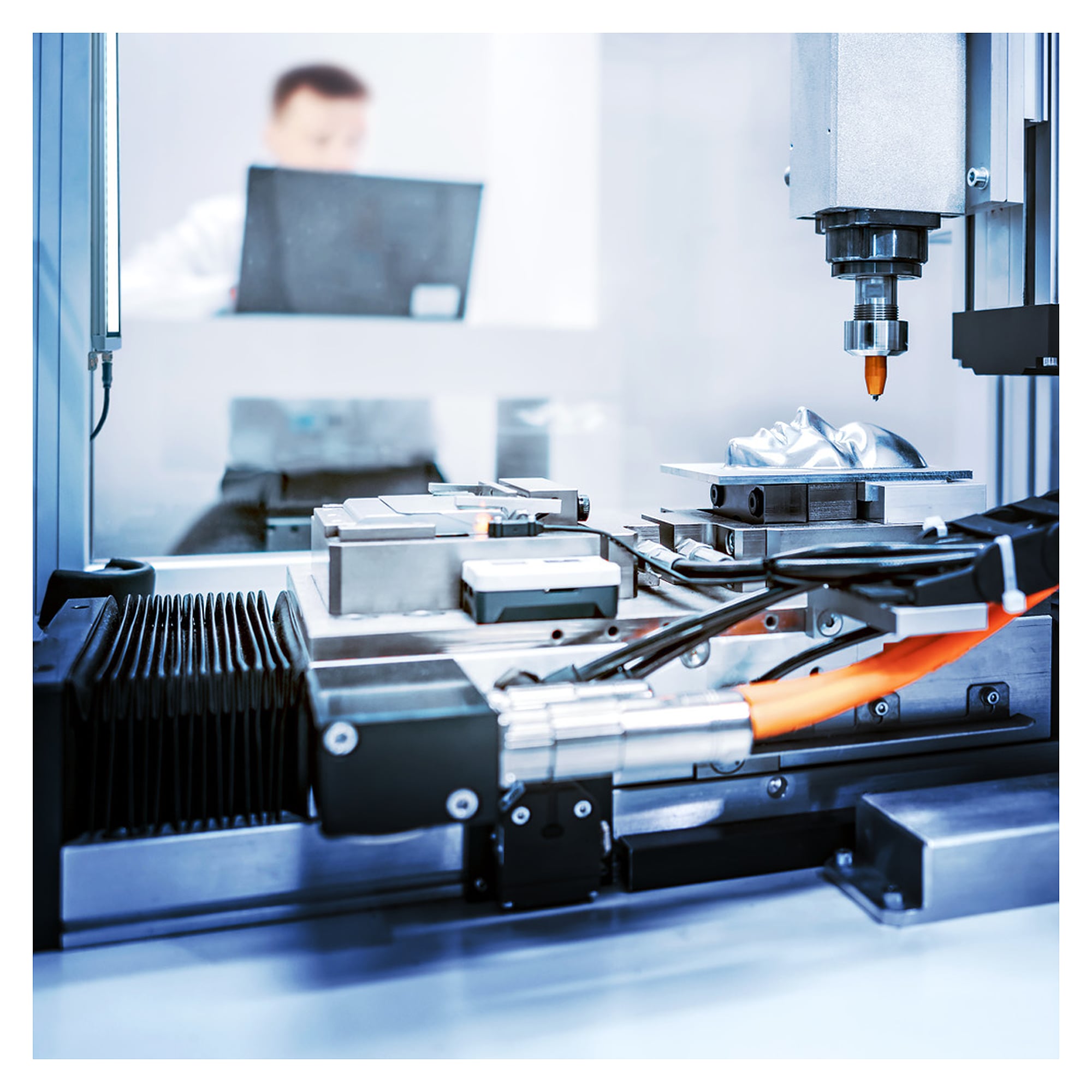

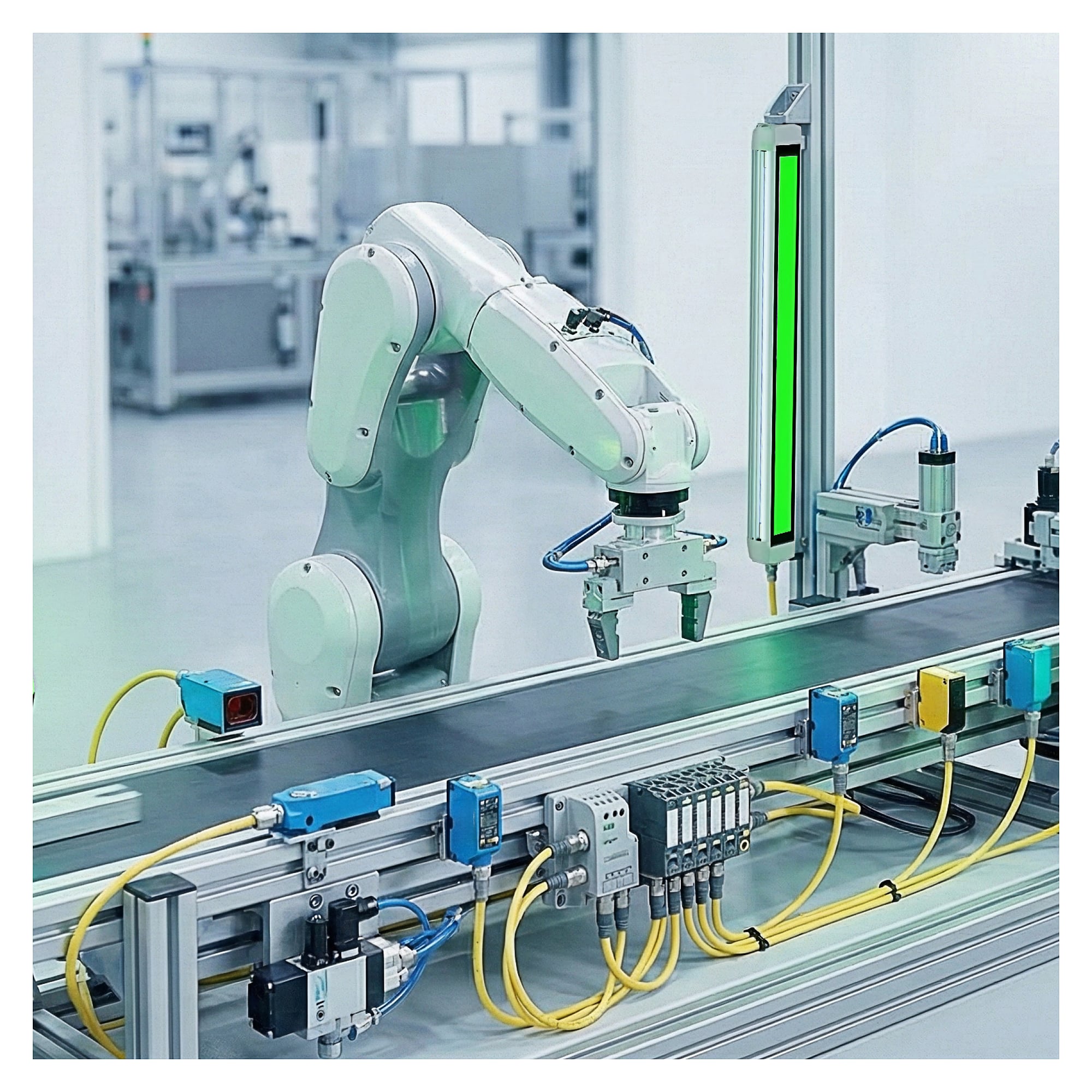

Suited to lighting and signalling work areas on CNC machines, in automation and in the infrastructure of the coming IoT generation.
