Series 142 - i-Tool TRACE and MK2
Soldering and desoldering tips
ErsaDUR soldering tips in the 142 series are designed exclusively for the Ersa i-Tool MK2 and i-Tool TRACE. The range covers bevel-cut tips (ADL) in widths from 1.3 mm to 4.0 mm, chisel tips (CDL) from 0.4 mm to 65 mm, needle-point tips (PDL) from 0.1 mm, and PLCC knife tips (BDL) at 2.0 mm. The ErsaDUR coating extends tip life with lead-free SAC alloys and reduces corrosion from flux residues.

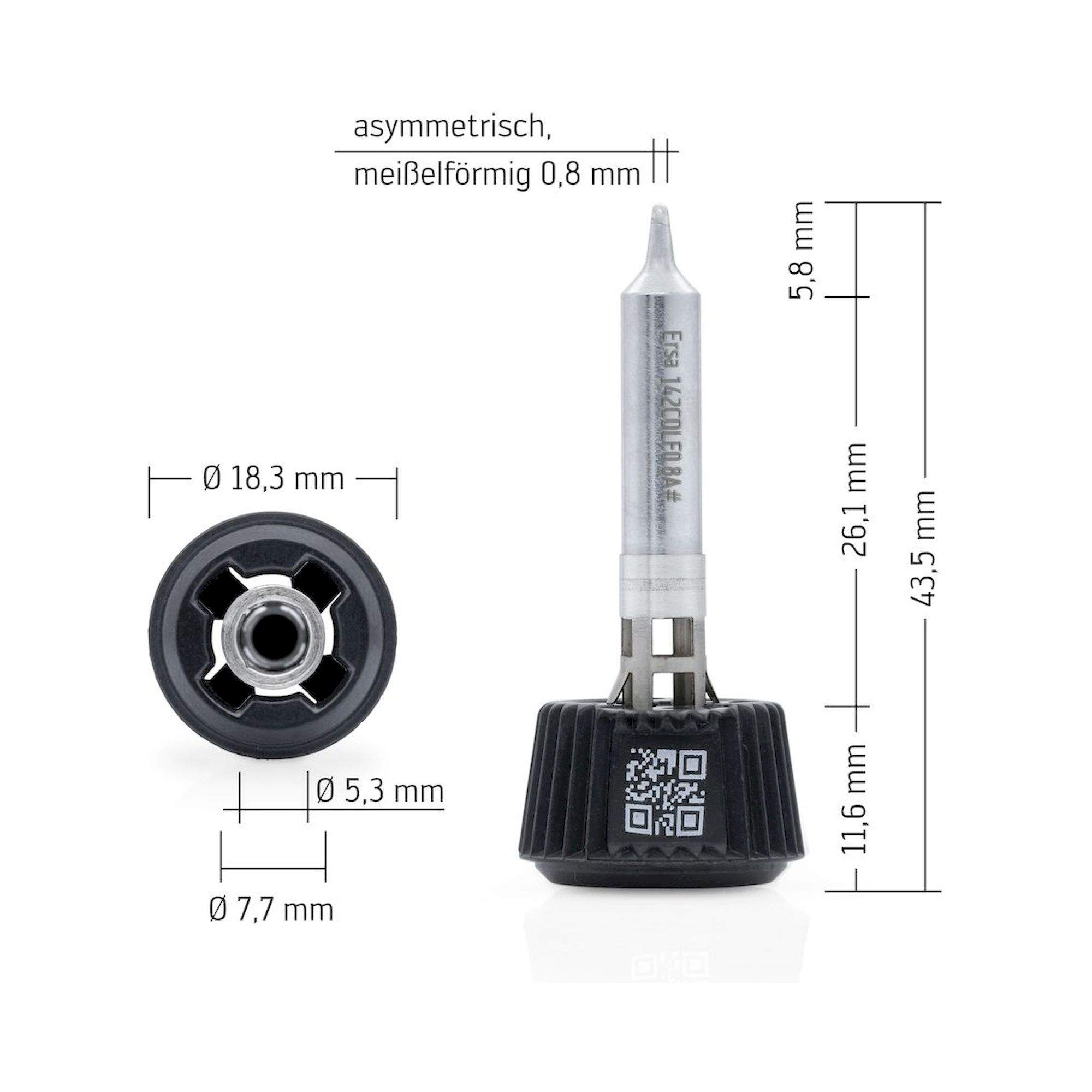

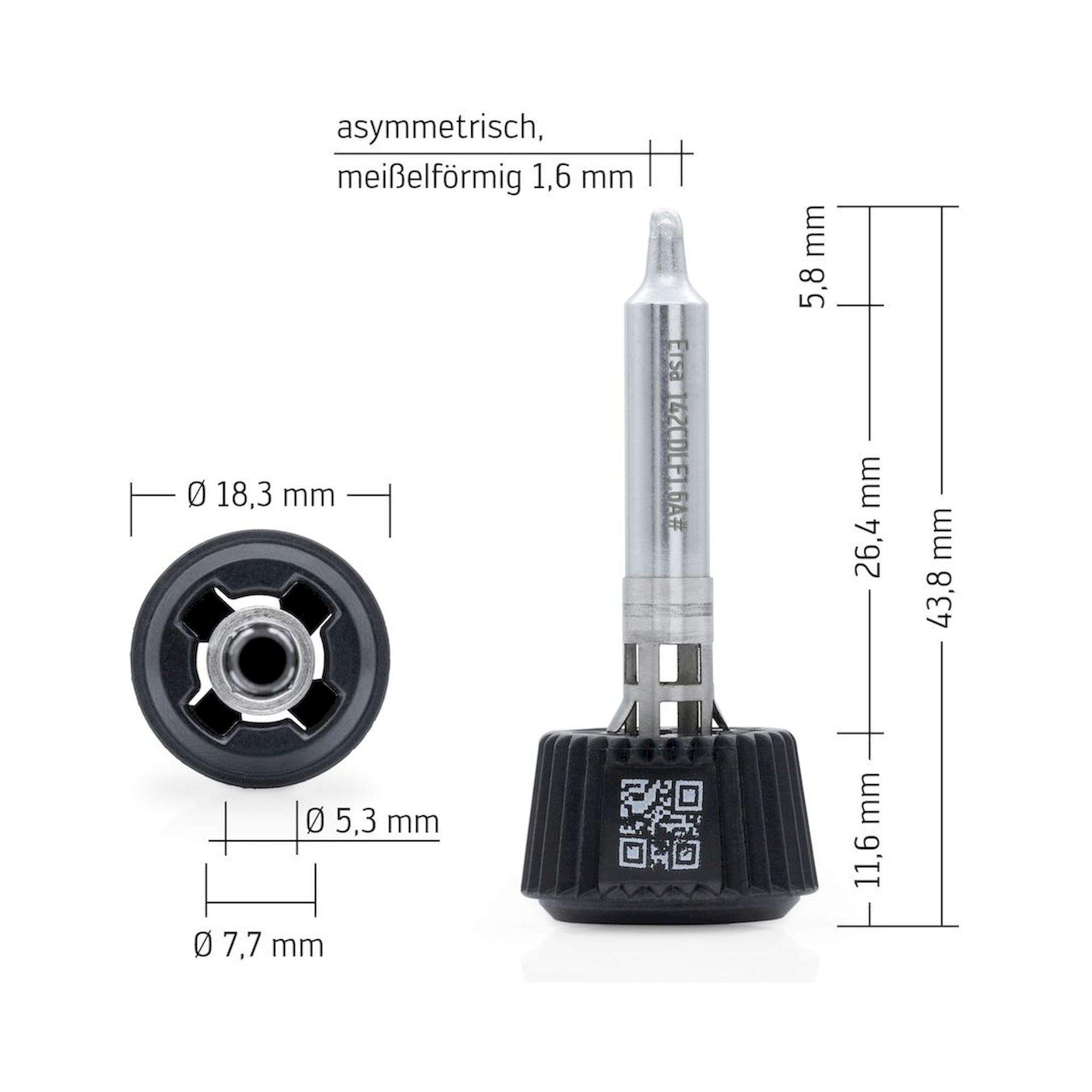

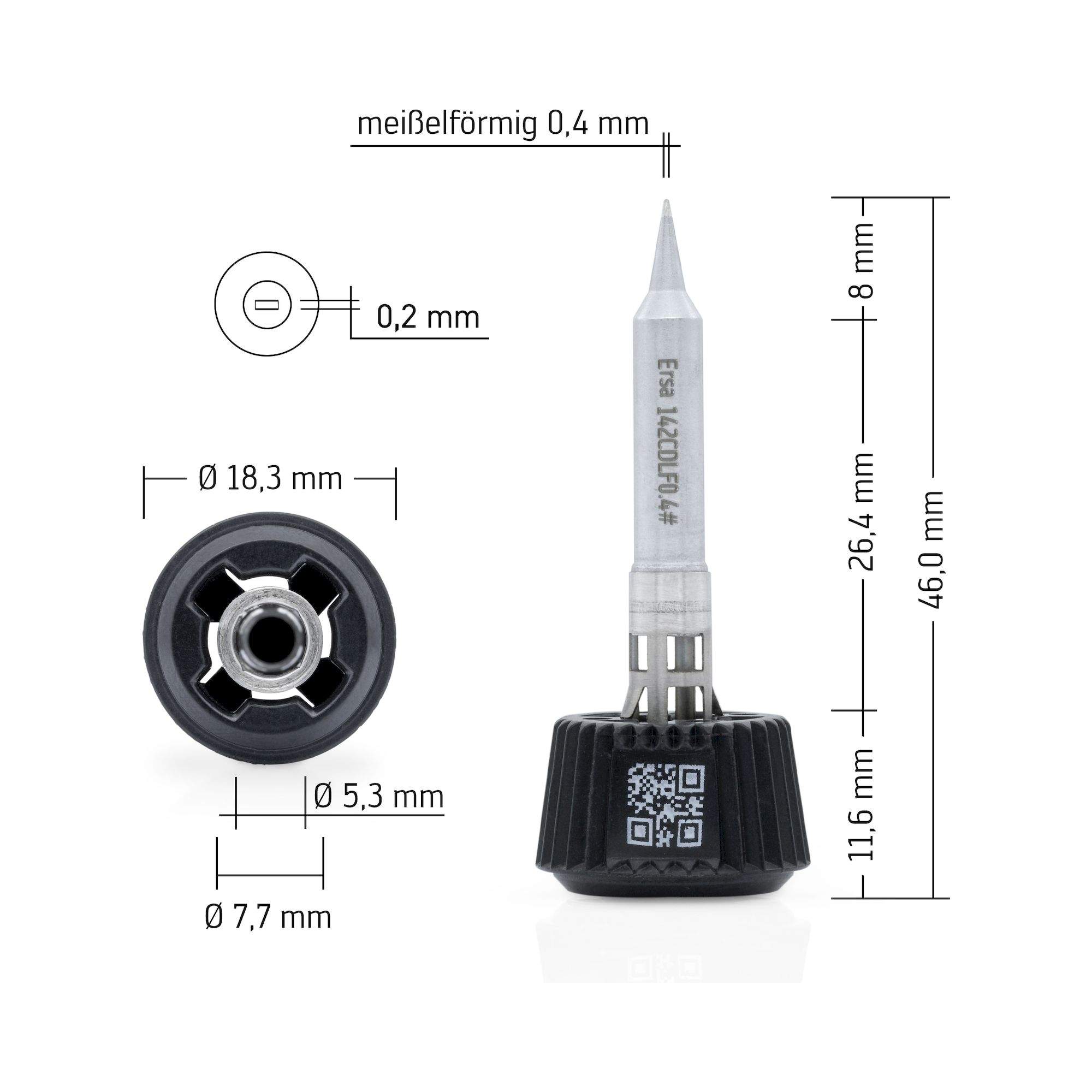

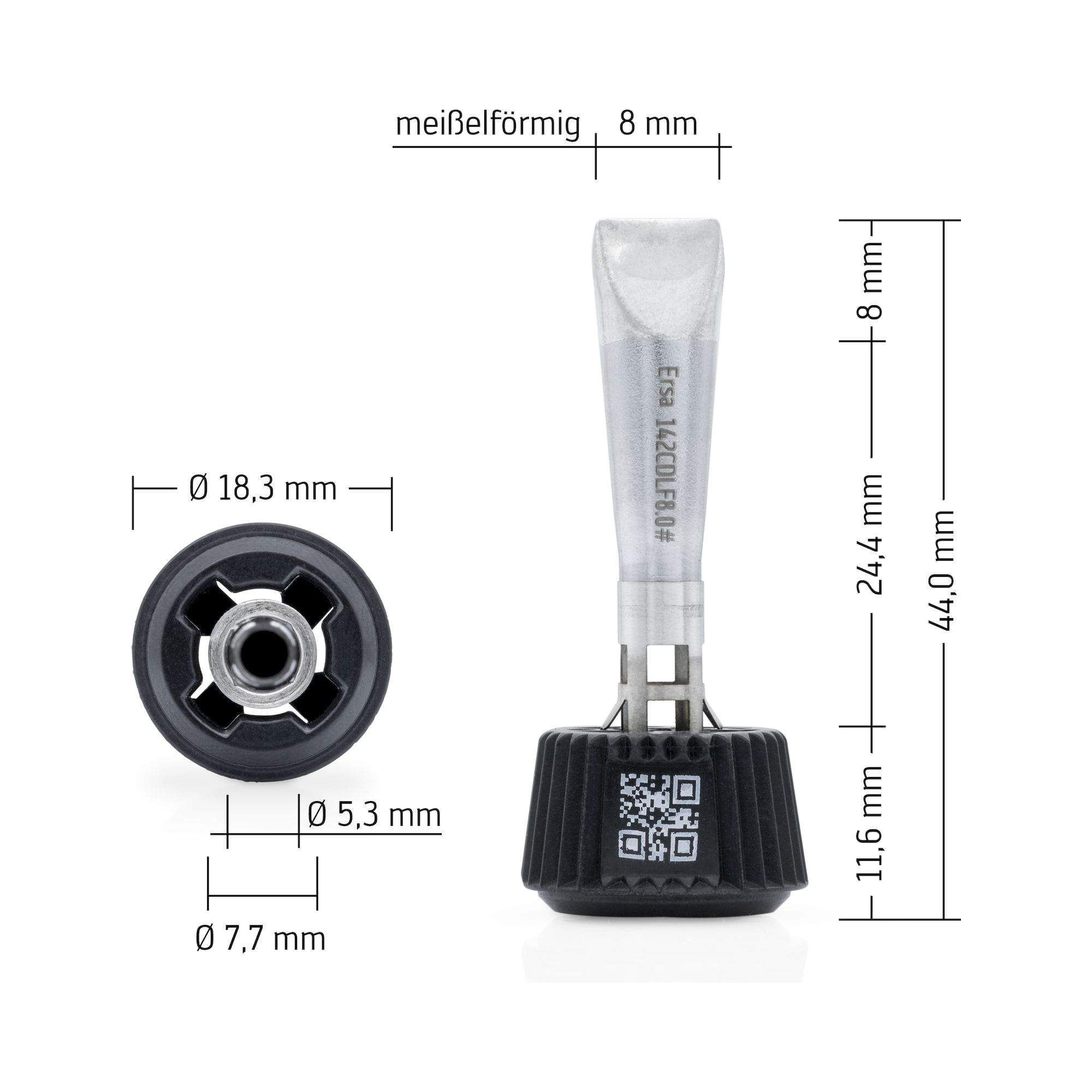

The CDL chisel selection is particularly broad: from the 0.4-mm fine tip for tight pad pitches to the 65-mm wide tip for heat bridges on large components. Extended versions (suffix L) give additional reach for confined solder joints.
| Code | Shape | Widths / dimensions | Example application |
|---|---|---|---|

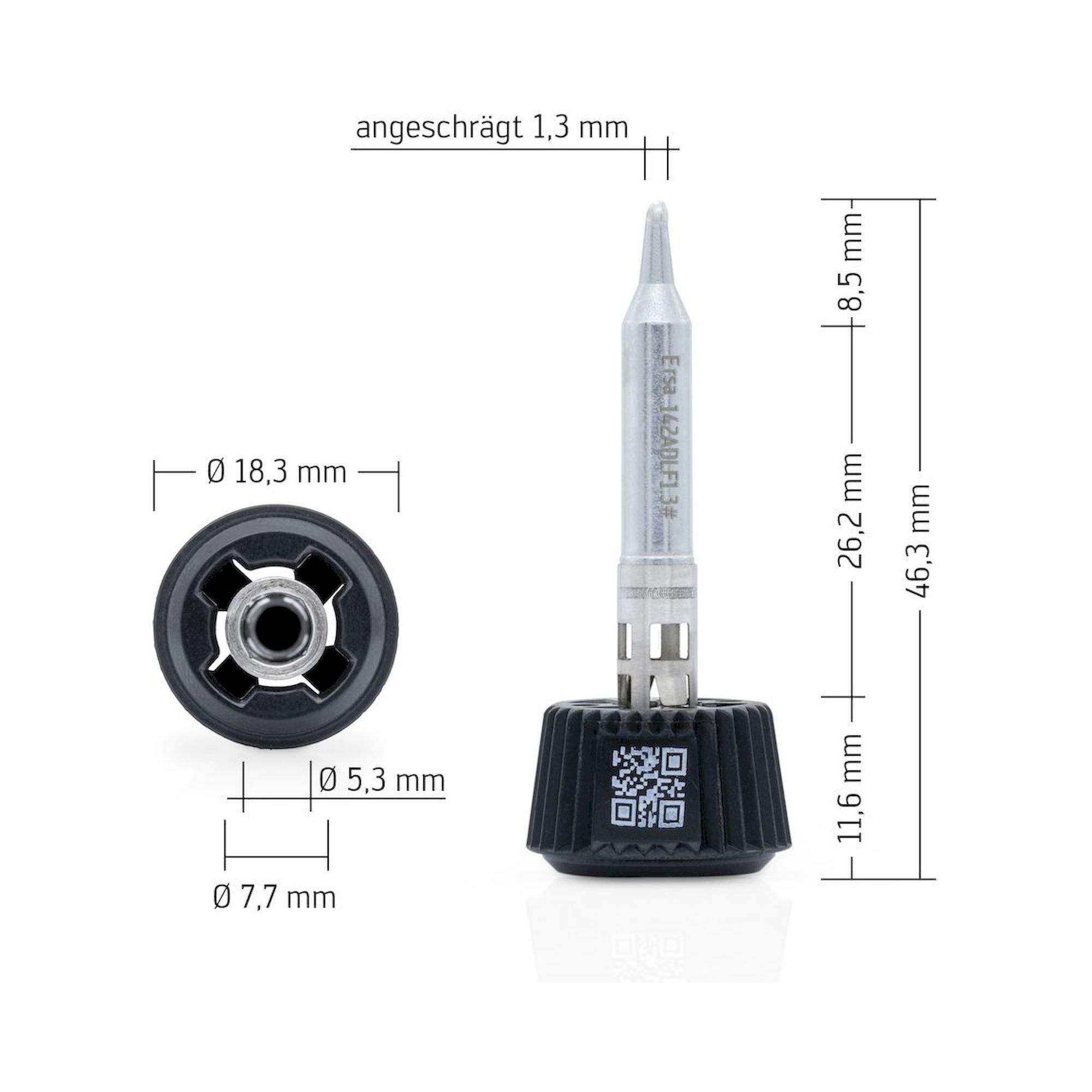

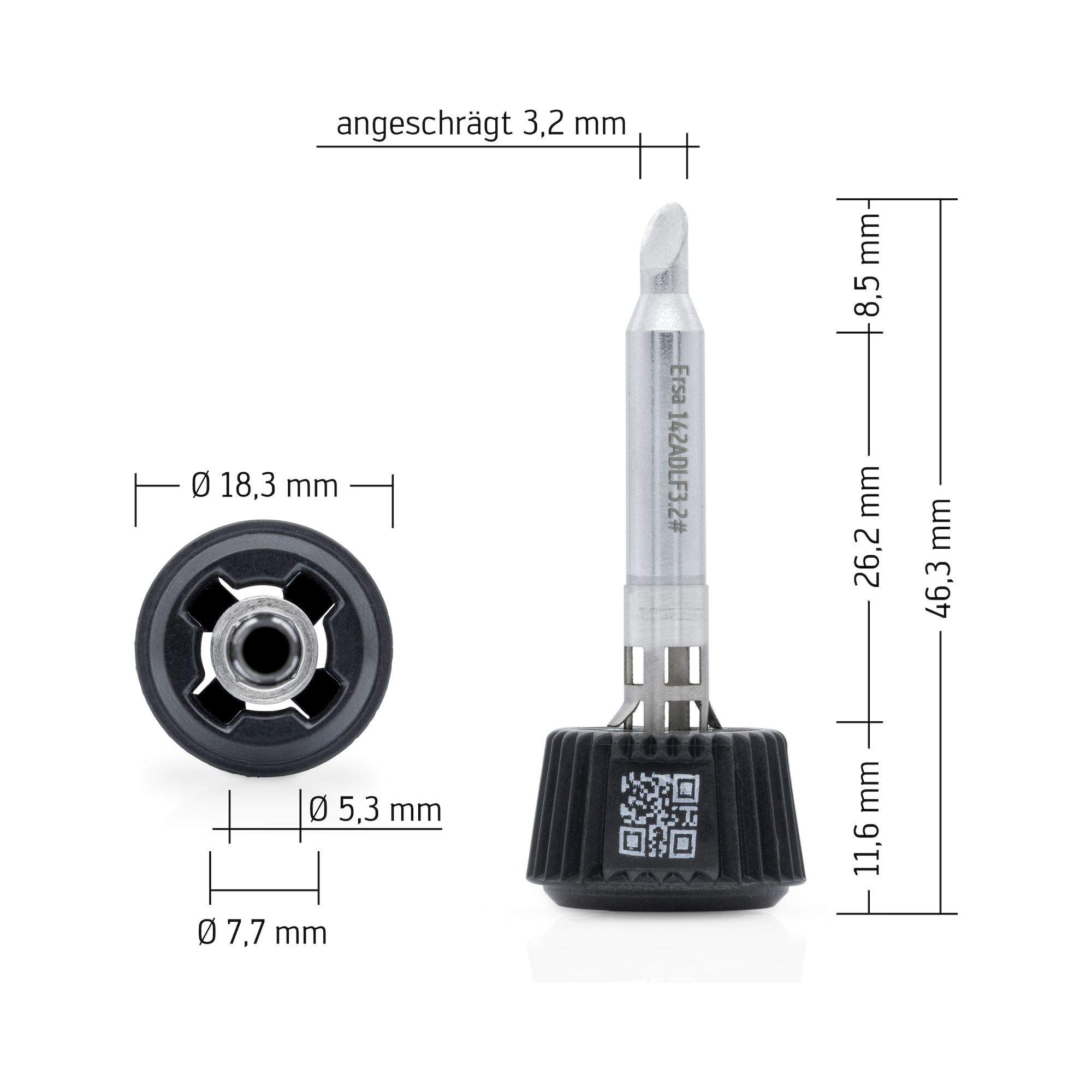

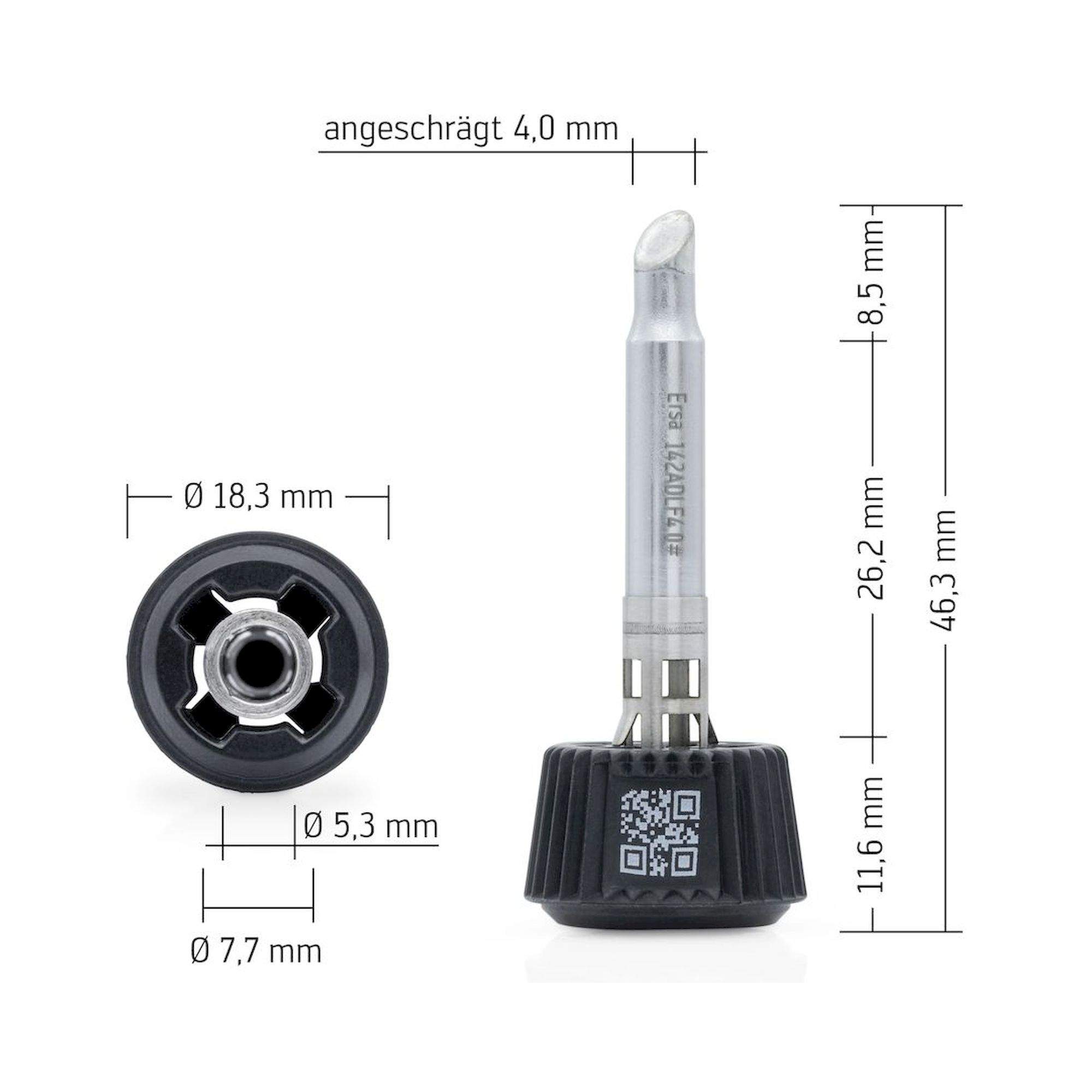

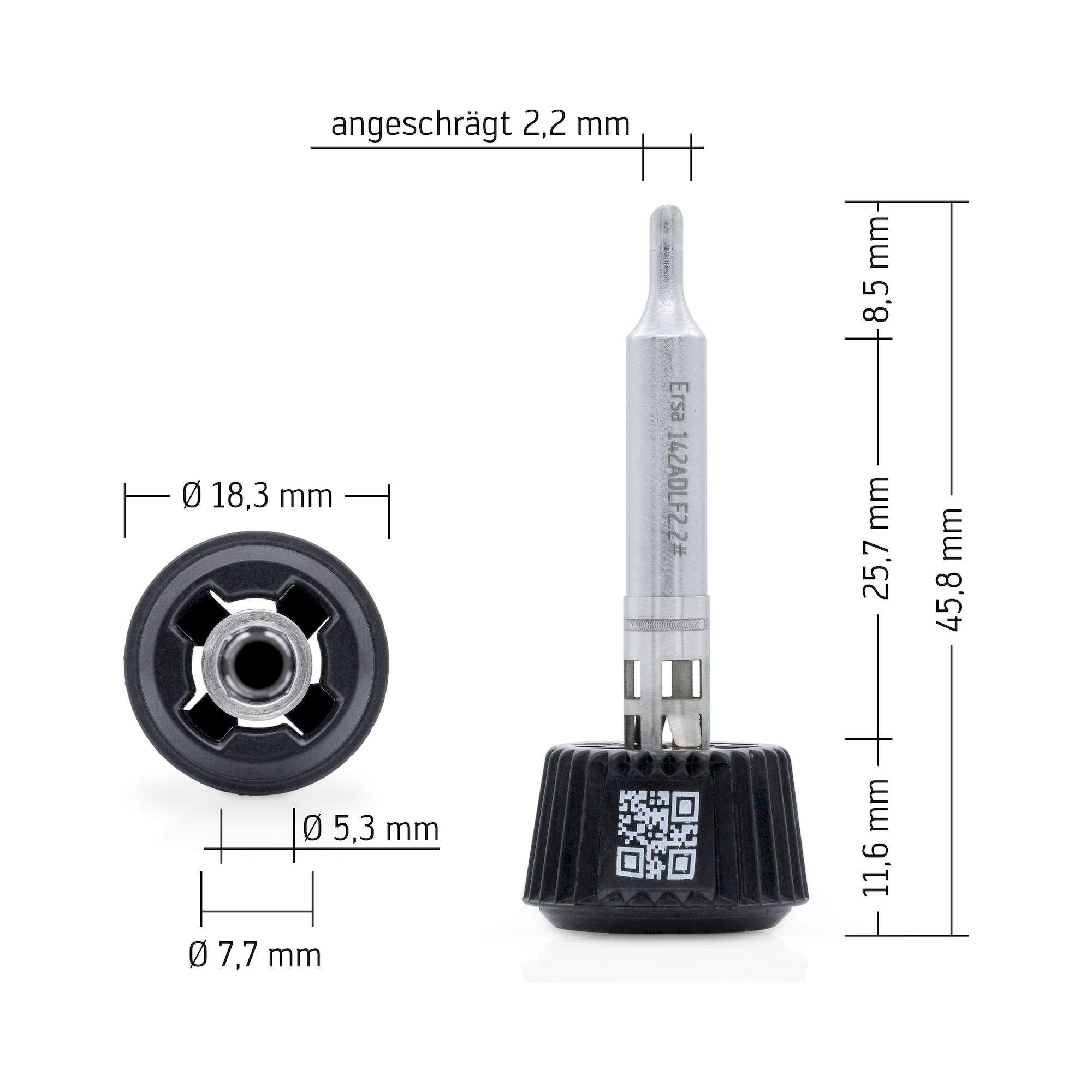

| ADL | Bevel-cut | 1.3 / 1.5 / 2.2 / 3.2 / 4.0 mm | SMD pads, pad arrays |

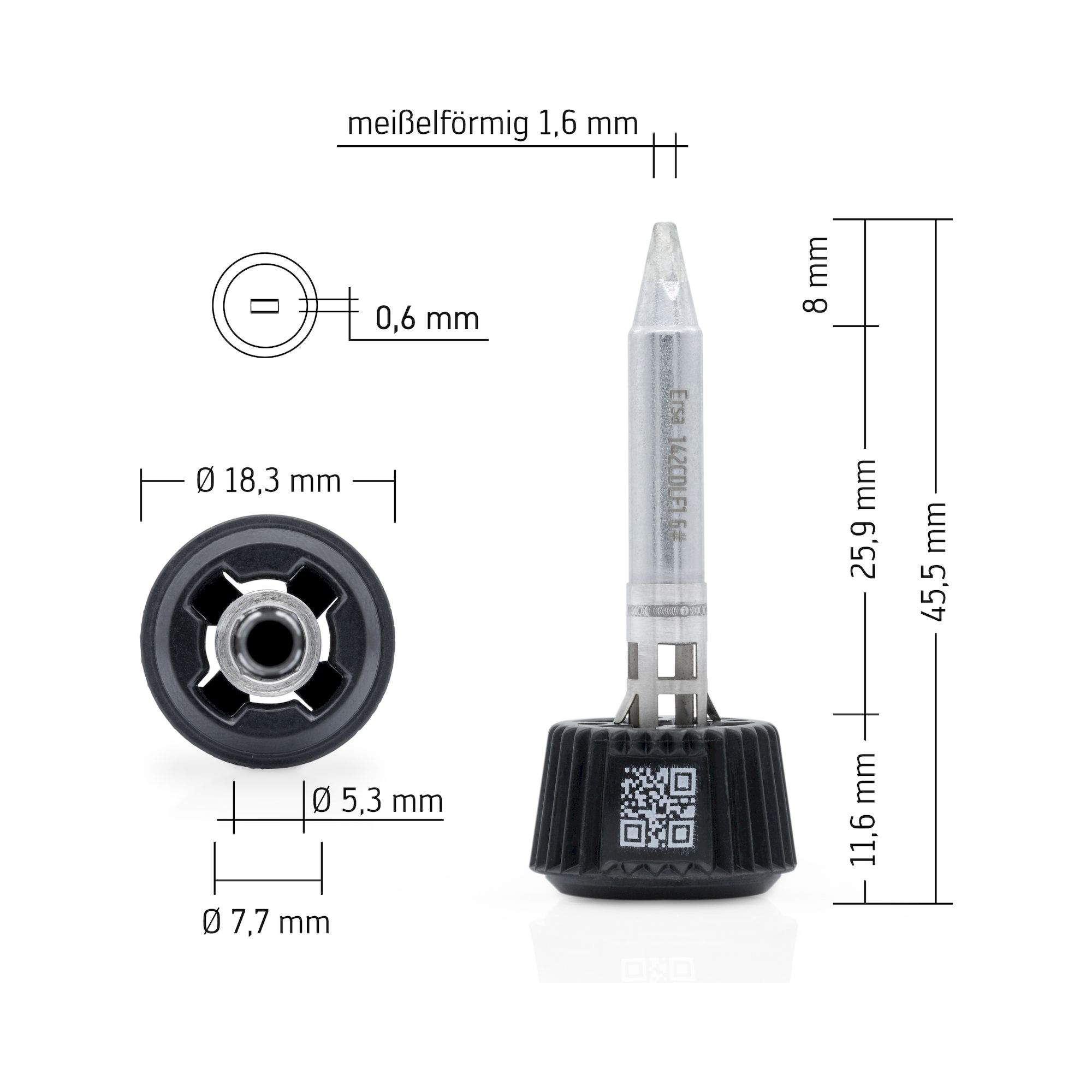

| CDL | Chisel | 0.4 to 65 mm (incl. asymmetric, extended) | THT, SMD, heat bridges |

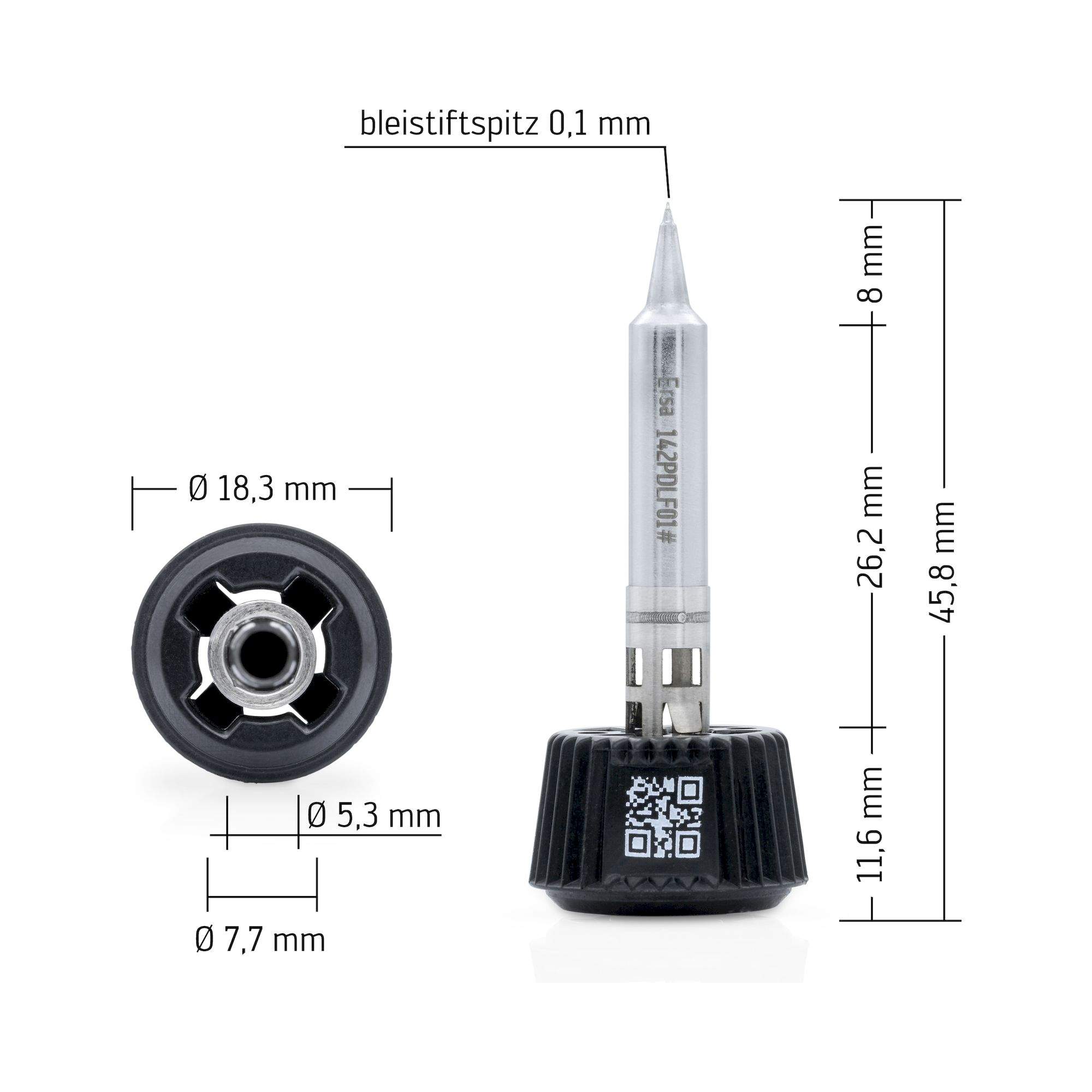

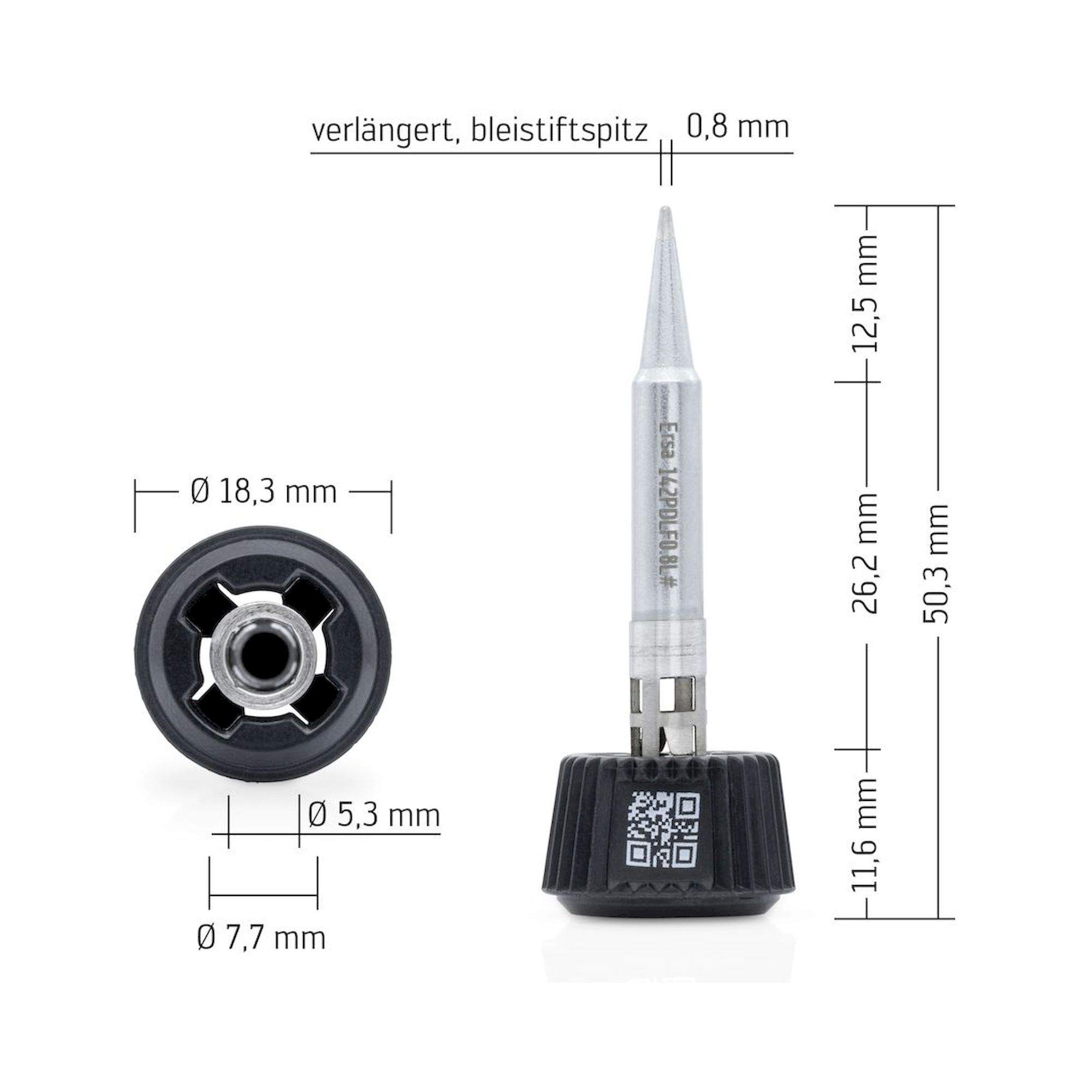

| PDL | Needle point | 0.1 / 0.3 mm (incl. extended) | Fine joints, tight pitches |
| BDL | PLCC knife | 2.0 mm | PLCC components, IC rework |
Typical applications: Hand soldering and rework with Ersa i-Tool MK2 and i-Tool TRACE in SMT production, PCB repair involving PLCC and BGA components, maintenance of industrial electronics with tight pad pitches, and specialist soldering on heat bridges or large solder pads using CDL wide tips.
