Standard cylinder DSBF
Standard cylinder according to ISO 15552
The Festo standard cylinder DSBF is a double-acting piston rod cylinder to ISO 15552, designed for large bore diameters with long strokes. The range covers 168 items in the DSBF-C series with bore diameters of 100 and 125 mm, and stroke lengths from 25 to 500 mm. Both cushioning variants PPSA (fixed) and PPVA (adjustable) are available; the N3 magnetic piston suffix enables integration of position sensors.
ISO 15552 compliant - standardised fixing and port dimensions for direct compatibility
Bore Ø 100 and 125 mm - high nominal forces at moderate operating pressures

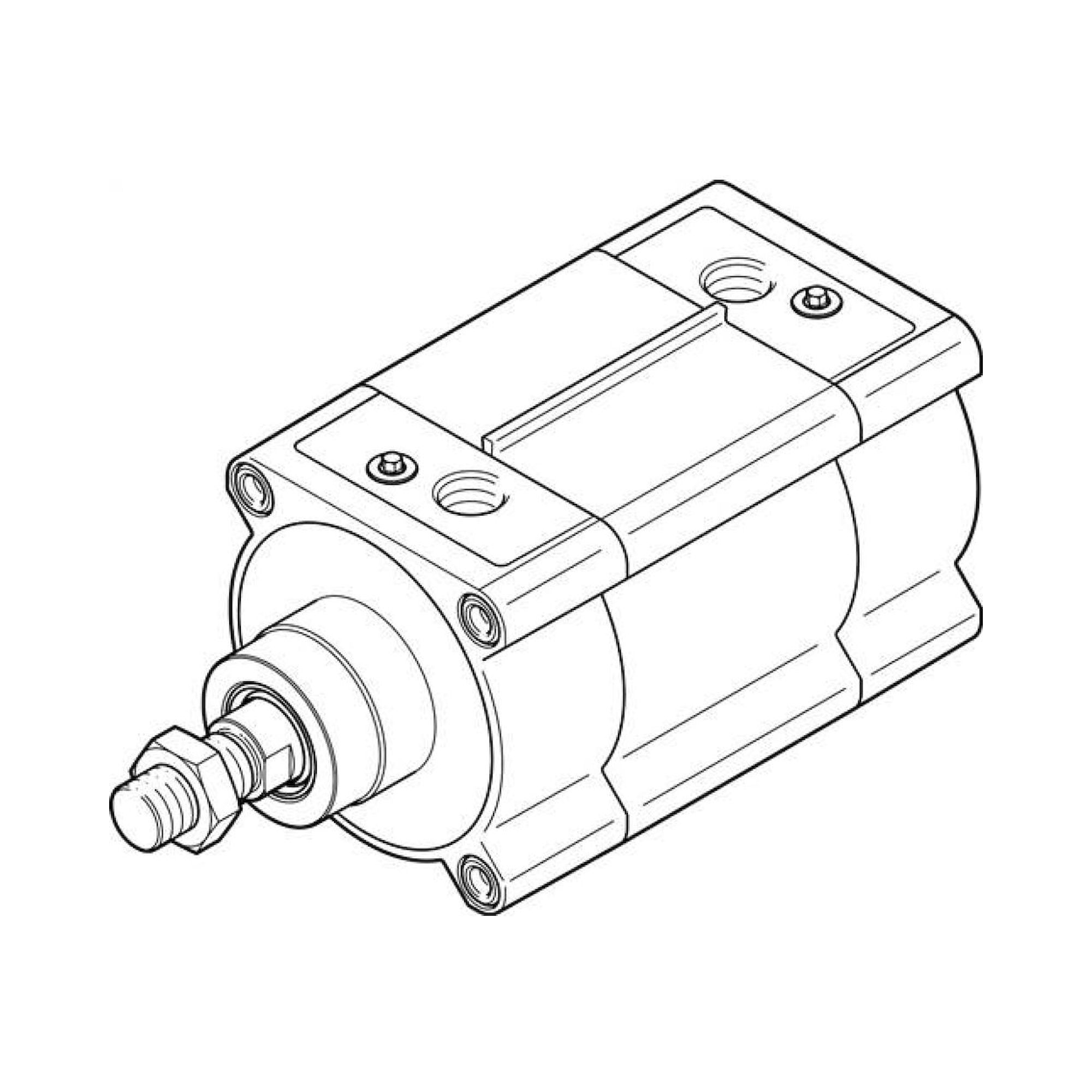

Stroke up to 500 mm - DSBF-C-125-500-PPVA-N3-R available for long linear travel
PPSA and PPVA cushioning - fixed or adjustable end cushioning, N3 magnetic piston
Suffix -R - right-hand version for specific installation orientations
| Type | Bore Ø | Stroke | Cushioning |
|---|---|---|---|
| DSBF-C-100-...-PPVA-N3-R | 100 mm | 25-500 mm | Adjustable bilateral |
| DSBF-C-100-...-PPSA-N3-R | 100 mm | 25-500 mm | Fixed bilateral |
| DSBF-C-125-...-PPVA-N3-R | 125 mm | 25-500 mm | Adjustable bilateral |

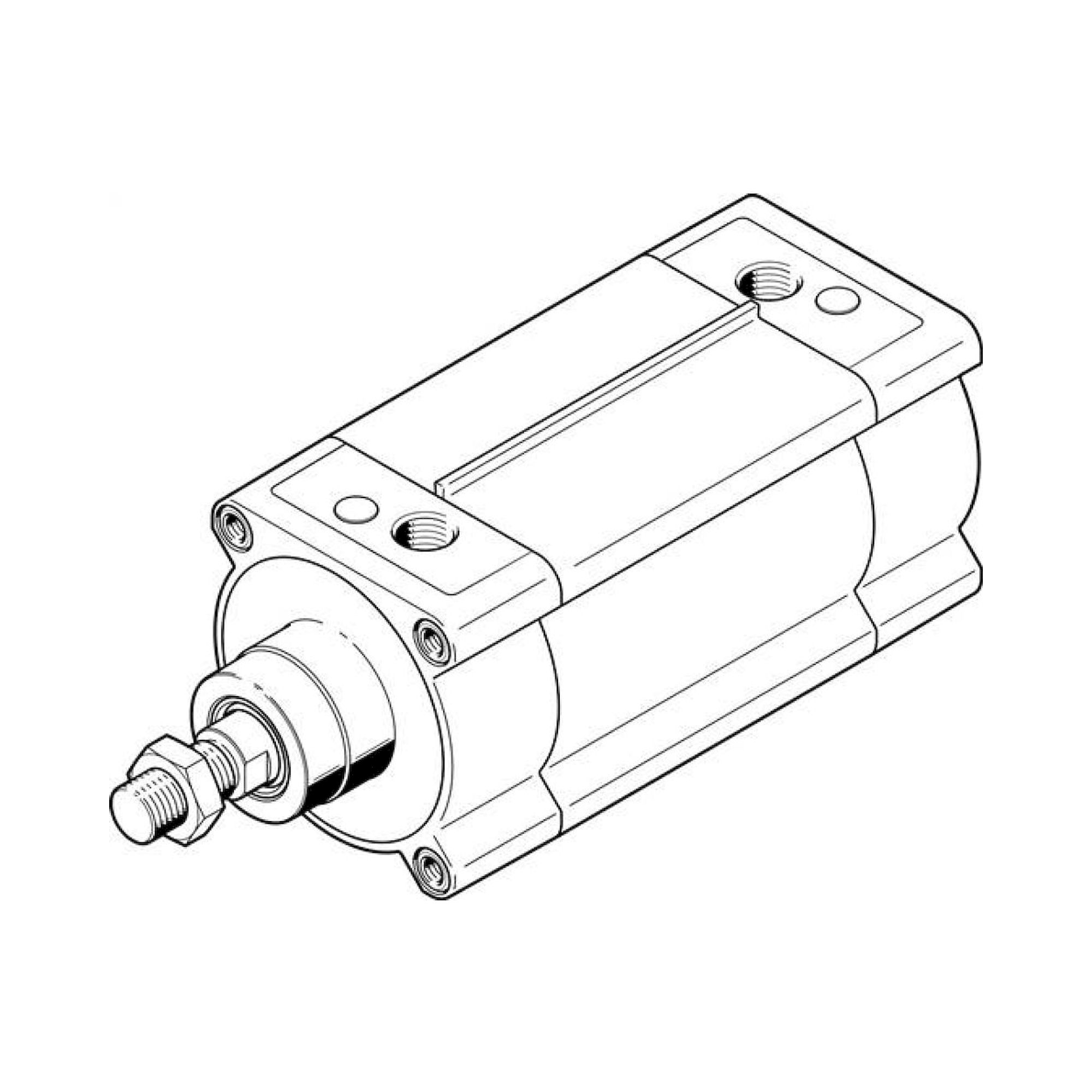

| DSBF-C-125-...-PPSA-N3-R | 125 mm | 25-500 mm | Fixed bilateral |
Typical applications: Heavy machinery requiring high cylinder forces and long strokes, presses and clamping fixtures with large force requirements, transfer systems with extended linear travel, and retrofit projects where large-bore ISO 15552 standard cylinders are needed.
