What are the key features of Festo's DSBC ISO 15552 cylinders?

The DSBC ISO 15552 cylinders are known for their high performance, reliability, and compliance with international standards, ensuring efficient automation.

What applications are DSBC ISO 15552 cylinders suitable for?

These cylinders are ideal for various industrial applications requiring precise and reliable motion control.

How does the DSBC cylinder improve pneumatic systems?

The DSBC cylinder enhances pneumatic systems by providing consistent performance and reducing maintenance needs through robust design.

What makes DSBC cylinders compliant with ISO 15552?

DSBC cylinders adhere to ISO 15552 standards, ensuring compatibility and interchangeability with other compliant components.

Why choose Festo's DSBC cylinders for automation?

Festo's DSBC cylinders are chosen for their high-quality engineering, reliability in demanding environments, and seamless integration into automation systems.

Are DSBC cylinders customizable for specific needs?

Yes, DSBC cylinders can be customized to meet specific operational requirements, offering versatility in design and application.

What industries benefit from using DSBC ISO 15552 cylinders?

Industries such as manufacturing, automotive, and packaging benefit from using DSBC cylinders for their precise and reliable motion control solutions.

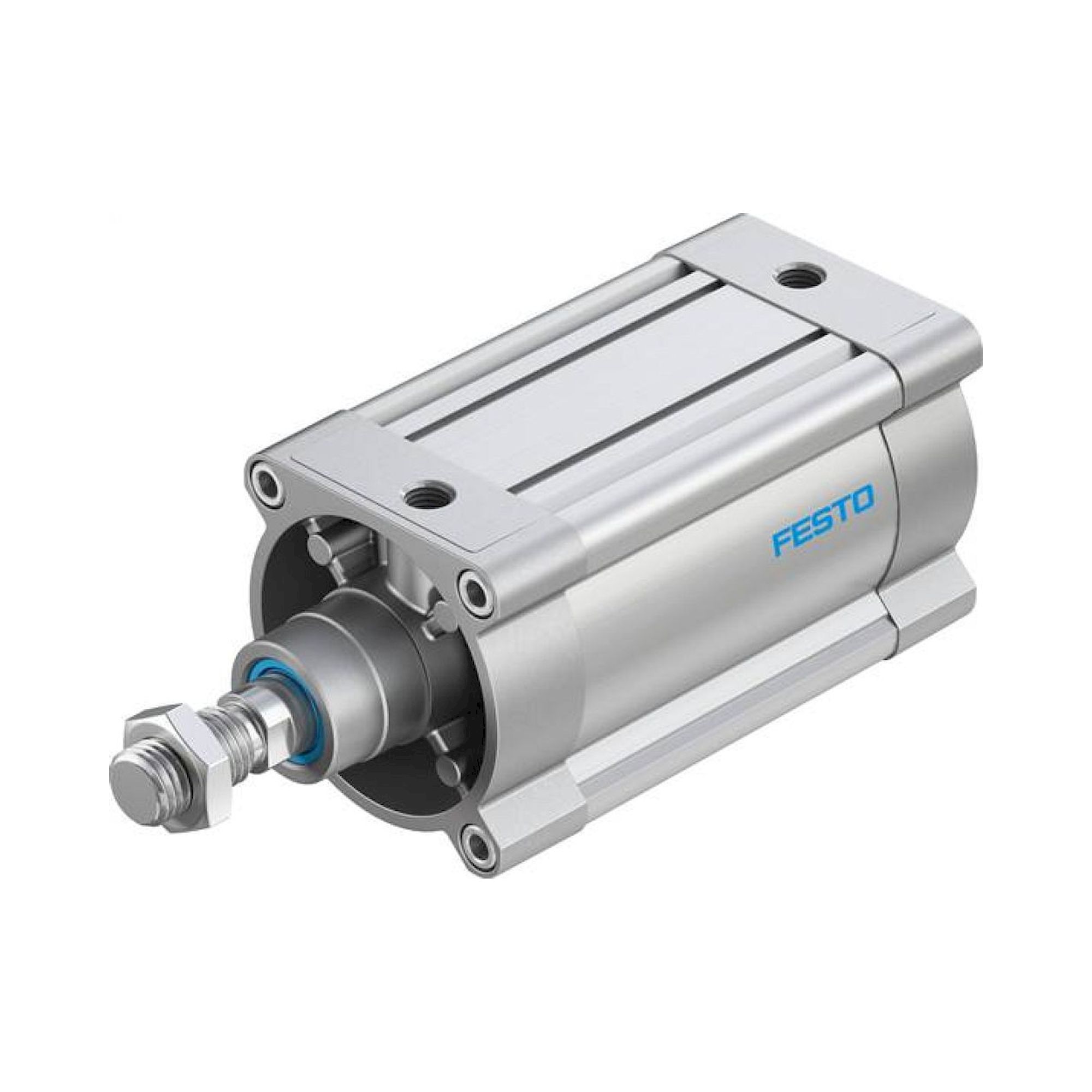

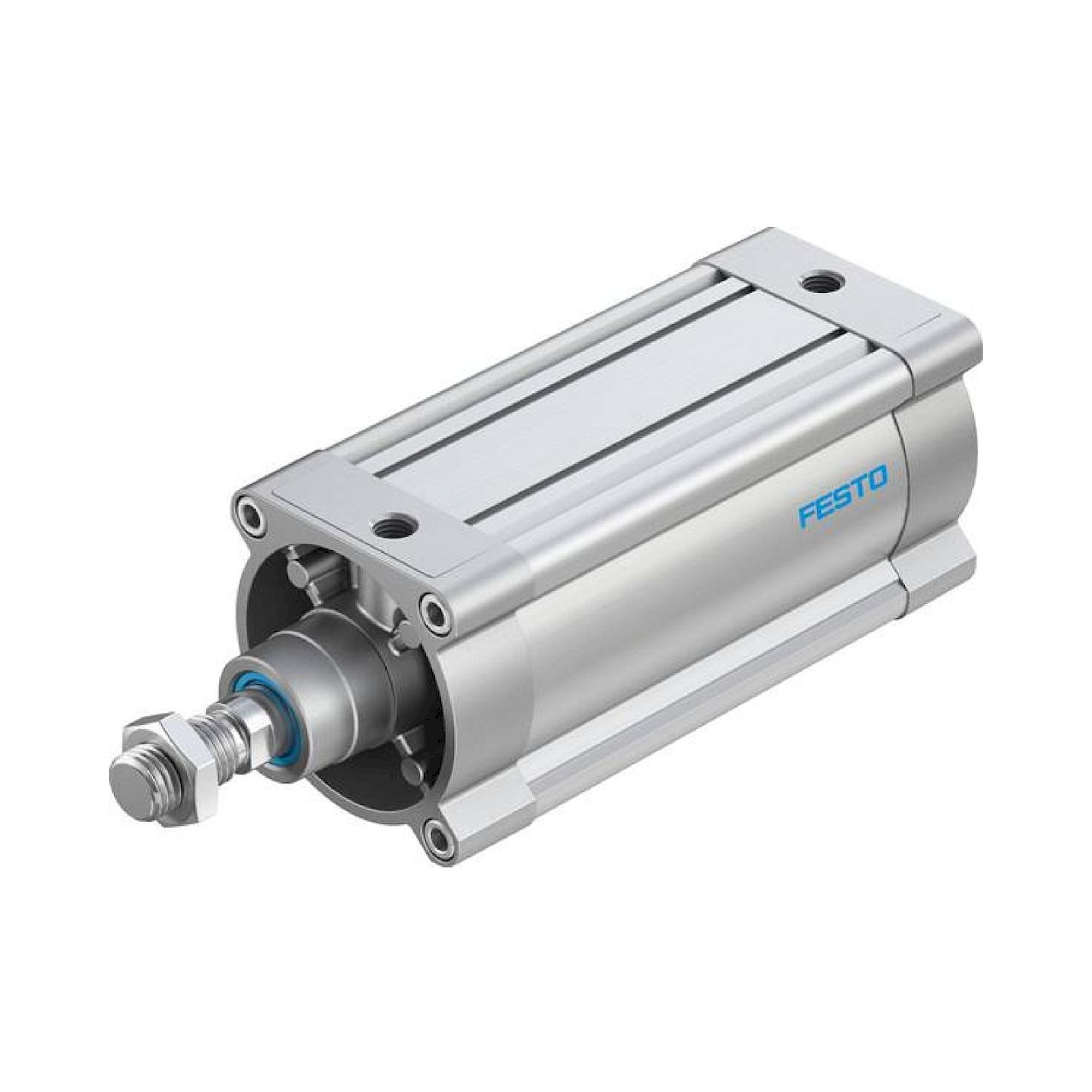

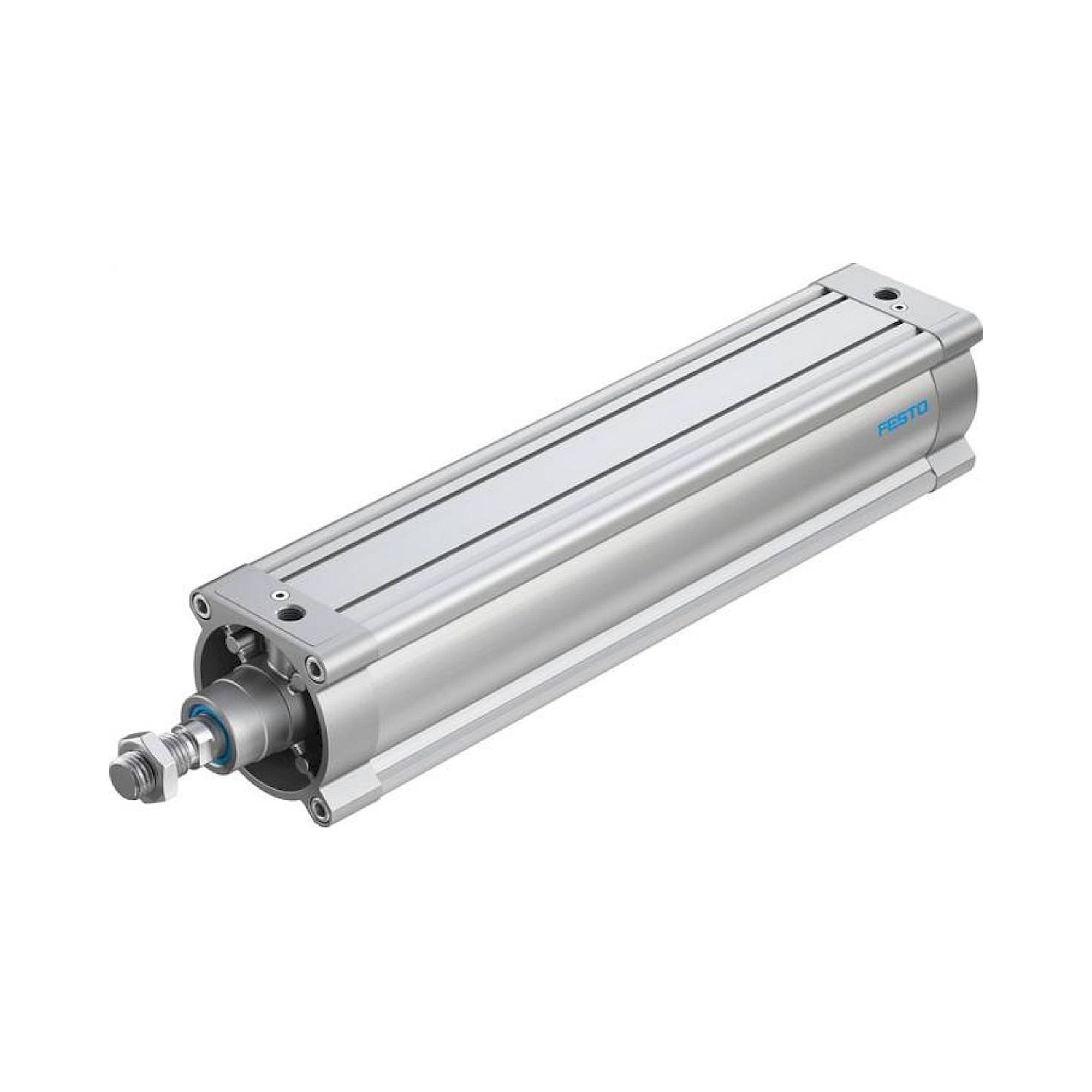

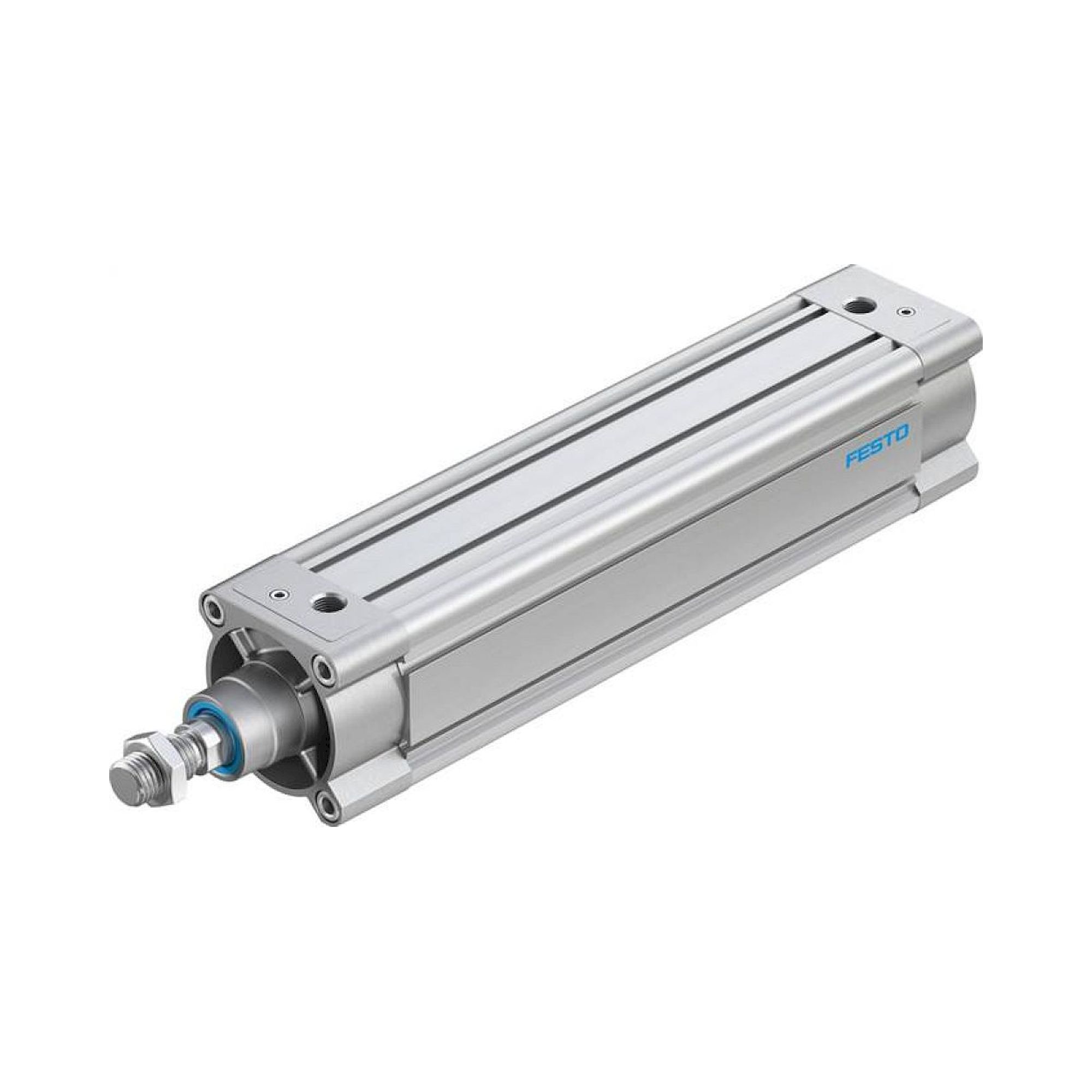

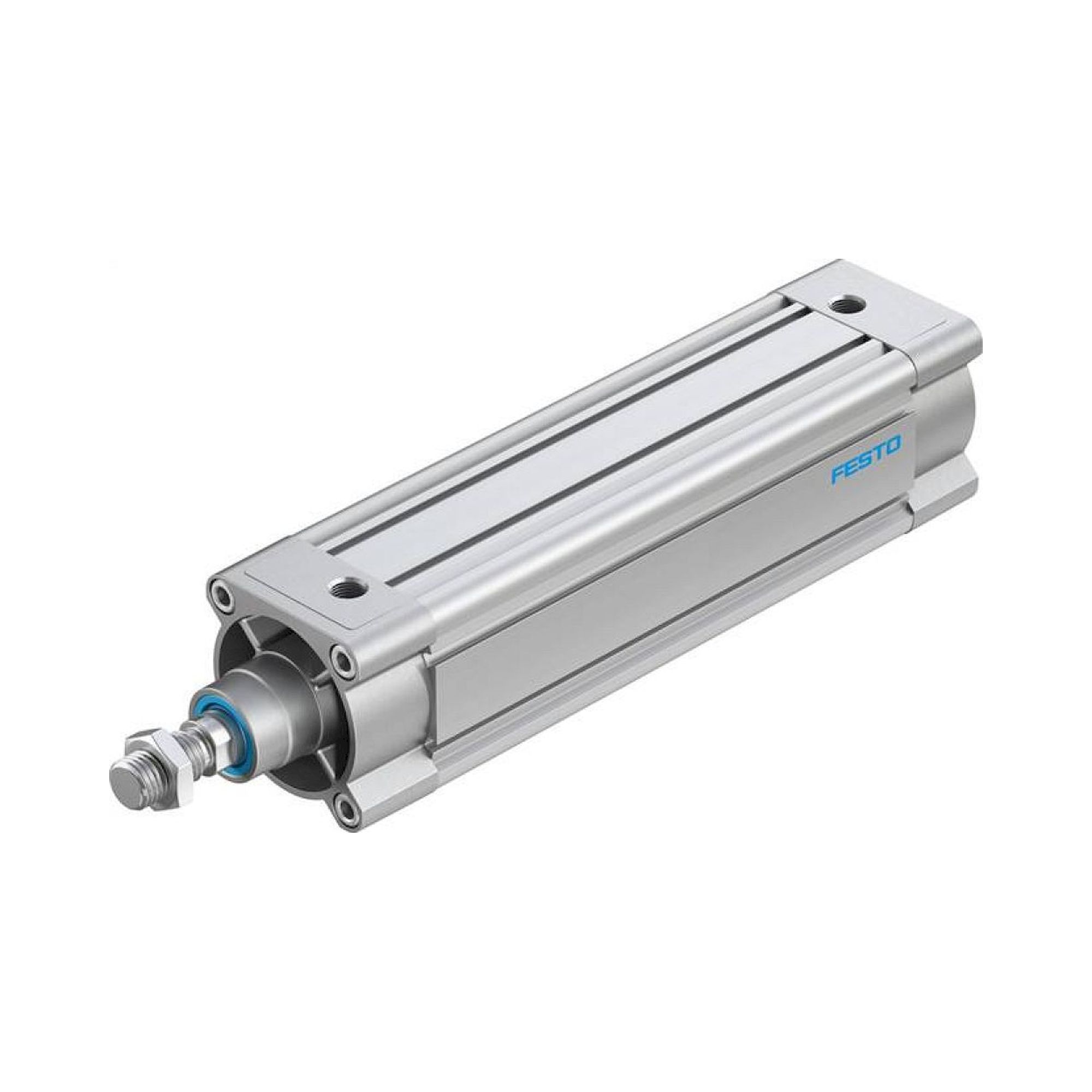

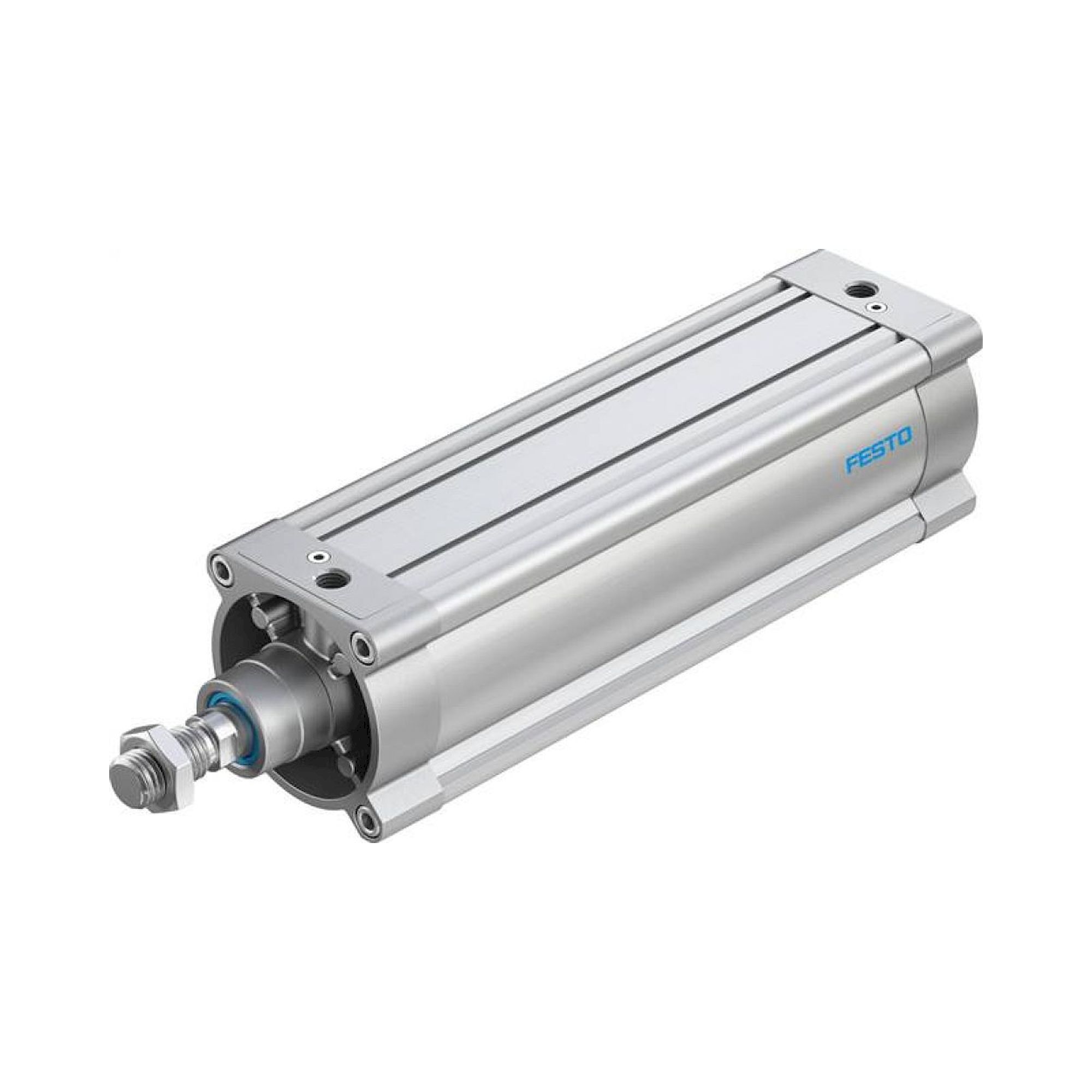

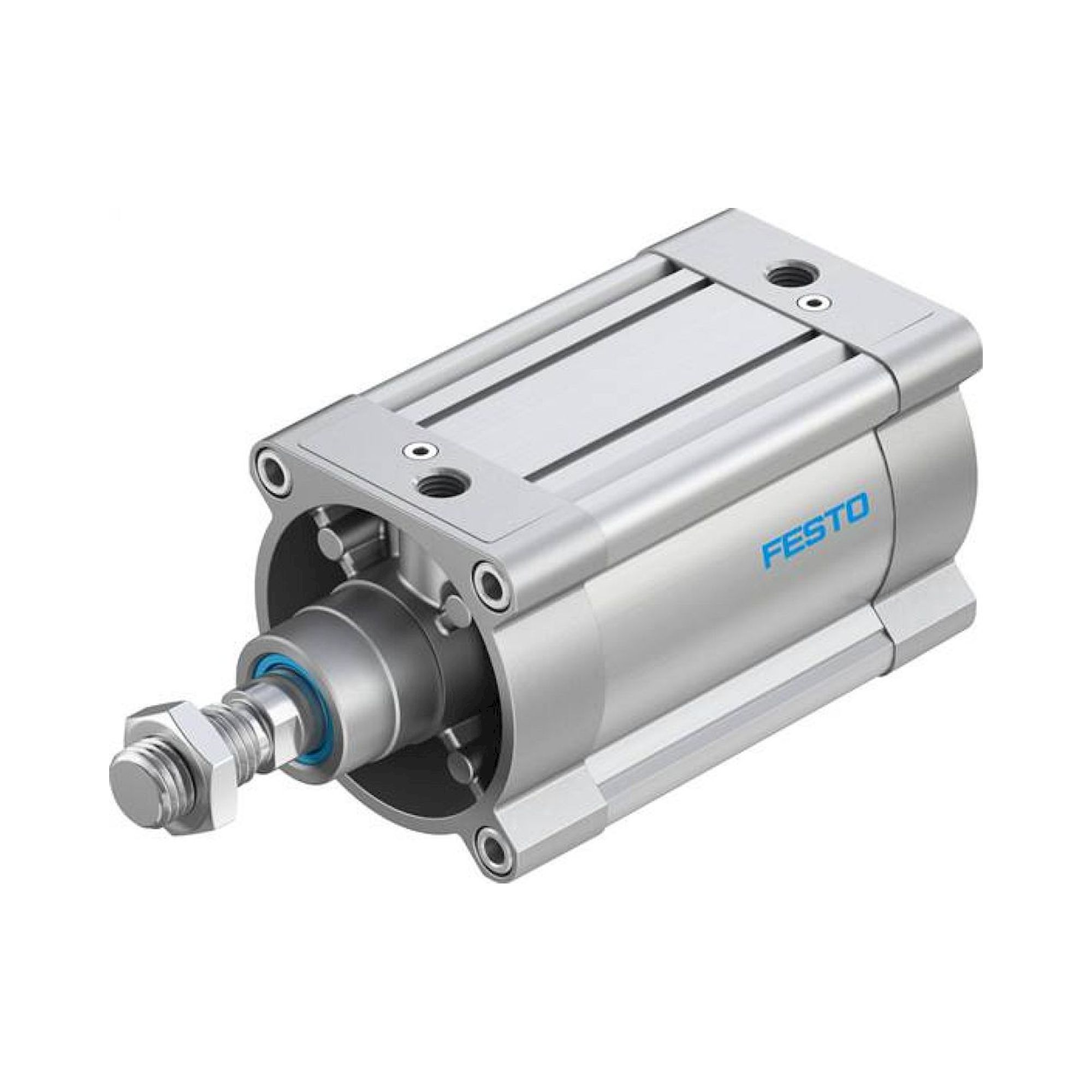

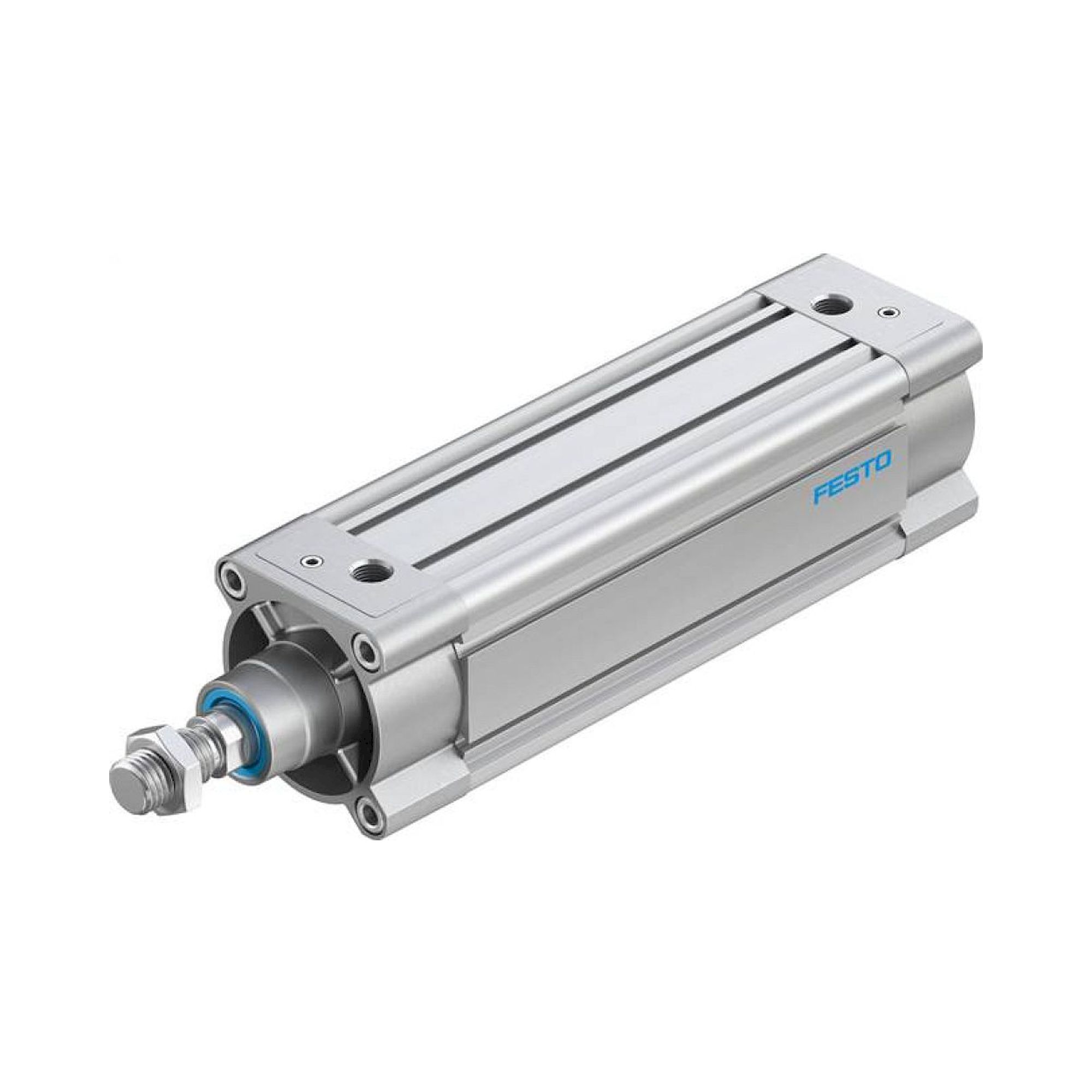

Standard cylinder DSBC

Standard cylinder according to ISO 15552

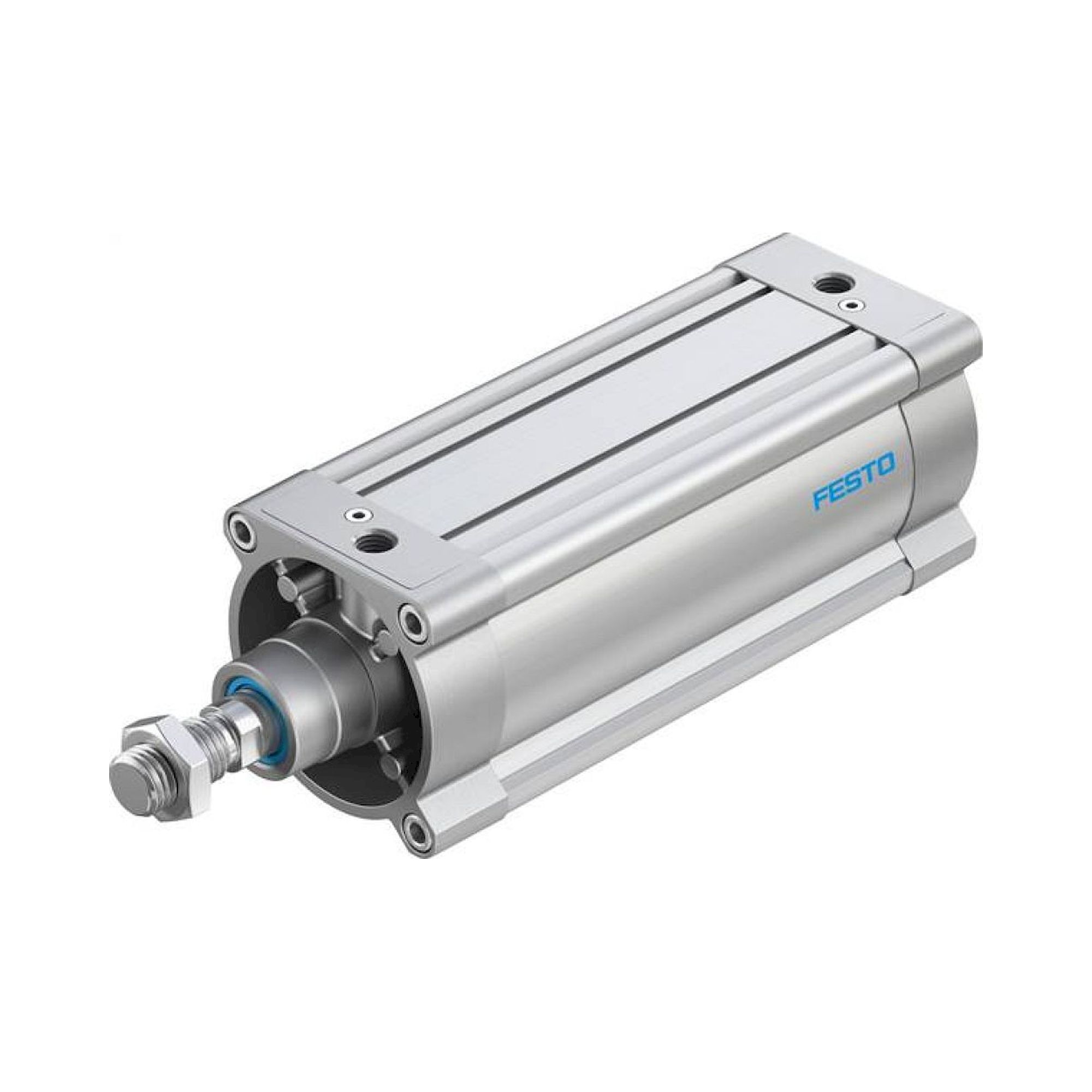

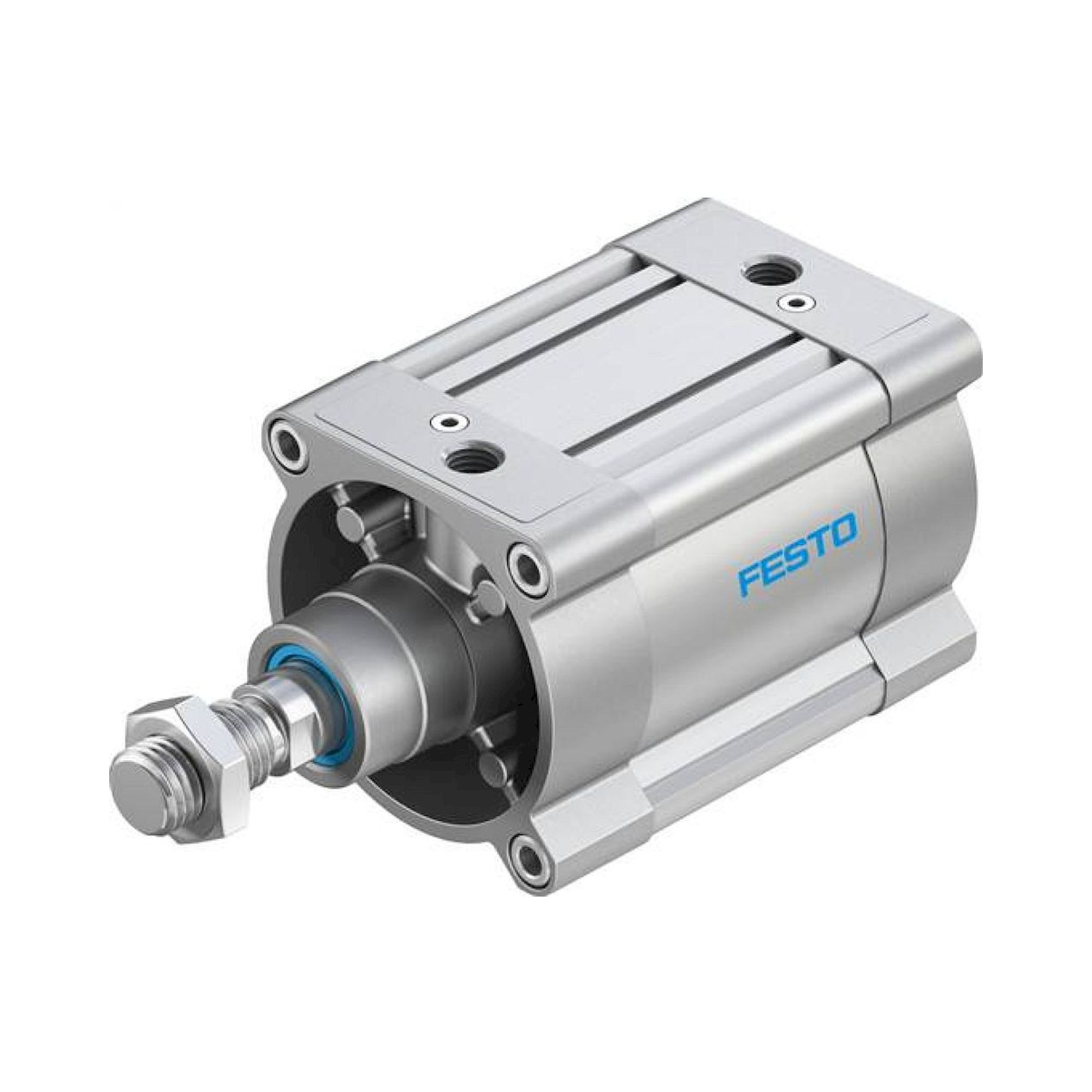

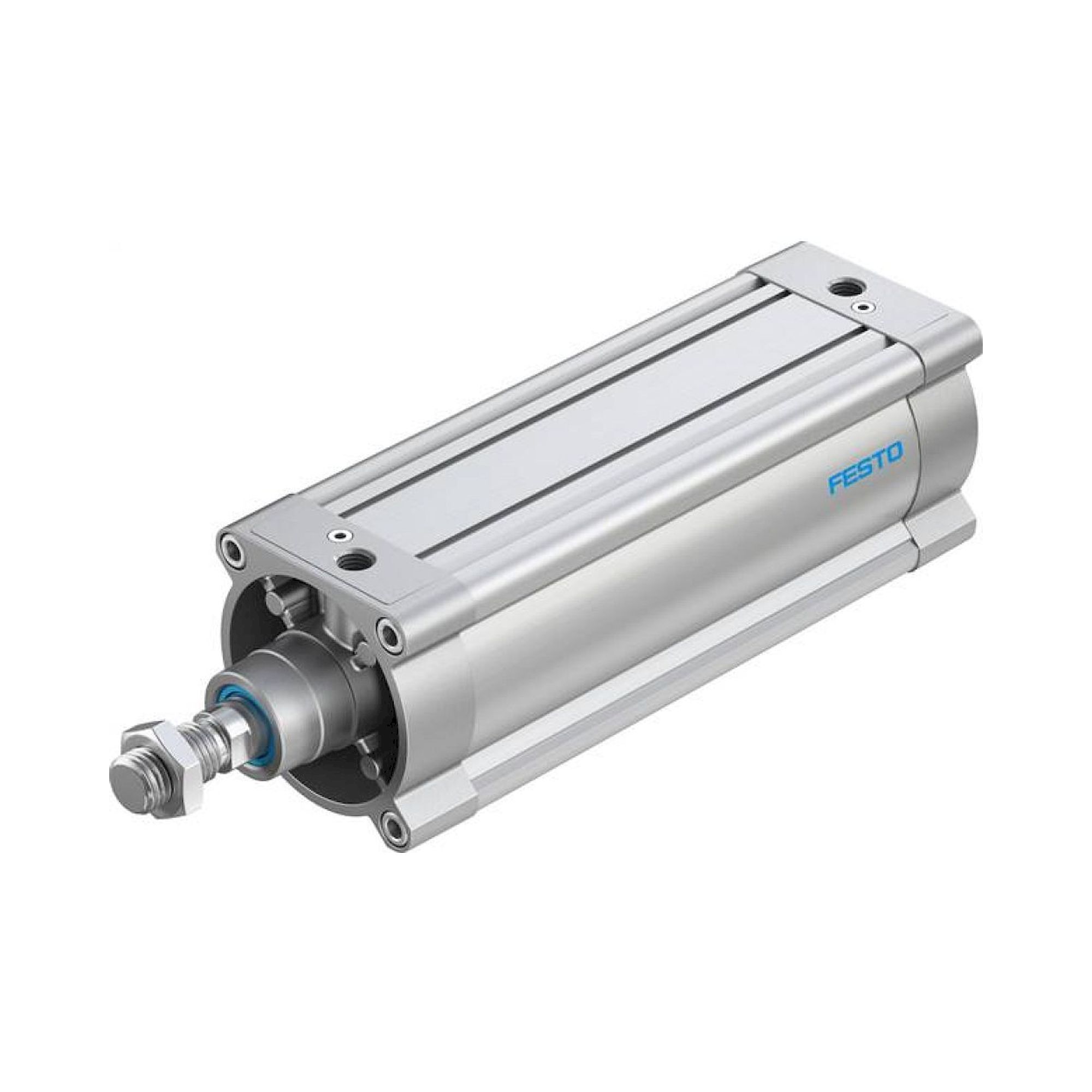

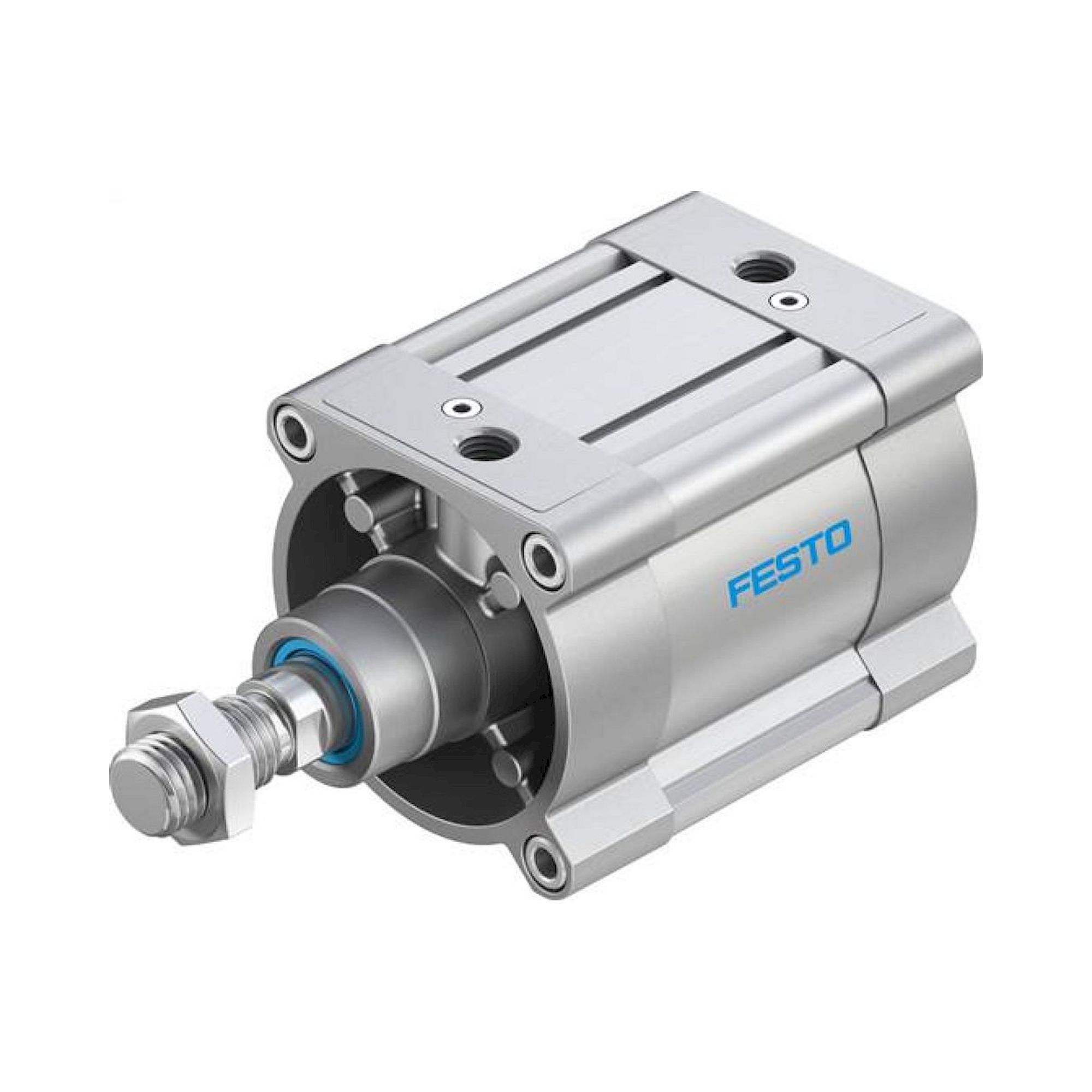

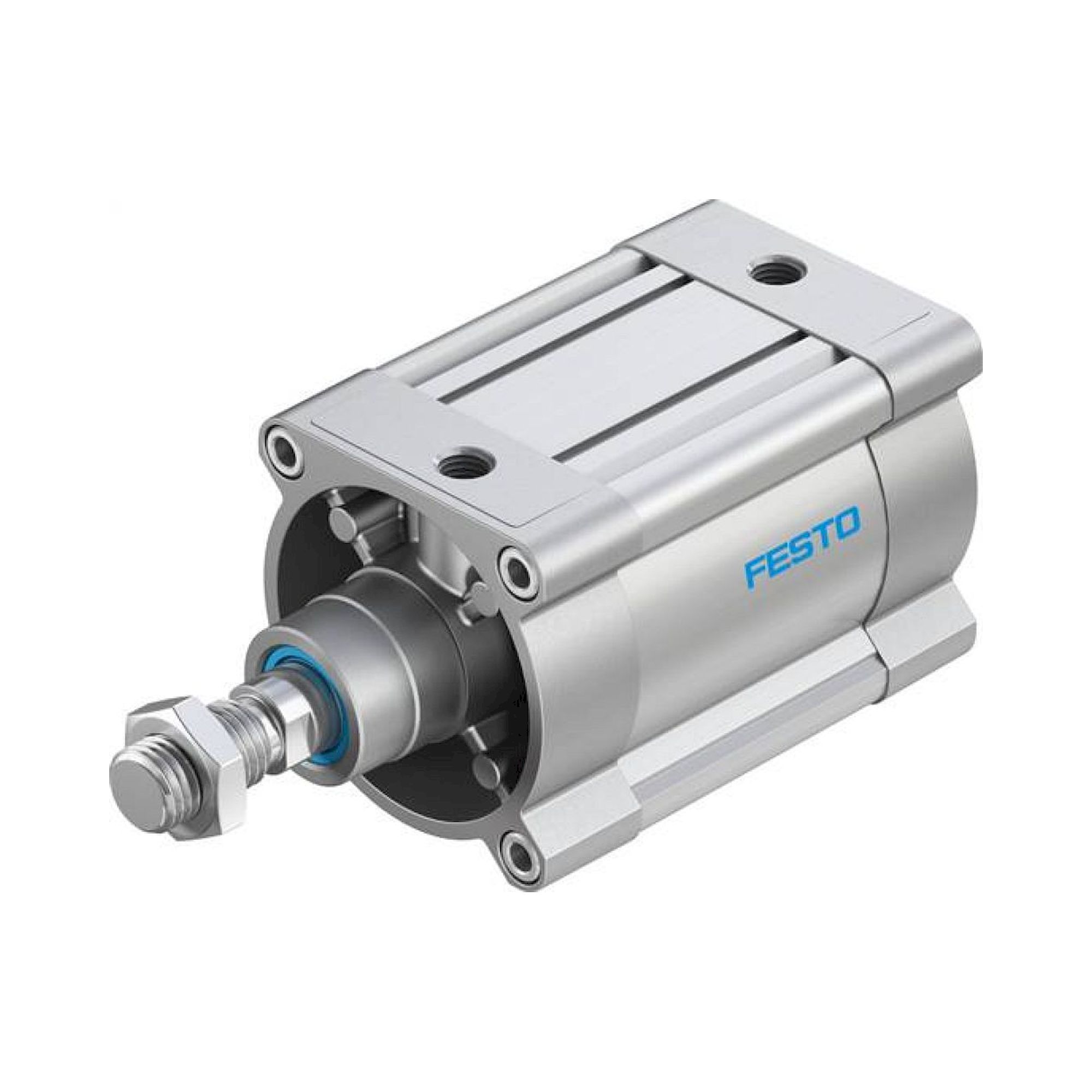

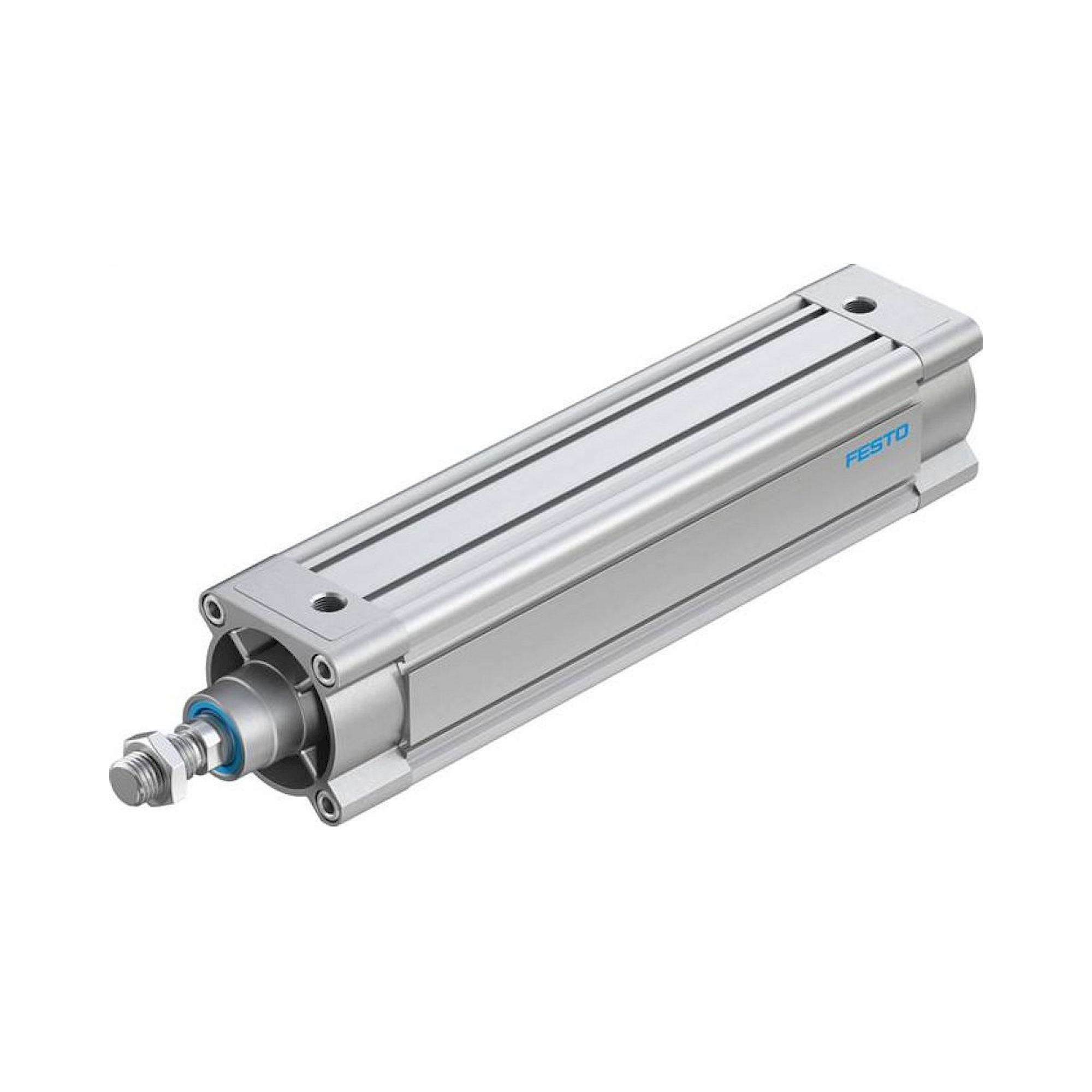

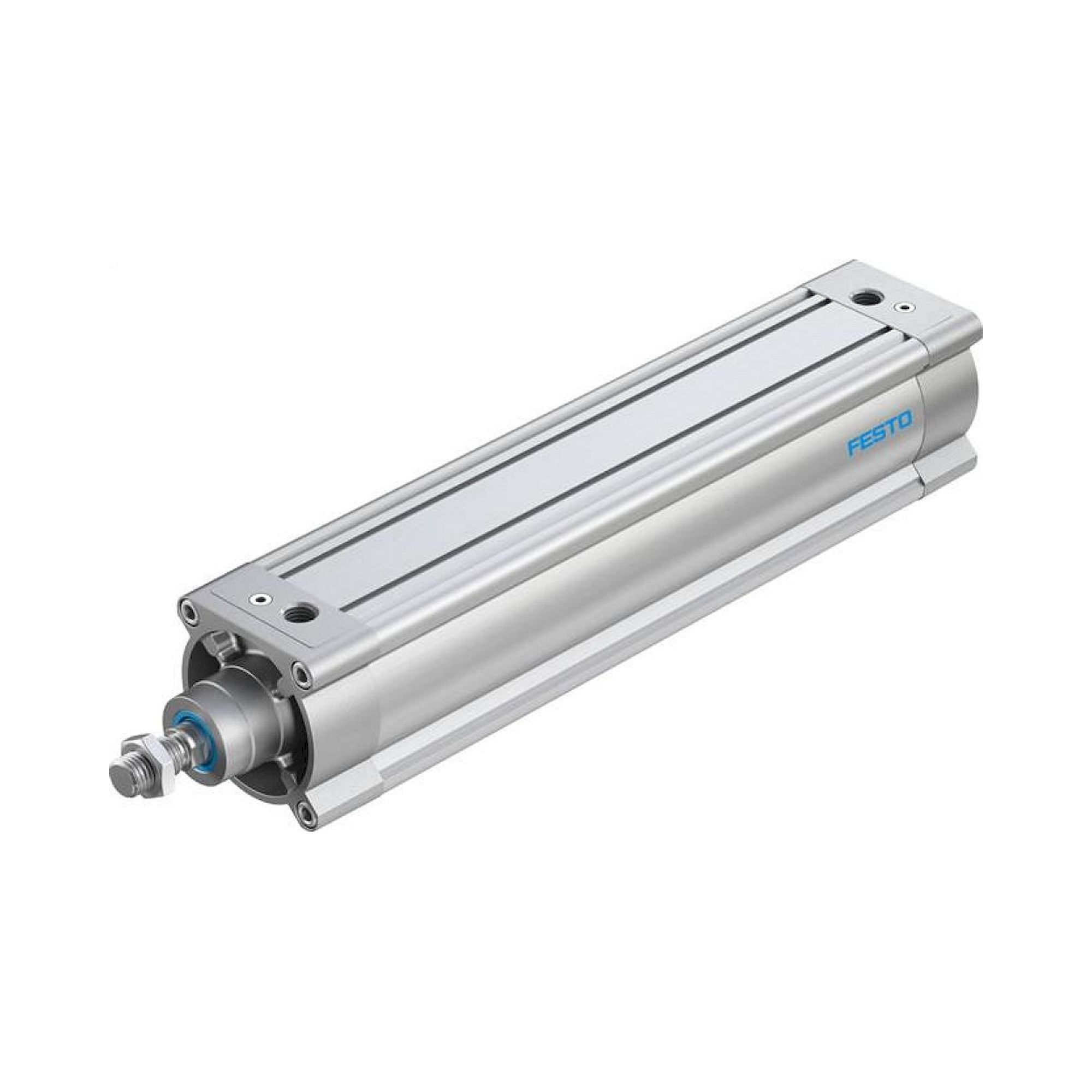

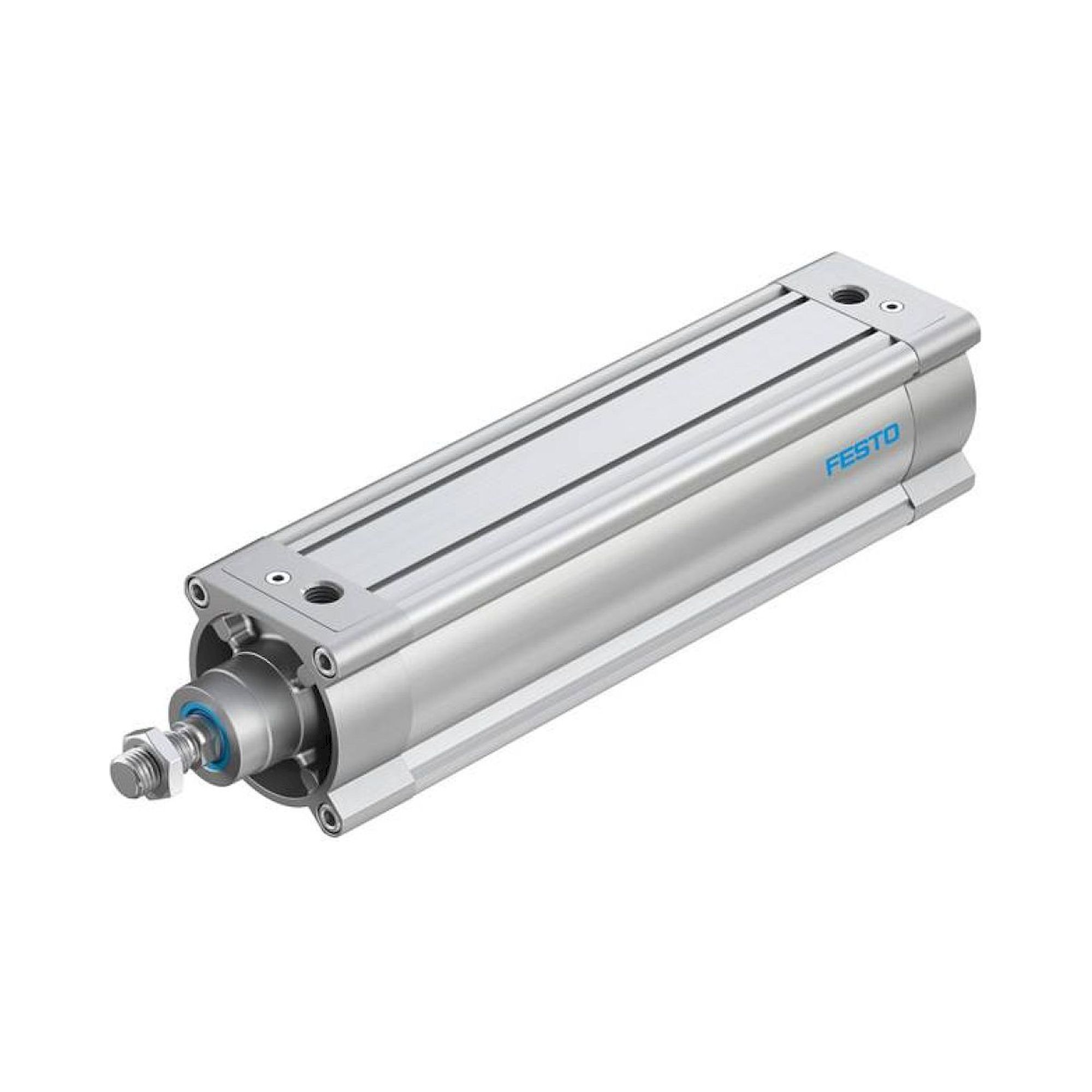

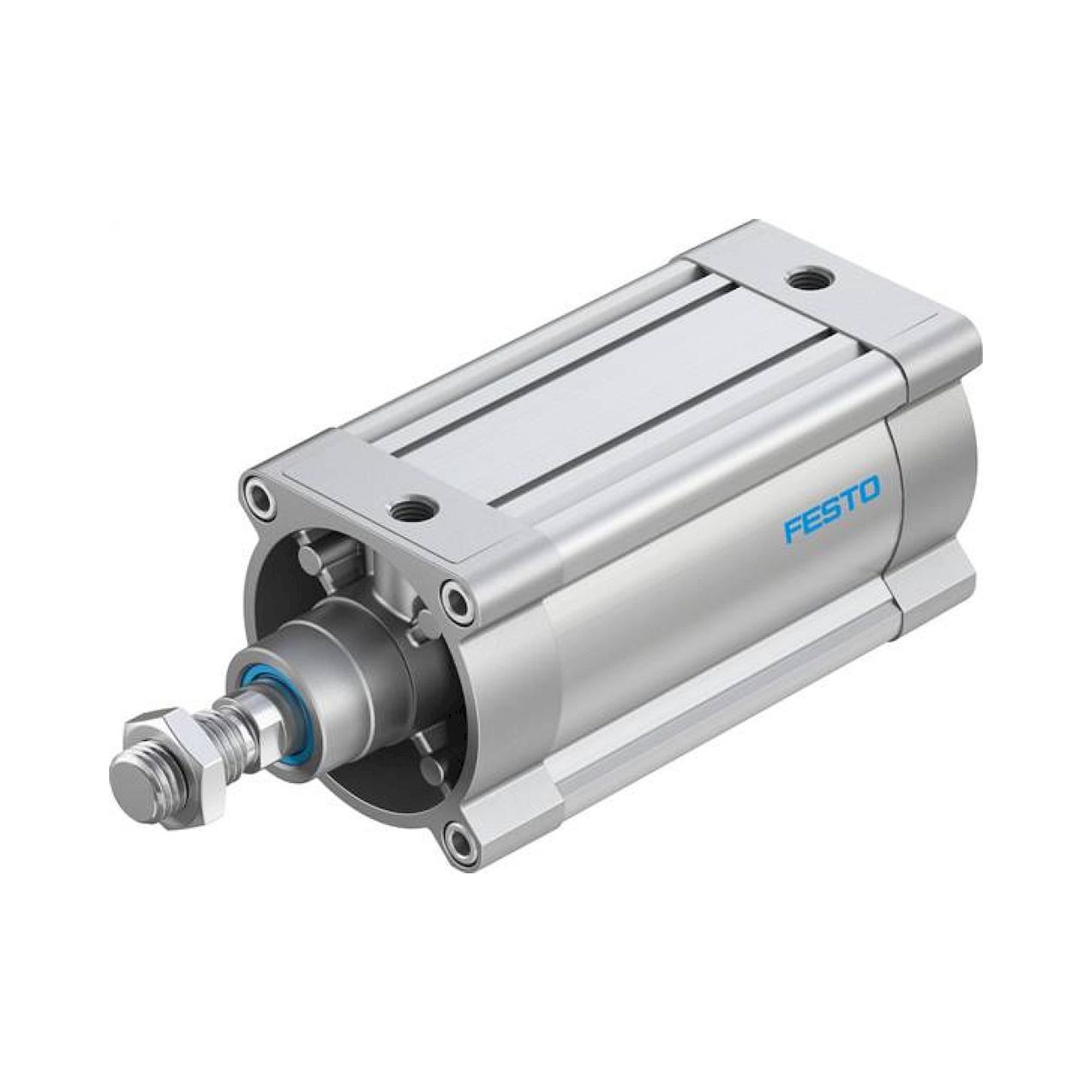

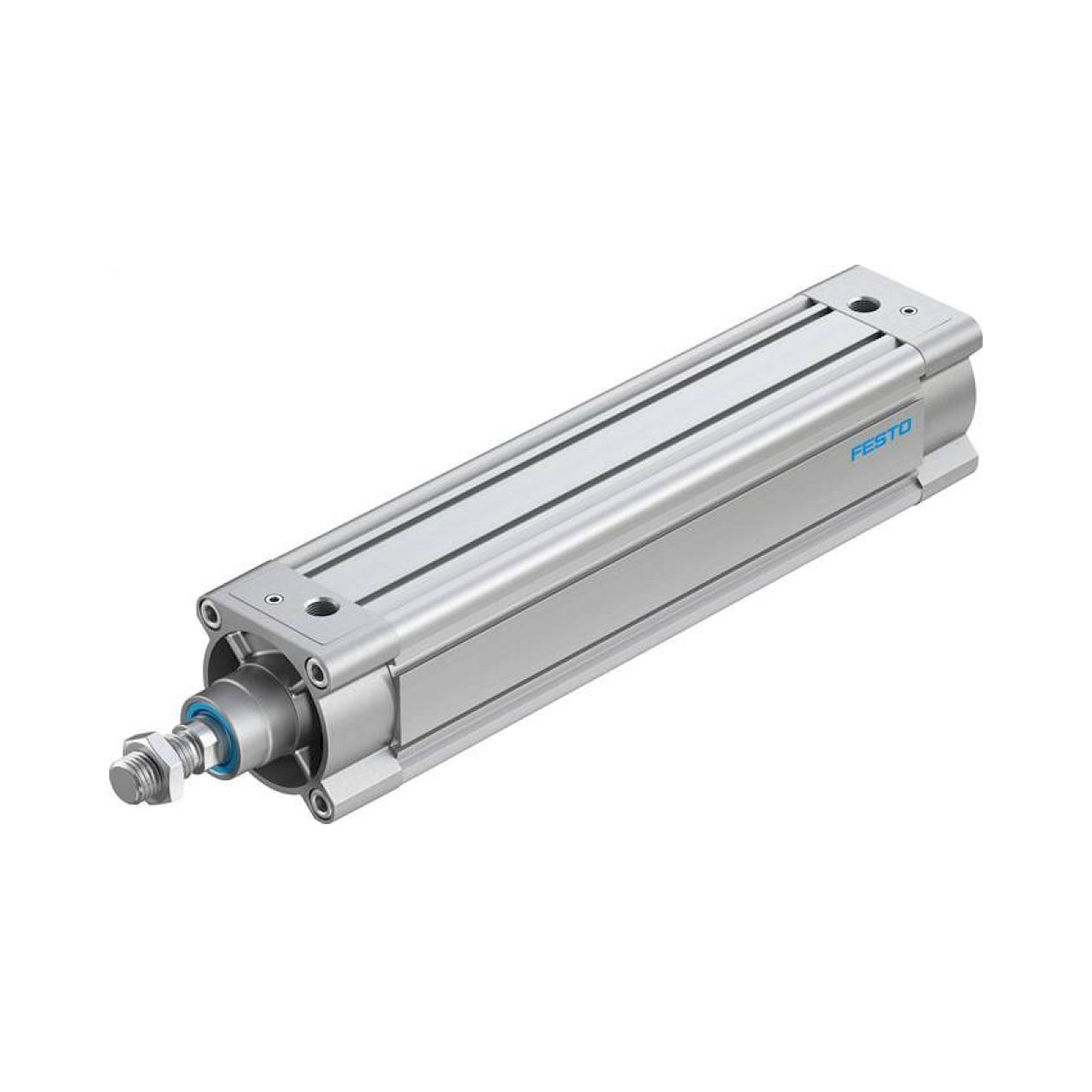

The Festo standard cylinder DSBC is a double-acting piston rod cylinder to ISO 15552. The range covers 388 items from bore Ø 32 mm with stroke lengths from 20 mm to over 500 mm. Key characteristics of the series are the cushioning variants PPSA (bilateral fixed end cushioning) and PPVA (adjustable cushioning), and the N3 magnetic piston suffix for use with inductive or magnetic position sensors.

⚙ ISO 15552 compliant - standardised fixing and port dimensions for cross-manufacturer interchangeability

↕ Bore Ø from 32 mm - wide stroke range, e.g. DSBC-32-20 through DSBC-32-500 and larger bores

✓ PPSA and PPVA cushioning - bilateral fixed (PPSA) or adjustable (PPVA) for varying piston speeds

⚡ N3 magnetic piston - compatible with inductive and magnetic position sensors without sensor groove

⬡ Multiple mounting options - foot, flange and pivot bracket per ISO standard

Type	Bore Ø	Stroke (example)	Cushioning
DSBC-32-...-PPSA-N3	32 mm	20-500 mm	Fixed bilateral
DSBC-32-...-PPVA-N3	32 mm	20-500 mm	Adjustable bilateral
DSBC-40-...-PPSA-N3	40 mm	per catalogue	Fixed bilateral
DSBC-50-...-PPSA-N3	50 mm	per catalogue	Fixed bilateral

Selection is based on bore diameter (force at operating pressure), stroke length, and cushioning requirement. PPVA is recommended for variable load masses or changing piston speeds.

Typical applications: General and special-purpose machinery, handling and assembly systems, fixtures (clamping, pressing, pushing), packaging and conveying technology, and retrofit projects where ISO 15552 standard dimensions are required as the interchangeability basis.
