Standard cylinder DSBG
Standard cylinder according to ISO 15552

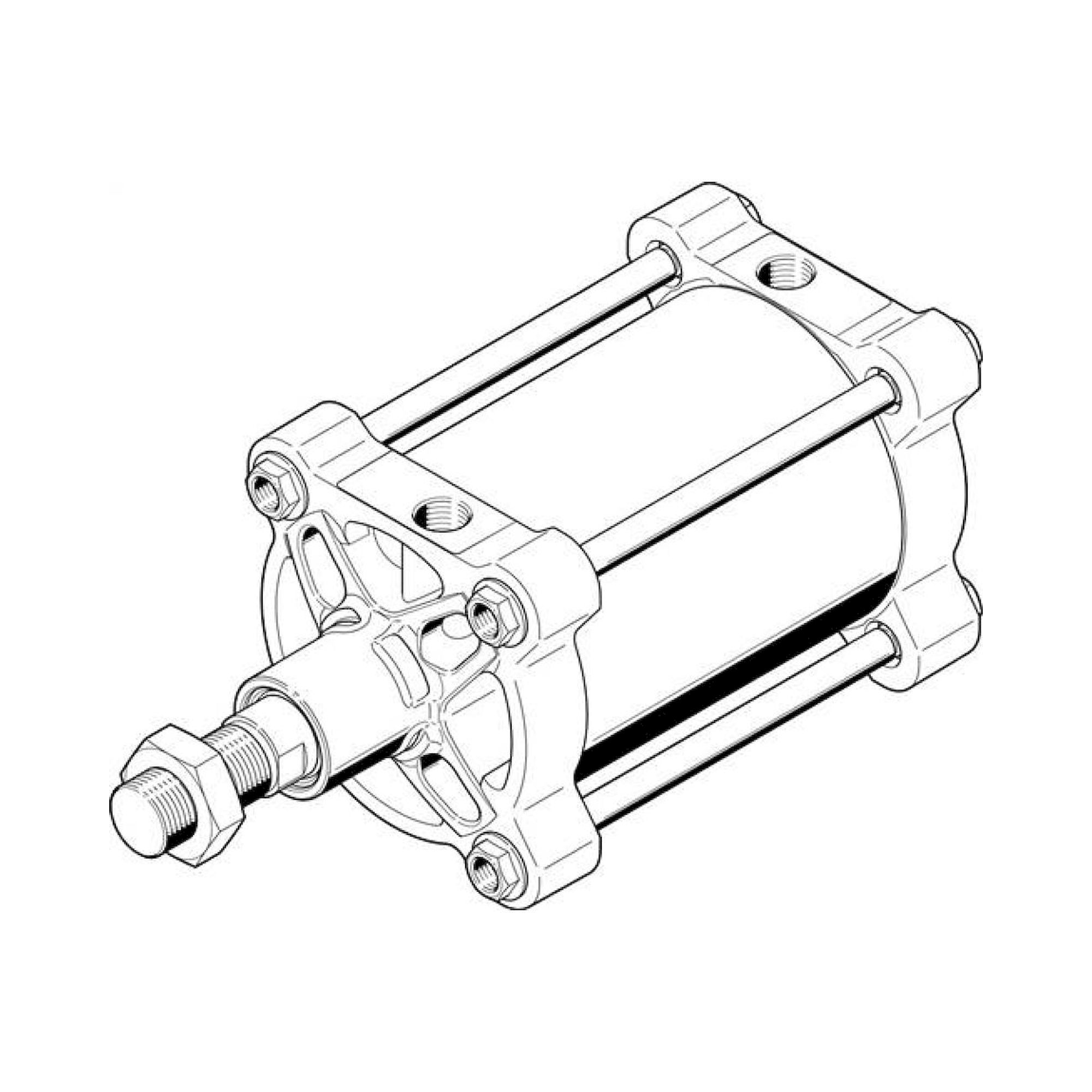

The Festo standard cylinder DSBG is a double-acting piston rod cylinder to ISO 15552 with a compact overall length. The range covers 215 items in bore diameters from 32 to 125 mm. Strokes from 25 to 250 mm are available at Ø 32 mm; larger bores cover their respective stroke ranges. Cushioning variants PPSA (fixed end cushioning) and PPVA (adjustable cushioning) are available across all bore sizes.
| Type | Bore Ø | Stroke | Cushioning |
|---|---|---|---|
| DSBG-32-...-PPSA-N3 | 32 mm | 25-250 mm | Fixed bilateral |
| DSBG-32-...-PPVA-N3 | 32 mm | 25-250 mm | Adjustable bilateral |
| DSBG-40-...-PPSA-N3 | 40 mm | per catalogue | Fixed bilateral |
| DSBG-125-...-PPSA-N3 | 125 mm | per catalogue | Fixed bilateral |
The DSBG is particularly suitable where a compact cylinder length is required but ISO 15552 dimensions are specified for mounting compatibility.
Typical applications: Machinery with space-constrained installation, handling and transfer systems with medium strokes, fixtures (clamping, pushing, stops), packaging lines, and retrofit or repair projects with ISO 15552 requirements.
