What are Aventics CP1 pneumatic couplings and which industrial applications require these connection systems?

Aventics CP1 pneumatic couplings are precision-engineered quick-disconnect connection systems designed for compressed air and pneumatic fluid transmission in industrial automation environments. These couplings enable rapid assembly and disassembly of pneumatic circuits while maintaining secure, leak-tight connections under operating pressures. The CP1 series serves manufacturing industries including automotive assembly, packaging machinery, material handling systems, and food processing equipment where frequent equipment reconfiguration demands reliable connection technology. Industrial applications particularly benefit from the multi-coupling variants like the R412007576 socket and R412007571 plug configurations that allow simultaneous connection of multiple pneumatic lines.

What are the key technical selection criteria for Aventics CP1 couplings including operating pressure and port specifications?

Aventics CP1 coupling selection requires evaluation of operating pressure range, nominal width specifications, and connection thread types to match system requirements. The CP1 series features NW 7.8mm nominal width configurations as demonstrated in safety coupling variants like the 1823376024 through 1823376027 models. Port connection options include threaded configurations with diameter specifications ranging from D060 to D130 variants, while specialized versions like the G014-EX and G038-EX models provide explosion-proof connectivity. System designers must consider media compatibility, flow coefficient requirements, and the distinction between standard connector plugs, connection sockets, and safety coupling variants when specifying these pneumatic connection components.

Which international standards and certifications apply to Aventics CP1 pneumatic coupling systems?

Aventics CP1 pneumatic couplings comply with ISO 4414 compressed air system standards and DIN EN ISO 14743 pneumatic coupling specifications for industrial applications. The specialized EX-series variants including models 1823376028, 1823376029, and 1823376030 meet ATEX Directive 2014/34/EU requirements for explosive atmosphere applications in zones with potential gas or dust ignition risks. Safety coupling configurations incorporate ISO 5359 pneumatic safety requirements and conform to EN 983 safety-related pneumatic system component standards. These certifications ensure compatibility with industrial pneumatic systems operating under European machinery directive compliance and provide traceability for quality management systems following ISO 9001 documentation requirements.

What are the differences between Aventics CP1 connector plugs, connection sockets, and safety coupling variants?

Aventics CP1 connector plugs like the R412007571 and R412007573 provide the male connection component with internal shut-off mechanisms, while connection sockets such as R412007576 and R412007572 serve as female receptacles with corresponding sealing systems. Safety couplings including the 1823376024 through 1823376030 series incorporate additional pressure relief mechanisms and enhanced sealing technology for critical applications requiring fail-safe disconnection capabilities. Multi-coupling systems combine multiple connection points in single assemblies, while specialized EX variants feature explosion-proof construction materials and enhanced grounding provisions. The protective cap component R412007577 provides contamination protection for unused coupling ports, maintaining system cleanliness during maintenance operations.

What are the installation requirements and system compatibility considerations for Aventics CP1 pneumatic couplings?

Aventics CP1 coupling installation requires proper thread engagement with appropriate thread sealant application according to DIN EN 751-3 pneumatic fitting standards and adequate clearance for coupling operation mechanisms. System compatibility depends on matching port thread specifications, operating pressure ratings, and media compatibility with compressed air, nitrogen, or other pneumatic gases within specified temperature ranges. Installation procedures must ensure proper axial alignment and complete engagement of locking mechanisms while maintaining accessibility for routine disconnection operations. The coupling systems integrate with standard pneumatic tubing connections and require consideration of flow characteristics when designing complex multi-point connection assemblies using the available plug and socket combinations.

What are the operating pressure limits, temperature ranges, and safety ratings for Aventics CP1 coupling systems?

Aventics CP1 pneumatic couplings operate within standard industrial compressed air pressure ranges typically from 0 to 16 bar maximum working pressure, with safety coupling variants incorporating pressure relief functionality at predetermined threshold levels. Operating temperature ranges accommodate standard industrial environments from -20°C to +80°C for standard materials, while specialized variants may extend these limits for specific applications. Safety ratings include IP65 ingress protection levels for dust and water resistance in industrial environments, with ATEX-certified EX variants meeting Zone 1 and Zone 2 explosive atmosphere requirements. The coupling systems maintain leak rates below 1×10^-6 mbar·l/s helium equivalent at rated pressure conditions, ensuring system efficiency and environmental compliance in critical applications.

What maintenance schedules and inspection requirements apply to Aventics CP1 pneumatic coupling systems?

Aventics CP1 pneumatic couplings require visual inspection every 6 months for external damage, wear patterns on sealing surfaces, and proper operation of locking mechanisms according to ISO 4414 compressed air system maintenance protocols. Functional testing should verify leak-tight performance using approved leak detection methods and confirm proper engagement/disengagement force characteristics remain within specification limits. Service life typically ranges from 500,000 to 1,000,000 connection cycles depending on operating conditions, with safety coupling variants requiring additional inspection of pressure relief mechanism functionality. Replacement intervals follow condition-based maintenance principles, with immediate replacement required when visual wear indicators show degradation or when leak rates exceed acceptable system parameters during routine pressure testing procedures.

Couplings

Pneumatic connection technology

Festo couplings allow tool-free disconnection and reconnection of compressed air lines without depressurising the installation. The range includes coupling sockets in series KD1 (M3), KD2 (M5/CK) and KD3/KD4 (1/8" to 1/2" BSP and CK push-in), plus push-in socket KDV-PK for coupling directly to standard tubing. Internal thread (-I) and external thread (-A) variants give flexible mounting options.

⚡ Compressed air quick-coupling - tool-free push and pull without system depressurisation

✓ Thread sizes M3 to 1/2" BSP - series KD1 (M3), KD2 (M5, CK3, CK4), KD3/KD4 (1/8"-1/2")

⬡ External (-A) and internal (-I) thread - fits into threaded bores or onto male studs

⚙ CK push-in connections (KD3-CK-4, KD3-CK-6) - coupling for CK-normalised mating parts

✦ Push-in sockets KDV-PK-2, -3, -4 - push-in coupling for PK tube connections directly on the line

Series	Thread / push-in size	Version

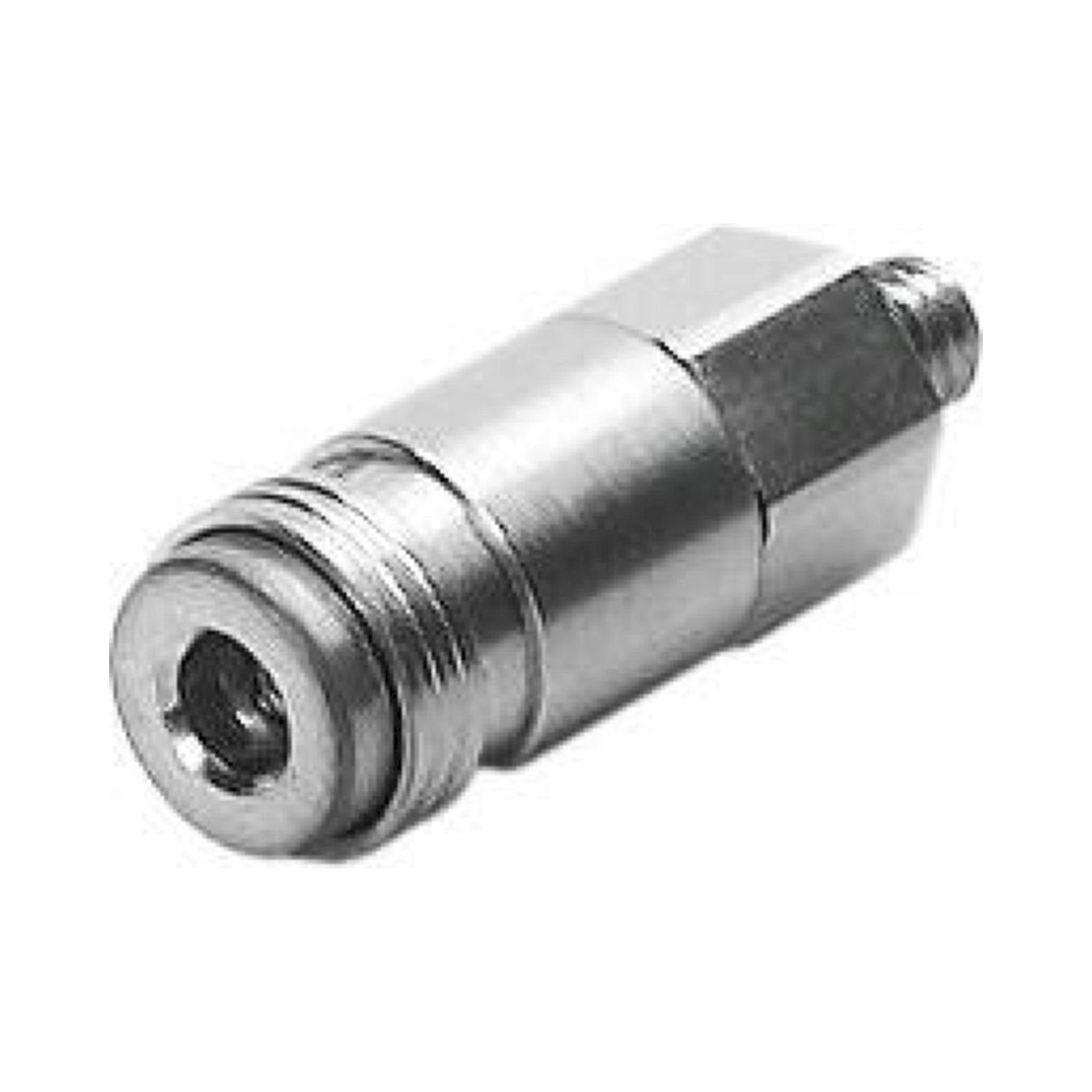

KD1-M3-A	M3	External thread
KD2-M5-A, KD2-M5-I	M5	External and internal thread
KD2-CK-3, KD2-CK-4	CK3, CK4	CK push-in connection
KD3-1/8-A, KD3-1/8-A-R, KD3-1/8-I	G1/8	External, internal, check-valve
KD3-1/4-A, KD3-1/4-I	G1/4	External and internal thread
KD4-1/4-A, KD4-3/8-A, KD4-1/2-A	G1/4, G3/8, G1/2	External thread
KD4-CK-6, KD4-CK-9, KD4-N-9	CK6, CK9, N9	CK and N push-in
KDV-PK-2, -PK-3, -PK-4	PK2, PK3, PK4	Push-in socket

Typical applications: Tool changes on handling devices and robots, isolation points for maintenance zones (individual decommissioning without full system depressurisation), rapidly interchangeable test and inspection fixtures, and mobile compressed air consumers with quick-coupling connection to the supply line.
