Push-in fittings for pipes PQ

Pneumatic connection technology

Festo PQ push-in fittings for pipes are designed for rigid plastic and metal pipes with outside diameters of 12, 15, 18 and 22 mm. Unlike tube fittings, the CQ system's gripping teeth engage positively with the pipe wall, providing a pressure-tight, vibration-resistant connection without threaded sleeves. The range includes straight fittings (CQ), T-connectors (CQT), reducers, fluid separators (CQA), blanking plugs (CQC), manifolds (CQD), push-in sleeves (CQH), release tools (CQO) and locking rings (CQSR).

⚙ Rigid pipe OD 12, 15, 18, 22 mm - positive grip without deforming the pipe

✓ Thread connections 1/2" and 3/8" BSP - CQ-1/2-12H, CQ-3/8-12H, CQ-3/8-15H for threaded ports

⬡ Fluid separator CQA - for OD 22 and 28 mm, separates media at junction points

🛡 Blanking plug CQC - pressure-tight port seal for 12, 15, 18, 22 mm pipe openings

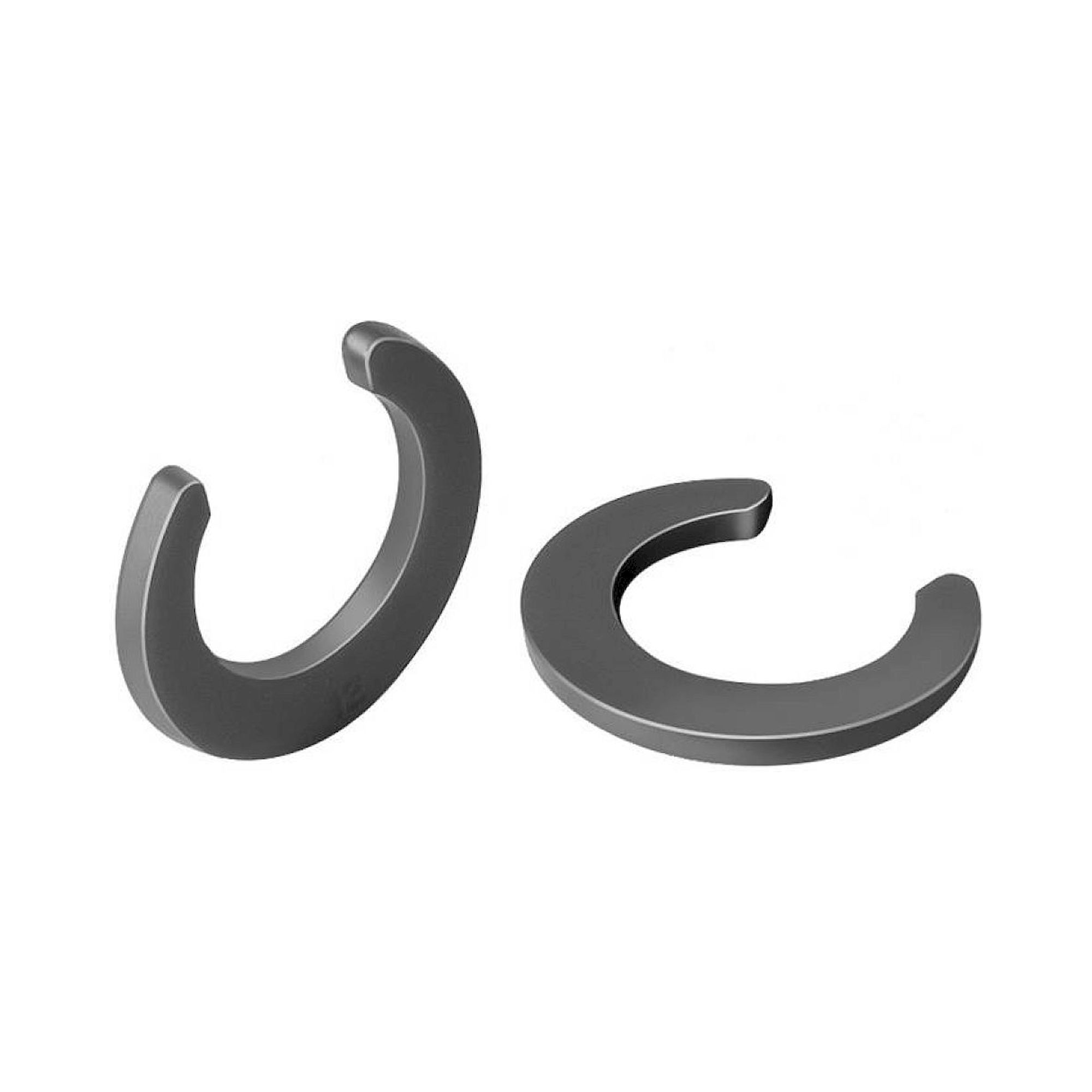

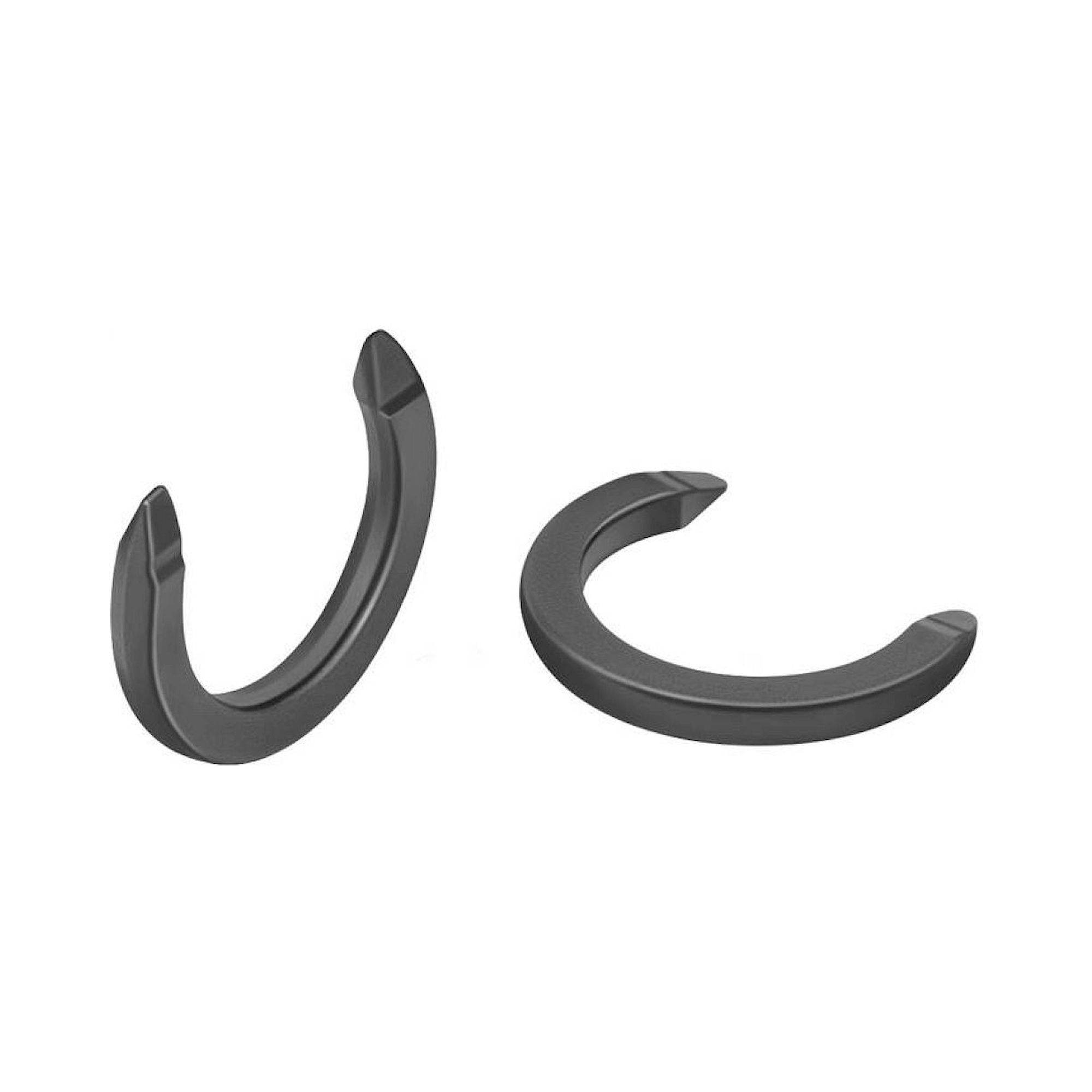

✦ Release tool CQO and locking ring CQSR - accessories for controlled pipe removal and position locking

Type	Function	Pipe OD	Connection

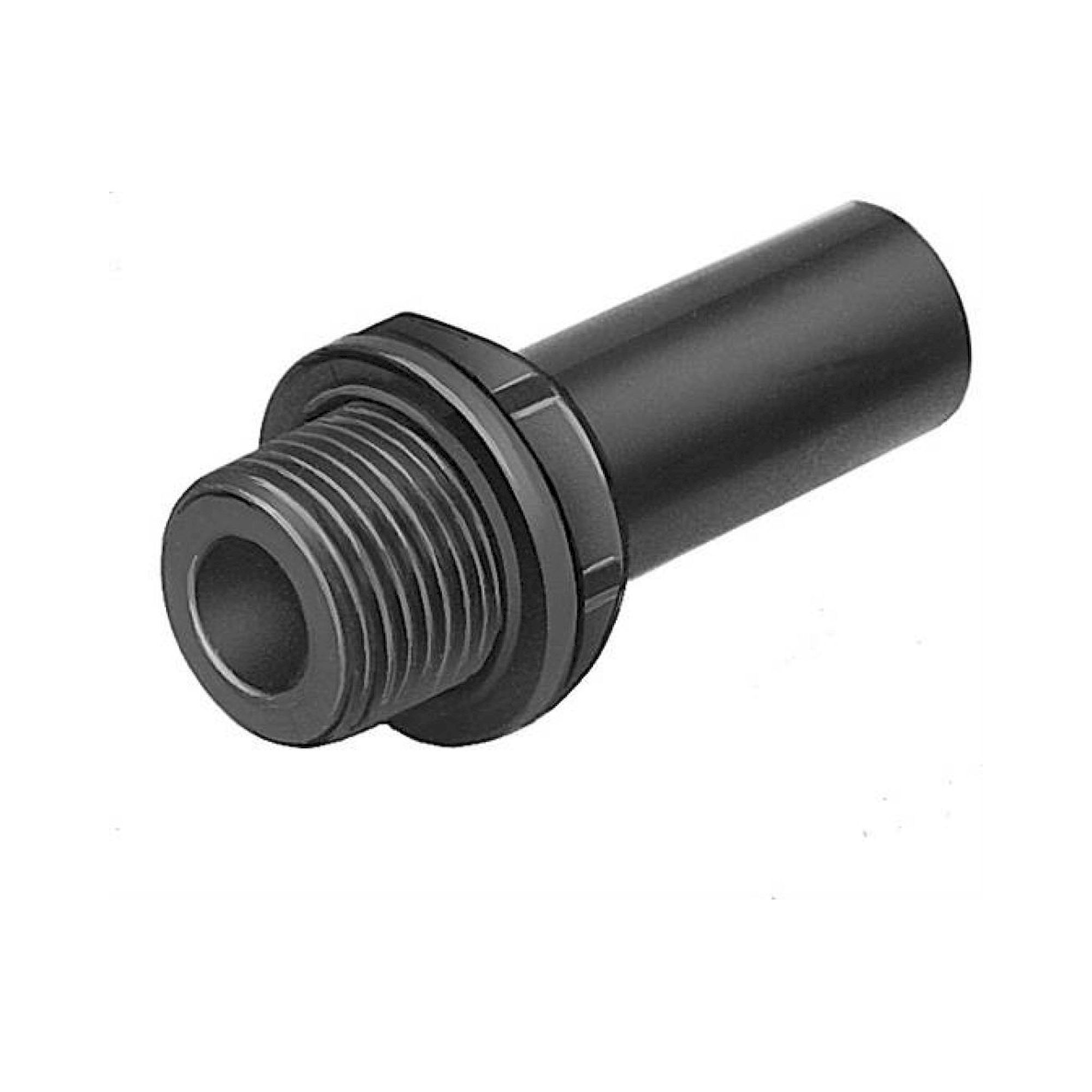

CQ-1/2-12H, -18H	Straight fitting	12, 18 mm	1/2" BSP
CQ-3/8-12H, -15H	Straight fitting	12, 15 mm	3/8" BSP

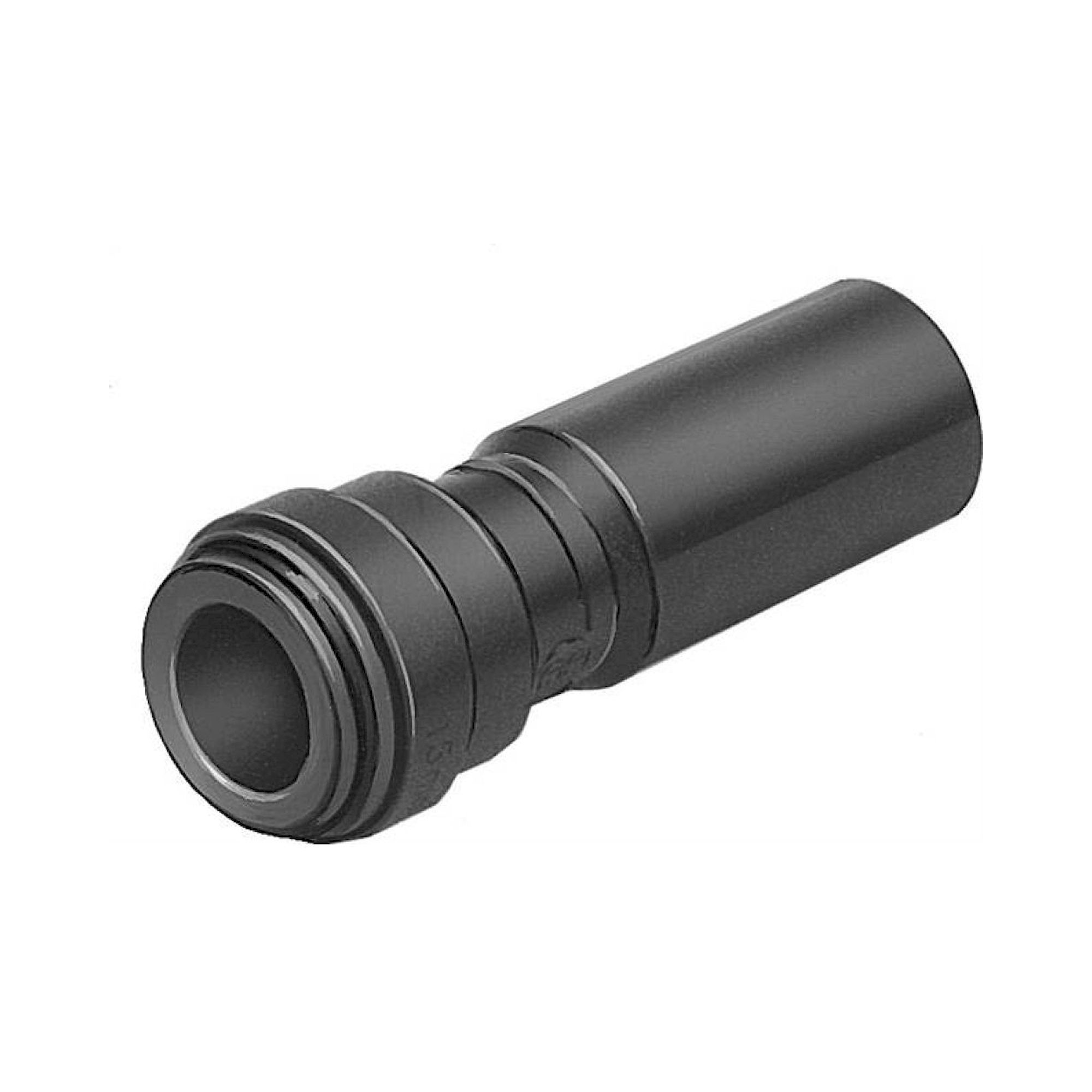

CQ-18H-15, CQ-22H-15, CQ-22H-18	Pipe-to-pipe reducer	15/18, 15/22, 18/22 mm	Threadless
CQT-18	T-connector	18 mm	Threadless

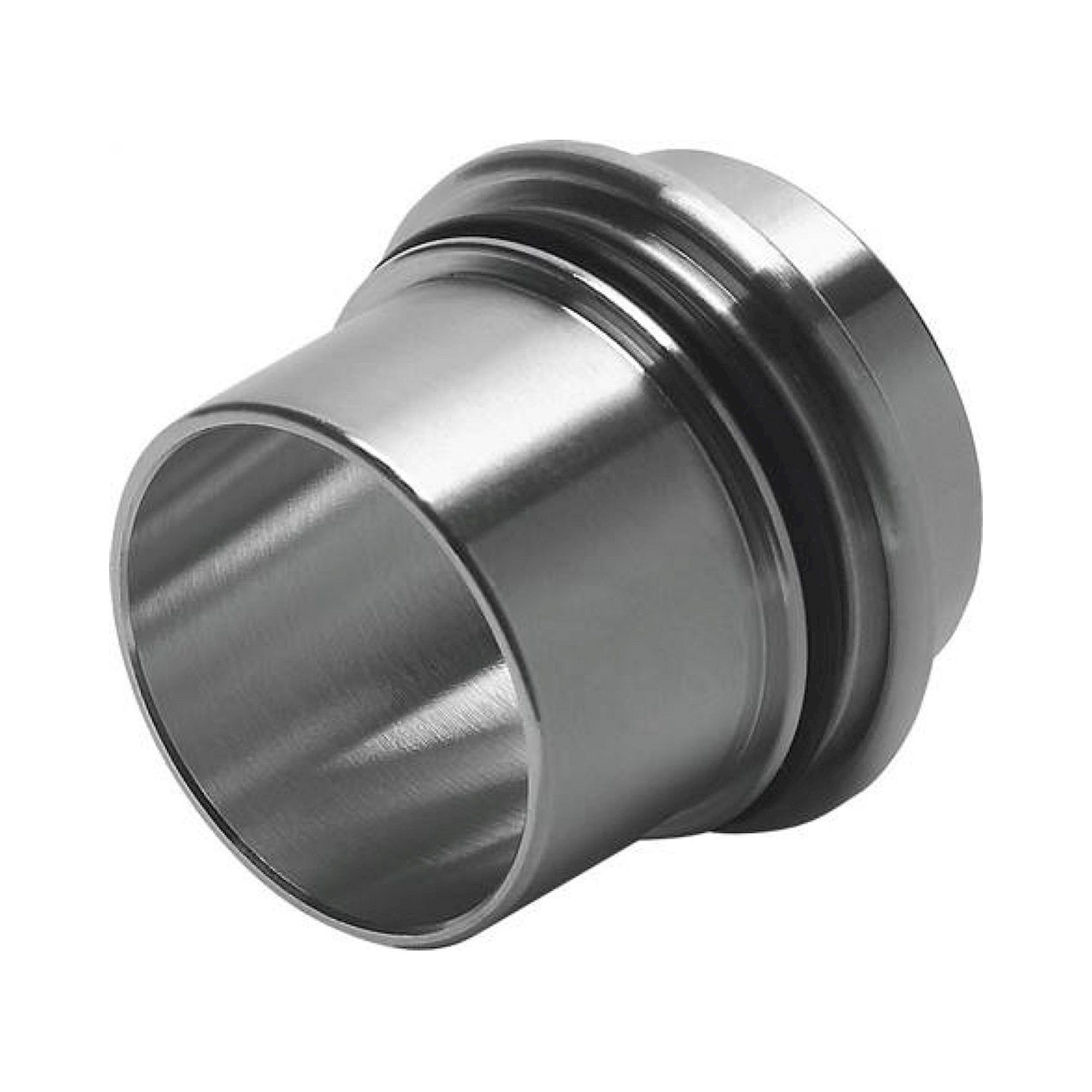

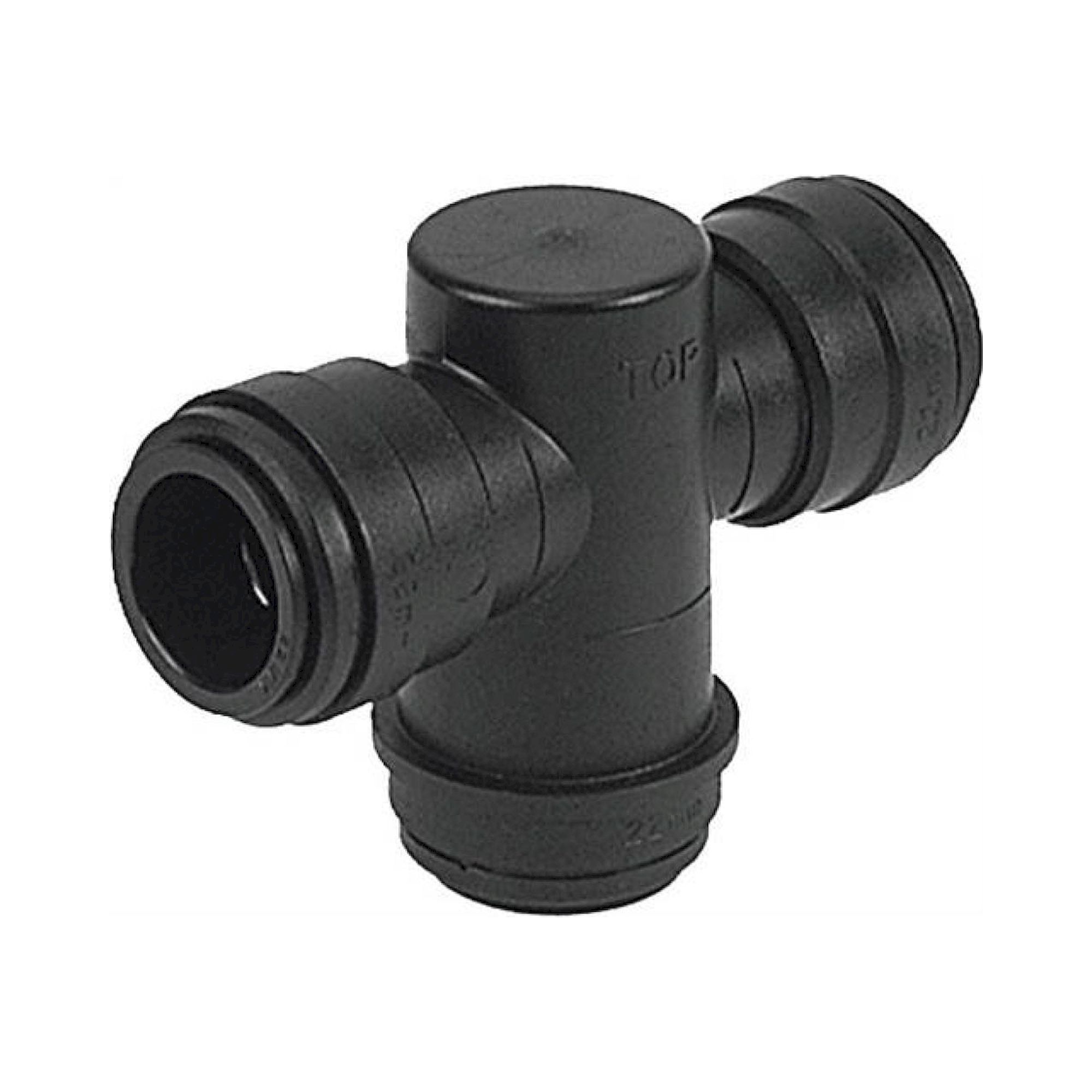

CQA-22, CQA-28	Fluid separator	22, 28 mm	Threadless

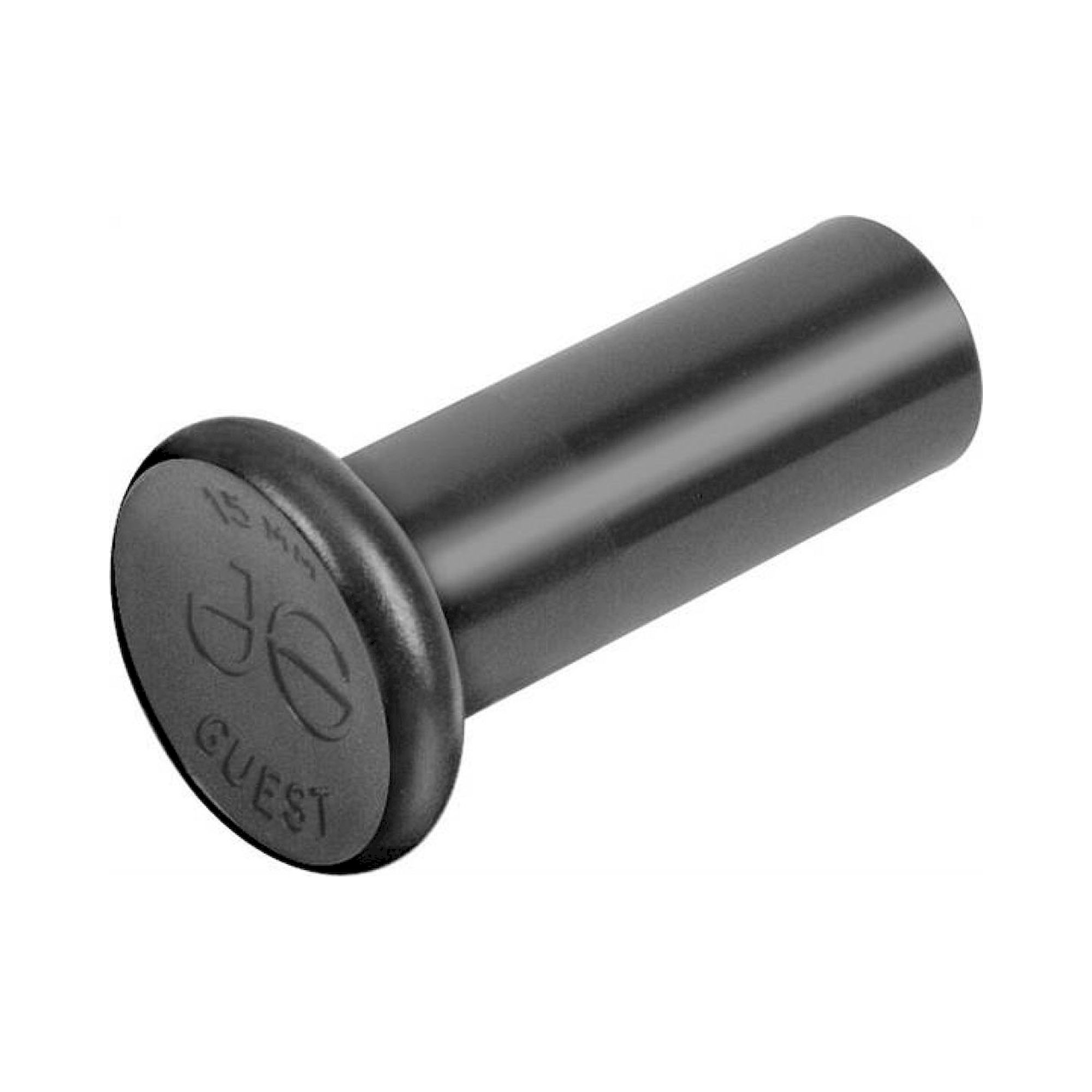

CQC-12H to CQC-22H	Blanking plug	12, 15, 18, 22 mm	Threadless

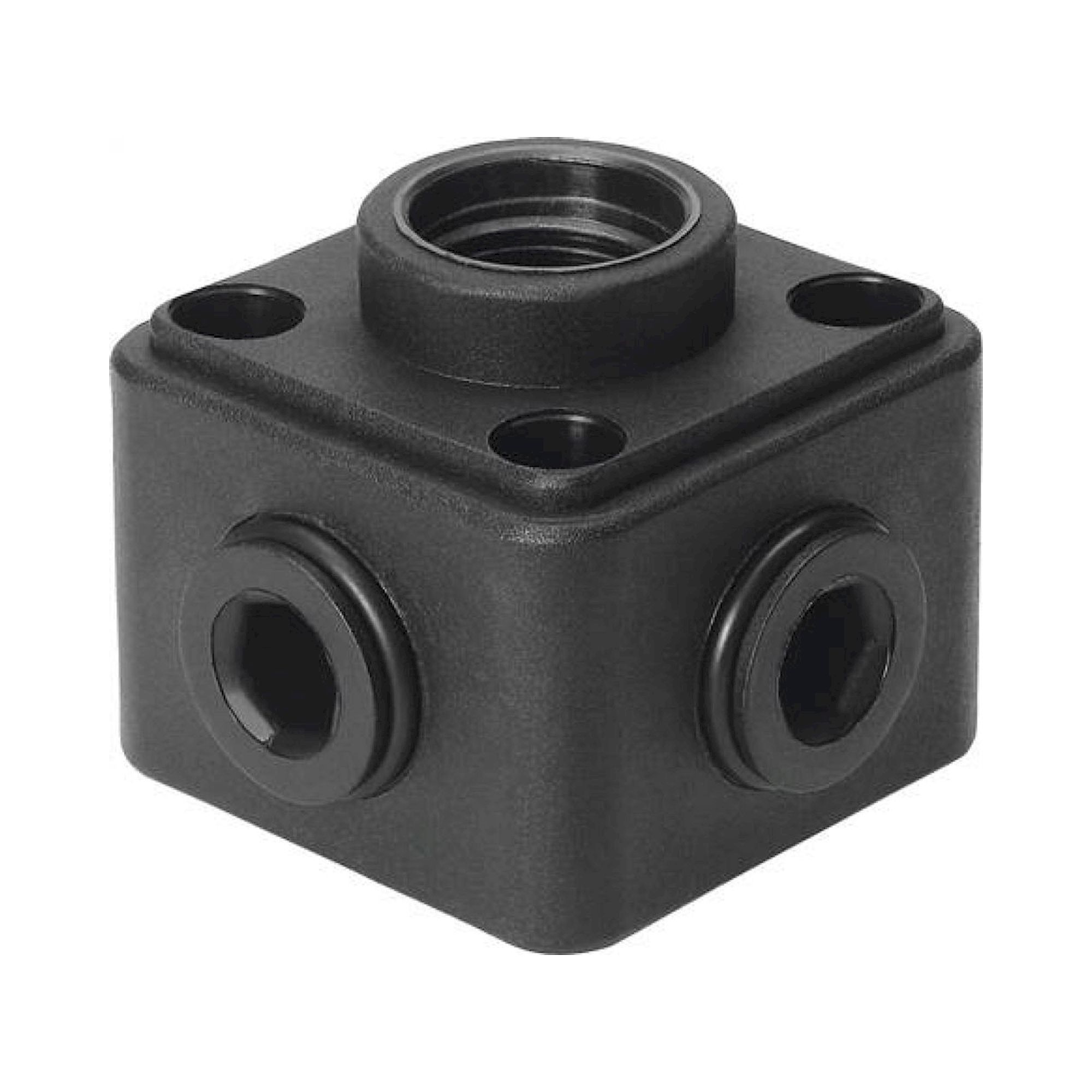

CQD-12/15/18/22	Manifold	12-22 mm	Threadless

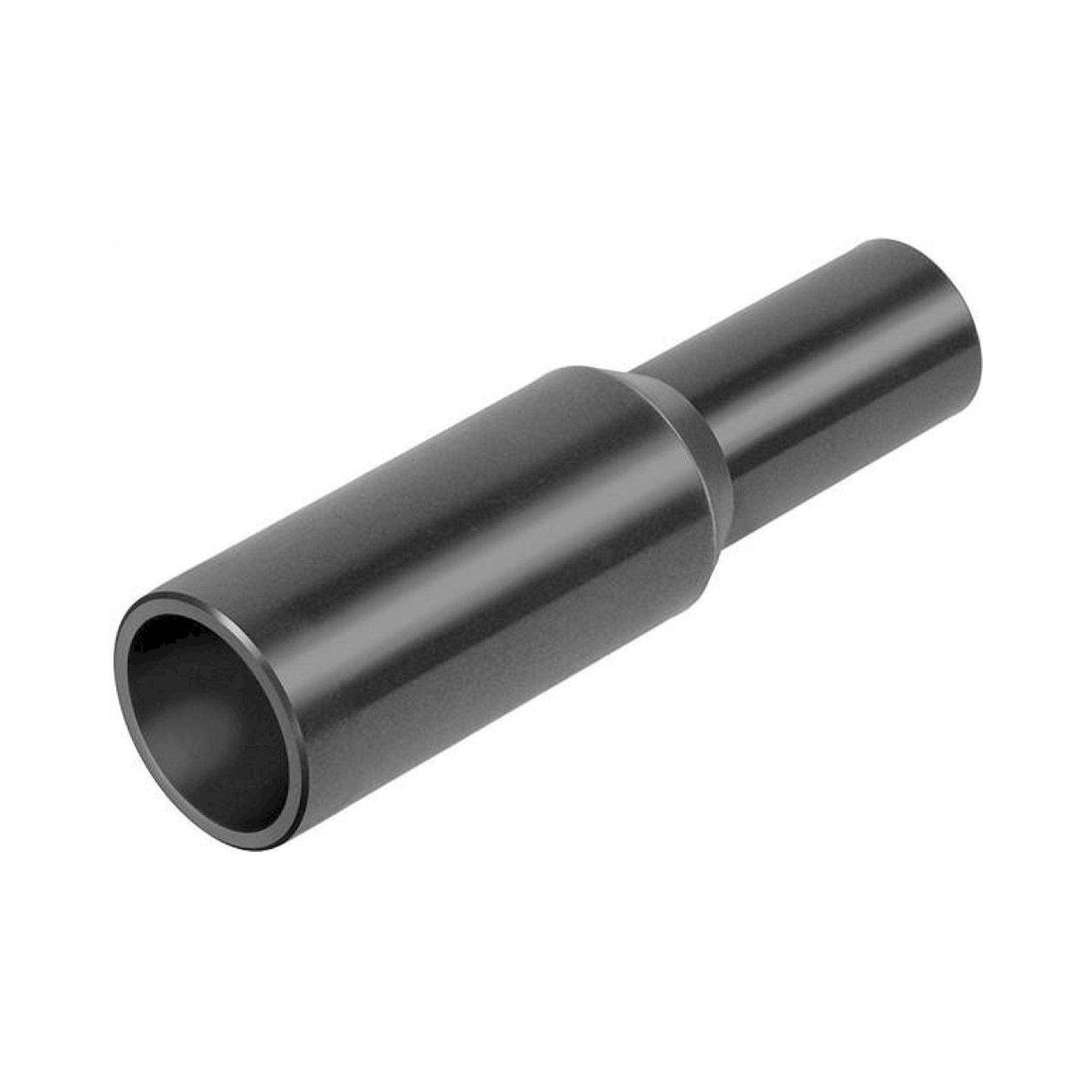

CQH-15, -18, -22	Push-in sleeve	QS 12, 16, 16 mm	Pipe connection

Typical applications: Compressed air distribution networks with rigid pipework in production halls, vacuum systems with PA or metal pipes, pneumatic ring mains with branch points, and connections between rigid pipe and flexible tubing via push-in sleeves (CQH).
