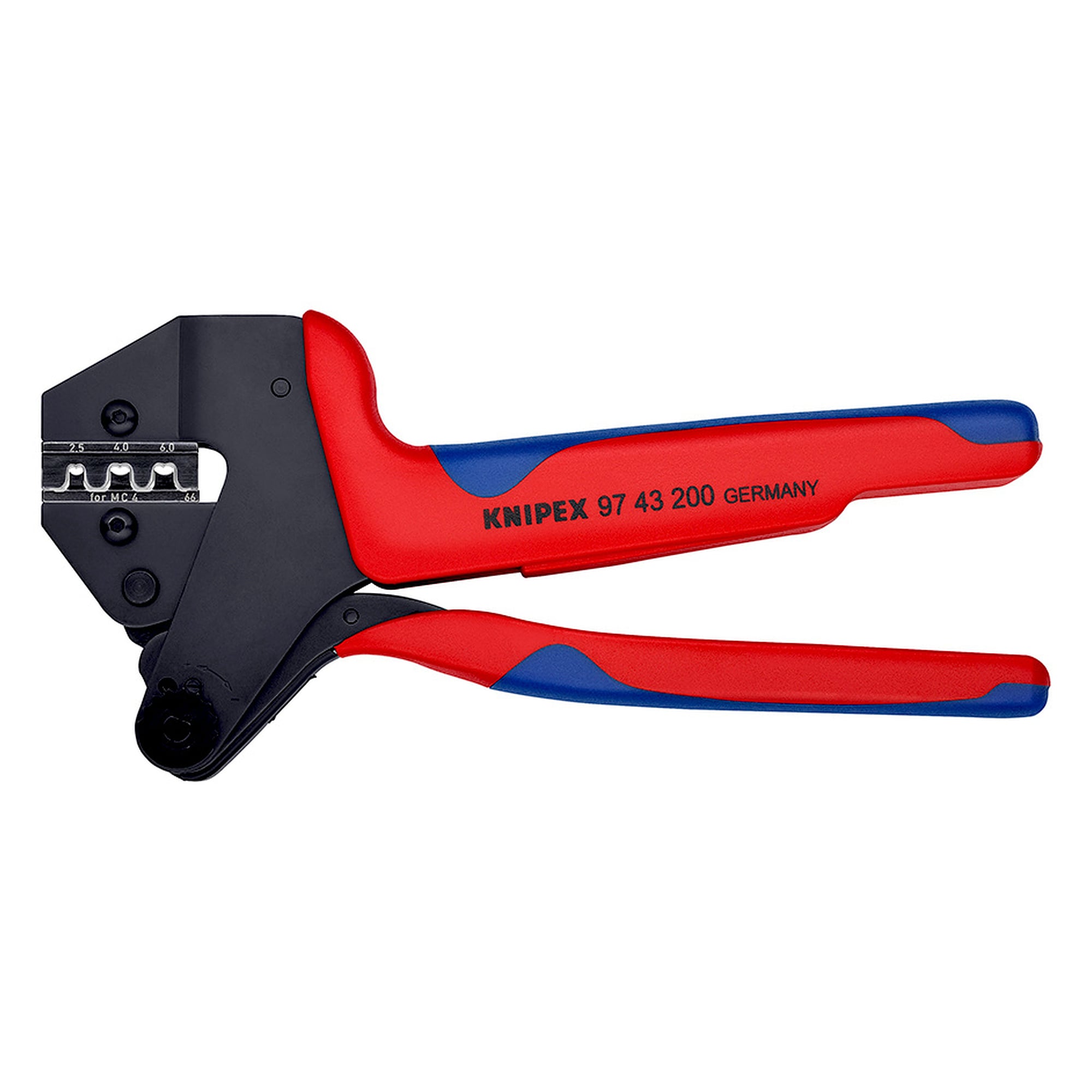

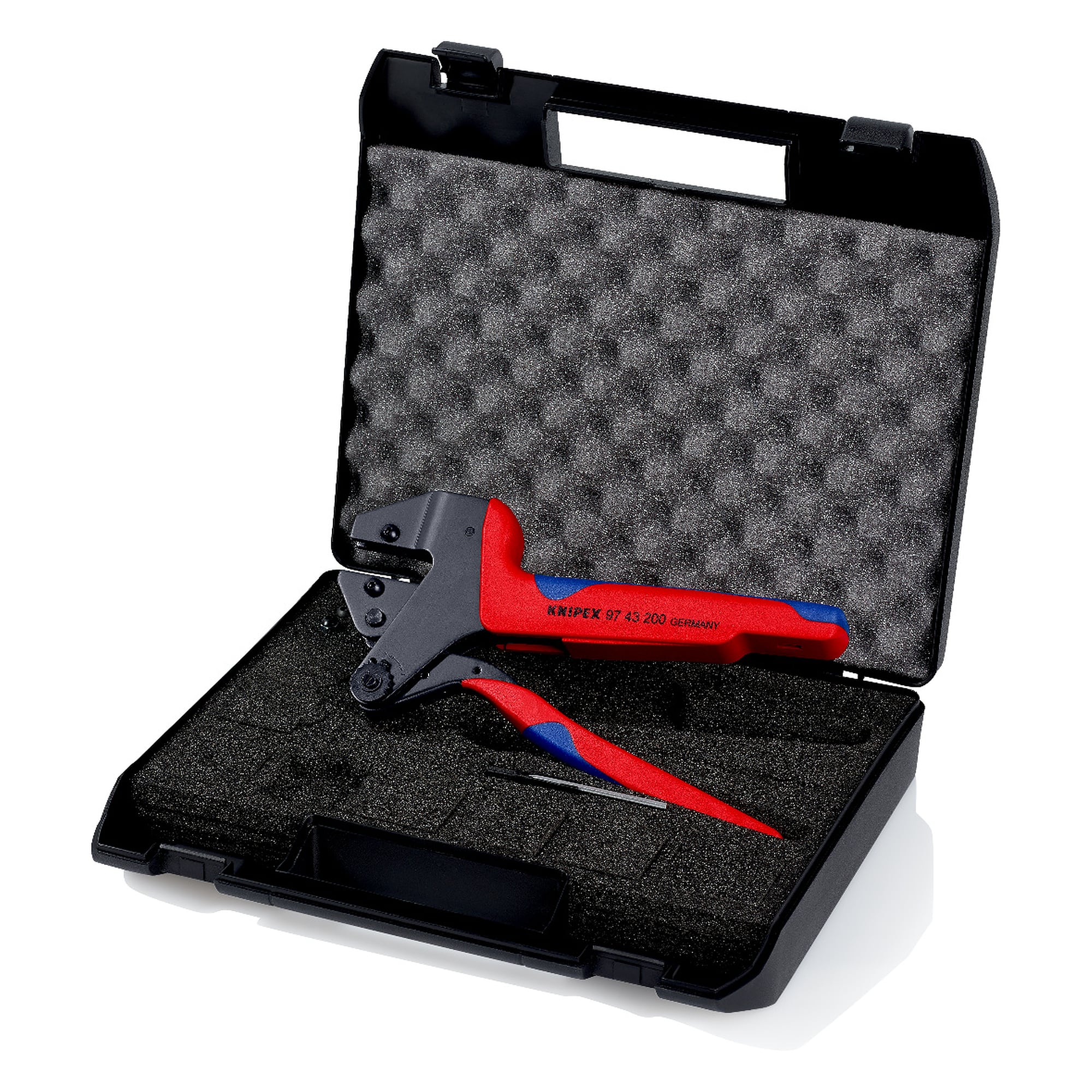

Crimp system pliers for exchangeable crimping dies, in a case, 200 mm - Knipex 97 43 200

Anyone working with many connector types does not want a separate tool for every contact. Together with the crimping dies and locators of the 97 49 XX range, the 97 43 200 crimp system pliers cover almost 1000 connector and contact types, at 988 g and 200 mm length.

Benefits

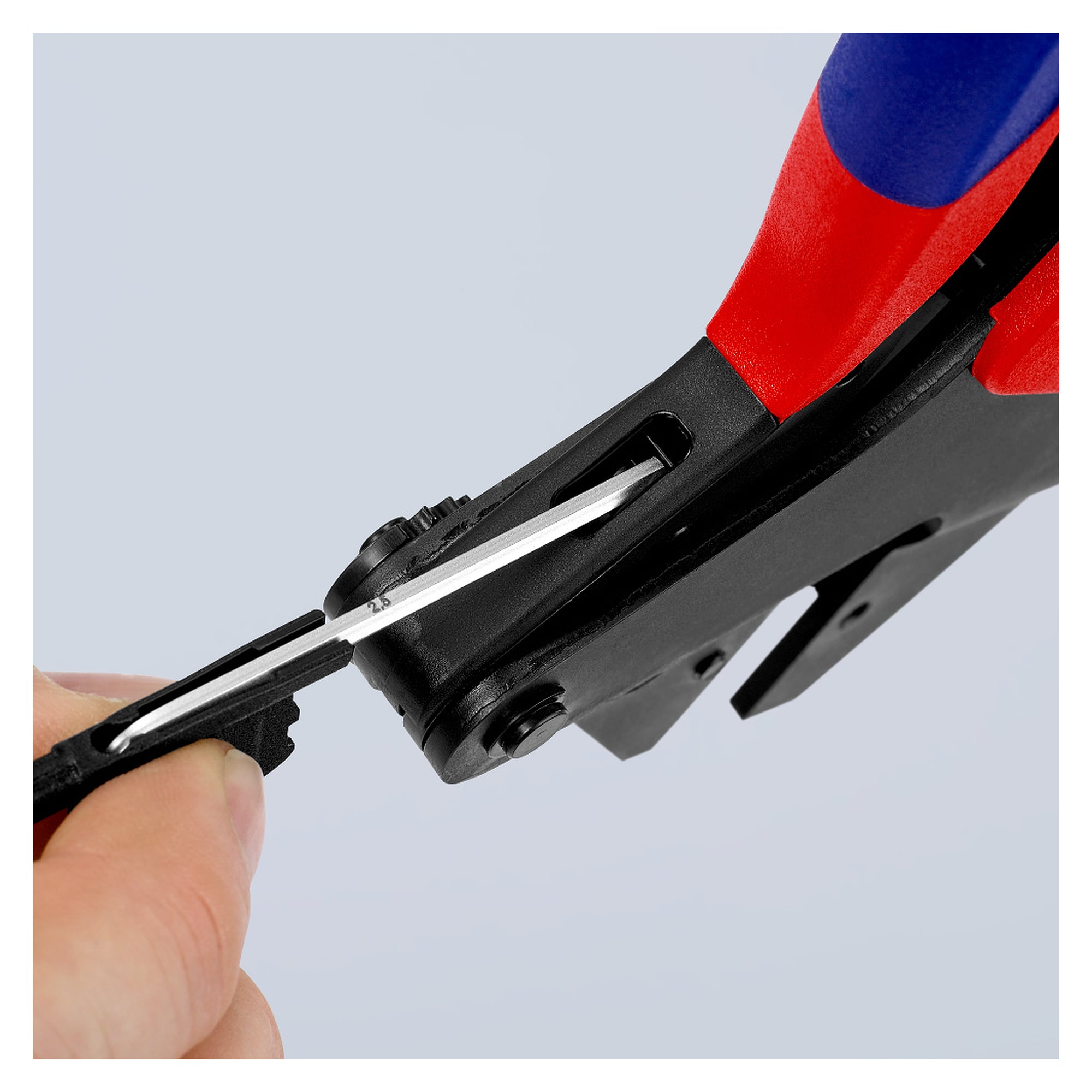

• Just one tool for almost 1000 connector and contact types, usable with all crimping dies and locators for precise positioning 97 49 XX.
• Optimal crimp result thanks to an almost parallel crimping movement.
• Reliable and consistently high crimp quality thanks to the trigger lock in accordance with IEC 60352, which releases the tool only after full compression.
• Crimping pressure set precisely and calibrated at the factory, readjustable when needed.
• Force amplification through lever transmission for fatigue-free working.
• Tool body of high-grade chrome vanadium electric steel, oil-hardened.

Areas of use

Switchgear building, vehicle electrics, control cabinet assembly and service, wherever different contact systems have to be processed with a single tool body. Crimping dies for applications beyond the standard range are available on request.

Standards and conformity

The trigger lock works in accordance with IEC 60352. According to the manufacturer the pliers contain substances of very high concern under REACH. The RoHS directive does not apply to this product. The 97 49 xx crimping dies of these pliers are not compatible with the Knipex MultiCrimp 97 33 01, 97 33 02 and 97 33 03.
