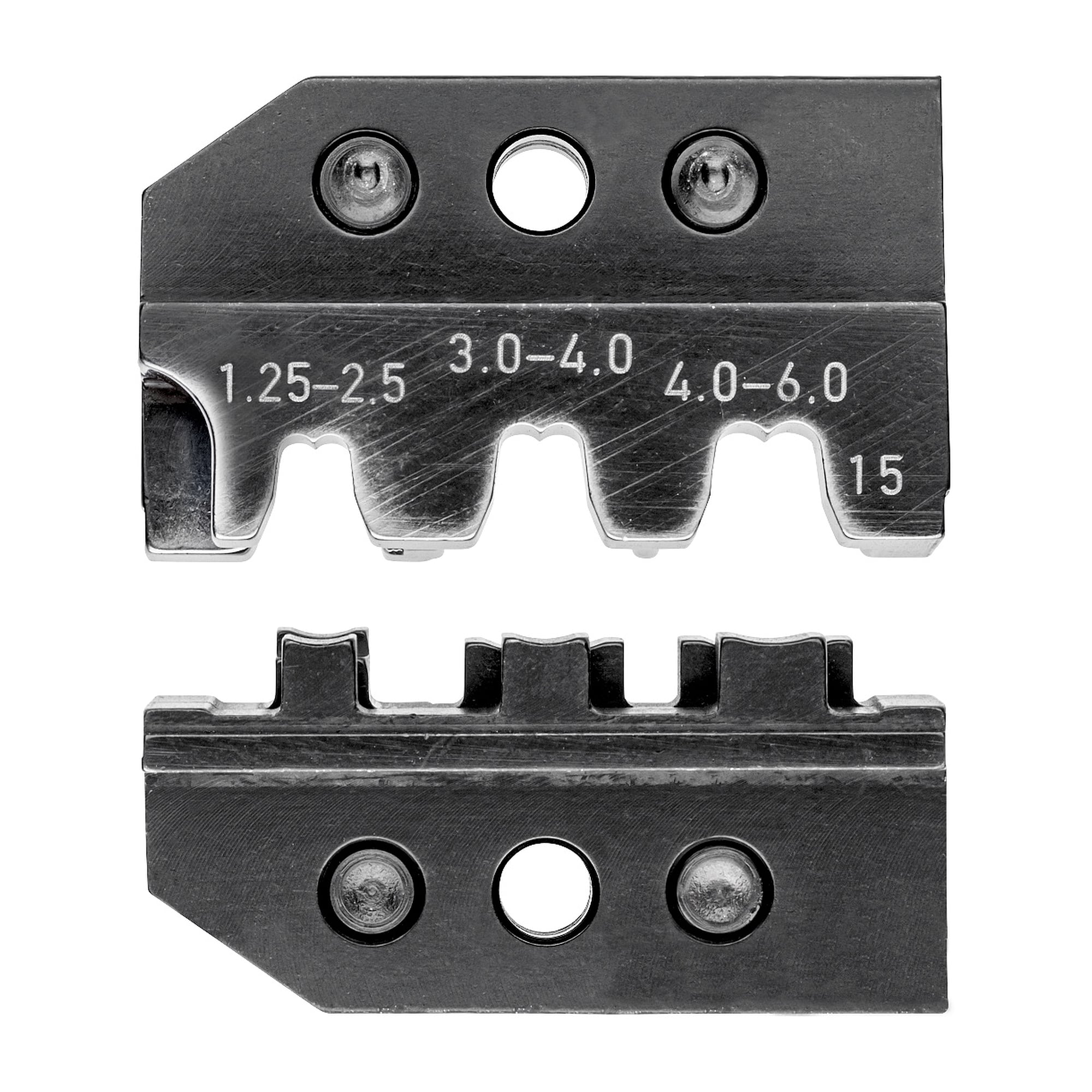

Crimping die for flag terminals and uninsulated open connectors, 1.5 to 6 mm² - Knipex 97 49 15

Flag terminals and open flat connectors often sit close together in a distribution box, so the crimp has to hit exactly the intended contour. This crimping die covers the range from 1.5 to 6 mm² and handles connectors of 4.8 and 6.3 mm width.

Benefits

• Crimping nest 1 for uninsulated open flat connectors with side conductor entry, style A, 1.5 and 2.5 mm², for example Klauke 3735 style B.
• Crimping nest 2 for 2.5 to 4.0 mm² with 4.8 and 6.3 mm connector width in straight design.
• Crimping nest 3 for 4.0 to 6.0 mm² with 4.8 and 6.3 mm connector width in straight design.
• For flag terminals and uninsulated open plug type connectors of 6.3 mm width, 1.25 to 2.5 and 3.0 to 6.0 mm².
• Interchangeable die for the manual and electromechanical KNIPEX crimping system pliers of the 97 43 xx series, so one tool covers many connector types.
• Compact die of 50 x 17 mm and 56 g.

Technical data

Areas of use

Control cabinet and equipment building, vehicle electrics and building services, wherever flat connectors and flag terminals are fitted to stranded wire. The die pays off in particular when connectors in both common widths of 4.8 and 6.3 mm are processed.

Standards and conformity

According to the manufacturer the crimping die contains no substances of very high concern under REACH. The RoHS directive does not apply. The manufacturer states no tool standard for this product.
