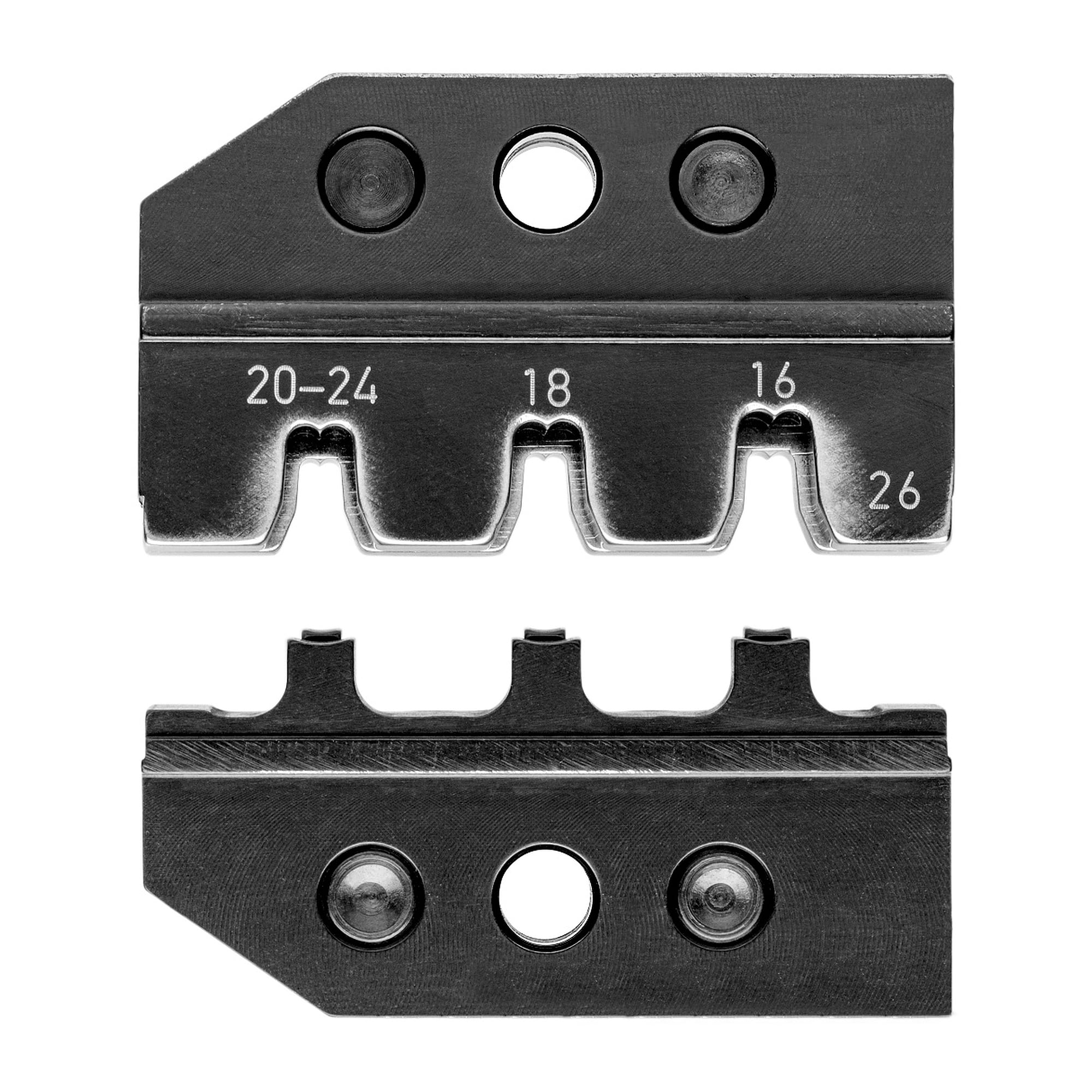

Die set for Molex Mini-Fit connectors, AWG 24 to 16, 50 x 12 mm - Knipex 97 49 26

Mini-Fit™ contacts are processed in large numbers in equipment and control systems, and every joint has to reach the same crimp height. The crimping die 97 49 26 covers the range AWG 24 to 16 for these contacts and is fitted into the KNIPEX crimp system pliers of the 97 43 xx range. The die measures 50 x 12 mm and weighs 41 g.

Benefits

• Matched to the contacts of the Molex Mini-Fit™ series, no readjusting of the tool.
• Working range AWG 24 to 16, covering the usual conductor sizes of this connector family.
• Exchangeable: the same crimp system pliers carry on working with every die of the range.
• The additionally available locator 97 49 26 1 makes it easier to guide the contacts during the crimping process.
• At 41 g and 50 x 12 mm small enough to carry several dies in the case.

Technical data

Areas of use

Equipment and electronics manufacturing, control and switchgear cabinet building, prototyping and service. Wherever Mini-Fit™ contacts are assembled in series or re-crimped individually.

Standards and conformity

According to the manufacturer the product contains no substances of very high concern under the REACH regulation. The RoHS directive does not apply to this product.
