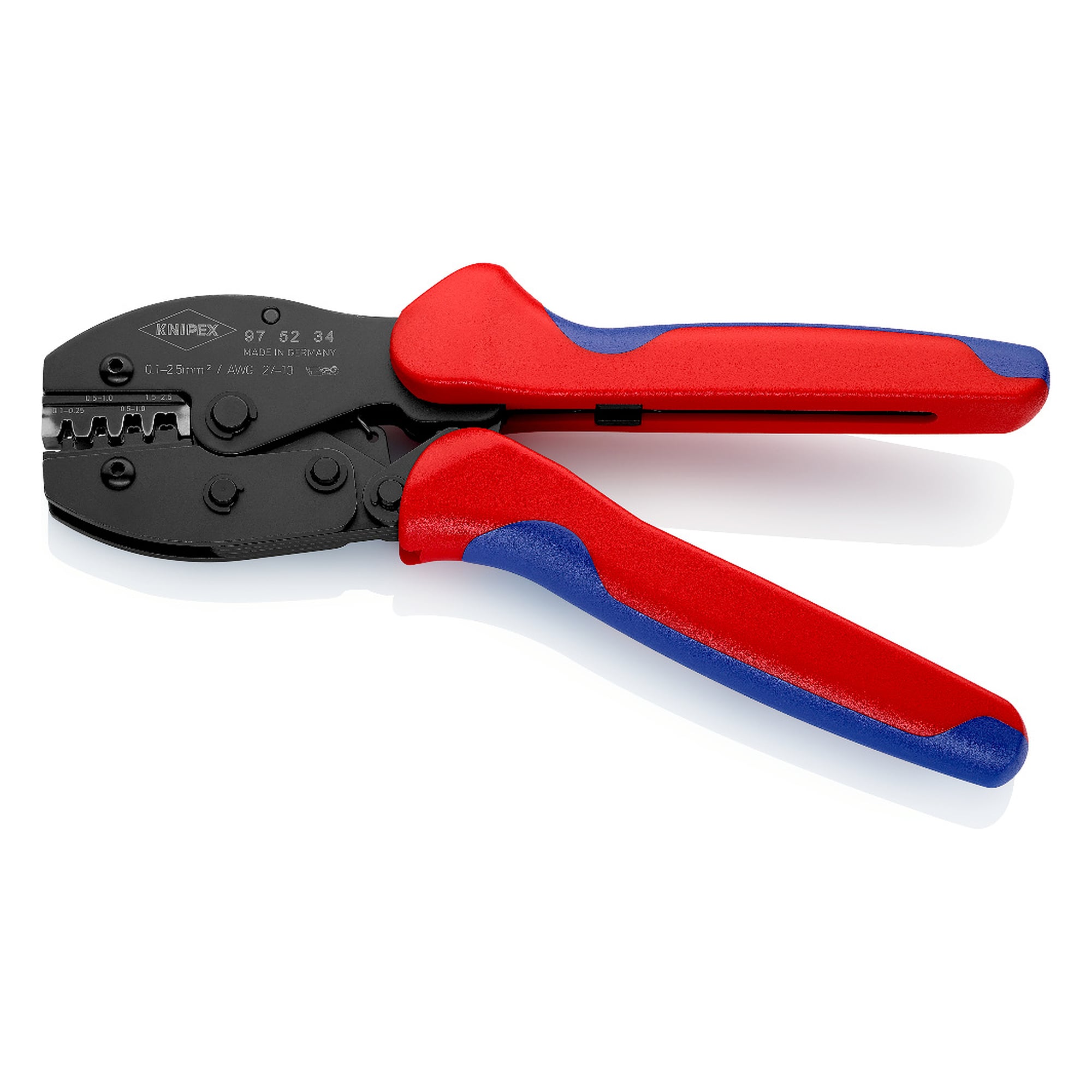

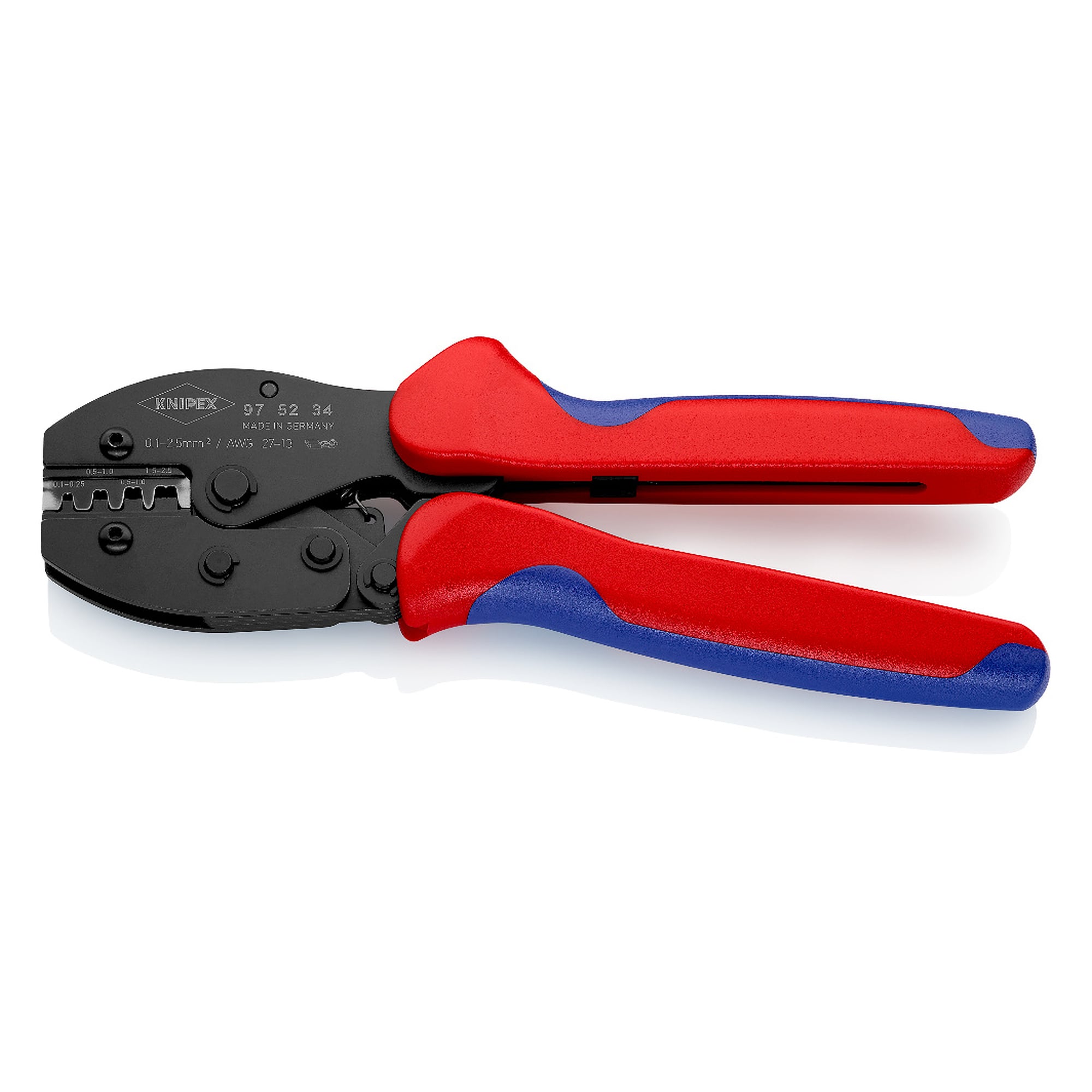

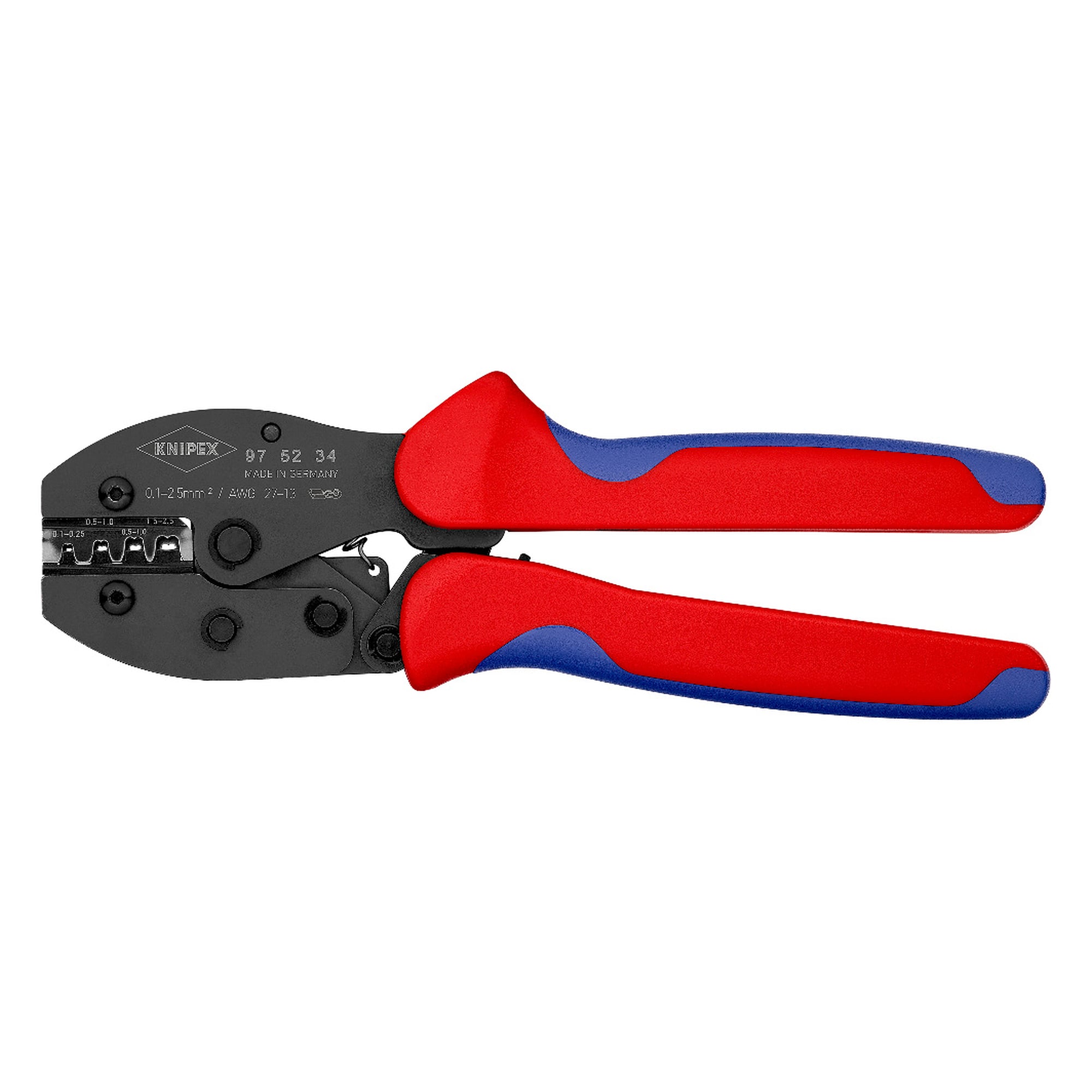

PreciForce crimping pliers for uninsulated open plug connectors 2.8 and 4.8 mm, 220 mm - Knipex 97 52 34

Open plug connectors for 2.8 and 4.8 mm tabs need a crimp that closes both the conductor crimp and the insulation crimp cleanly. The 97 52 34 PreciForce crimping pliers cover the range from 0.1 to 2.5 mm² with four locators and work with a factory-calibrated crimping pressure.

Benefits

• Consistently high crimping quality thanks to precision dies and a ratchet mechanism that can be unlocked when needed.
• Crimping pressure is precisely set and calibrated at the factory, so readjusting the tool is unnecessary.
• Four locators cover 0.1 to 2.5 mm², matching AWG 26 to 14.
• Designed for uninsulated open plug connectors with 2.8 and 4.8 mm tab width.
• Efficient lever action provides a high crimping force with little fatigue during long production runs.
• Good handling thanks to the short design, favourable handle position and a slim height of 21 mm.

Technical data

Areas of use

Vehicle electrics, control system and plant construction, equipment manufacturing and repair. Wherever female and male flat connectors in small and medium cross-sections are assembled, for example on wiring harnesses and switchgear.

Standards and conformity

The manufacturer does not state a tool standard for this product but defines the application as uninsulated open plug connectors with 2.8 and 4.8 mm tab width. According to the manufacturer the pliers contain substances of very high concern under REACH, and the RoHS directive does not apply. The crimping die is not exchangeable.
