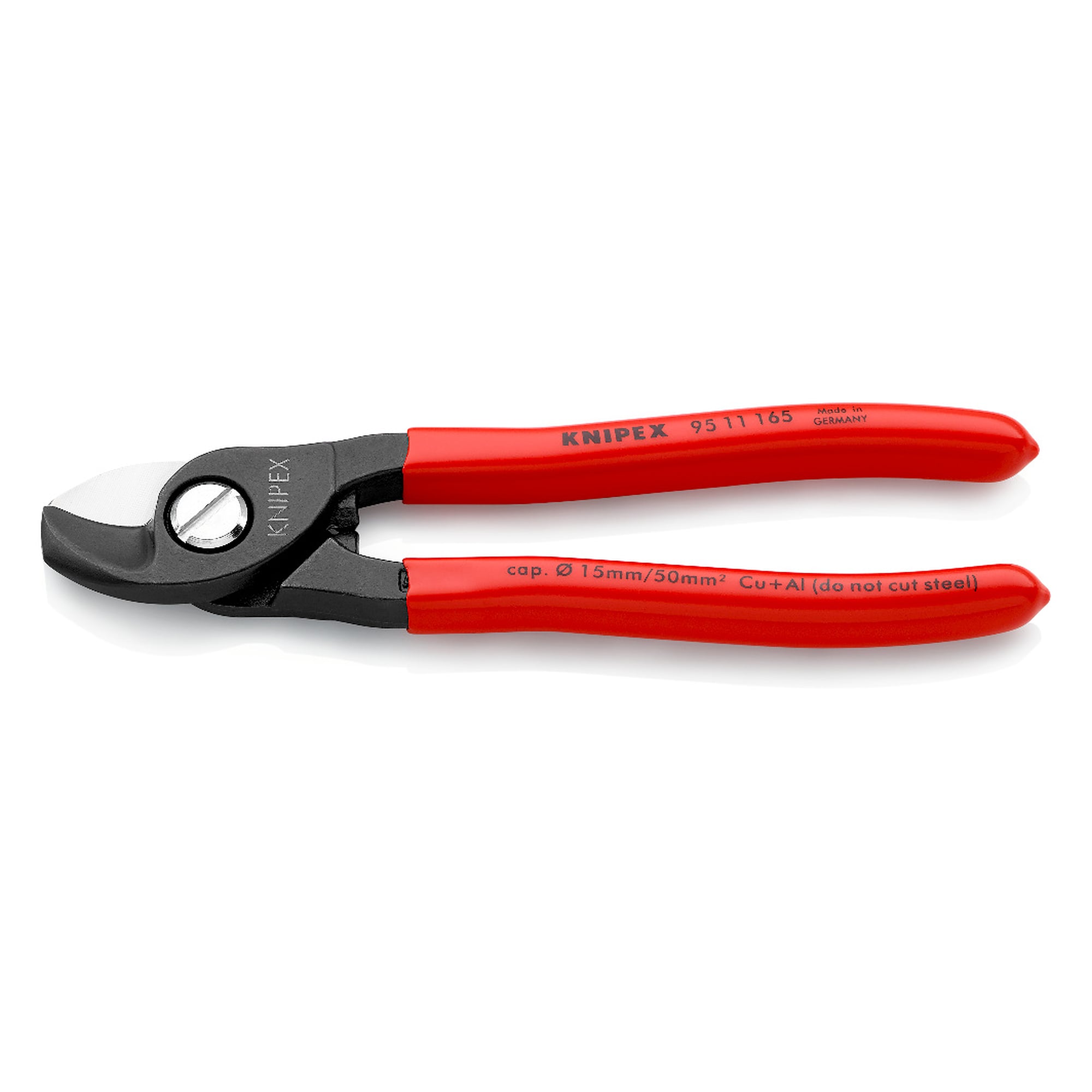

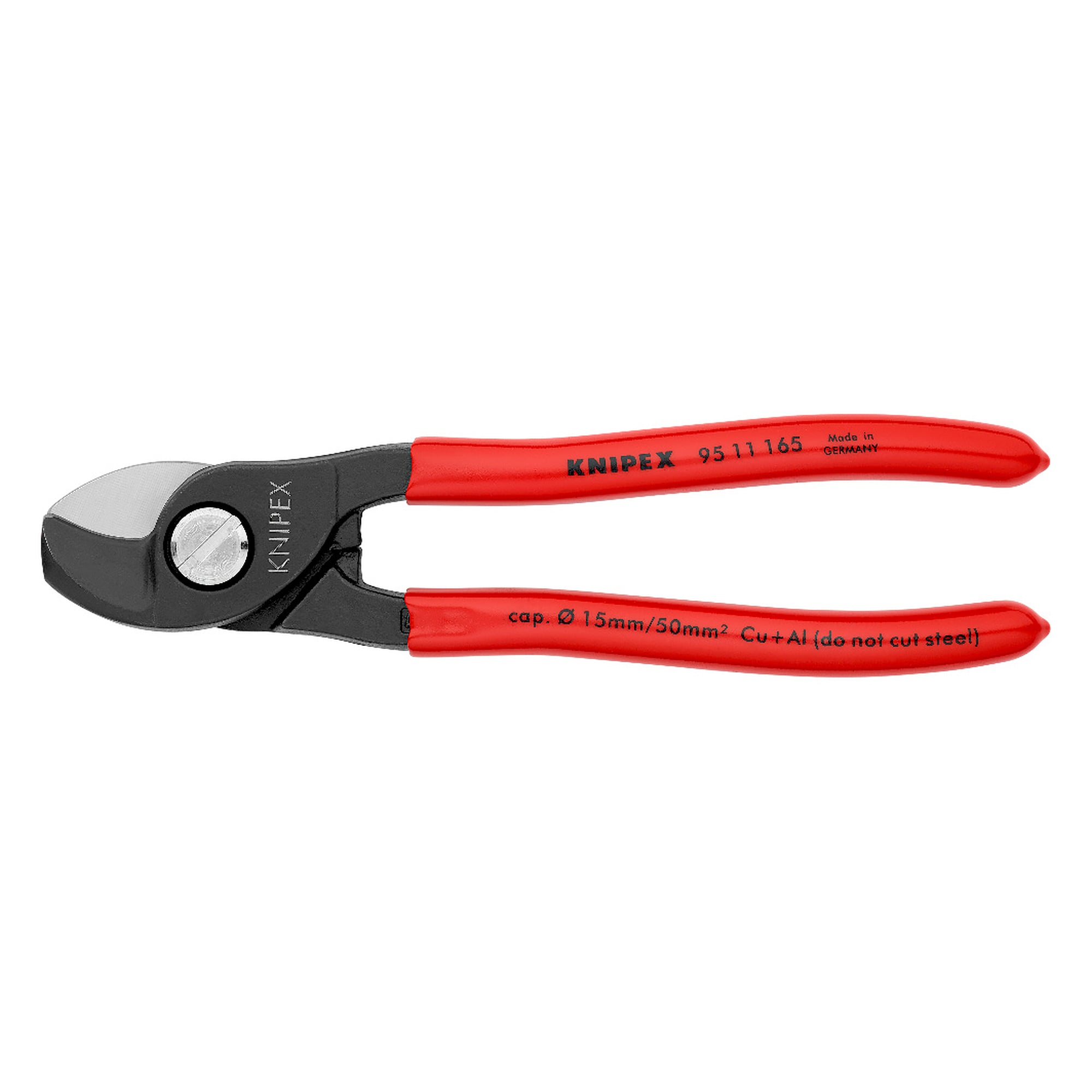

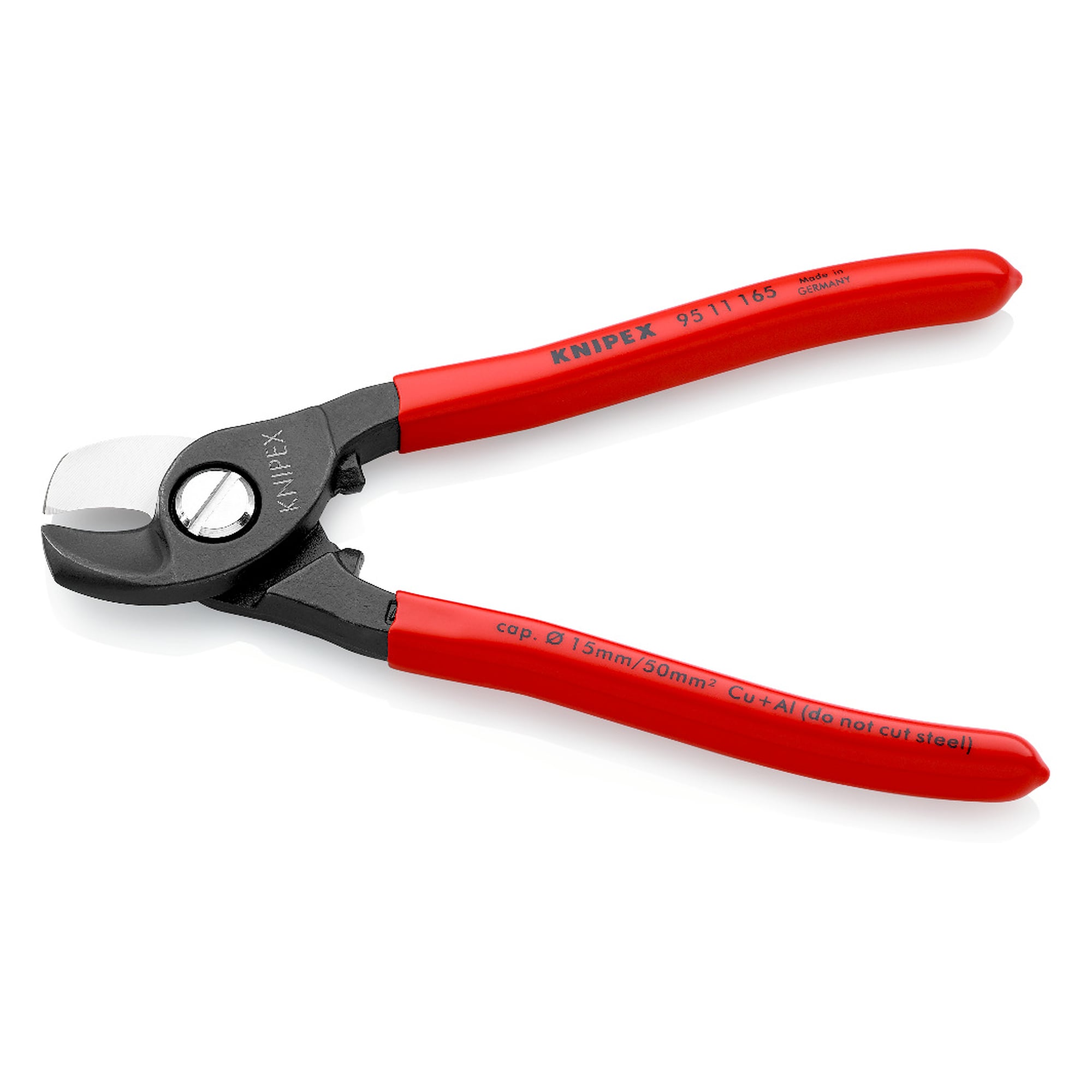

Cable shears for copper and aluminium cable up to 15 mm dia., with guard, 165 mm - Knipex 95 11 165

A cable crushed by a side cutter no longer fits the lug properly and the contact resistance goes up. The 95 11 165 cable shears cut fine-stranded multi-core copper and aluminium cables up to 15 mm dia. cleanly and smoothly, which corresponds to a cross-section of 50 mm2.

Benefits

• Clean and smooth cut without crushing, so the conductor keeps its shape for crimping.
• Cuts fine-stranded multi-core copper and aluminium cables up to 15 mm dia., matching 50 mm2 or AWG 1 and 0.
• Easy cutting with one-hand operation, the second hand stays on the cable.
• Adjustable bolted joint with self-retaining screw, so the cutting clearance can be corrected over the service life.
• Precision-ground hardened blades for clean cut edges even on fine-stranded conductors.
• With guard, the fingers stay clear of the closing handles.

Technical data

Areas of use

Electrical installation, control cabinet and plant construction, cable assembly and service. According to the manufacturer the shears are not suitable for steel wire and hard drawn copper conductors, which call for bolt cutters or wire rope shears.

Standards and conformity

The manufacturer does not state a tool standard for this product. The handles are plastic-coated and the source does not state a test as an insulated tool to IEC 60900. According to the manufacturer the shears contain no substances of very high concern under REACH, the RoHS directive does not apply.
