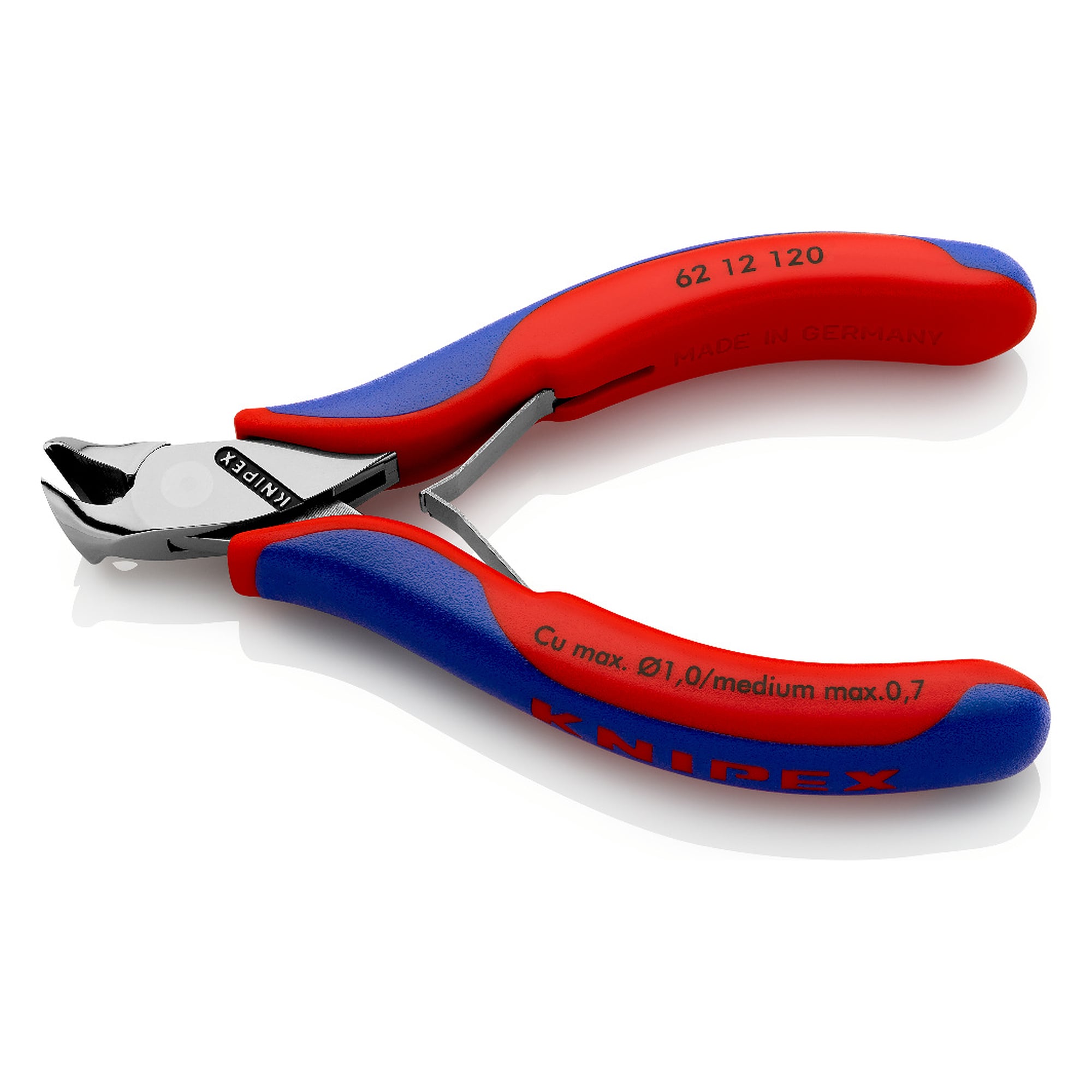

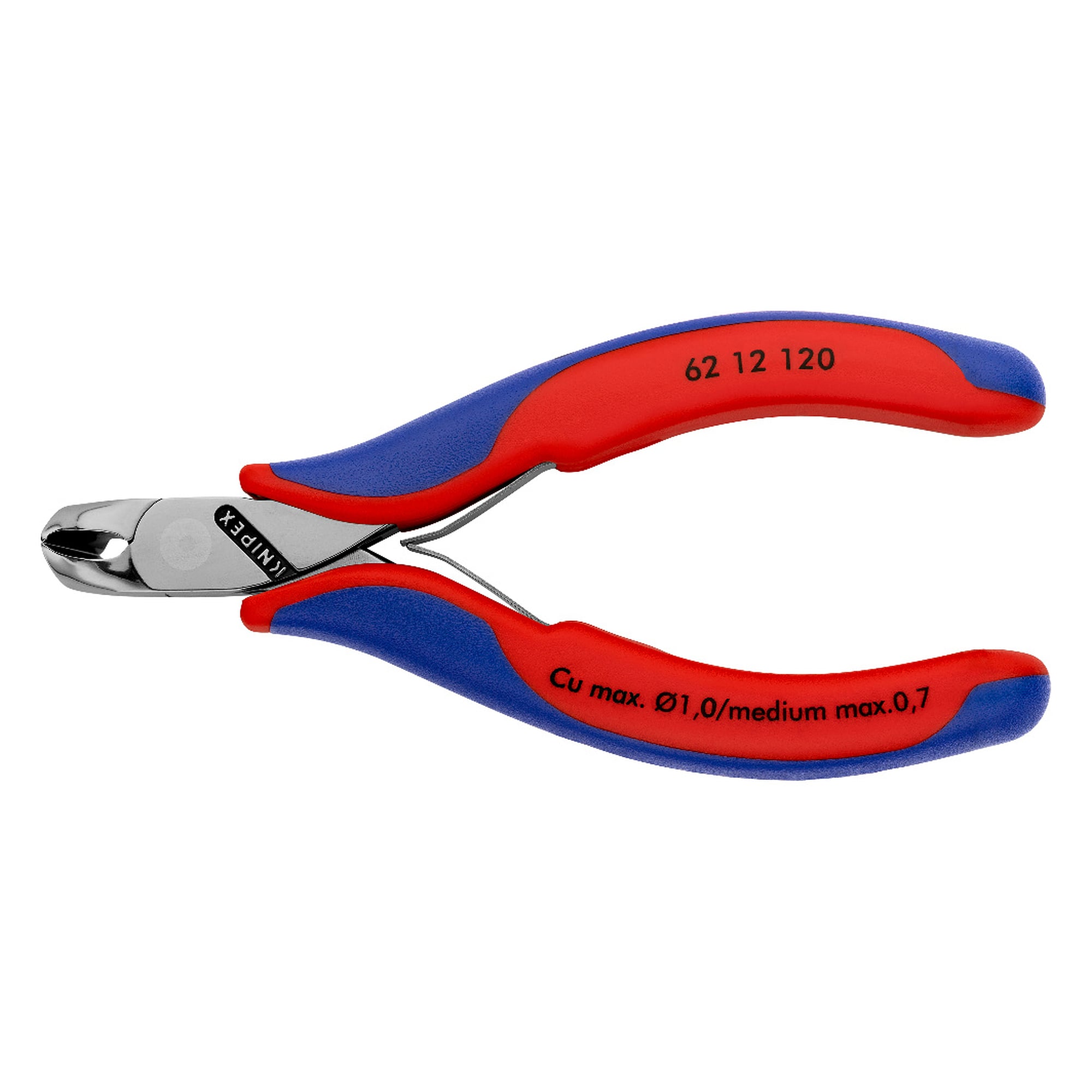

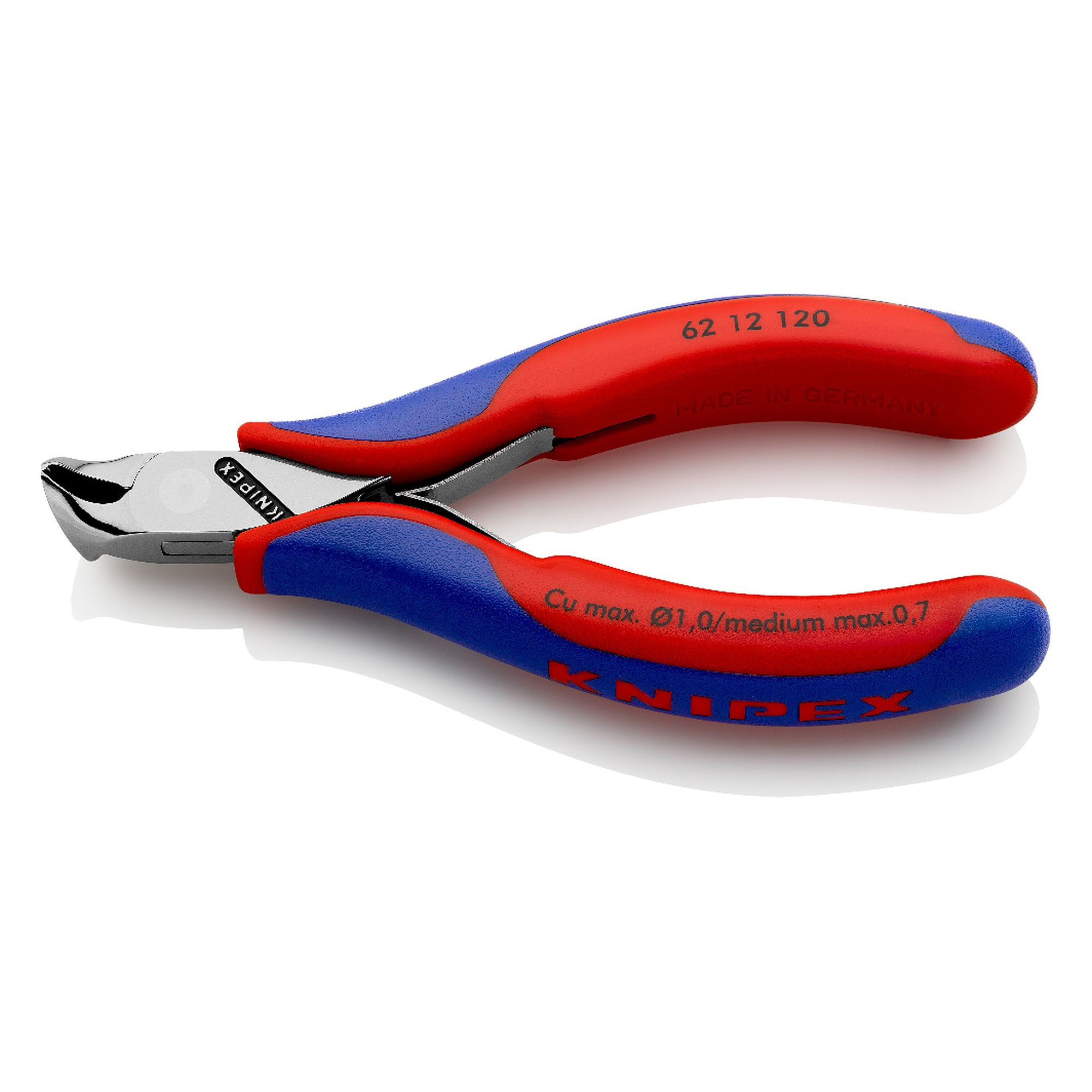

Electronics oblique cutting nipper without bevel, precision box joint, 120 mm - Knipex 62 12 120

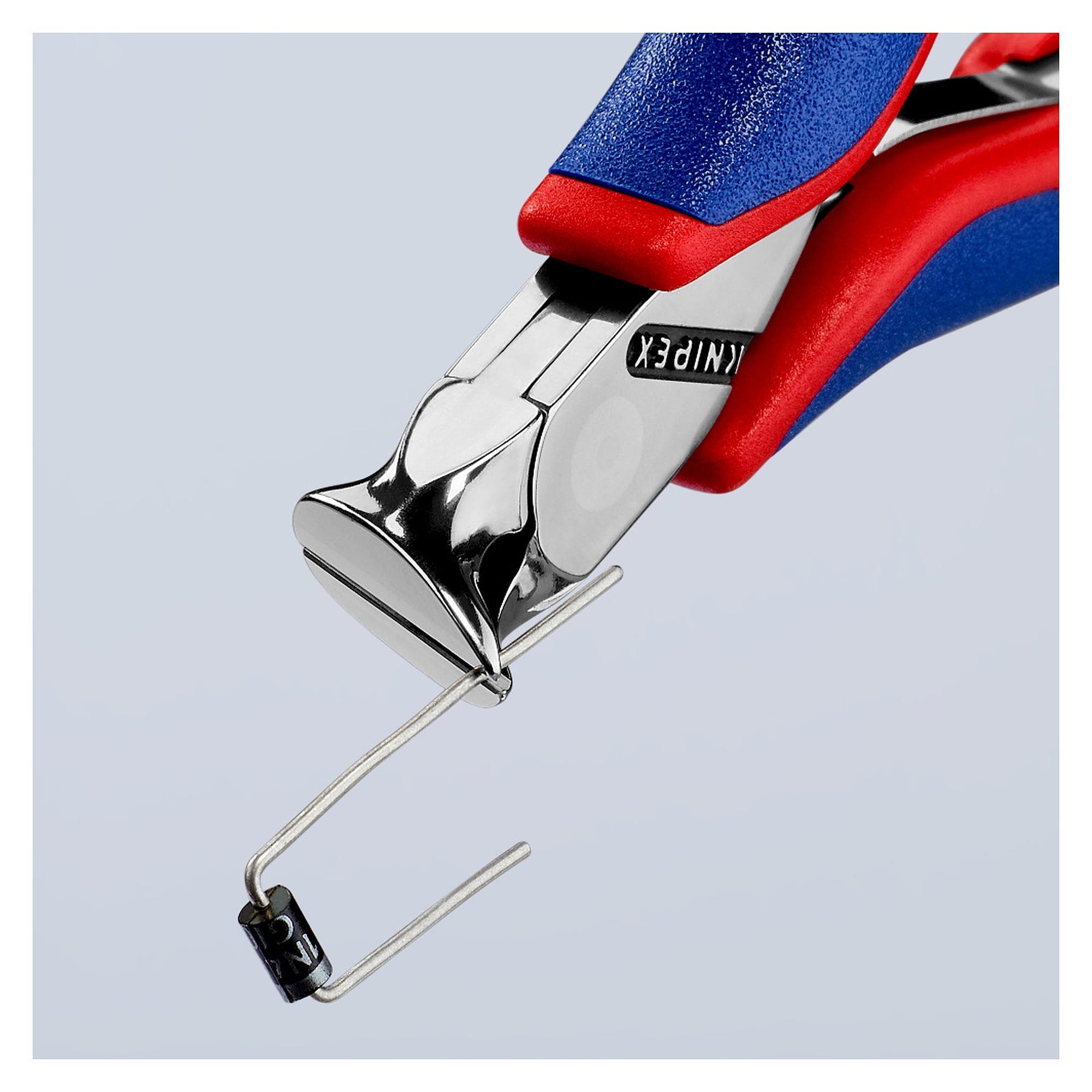

On a populated board the component lead has to be cut flush with the solder joint without the nipper touching the neighbouring part. The 62 12 120 electronics oblique cutting nipper cuts flush thanks to edges without a bevel and handles soft wire from 0.3 to 1 mm diameter.

Benefits

• Cutting edges for soft wire from 0.3 to 1 mm diameter and for medium hard wire up to 0.7 mm.
• Design without bevel for flush cutting close to the printed circuit board.
• Low-friction double spring for smooth and even opening on every cut.
• Precision box joint keeps the cutting edges permanently aligned.
• The polished finish together with a fine film of oil gives good rust protection, and no chrome flakes can fall off to disturb the circuit.
• Cutting edges additionally laser hardened to a hardness of at least 56 HRC, at a tool weight of only 70 g.

Technical data

Areas of use

Electronics manufacturing and PCB assembly, repair and service work on modules, precision mechanics and model making. The oblique head makes it easier to reach between closely spaced components where a straight side cutter no longer gets to the wire.

Standards and conformity

The nipper is built to DIN ISO 9654, the standard for electronics oblique cutting nippers. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply.
