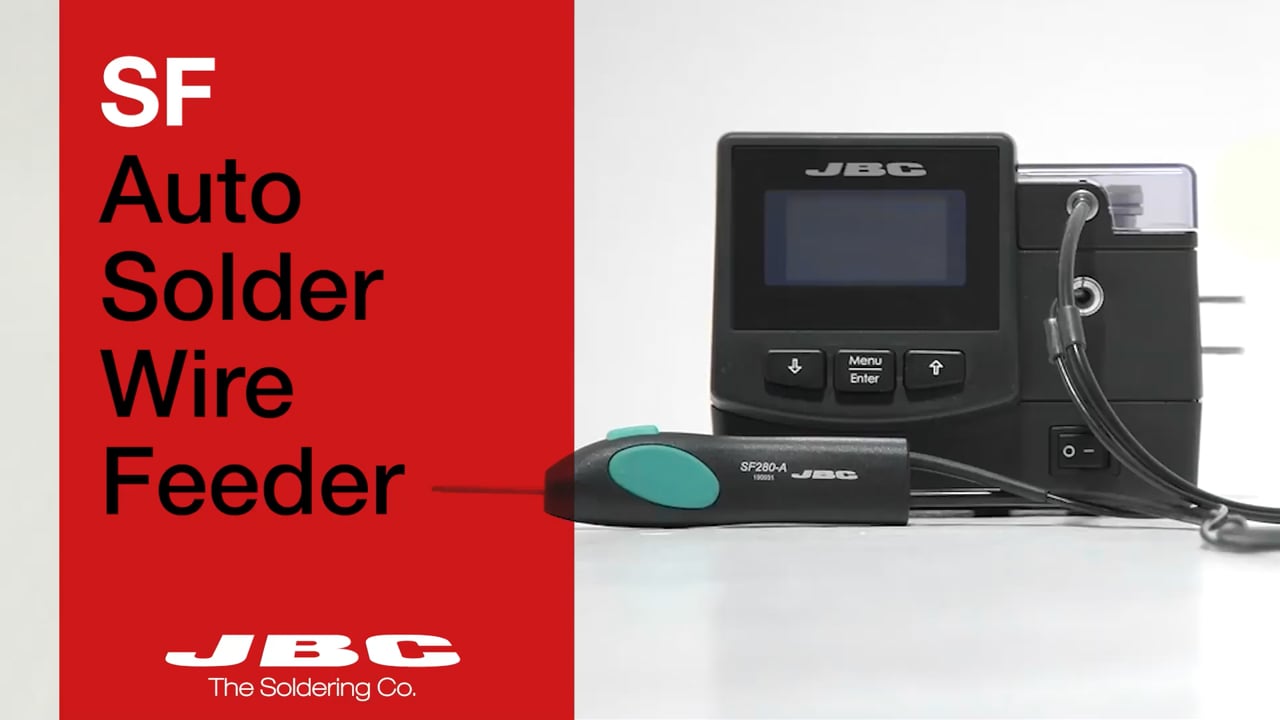

The SF-210VB feeds solder wire of 1 mm diameter automatically and makes feed speed and wire length freely configurable. Three working modes and up to 35 cyclically programmable programs cover recurring soldering tasks. A counter monitors solder consumption.
Solder wire feed system 230 V for 1 mm wire - JBC SF-210VB
JBC
Original product
Net price (excl. VAT)
€1,222.37
Item
WL45371
Manufacturer no.
SF-210VB
ESD · IEC 61340-5-1
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.SF-210VB
ConditionNew
Article
WL45371
Frequently Bought Together
-
This Item:
€1,222.37
-
Portable display 8.6 inch with Android 14, Bluetooth 5.0 and 5000 mAh battery for B.IRON - JBC PDS-C
€150.78
-
B-IRON 500 cordless soldering station with B.500 tool 24 W, C210, without display - JBC BIS-5QC
€552.88
Total price
Recurring solder joints are made faster and more consistently when the wire is delivered automatically. The SF-210VB feeds solder wire of 1 mm diameter, with freely configurable speed and length and an integrated counter that monitors consumption.
Benefits
- Automatic feeding of solder wire with 1 mm diameter
- Feed speed and wire length freely configurable
- 3 working modes: continuous, discontinuous and program mode
- Up to 35 cyclically programmable programs
- Solder wire perforation for better flux flow and outgassing
Technical data
| Item no. | WL45371 |
| Manufacturer item no. | SF-210VB |
| Model | SF-210VB |
| Model line | Premium Line |
| Manufacturer | JBC |
| Dimensions with packaging (LxWxH) | 186 mm x 60 mm x 34 mm |
| Voltage | 230 V |
| Wire diameter | 1 mm |
| Capacity | coil capacity up to 1 kg |
| Included handpiece | SF280-A |
| Ambient operating temperature | 10-40 °C |
| Connections | USB-B, peripherals, RJ12 for RS-232 connection |
| Scope of supply | SF control unit, SF280-A solder wire feeder, GSF10V feed pipe set 1 mm |
| Order unit | piece |
Applications
Automated feeding of solder wire in production soldering, robot soldering and recurring soldering tasks.
Compatibility and scope of delivery
Scope of supply: SF control unit, SF280-A solder wire feeder and GSF10V feed pipe set for 1 mm wire. Coil capacity up to 1 kg.
ESD compliant for use at workplaces in accordance with IEC 61340-5-1. Made in Spain.
| Certification | IEC 61340-5-1 |
|---|---|
| Manufacturer Nr. | SF-210VB |
| Manufacturer | JBC |
| Weight | 0.100000 |
| GPSR manufacturer information | JBC Soldering SL, Ramón y Cajal 3, ES-08750 Molins De Rei, www.jbctools.com |
| Article authenticity | Original product |
| Condition of article | New |
