Extraction unit ACD 200.1 MD.20 A14 for gases, vapours and odours, 230 m³/h - ULT ACD 0200.1-MD.20.50.1006
Gases, vapours and odours from bonding, coating or cleaning stay in the room air unless they are captured at source. The mobile ACD 200.1 MD.20 A14 extraction and filtration unit removes them at the point of origin at 230 m³/h against 1,000 Pa. Constant vacuum control readjusts between 150 and 1,000 Pa, 14 kg of activated carbon bind the pollutants and the LED status ring reports particle filter loading.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

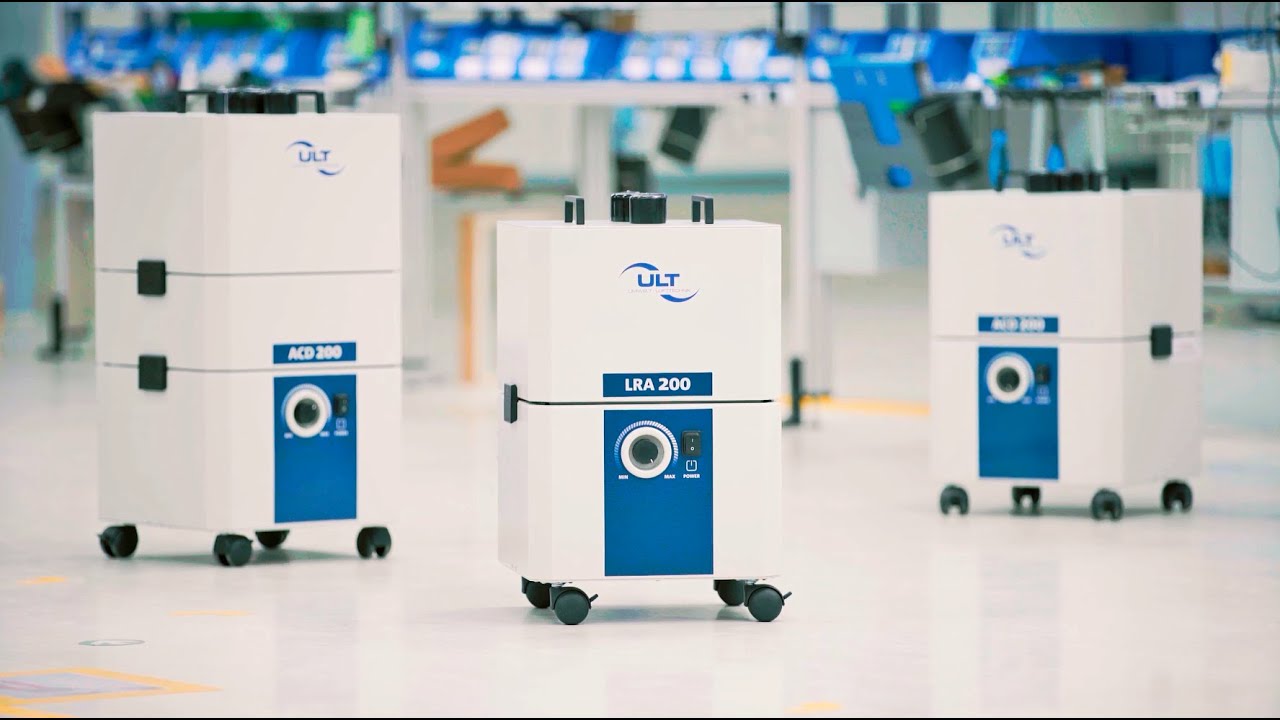

Gases, vapours and odours released during bonding, laminating, coating or cleaning are captured directly at the point of origin by the ACD 200.1 MD.20 A14 and routed through a two-stage filter section made up of a G4 Z-Line filter and an A14 adsorption filter cassette with a 14 kg activated carbon bed. In medium-pressure mode the mobile unit runs at 230 m³/h against 1,000 Pa and compensates for increasing filter loading through its constant vacuum control.
Benefits
- Nominal operating points 230 m³/h at 1,000 Pa and 130 m³/h at 5,000 Pa, max. volume flow 320 m³/h, max. vacuum 9,000 Pa
- Constant vacuum control in two modes: medium pressure 150 to 1,000 Pa, high pressure 150 to 5,000 Pa
- 14 kg activated carbon bed in the A14 adsorption filter cassette, upstream G4 Z-Line filter rated ISO Coarse 90 percent to ISO 16890
- LED status ring with particle filter loading indicator and fault signal, 8-pin M12 interface with remote on/off
- Integrated sound insulation, noise level 47 to 58 dB(A) at 50 to 100 percent air performance
- Electrical system rated 110 to 240 V, components in UL- and CE-compliant design
Filter configuration and replacement filters
- Stage 1: Z-Line filter G4, ISO Coarse 90 percent to ISO 16890, ULT 4-00299
- Stage 2: A14 adsorption filter cassette with 14 kg activated carbon bed, ULT 4-00391
Applications
Bonding, laminating, coating, pretreatment, cleaning, casting and printing. The three ports on top of the unit take extraction arms or hoses for one to four individual workstations.
Recirculation or exhaust air operation
The filtered clean gas can be returned to the working area, so no heat is lost. Recirculation is not permitted when extracting carcinogenic, mutagenic or reprotoxic substances. In that case the supplied Ø 100 mm exhaust port is fitted on the outlet side and the clean gas is ducted into a central exhaust system.
Compatibility and scope of delivery
The unit comes with the adjustable outlet grille, the Ø 100 mm exhaust port and the EU mains cable to CEE 7/7 with a length of 3.0 m, country-specific cables are available. Extraction arms, hoses, foot switch and replacement filters of the ULT 200.1 series are ordered separately to suit the application.
Technical data
| Item number | WL45690 |
|---|---|
| Model | ACD 200.1 MD.20 A14 |
| Manufacturer | ULT |
| Manufacturer item number | ACD 0200.1-MD.20.50.1006 |
| ULT item number, complete unit | 1-00005 |
| Order unit | piece |
| Nominal operating points | 230 m³/h at 1,000 Pa, 130 m³/h at 5,000 Pa |
| Max. volume flow | 320 m³/h |
| Max. vacuum | 9,000 Pa |
| Type of vacuum generator | EC blower |
| Motor rating | 0.75 kW |
| Nominal voltage | 1~110 to 240 VAC |
| Nominal frequency | 50/60 Hz |
| Nominal current | 5.3 A at 230 V, 9.2 A at 120 V |
| Degree of protection | IP54 |
| Noise level | 47 to 58 dB(A) |
| Dimensions (W x D x H) | 390 x 400 x 775 mm |
| Weight without filters | approx. 23 kg |
| Max. filter weight | approx. 25 kg |
| Total weight | approx. 48 kg |
| Intake ports | on top, 1x Ø 80 mm and 2x Ø 50 mm |
| Air outlet | adjustable outlet grille, Ø 100 mm exhaust port |
| Interface | M12, 8-pin |
| Mains cable | EU CEE 7/7, 3.0 m |
| Housing | sheet steel, powder-coated RAL 7035 light grey |
| Design | mobile with castors |
| Weight | 48.000000 |
| Manufacturer Nr. | ACD 0200.1-MD.20.50.1006 |
| HS-Code | 84213925 |
| GPSR manufacturer information | ULT AG Am Göpelteich 1 DE-02708 Löbau www.ult.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Protection class (IP) | IP54 |
| Filter class | A14 |
| Airflow [m³/h] | 320 |
| Max. vacuum [Pa] | 9000 |
| Sound pressure level [dB(A)] | 55 |
