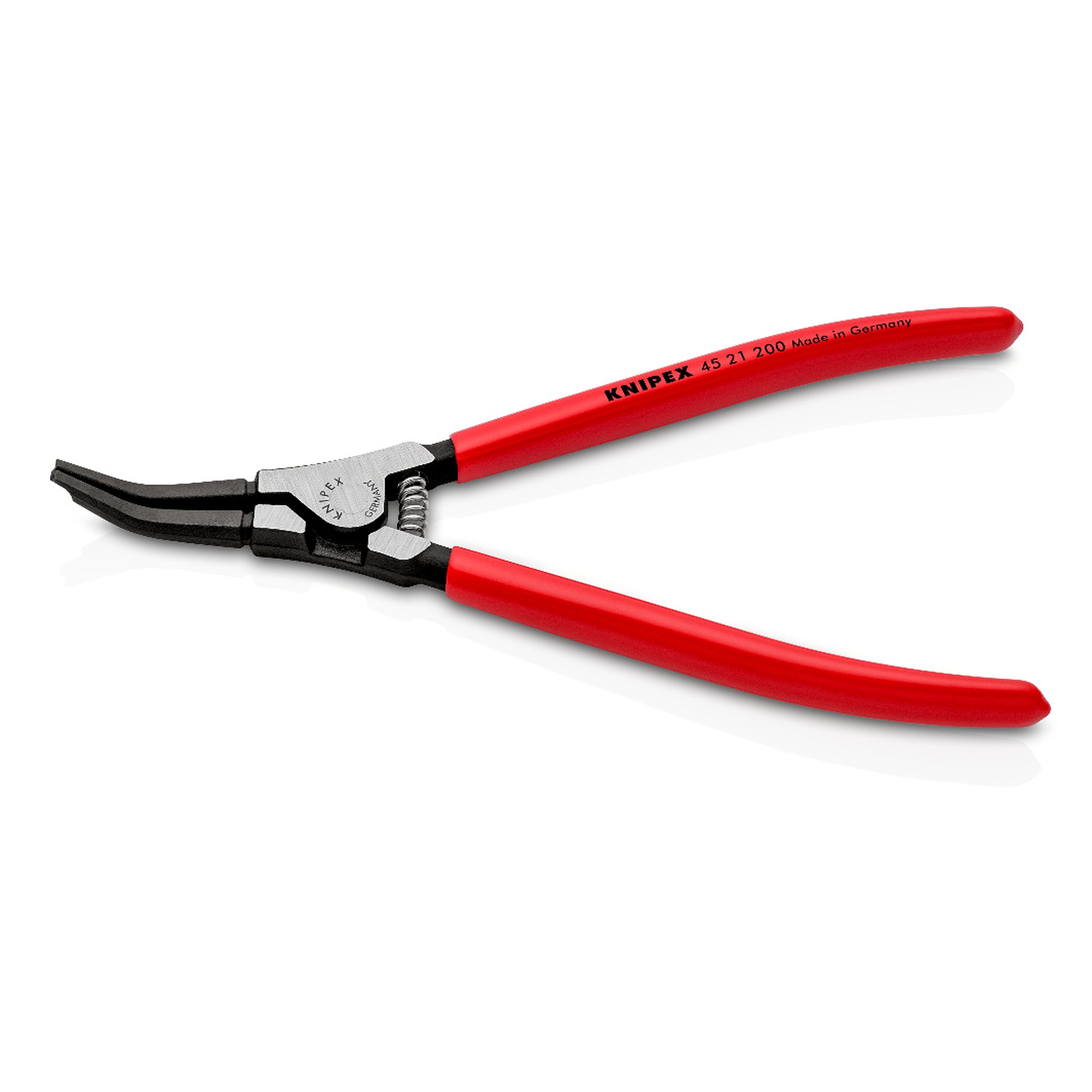

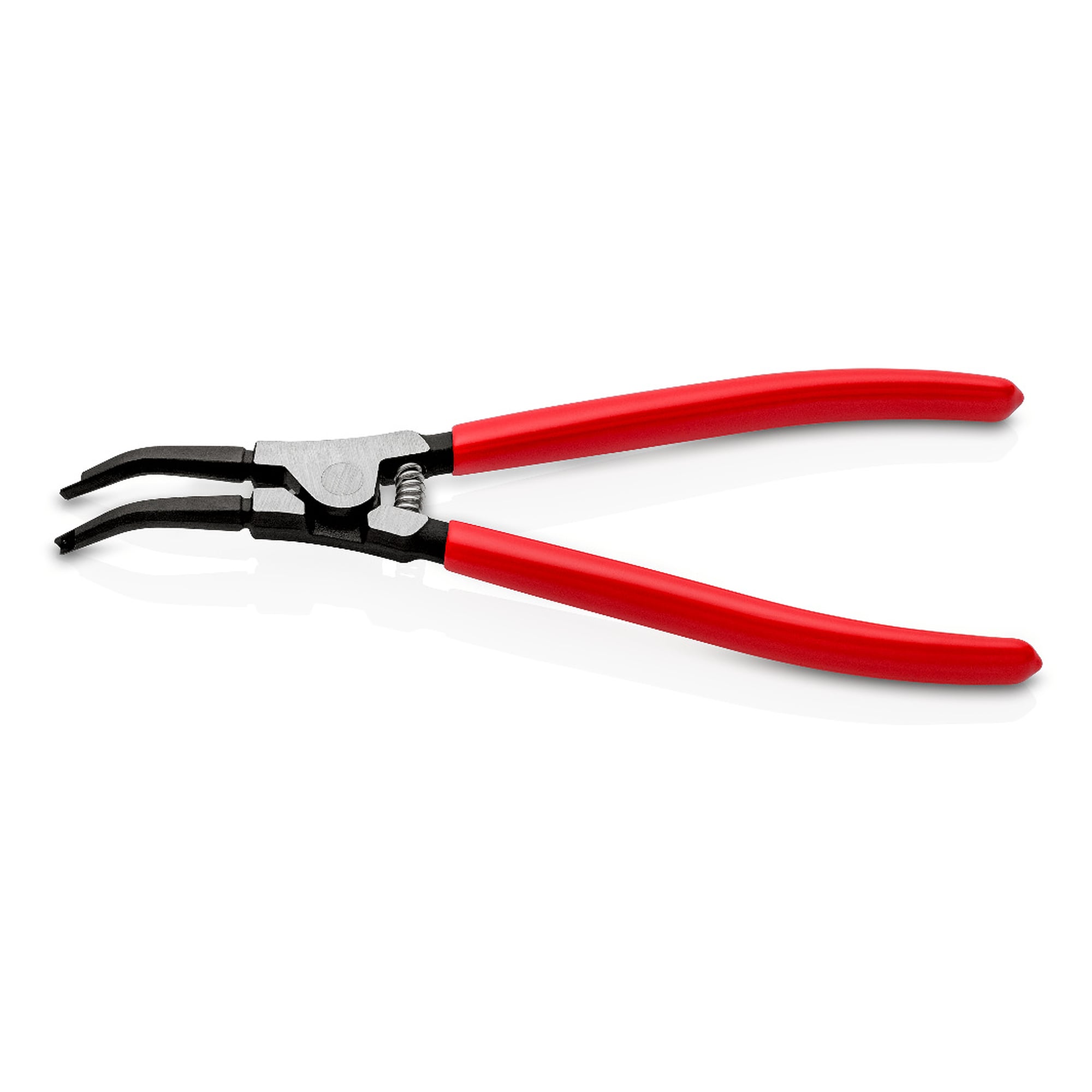

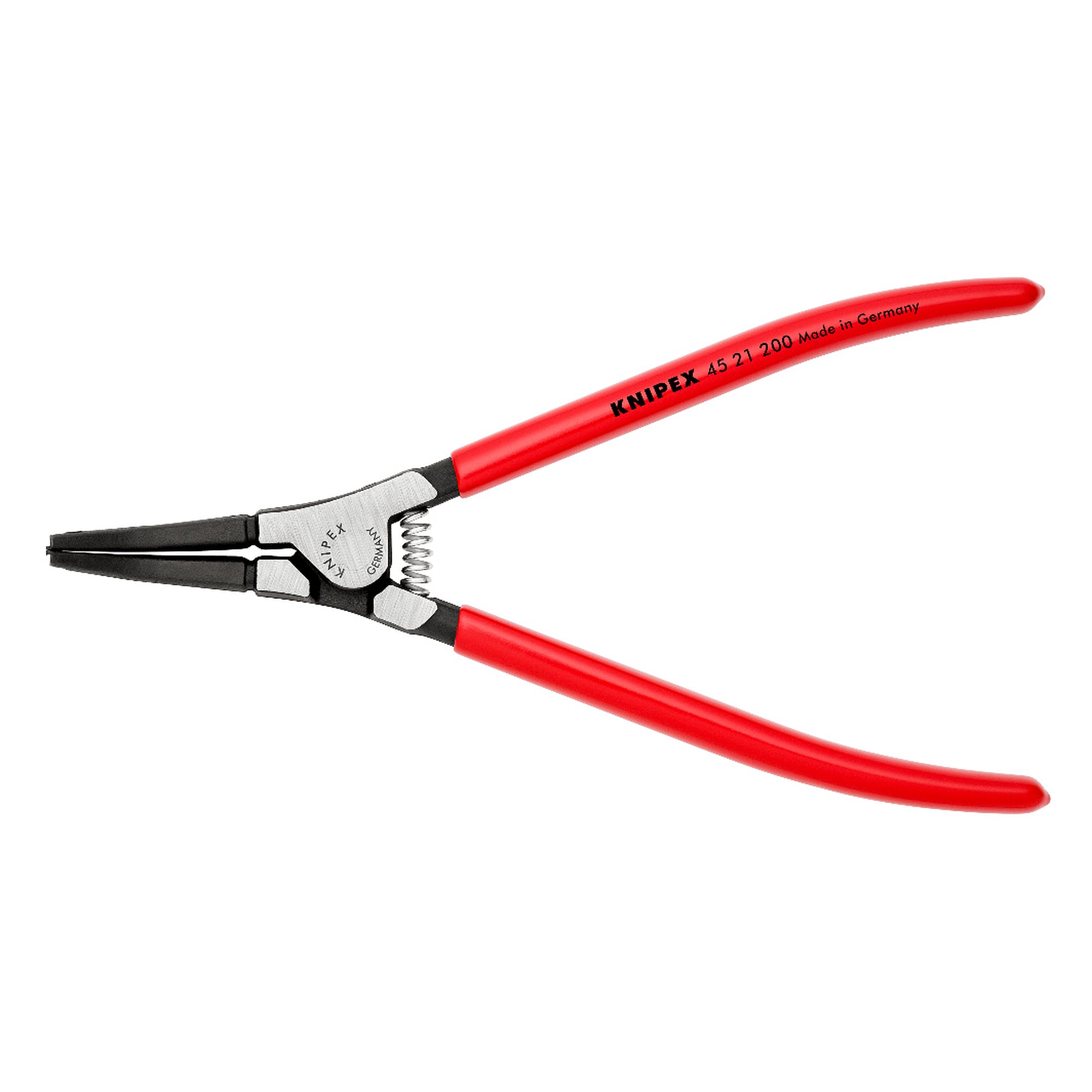

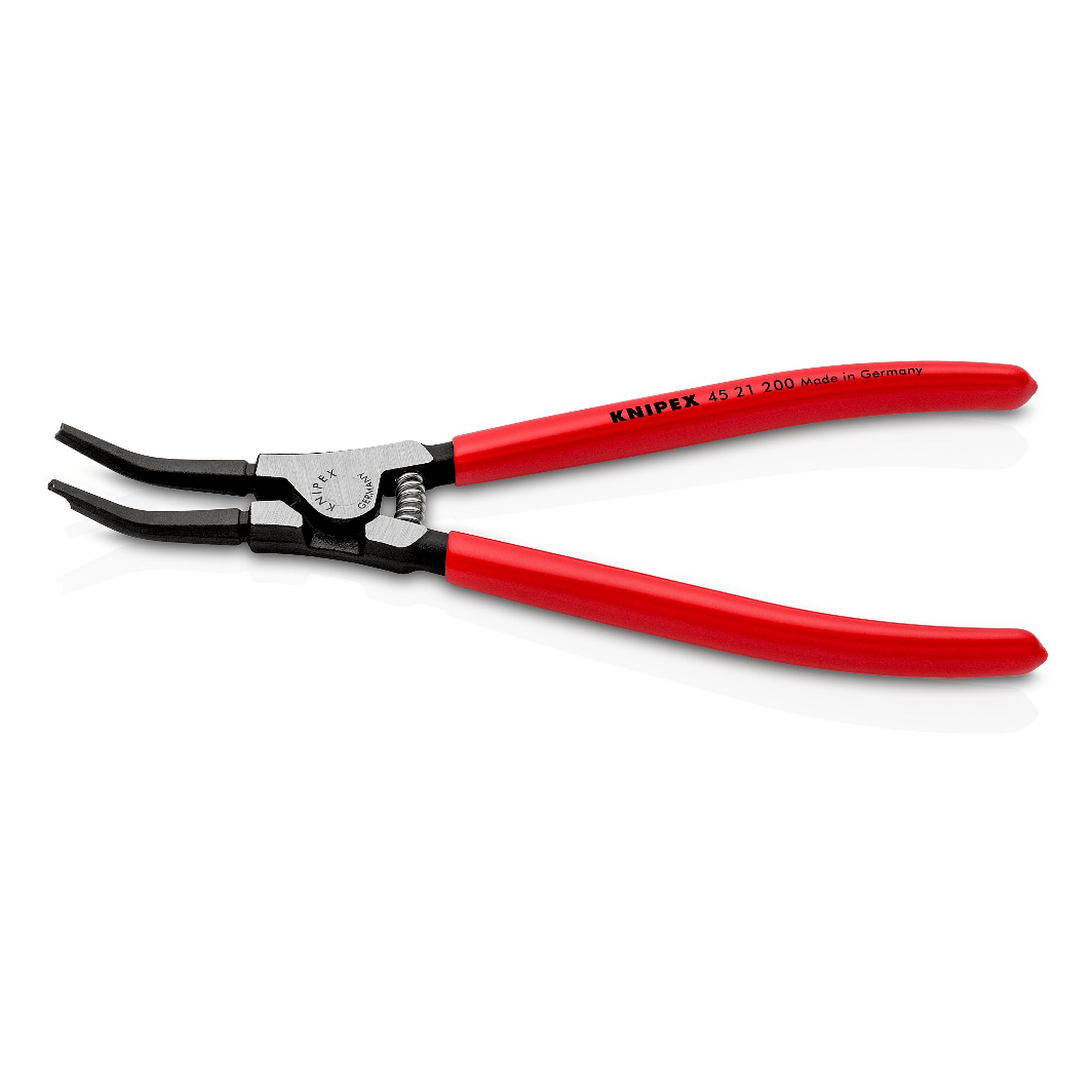

Assembly pliers for snap rings on shafts without grip holes, with pressure spring, 200 mm - Knipex 45 21 200
Assembly pliers for snap rings and retaining rings without grip holes on shafts. Curved jaws with centring and a pressure spring guide standard rings from Ø 12.0 mm with a minimum gap of 2.2 mm. Length 200 mm, weight 234 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Snap rings and retaining rings without grip holes cannot be held by ordinary circlip pliers. These assembly pliers engage the ring contour with curved jaws and a centring hole instead and work on standard shaft retaining rings from Ø 12.0 mm, for example on the propshaft circlip in a vehicle gearbox.
Benefits
- For fitting snap rings and retaining rings without grip holes, where standard pliers find no hold.
- Curved jaws with centring guide the ring while it is fitted and stop it from springing off.
- Pressure spring opens the pliers automatically and allows quick repetitive work.
- For standard snap rings from Ø 12.0 mm, minimum ring gap 2.2 mm.
- Plastic coated handles, weight 234 g at a length of 200 mm.
Applications
Vehicle repair and gearbox assembly, agricultural machinery and mechanical engineering, wherever shaft retaining rings without grip holes are fitted or removed.
Standards and conformity
The pliers contain no substances of very high concern under REACH. The RoHS directive is not applicable to this hand tool.
Technical data
| EAN | 4003773031208 |
|---|---|
| Pliers | black atramentized |
| Handles | plastic coated |
| Weight | 234 g |
| Dimensions | 220 x 45 x 19 mm |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Manufacturer | Knipex |
| Manufacturer Nr. | 45 21 200 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 19 mm |
| Width | 45 mm |
| Farbe | schwarz |
| Overall length [mm] | 220 |
