Precision nippers for the finest cutting work in electronics and precision mechanics, made without bevel for a flush cut. The 12 mm jaws and the head of just 11 mm width reach into densely populated assemblies. Laser hardened edges from 56 HRC, soft wire up to 1.4 mm dia., 115 mm long at 50 g.

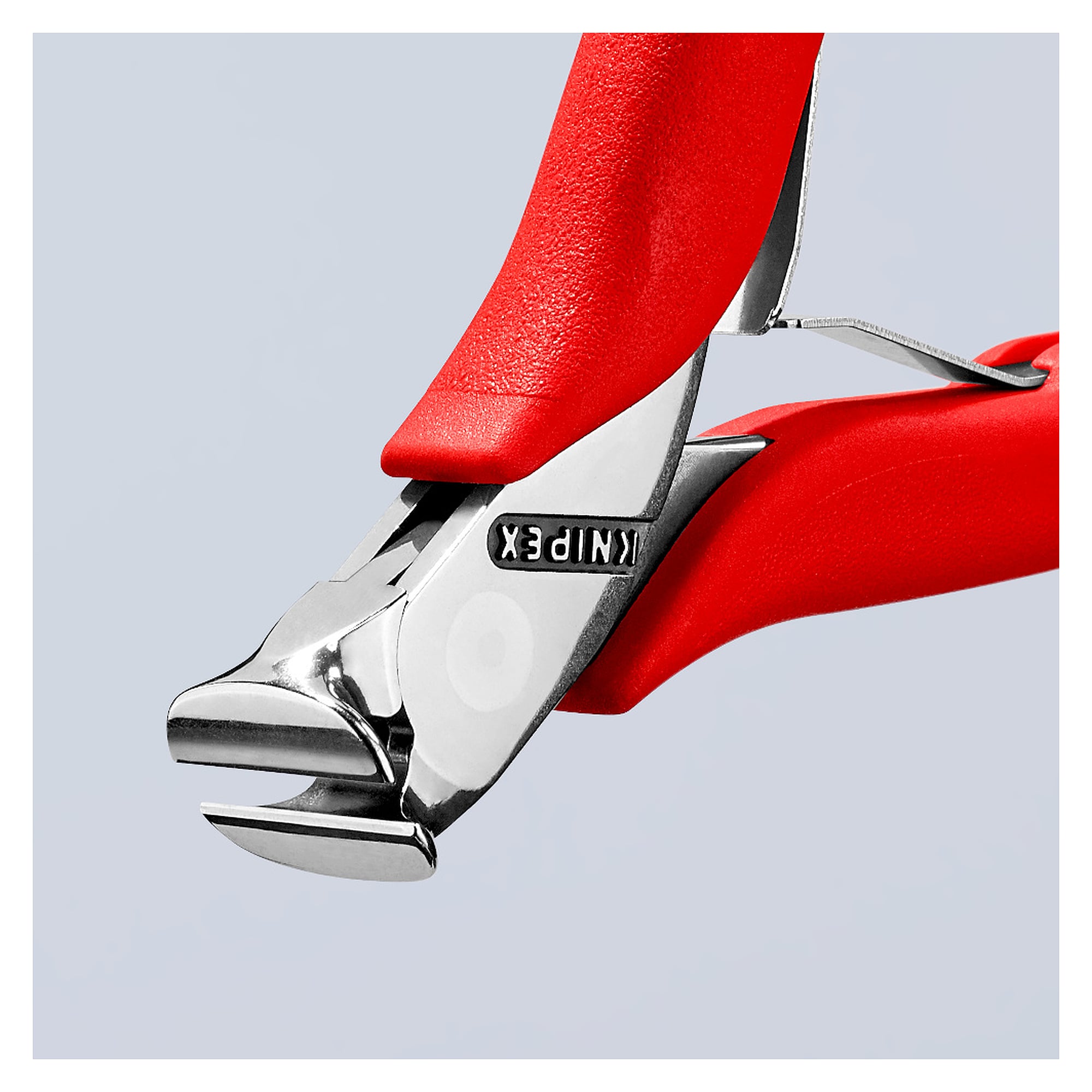

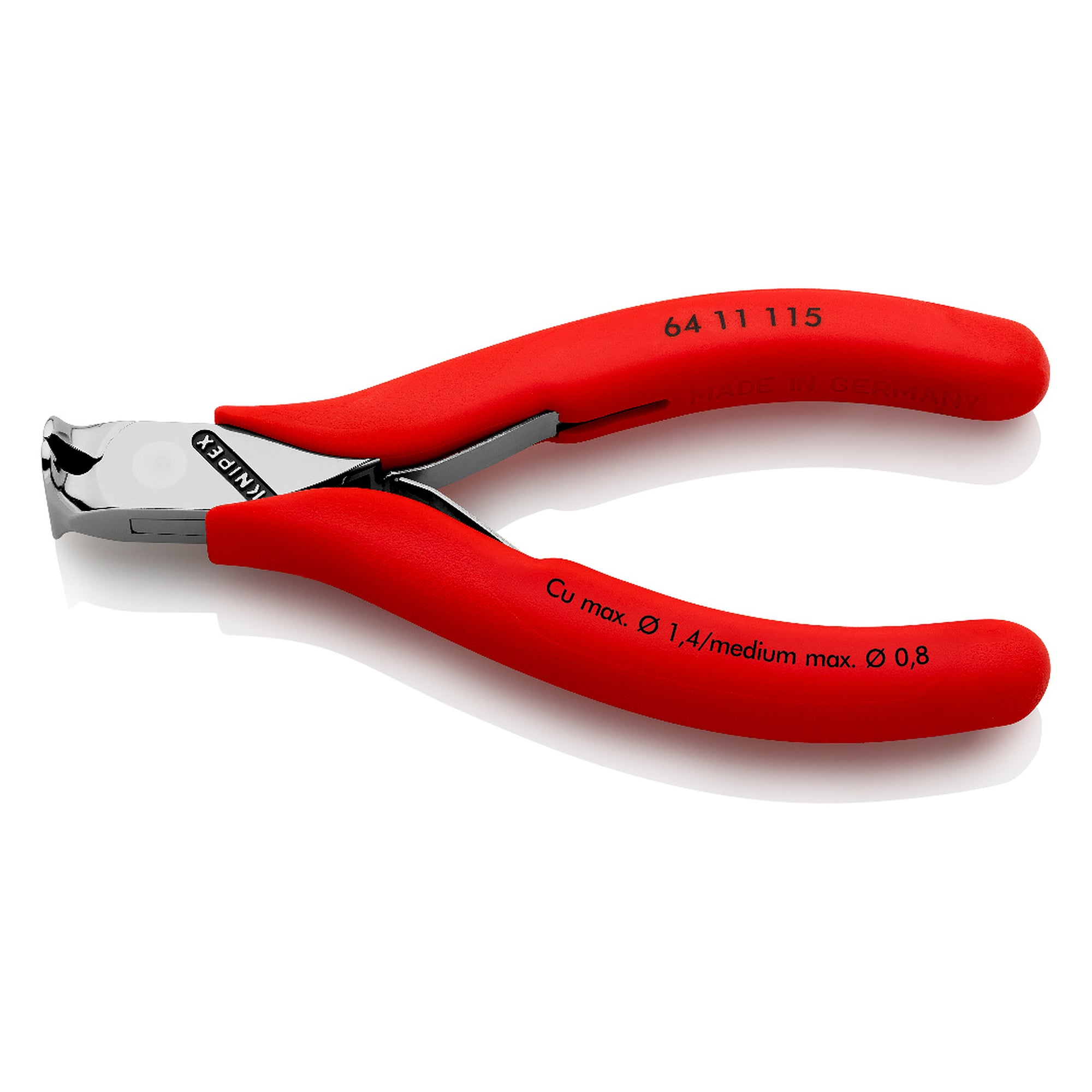

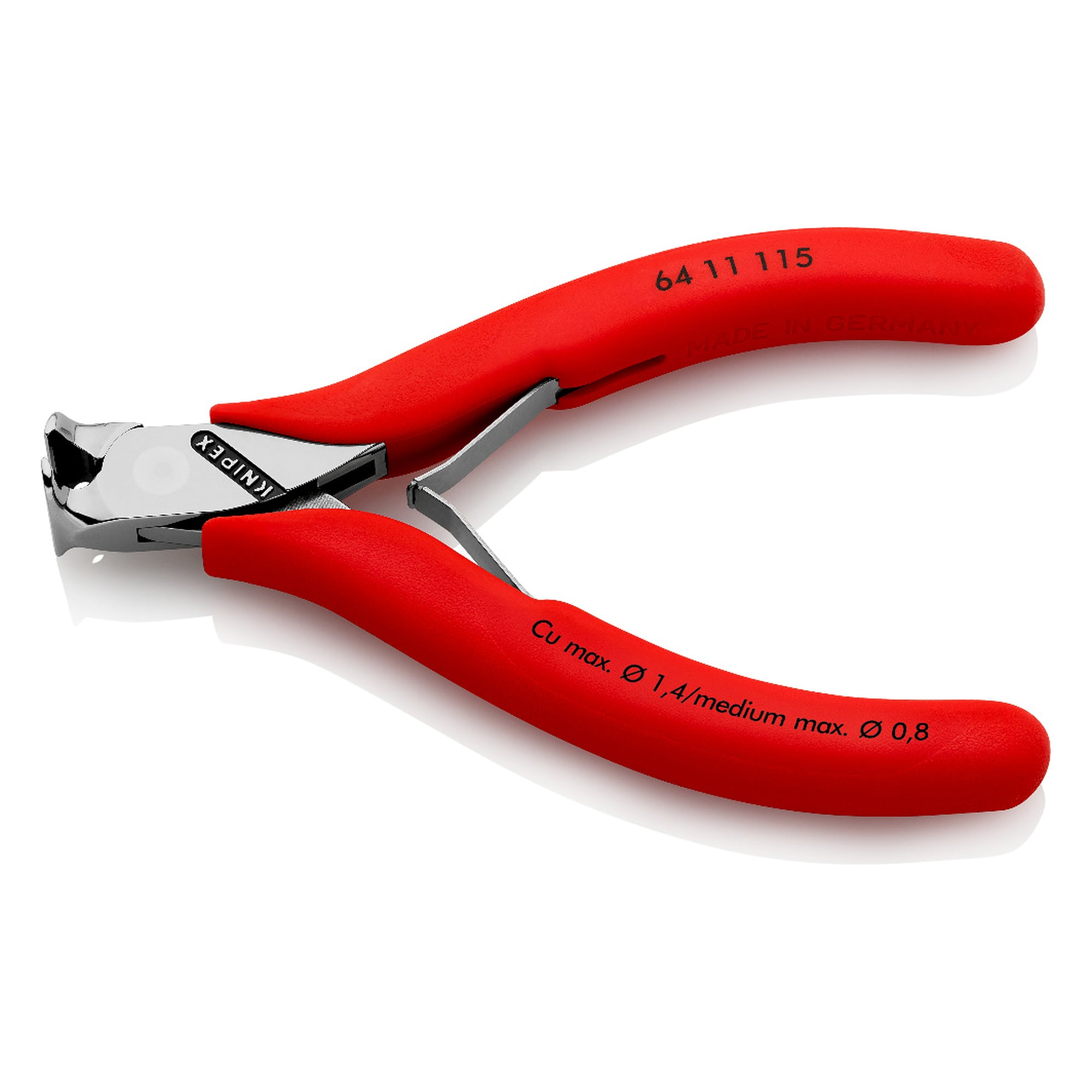

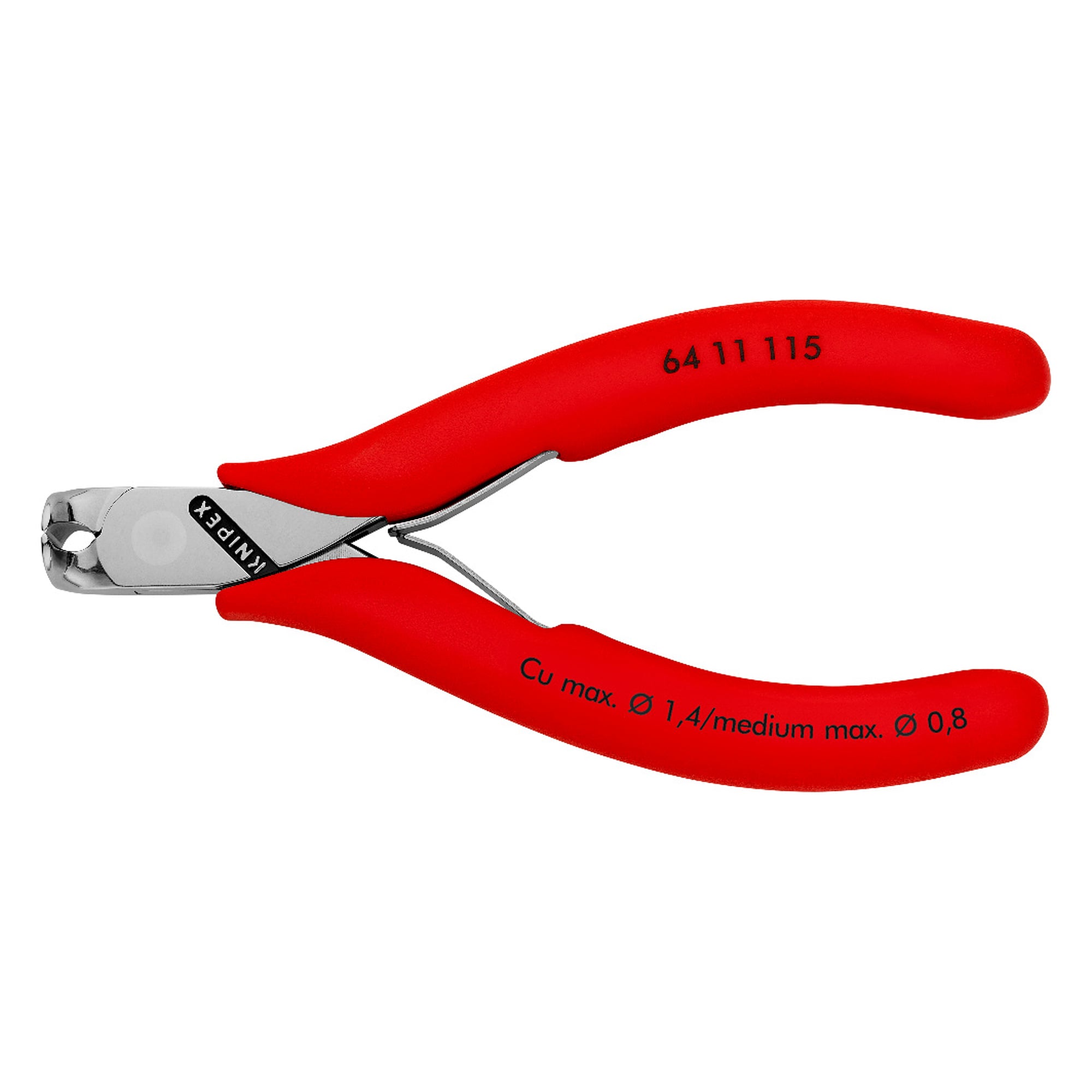

Electronics end cutting nippers without bevel, 12 mm jaw length, 115 mm - Knipex 64 11 115
KNIPEX
Original product
Net price (excl. VAT)
€33.58
Item
WL61615
Manufacturer no.
64 11 115
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.64 11 115
EAN4003773017769
ConditionNew
Article
WL61615
Frequently Bought Together
-
This Item:
€33.58
-
Belzer 2787 G. 45° oblique end cutter with grooved, long head, 0.2 to 0.8 mm
€124.73
-
Weller Erem 530000000000000000. Waver Erem 530E15 Distance Cutter Copper wire to a Length of 1.5 mm/.059 Inch
€128.96
Total price
Anyone who wants component leads cut truly flush is held back by the bevel on the cutting edge. The 64 11 115 electronics end cutting nippers are made without bevel, their 12 mm jaws sit on a head of only 11 mm width and the laser hardened edges from 56 HRC cut soft wire up to 1.4 mm dia.
Benefits
- Version without bevel for a flush cut right at the solder joint.
- Jaw length of 12 mm at a head width of 11 mm gives good access on densely populated boards.
- Box joint keeps the cutting edges precisely aligned over the long run.
- Low-friction double leaf spring for a smooth and even opening action.
- Cutting edges additionally laser hardened, cutting edge hardness at least 56 HRC.
- Mirror polished head with a fine film of oil for rust protection, with no peeling chrome that could cause circuit faults.
- Only 50 g in weight, easy on the hand during long production runs.
Technical data
| EAN | 4003773017769 |
|---|---|
| Head | mirror polished |
| Handles | with non-slip plastic coating |
| Weight | 50 g |
| Dimensions | 115 x 61 x 13 mm |
| Standard | DIN ISO 9654 |
| Cutting capacity soft wire (diameter) | 1.4 mm dia. |
| Cutting capacity medium hard wire (diameter) | 0.8 mm dia. |
| Head width (A) | 11 mm |
| Jaw length (B) | 12 mm |
| Jaw thickness at the joint (D) | 7 mm |
| Cutting edge length (C) | 16 mm |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Areas of use
Electronics manufacturing and repair, PCB assembly, precision mechanics, model making and laboratory work. Wherever component leads have to be cut off without leaving a stub.
Standards and conformity
The nippers comply with DIN ISO 9654 for electronics pliers. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
| Norm | DIN ISO 9654 |
|---|---|
| Manufacturer Nr. | 64 11 115 |
| Manufacturer | Knipex |
| EAN | 4003773017769 |
| Weight | 0.050000 |
| Height | 13 mm |
| Width | 61 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 115.000000 |
