Electronics diagonal cutter for fine cutting work in electronics and precision engineering. The backlash-free box joint and laser-hardened edges of about 62 HRC cut medium-hard wire up to Ø 1.0 mm and soft wire up to Ø 1.3 mm. Slim 13 mm jaws, 115 mm long, 50 g.

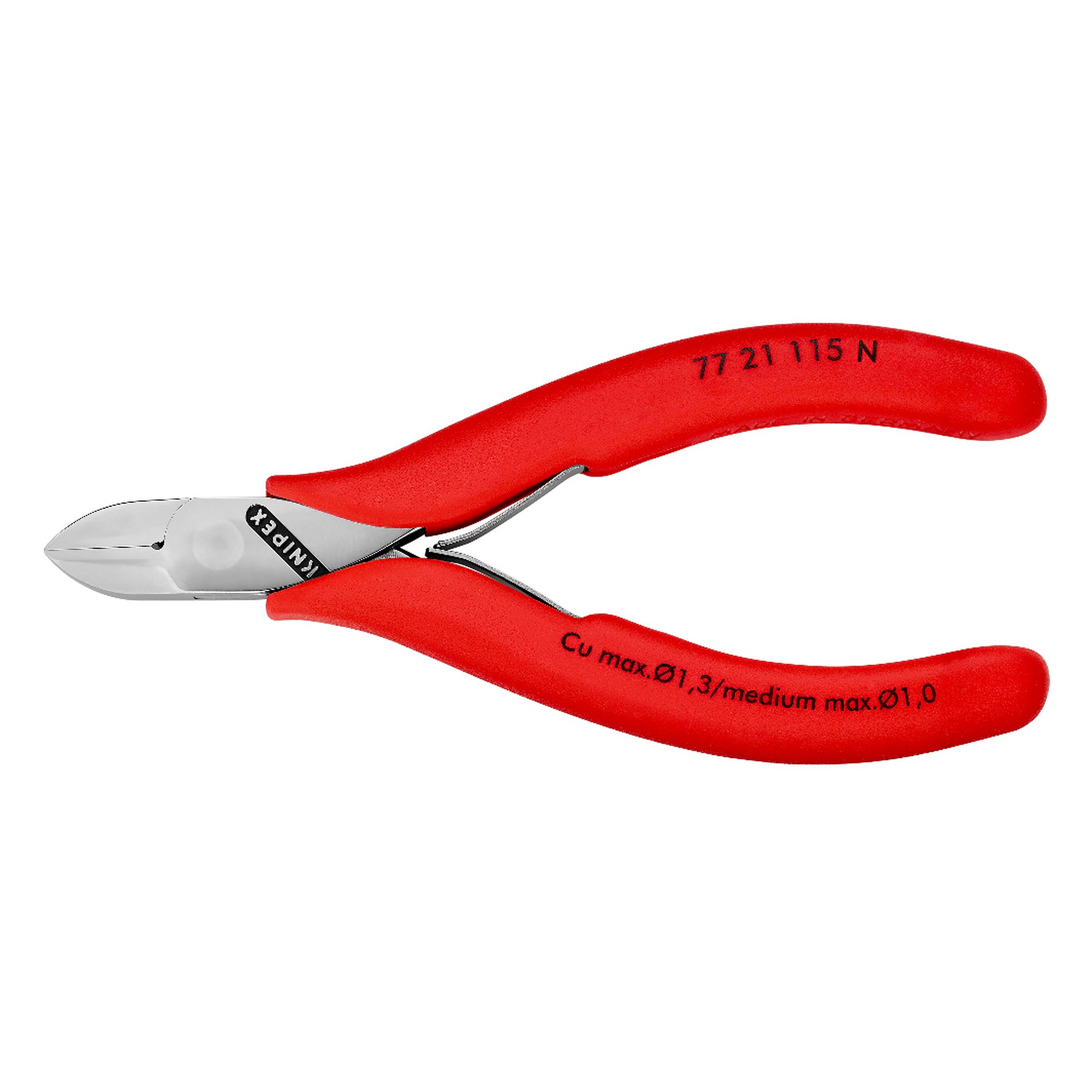

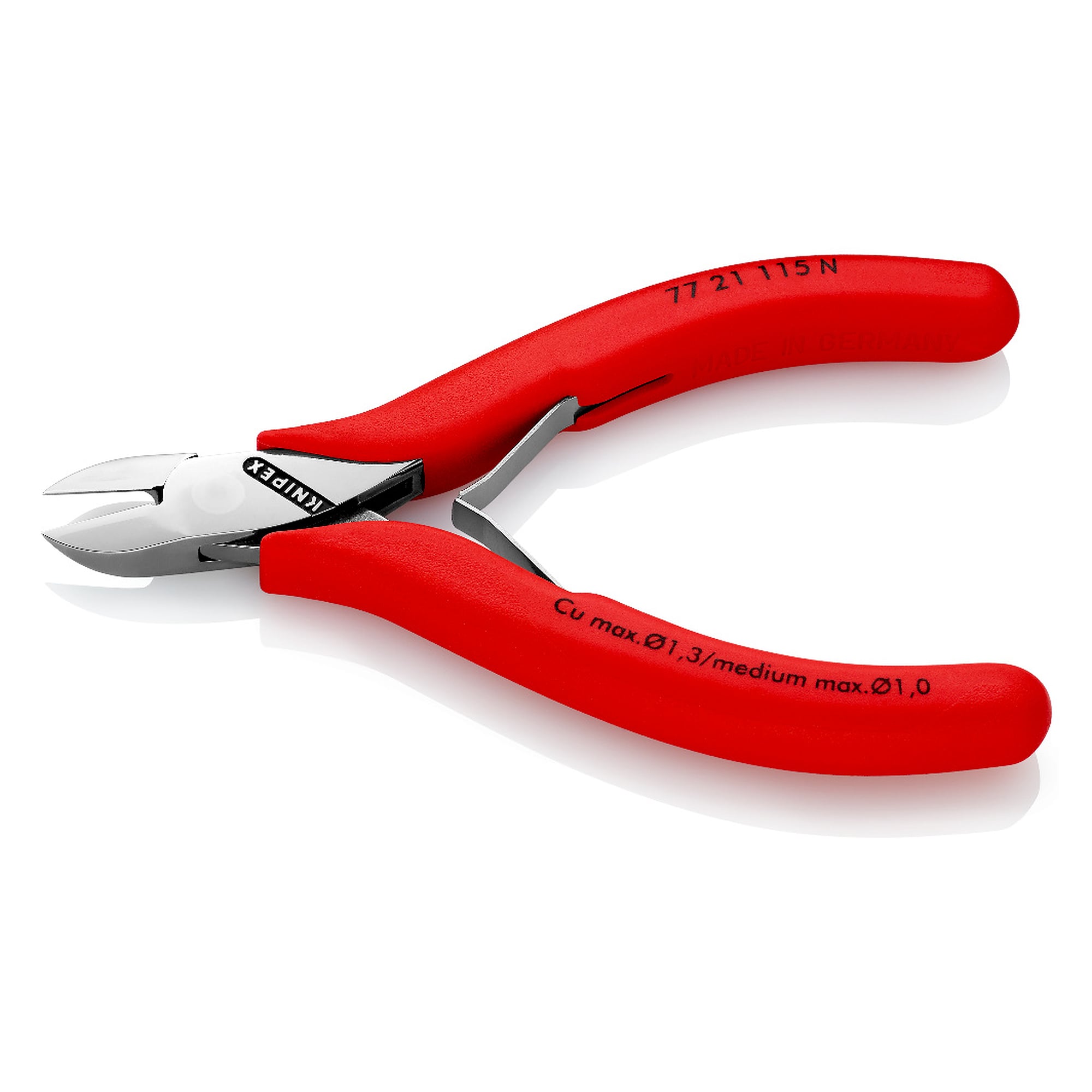

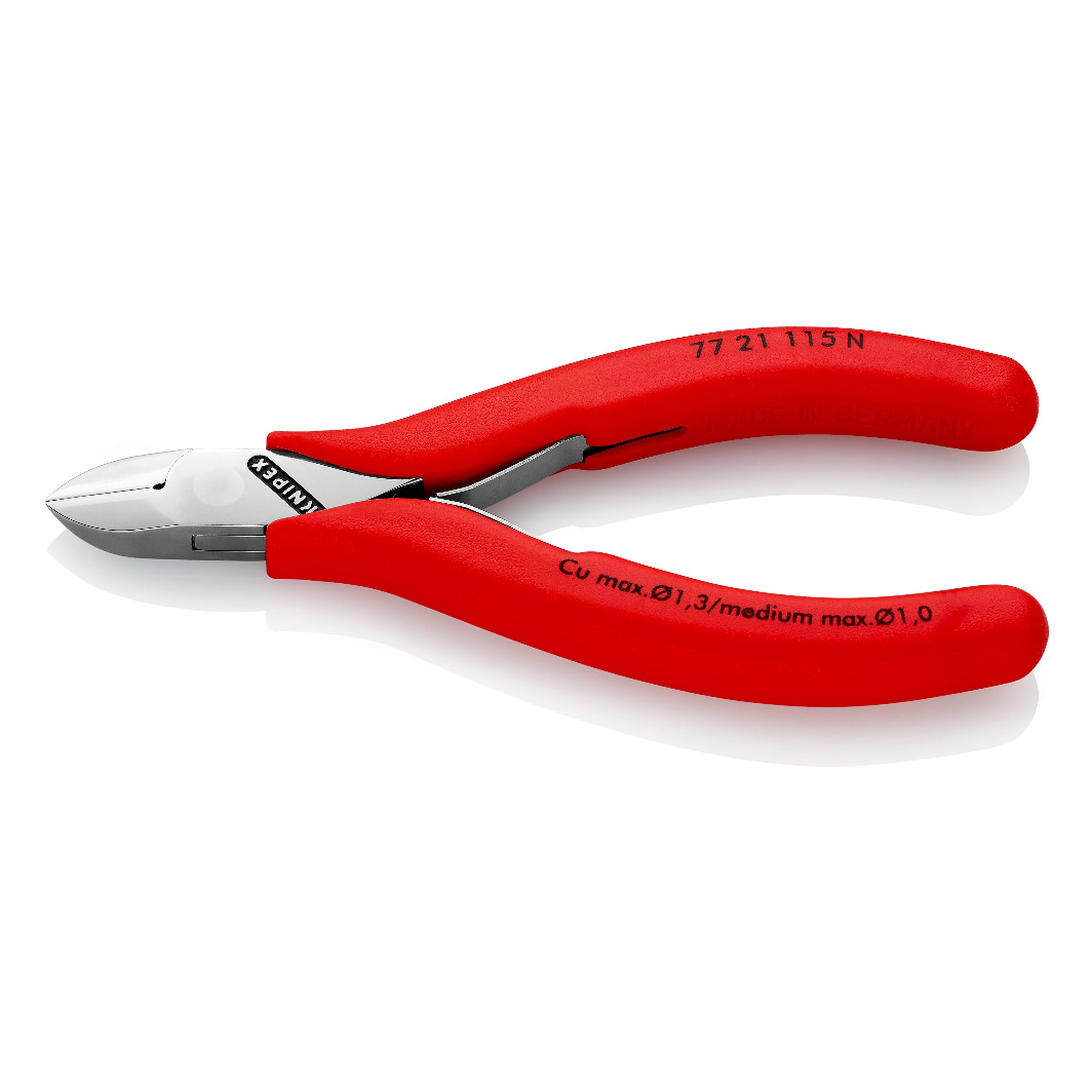

Electronics diagonal cutter for fine cutting work, box joint, 115 mm - Knipex 77 21 115 N
KNIPEX
Original product
Net price (excl. VAT)
€32.43
Item
WL61726
Manufacturer no.
77 21 115 N
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.77 21 115 N
EAN4003773082309
ConditionNew
Article
WL61726
Frequently Bought Together
Fine cutting work in electronics and precision engineering calls for slim jaws and a joint without play. The 77 21 115 N electronics diagonal cutter has 13 mm jaws, a through-going box joint and laser-hardened edges of about 62 HRC at only 50 g.
Benefits
- For fine cutting work, for example in electronics and precision engineering, with 13 mm jaws.
- Sturdy, through-going and backlash-free box joint in a load-optimised shape.
- Low-friction double spring for smooth and even opening.
- Mirror-polished head with a fine oil film protects against rust, no circuit faults from flaking chrome.
- Cutting edges additionally laser-hardened to approx. 62 HRC, medium-hard wire up to Ø 1.0 mm, soft wire up to Ø 1.3 mm.
- Slim sleeves drawn up towards the head for fine and comfortable gripping between thumb and index finger.
Technical data
| EAN | 4003773082309 |
|---|---|
| Head | mirror-polished |
| Handles | with non-slip plastic grips |
| Weight | 50 g |
| Dimensions | 115 x 64 x 12 mm |
| Standard | DIN ISO 9654 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Cutting capacity medium-hard wire (diameter) | Ø 1.0 mm |
| Cutting capacity soft wire (diameter) | Ø max. 1.3 mm |
| Jaw length (B) | 13 mm |
| Jaw thickness at the joint (D) | 7 mm |
| Head width (A) | 11 mm |
Areas of use
Electronics, precision engineering, model making and laboratory work. The slim 13 mm jaw also reaches wires between closely spaced components.
Standards and conformity
The tool is built to DIN ISO 9654, the standard for electronics diagonal cutters. According to the manufacturer it contains no substances of very high concern under REACH, and the RoHS directive does not apply.
| Norm | DIN ISO 9654 |
|---|---|
| Manufacturer Nr. | 77 21 115 N |
| Manufacturer | Knipex |
| EAN | 4003773082309 |
| Weight | 0.050000 |
| Height | 12 mm |
| Width | 64 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 115.000000 |
