Crimping die for cold-drawn Amphenol® Helios H4™ PV connectors with three high-precision crimping nests and a range of 2.5 to 10 mm² or AWG 14 to 8. It crimps the contacts for connecting photovoltaic panels and weighs 35 g at 32 x 8 mm. It is not suitable for stamped H4™ contacts.
Crimping die for Amphenol Helios H4 PV connectors, 2.5 to 10 mm², 3 nests - Knipex 97 49 59
KNIPEX
Original product
Net price (excl. VAT)
€131.35
Item
WL61972
Manufacturer no.
97 49 59
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.97 49 59
EAN4003773073734
ConditionNew
Article
WL61972
Frequently Bought Together
The contact resistance of a module connection is created in the crimp, and a poor joint costs yield over many years. The crimping die 97 49 59 crimps the contacts of cold-drawn Amphenol® Helios H4™ connectors in three high-precision nests from 2.5 to 10 mm², which corresponds to AWG 14 to 8. The die measures 32 x 8 mm and weighs 35 g.
Benefits
- Crimps crimp contacts for connecting photovoltaic panels, designed for Amphenol® Helios H4™.
- High-precision crimp nests for the best conductivity of the joint.
- Three nests cover the range 2.5 to 10 mm² or AWG 14 to 8.

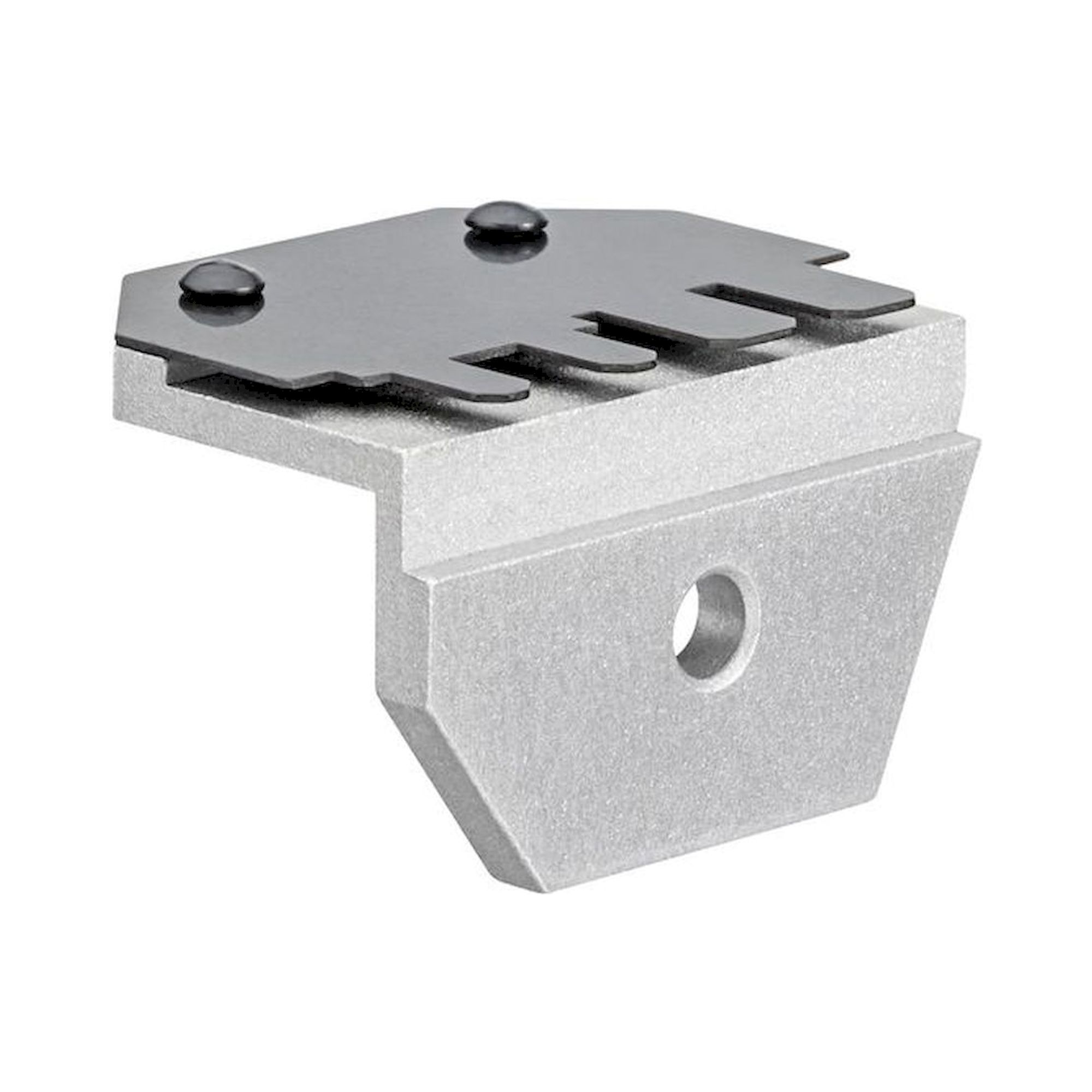

- The optional locator 97 49 59 1 aligns the contacts automatically and precisely.
- Not suitable for stamped H4™ contacts, as stated by the manufacturer.
- At 35 g and 32 x 8 mm light enough for work on the roof.
Technical data
| EAN | 4003773073734 |
|---|---|
| Weight | 35 g |
| Dimensions | 32 x 8 mm |
| Application | Helios H4™ CF from Amphenol® |
| Capacity | 2.5 / 4 / 6 / 10 mm² |
| Number of crimping nests | 3 |
| AWG | 14 / 12 / 10 / 8 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Areas of use
Photovoltaic installation, maintenance of solar plants and prefabrication of module and string cables. Wherever Helios H4™ connectors are fitted to solar cables.
Standards and conformity
According to the manufacturer the product contains no substances of very high concern under the REACH regulation. The RoHS directive does not apply to this product.
| Manufacturer Nr. | 97 49 59 |
|---|---|
| Manufacturer | Knipex |
| EAN | 4003773073734 |
| Weight | 0.035000 |
| Width | 8 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 32.000000 |
