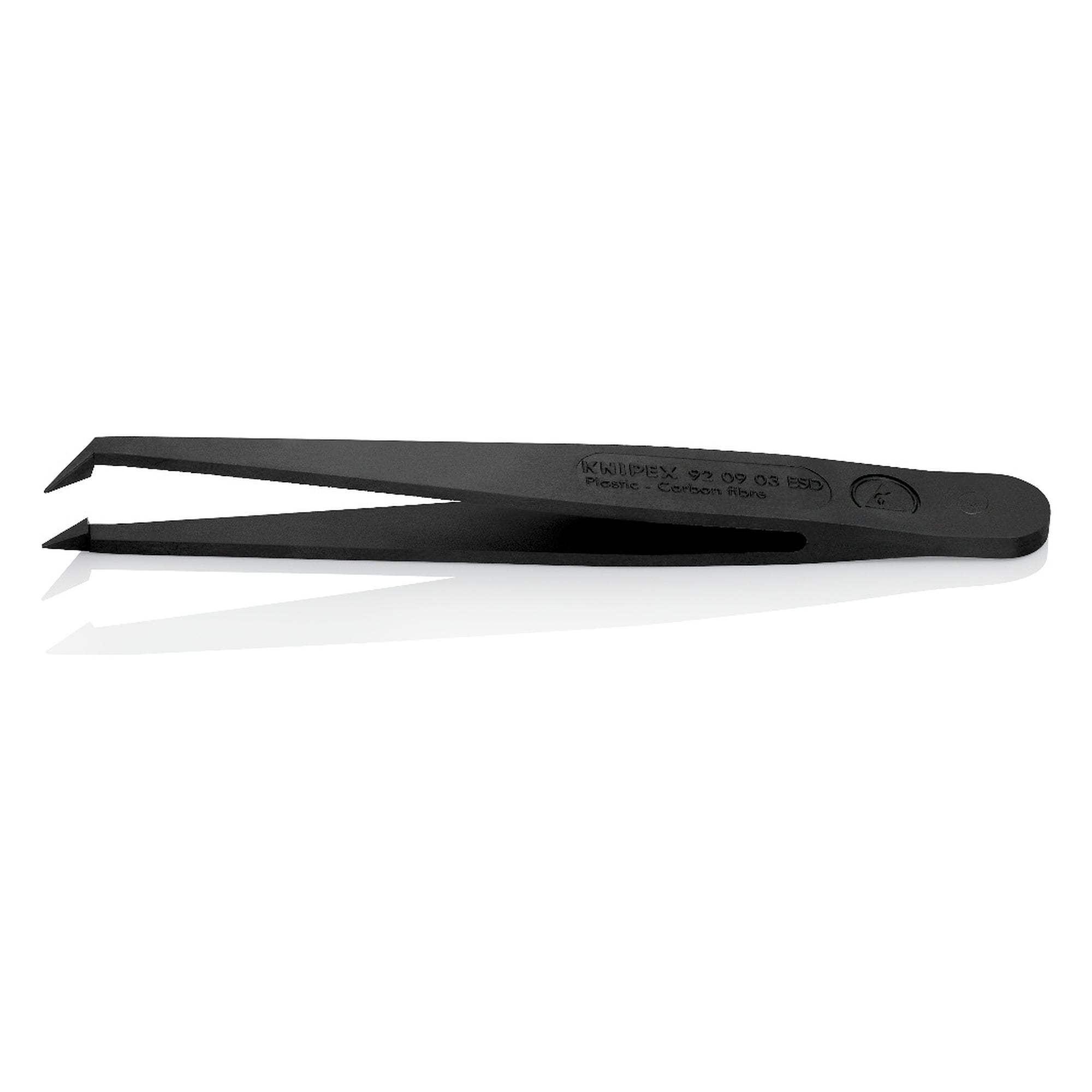

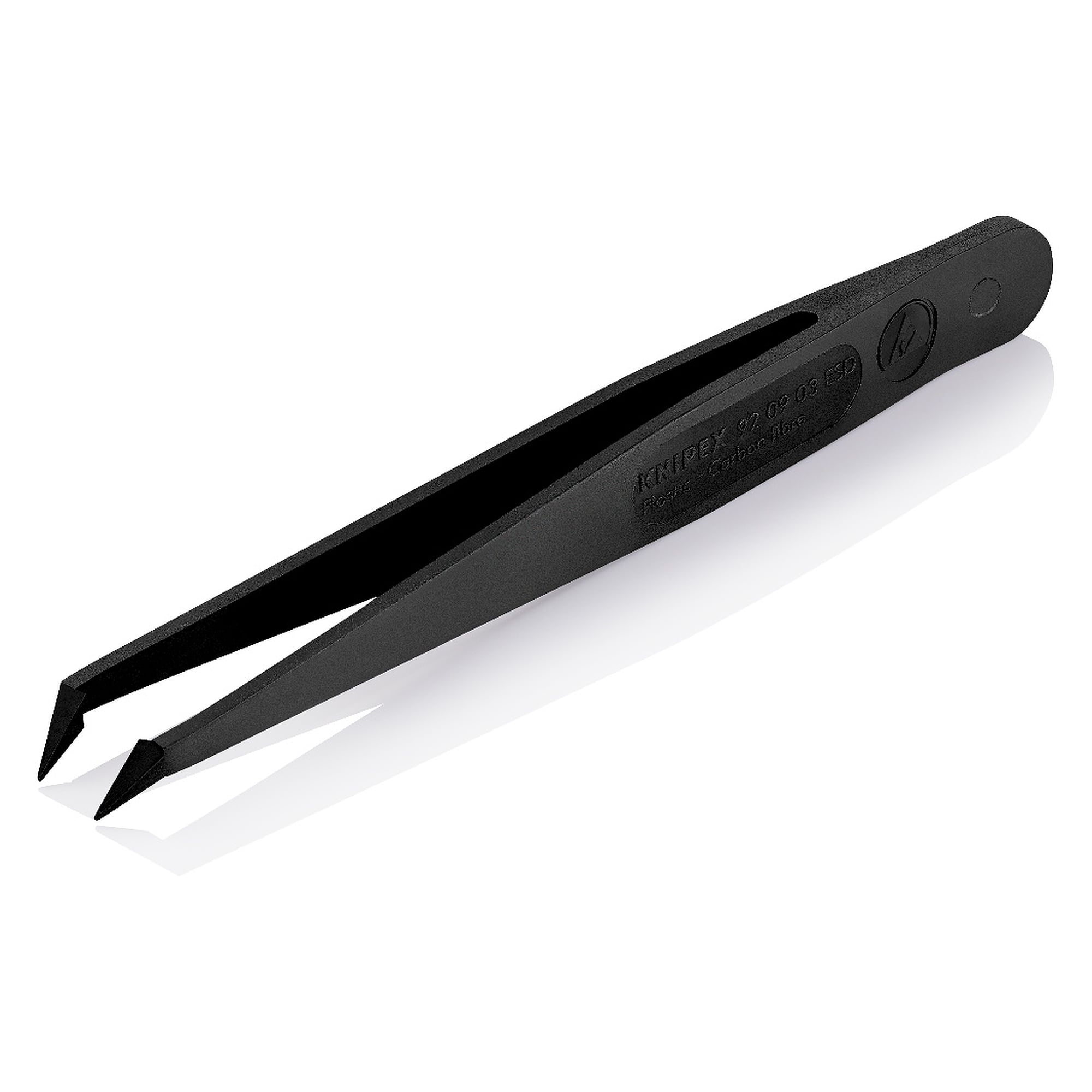

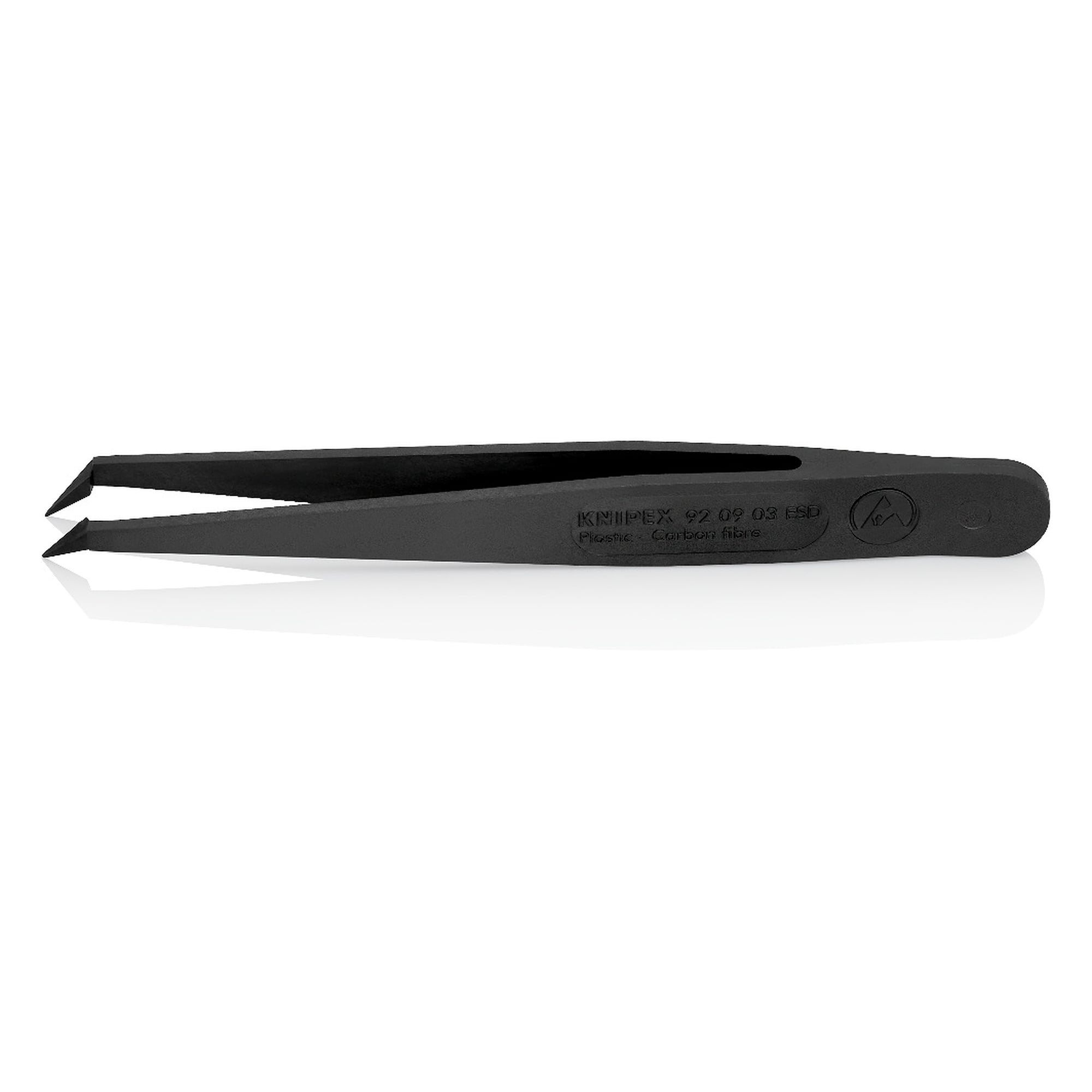

ESD plastic tweezers angled 45°, pointed 0.4 mm, carbon fibre reinforced, 110 mm - Knipex 92 09 03 ESD

When a component is placed, your own hand often covers exactly the spot that matters. The 45° angled 92 09 03 ESD plastic tweezers keep the hand out of the line of sight, grip with pointed tips of 0.4 mm and 0.5 mm width and are tested to DIN EN 61340-5-1.

Benefits

• ESD tested to DIN EN 61340-5-1 and dissipative, the surface resistance between 10^2 and 10^4 ohms equalises differences in potential between operator and component in a controlled way.
• 30% carbon fibre reinforced plastic, electrically and thermally highly conductive, with high resistance to abrasion and scratching.
• Temperature stable up to 130 °C, short term use up to 190 °C is possible.
• Fully elastic, fatigue resistant, vibration damping and water repellent, with good chemical resistance to most oils, greases, fuels and non-polar solvents.
• The 45° angled design keeps the hand out of the line of sight, the tip stays visible while the component is placed.
• Pointed design with 0.5 mm and 0.4 mm tip width for access between densely populated components, 110 mm long at 5 g.

Technical data

Areas of use

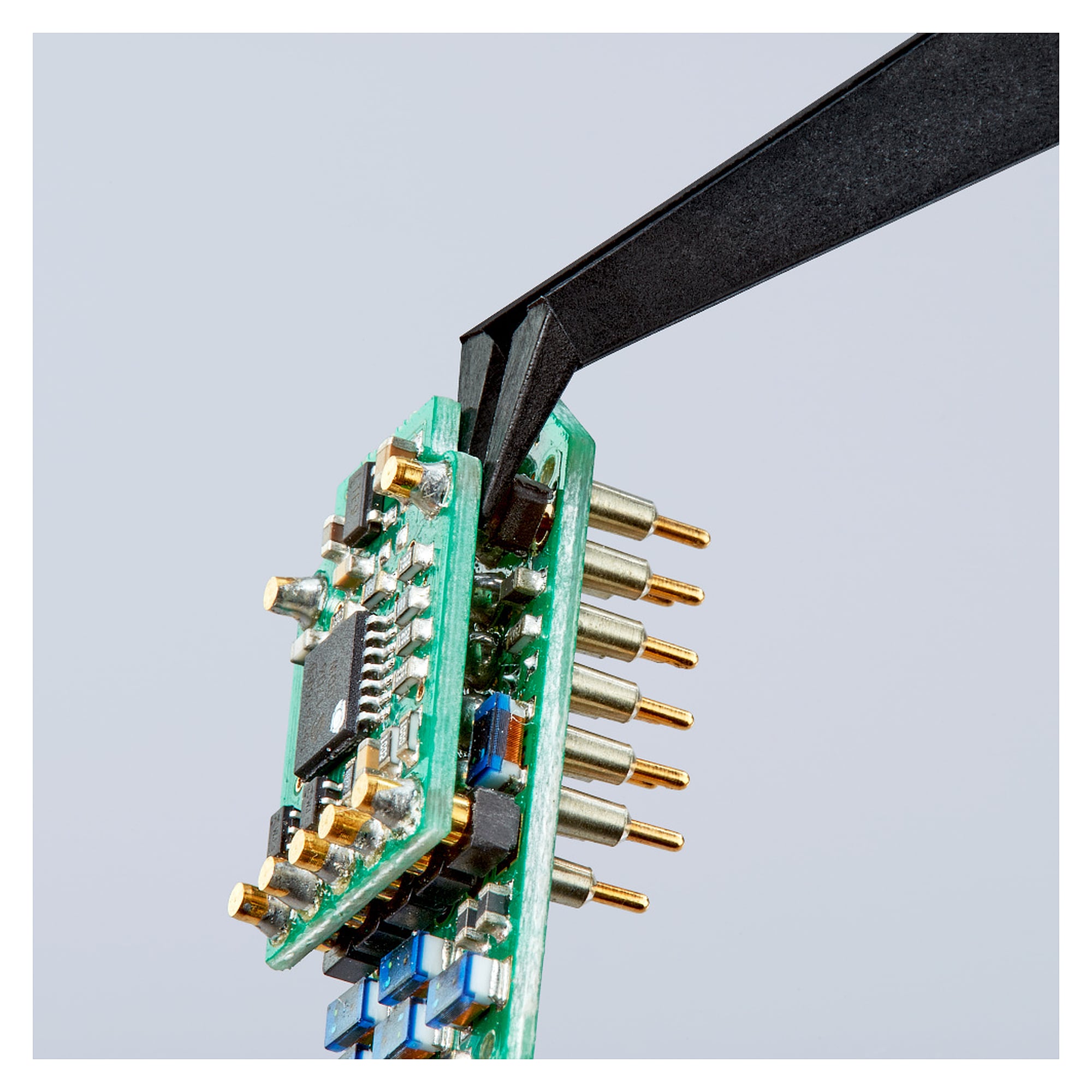

Work with maximum surface protection on sensitive electronic components, on micro-mechanical parts and on glass and ceramic components, at EPA workstations in production, laboratory and service. According to the manufacturer the model is also available in the 92 00 05 ESD set.

Standards and conformity

The manufacturer states DIN EN 61340-5-1 for this tool. The tweezers are ESD tested and dissipative, there is no VDE test. According to the manufacturer they contain no substances of very high concern under REACH and the RoHS directive does not apply.
