Festo SIES-8M-PO-24V-K-2,5-M8D (551393) Proximity Sensor
€6,419.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-551393
Manufacturer Nr.
SIES-8M-PO-24V-K-2,5-M8D
Proximity Sensor
Frequently Bought Together
-
This Item:
€6,419.00Excl. 19% VAT , excl. Shipping Cost
-
Festo SIEH-M12B-NS-K-L (150448) Proximity Sensor
€6,252.00Excl. 19% VAT , excl. Shipping Cost
-

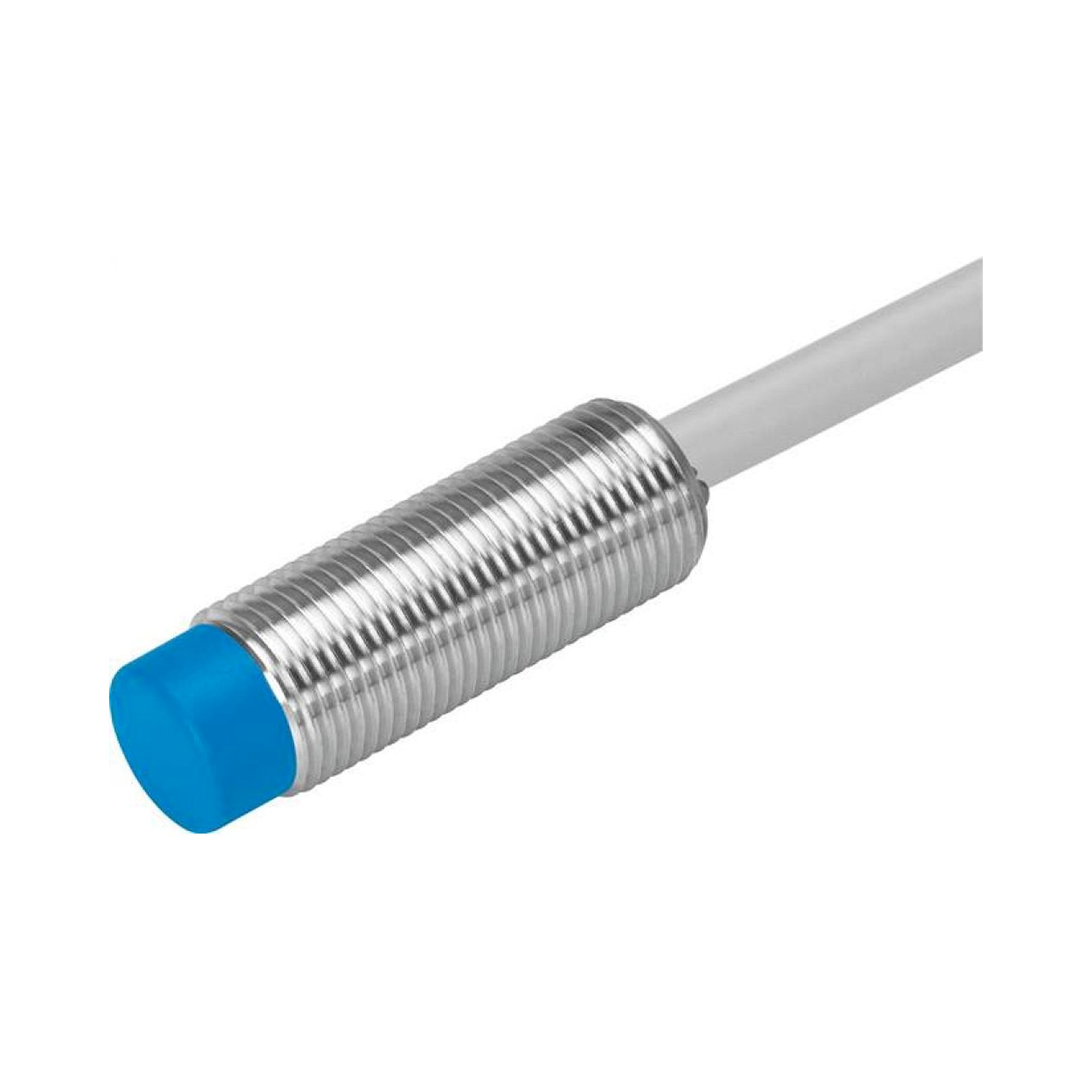

Festo SIEN-M12NB-PS-K-L (150410) Proximity Sensor
€5,278.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Complies to standard | EN 60947-5-2 |
| Permission | RCM mark c UL us - Listed (OL) |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Material information | Copper and PTFE-free RoHs compliant |
| Measurement switching distance [mm] | 1,5 |
| Reduction factors | Steel pc. 37 = 1.0 aluminium = 0,62 stainless steel V2A = 0,95 Copper = 0.6 brass = 0,72 |
| ambient temperature [°C] | -25 to 70 |
| Control output | PNP |
| Switching element function | NC contact |
| Max. switching frequency [Hz] | 4.500 |
| Short circuit resistance | Cycling |
| Operating voltage range DC [V] | 10 to 30 |
| Empty run current [mA] | <= 10 mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | M8x1 3 pin Cable with plug Rotating thread |
| Cable length [MTR] | 2,5 |
| Cable sleeve material | TPE-U(PU) |
| size | Slot 8 |
| Fastening type | Insertable from above into the slot Permanently screwed Flush with T-slot |
| Housing material | PA PUR High-alloyed stainless steels brass nickel-plated |
| Switching status indicator | LED yellow |
| Protection category | IP65 IP67 |
| Max. output current [mA] | 150 |
| Design | For T-slot |
| KC-mark | KC-EMV |
| Repeatability at constant conditions | <= 0.05 mm, side approaching |
| Connection outlet direction | along |
| Test conditions line | Bending radius strength to Festo standard Cable track: 5 million cycles, bending radius 75 mm Test conditions on request |
| Line properties | Standard+cable track |
| Ambient temperature for moving cable placements [°C] | -5 to 70 |
| Insulation voltage [V] | 50 |
| Surge voltage strength [kV] | 0,8 |
| Degree of contamination | 3 |
| Manufacturer Nr. | SIES-8M-PO-24V-K-2,5-M8D |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568094904 |
| Weight | 0.045000 |
| HS-Code | 85365019 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
