TS 2plus transfer system

Leg sets Bosch Rexroth

Track supports and bracing elements for the Bosch Rexroth TS 2plus transfer system fix conveyor sections at the required height and stabilise long track runs against deflection. The range covers track supports SZ 2 (standard), SZ 2/H (height-adjustable), SZ 2/U, SZ 2/T and SZ 2/T-H, plus angle brackets SZ 2/K-90 and SZ 2/K-180 for wall and floor mounting. For the HD 2 series, additional track supports HD 2/H are available as cut-to-length items in two sizes (SIZE2, SIZE3).

13 items
1 manufacturer
Net prices plus VAT

View as Grid view List view

Show

per page

Buying guide

How to choose Leg sets Bosch Rexroth

What matters when choosing: properties, comparison and typical applications.

Technical features

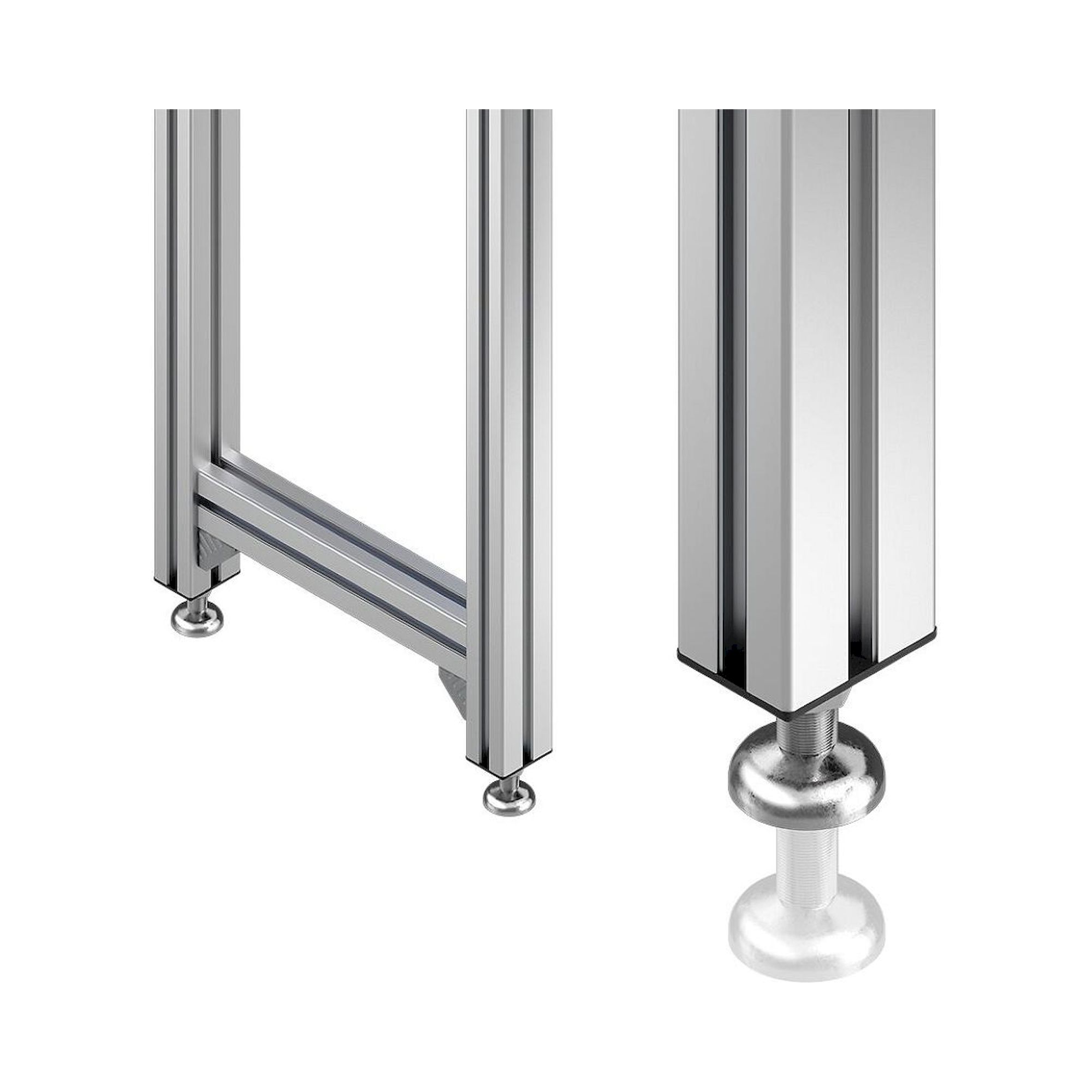

⚙ Track support SZ 2 - standard floor-mounted support for TS 2plus track profiles

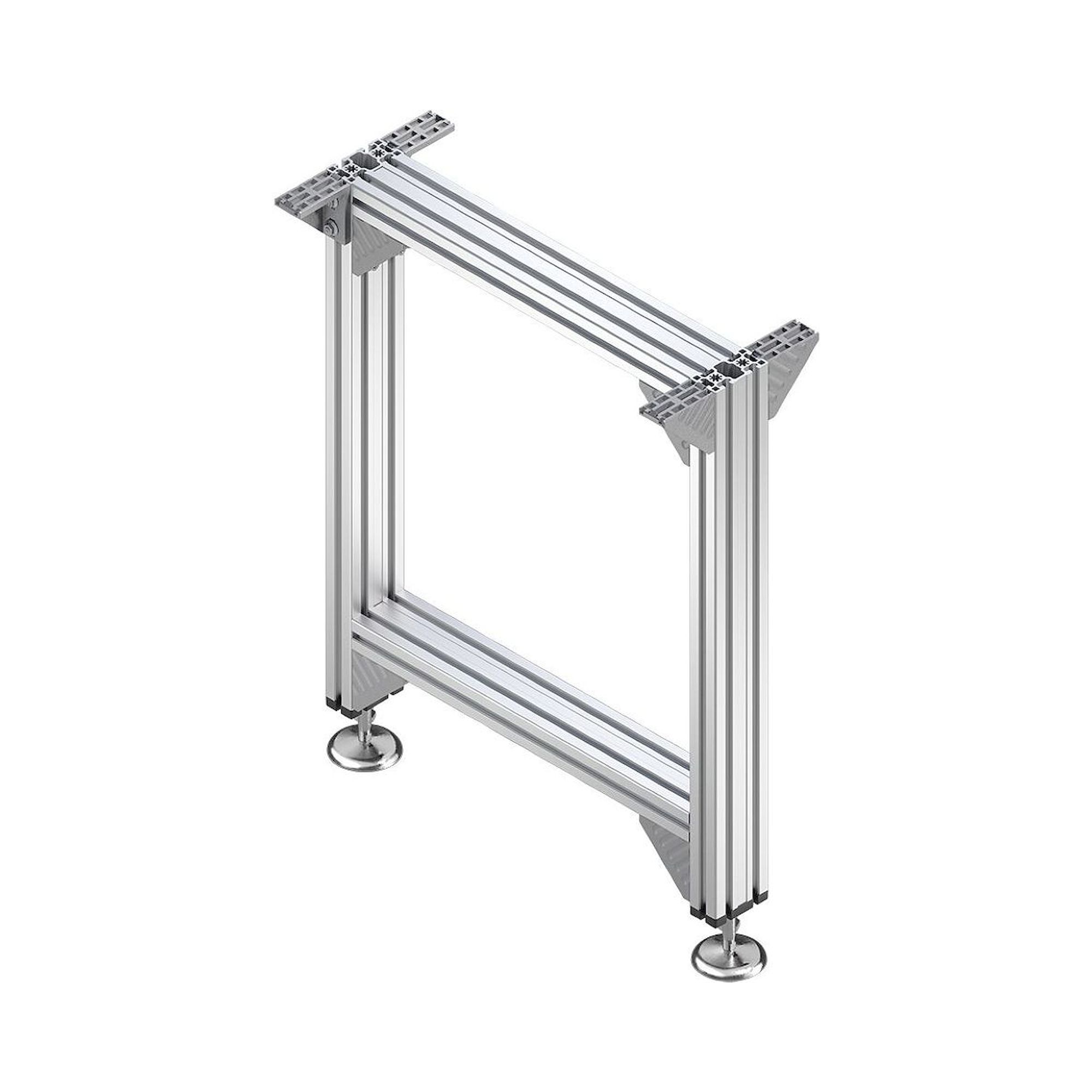

↕ Track support SZ 2/H - height-adjustable for different installation heights

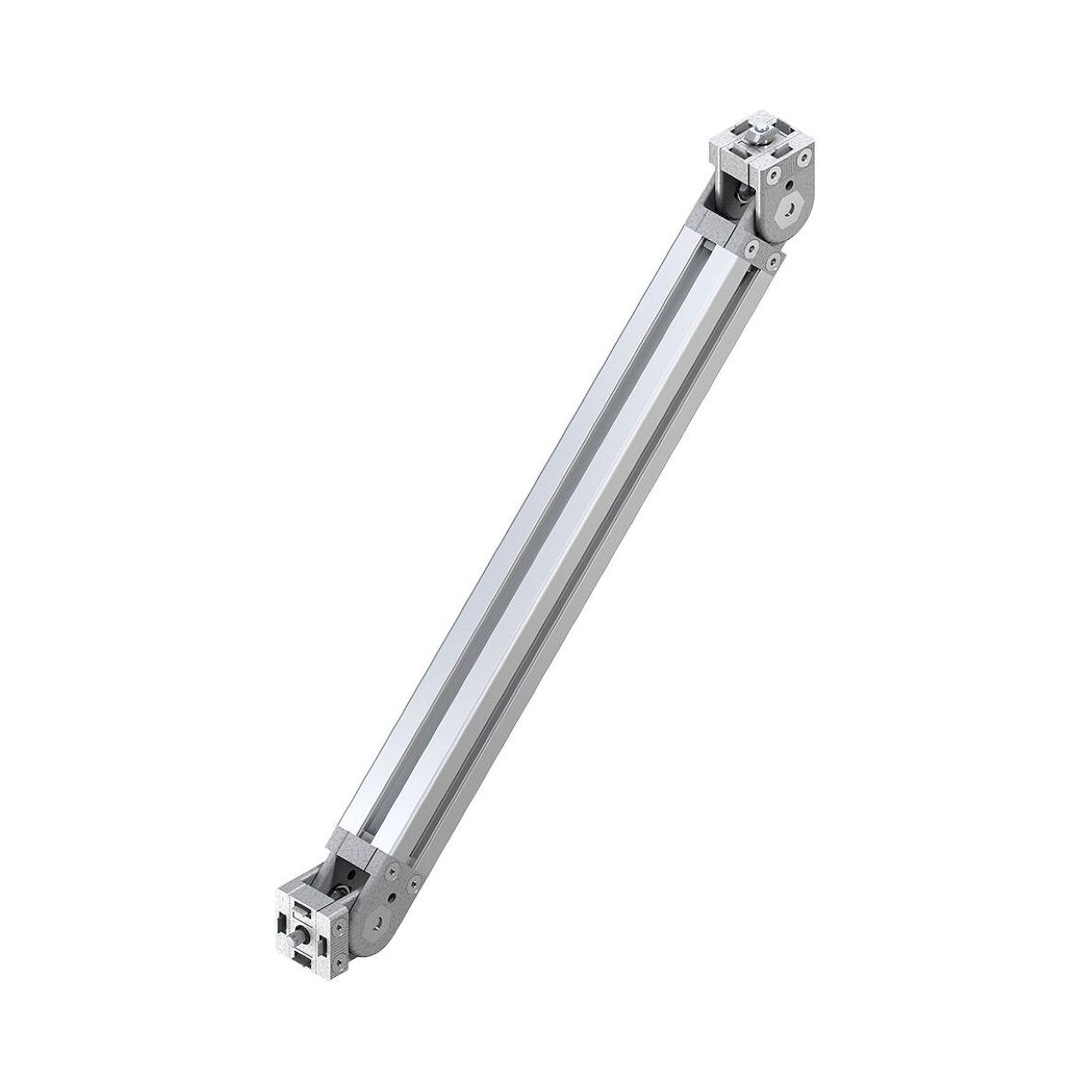

⬡ Bracing SZ 2-ST 2 - lateral bracing between two track sections, also available in 1000 mm length

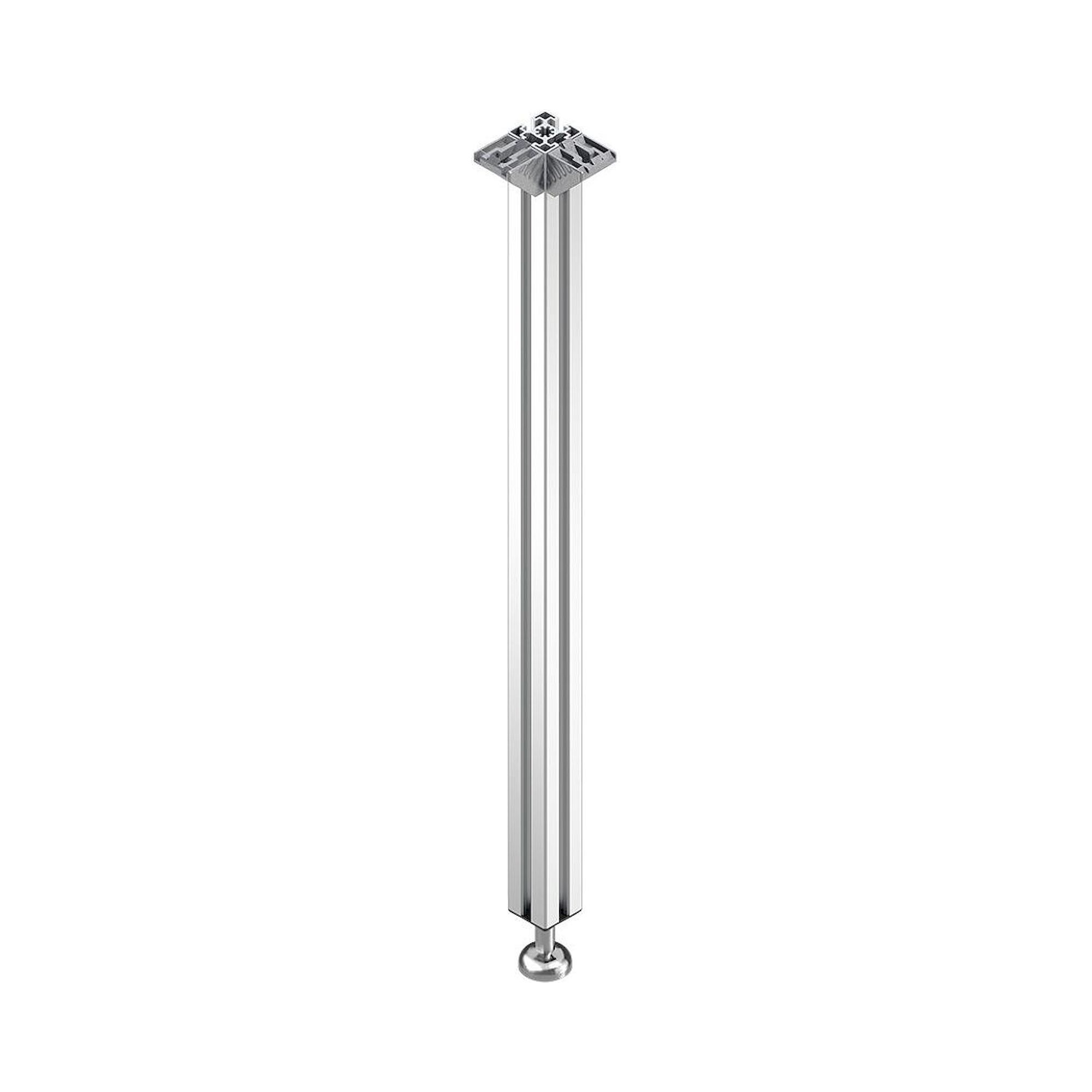

✦ Angle brackets SZ 2/K-90 and SZ 2/K-180 - for wall and ceiling mounting, 90° and 180° connection angle

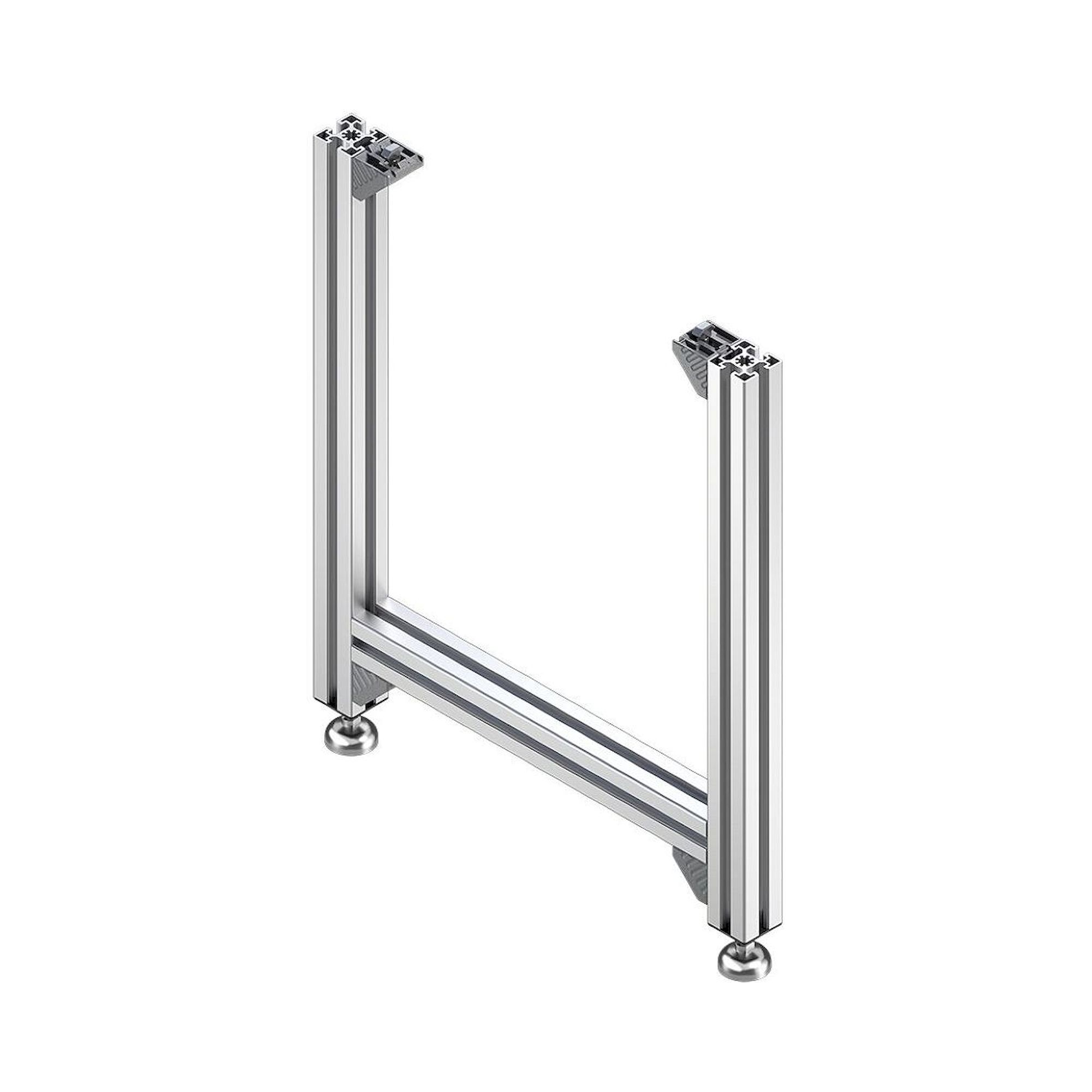

📦 HD 2/H SIZE2 and SIZE3 - cut-to-length items for the HD 2 series, trimmable to required height

Support type comparison

Type	Feature	Mounting
SZ 2	Standard version	Floor
SZ 2/H	Height-adjustable	Floor

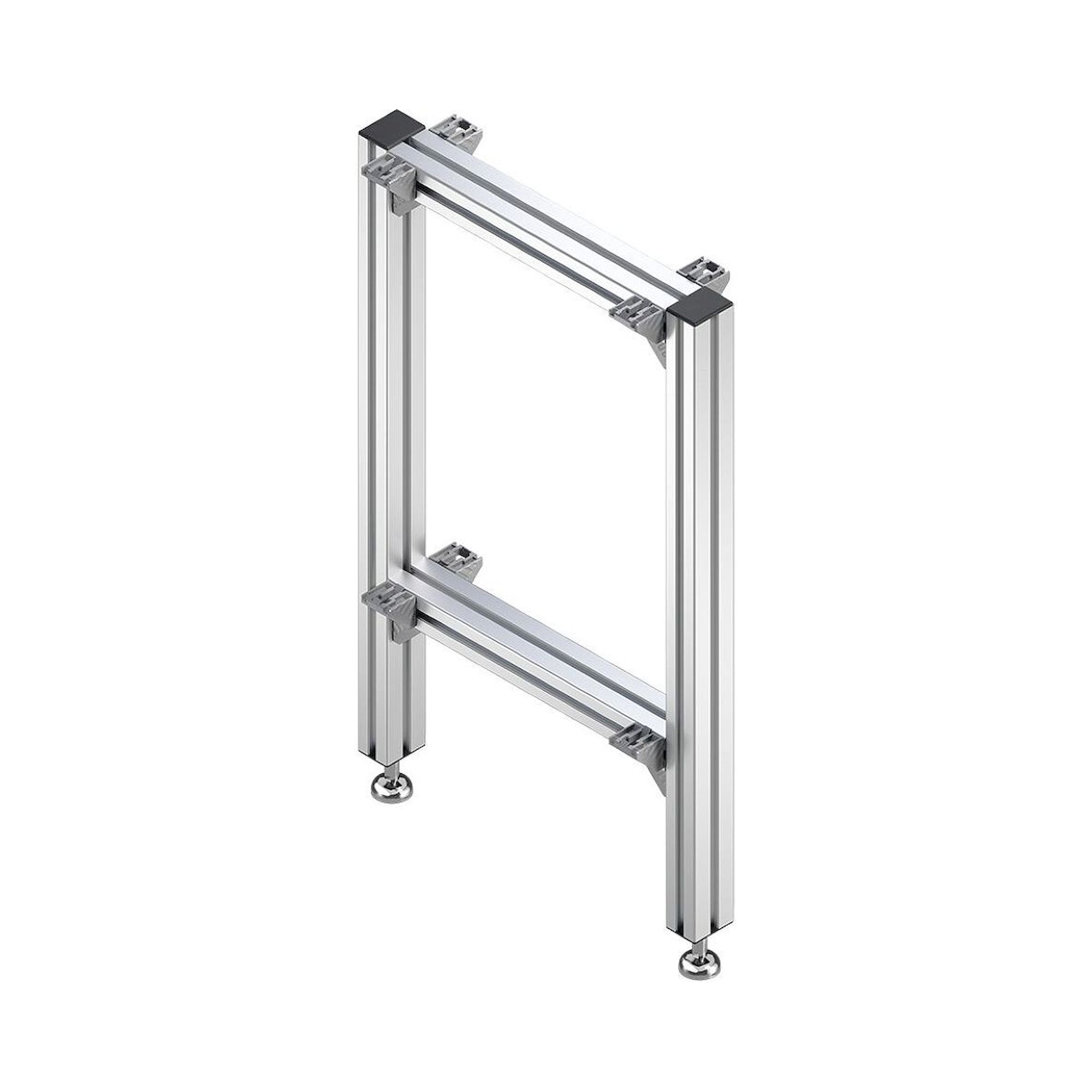

SZ 2/U	U-profile version	Floor

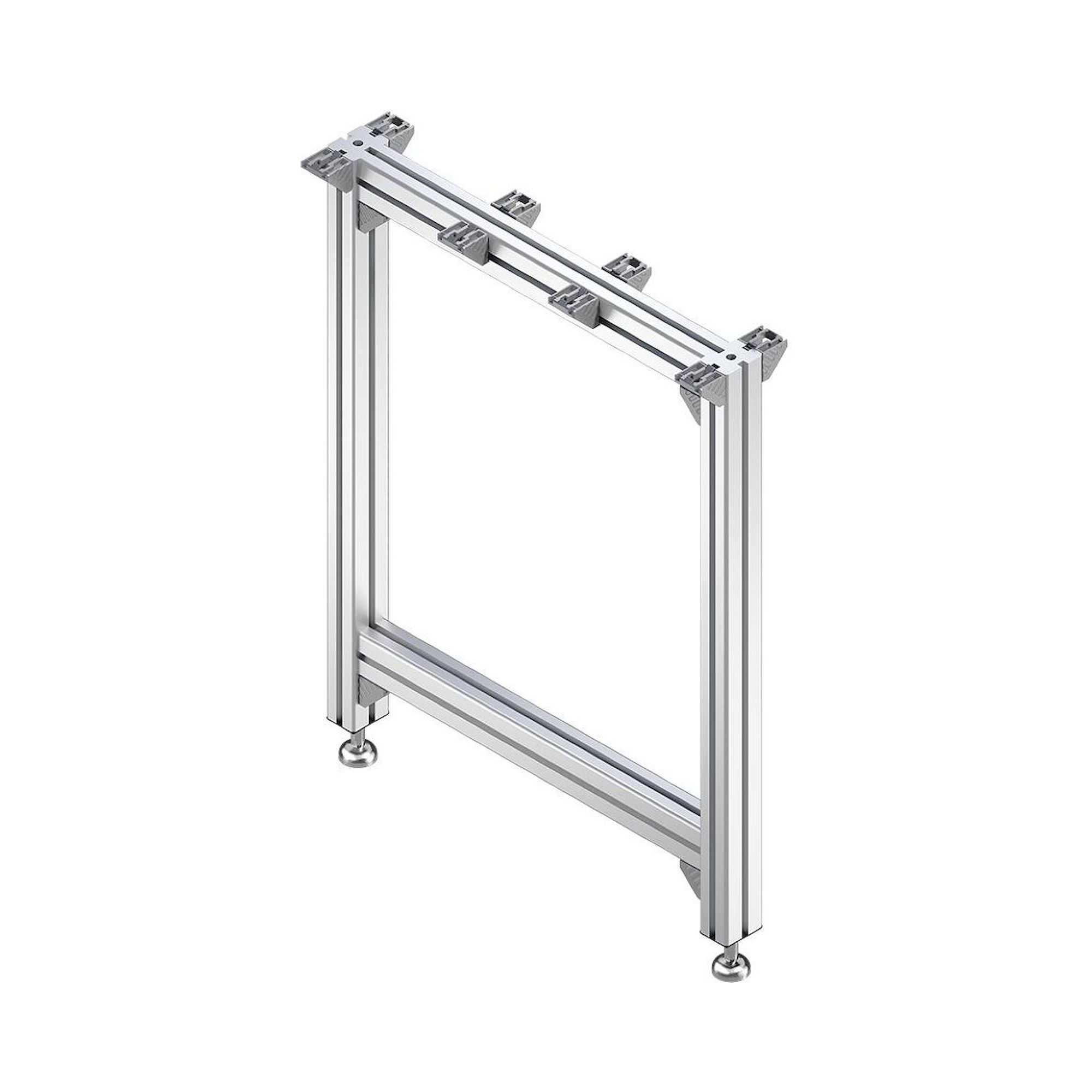

SZ 2/T	T-connector	Floor / side

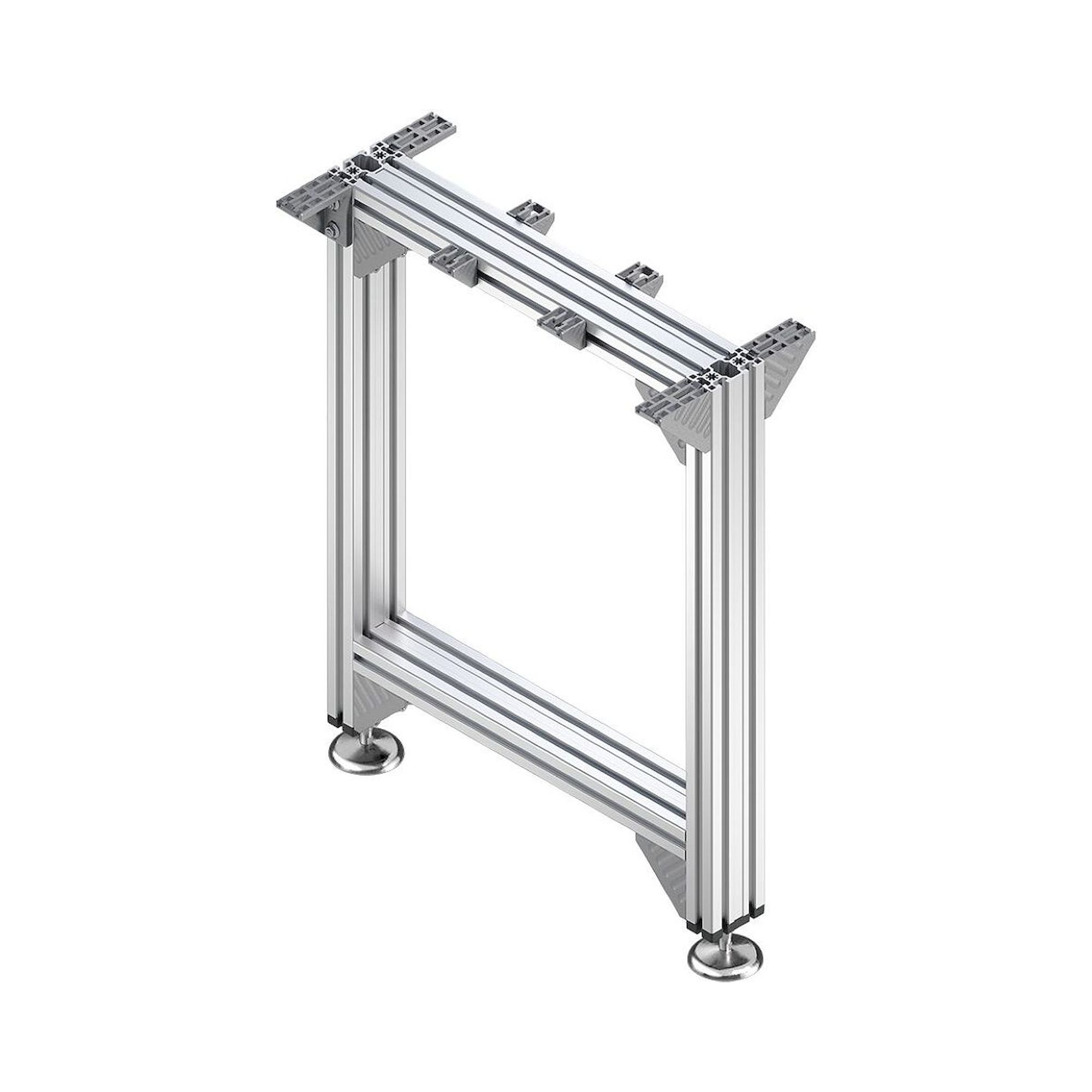

SZ 2/T-H	T-connector, height-adjustable	Floor / side
SZ 2/K-90	90° angle bracket	Wall

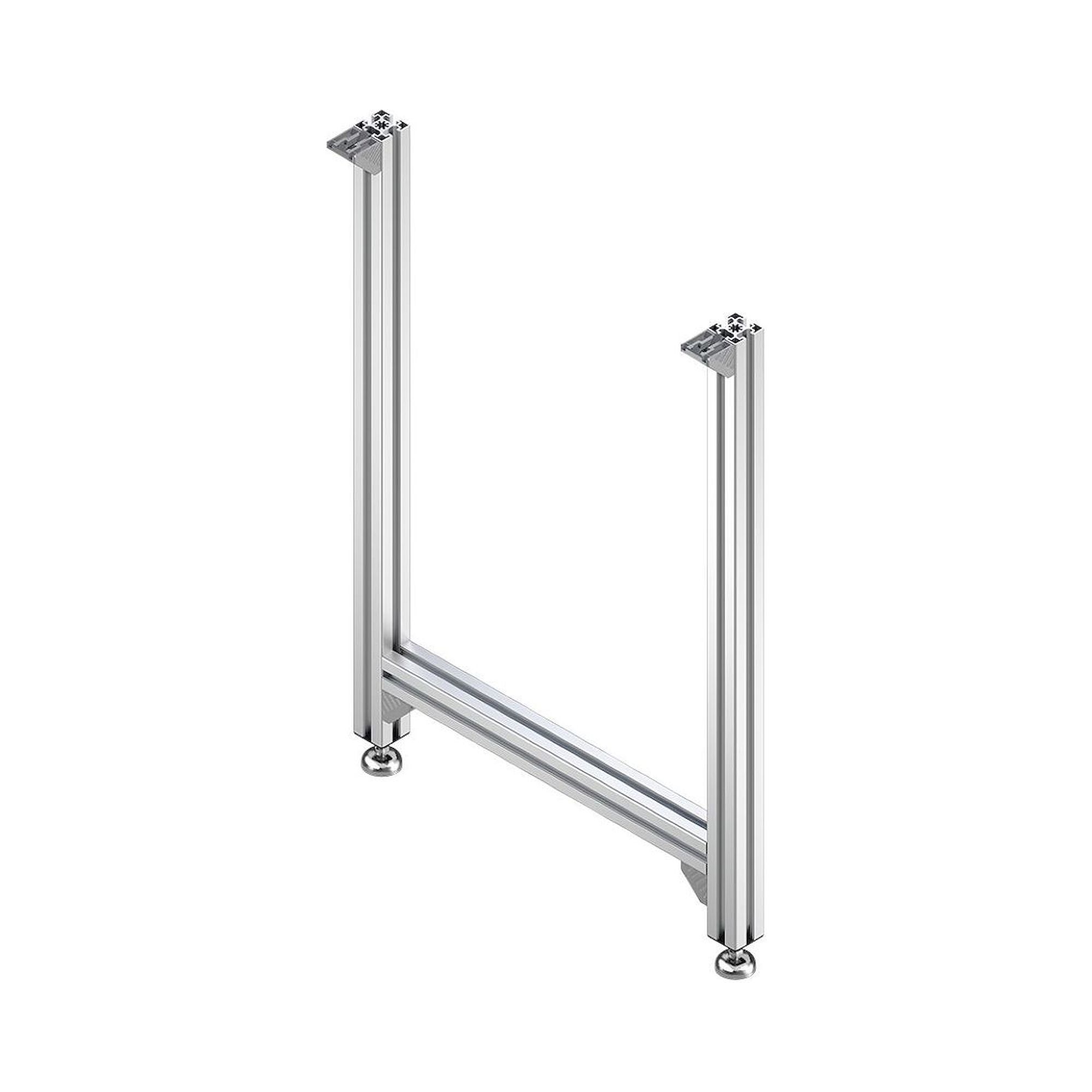

SZ 2/K-180	180° angle bracket	Wall / ceiling

Typical applications

Typical applications: Initial installation of TS 2plus lines with individually adjusted track height, retrofitting bracing to extended track sections, and wall mounting of suspended or wall-adjacent transfer systems using SZ 2/K angle brackets. Cut-to-length HD 2/H items are used when conveyor height must be adapted to local conditions.

FAQ

Frequently asked questions about Leg sets Bosch Rexroth

What are Bosch Rexroth TS 2plus leg sets and what industrial applications do they serve?

Bosch Rexroth TS 2plus leg sets are precision-engineered structural support components designed to provide stable foundations for conveyor systems, assembly lines, and material handling equipment in manufacturing environments. These leg sets integrate directly with the TS 2plus transfer system platform to create rigid support structures for automated production lines in automotive, electronics, pharmaceutical, and general manufacturing industries. The modular design allows engineers to configure custom heights and orientations using standardized connection interfaces that maintain precise alignment tolerances essential for high-speed automated assembly operations.

What are the key technical selection criteria for choosing between SZ 2 and HD 2 series leg sets?

Selection between SZ 2 and HD 2 series leg sets depends primarily on load capacity requirements and mounting configuration needs, with SZ 2 variants offering standard duty applications while HD 2 series provides heavy-duty capacity for size 2 and size 3 configurations. The SZ 2 series includes height-adjustable variants like SZ 2-H and fixed-height options like SZ 2/U, while specialized angular versions such as SZ 2/K-90 and SZ 2/K-180 accommodate specific geometric requirements for corner applications. Load-bearing capacity typically ranges from 500N to 2000N depending on the specific model, with reinforcement options like the SZ 2-ST 2 available in 1000mm lengths for enhanced structural rigidity in extended spans.

Which international standards and certifications apply to Bosch Rexroth TS 2plus leg sets?

Bosch Rexroth TS 2plus leg sets comply with ISO 9001 quality management standards and meet DIN EN ISO 14120 safety requirements for permanent guards and protective structures in industrial machinery applications. The aluminum extrusion profiles conform to DIN EN 755 specifications for dimensional tolerances and surface quality, while mechanical fastening systems adhere to ISO 4762 and DIN 912 standards for socket head cap screws. All structural components undergo testing according to ISO 14122 standards for permanent means of access to machinery, ensuring safe working load calculations and factor of safety compliance for personnel platforms and maintenance access structures.

What are the main differences between SZ 2-H, SZ 2/T-H, and HD 2/H leg set variants?

The SZ 2-H provides height-adjustable support with standard load capacity for basic transfer system applications, while the SZ 2/T-H incorporates additional T-slot connectivity for horizontal mounting of accessories and sensor brackets. The HD 2/H series delivers heavy-duty load capacity available in size 2 and size 3 configurations, with reinforced connection points designed for high-dynamic loading conditions in automated manufacturing environments. Key differentiators include adjustment range specifications, with height-adjustable models typically offering 50mm to 100mm vertical positioning capability, and mounting interface compatibility where T-variants provide additional 20mm x 20mm T-slot profiles for auxiliary component integration.

What are the installation requirements and system compatibility specifications for TS 2plus leg sets?

TS 2plus leg sets require mounting to stable floor surfaces with minimum concrete strength class C25/30 according to DIN EN 206, using M12 or M16 anchor bolts rated for dynamic loading applications. The standard connection interface utilizes 40mm x 40mm aluminum extrusion profiles with 8mm T-slot channels spaced at 20mm centers, ensuring compatibility with all TS 2plus transfer system components and accessories. Installation torque specifications range from 15Nm to 25Nm for profile connections depending on fastener grade, while floor anchor points must achieve minimum pull-out resistance of 12kN for safety factor compliance in production environments where personnel access is required.

What safety ratings and environmental operating conditions apply to Bosch Rexroth leg sets?

Bosch Rexroth TS 2plus leg sets operate within temperature ranges of -10°C to +80°C with anodized aluminum construction providing IP54 protection against dust ingress and water spray in industrial environments. The structural components maintain safety factors of 4:1 minimum for static loading and 6:1 for dynamic applications according to DIN EN ISO 12100 machinery safety standards. Surface treatments include natural anodization with 15-20 micron coating thickness providing corrosion resistance class AC-3 suitable for indoor industrial environments with normal humidity levels and occasional exposure to cutting fluids or cleaning agents commonly used in manufacturing operations.

What maintenance schedule and inspection requirements are recommended for TS 2plus leg sets?

TS 2plus leg sets require quarterly visual inspection of connection points and annual torque verification of all fasteners to maintain structural integrity throughout the typical 15-year service life in normal industrial environments. Monthly cleaning with non-abrasive detergents preserves anodized surface protection while preventing accumulation of debris in T-slot channels that could affect accessory mounting precision. Critical inspection points include checking for aluminum profile deformation, verifying perpendicularity within ±0.5mm tolerance using precision measurement tools, and documenting any signs of wear at floor anchor interfaces where replacement may be required after 8-10 years in high-vibration applications according to DIN EN 13306 maintenance terminology standards.
