Ersadur-LF long-life soldering tip for i-Tool, angled, pencil-point, 0.6 mm - Ersa 0102SDLF06

Name: Ersadur-LF long-life soldering tip for i-Tool, angled, pencil-point, 0.6 mm - Ersa 0102SDLF06
Brand: Ersa
SKU: ER-0102SDLF06
Price: 16.79 EUR
Availability: InStock

Ersa ✓ Original product Brand new Made in Germany

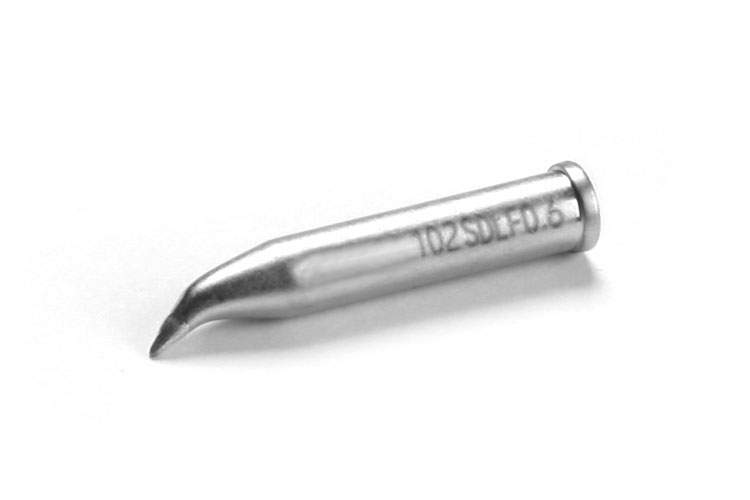

Ersadur-LF long-life soldering tip (series 102) for the Ersa i-Tool iron, angled with a 0.6 mm pencil-point. Its electroplated iron and chromium coating resists corrosion and ensures excellent heat transfer in continuous operation. Ideal for fine soldering work on i-CON stations.

Net

€16.79

excl. VAT

Item ER-0102SDLF06

Manufacturer no. 0102SDLF06

Question about this item

Datasheet (PDF) Declaration of conformity User manual 9 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

ERSA Ersadur-LF long-life soldering tip from the 102 series, angled with a pencil-point shape and a 0.6 mm tip diameter. Ersadur tips are made to a high standard for continuous operation: a special process electroplates them with an iron layer and adds a chromium layer that protects against corrosion and oxidation. The excellent heat transfer protects the iron's heating element from overheating and premature wear.

Fits the i-Tool soldering iron (0100CDJ) of the i-CON soldering station in versions 0IC1000A, 0IC1100A, 0IC1100V, 0IC2000A, 0IC2000AIT, 0IC2000AC, 0IC2000AXT, 0IC2200V, 0IC2200VC, 0IC2200VIT, 0IC2200VXT, 0IC2100VC and 0IC2100VXT. ERSA offers a comprehensive range of soldering and desoldering tips for i-Tool, i-Tool Pico and i-Tool Nano.

Technical data

RoHS compliant	Yes
Design	angled
Tip coating	Long-life tip (Ersadur-LF)
Tip shape	pencil-point
Tip diameter/width	0.60 mm
Shaft inner diameter	3.50 mm
Shaft outer diameter	5.20 mm
Overall length	30 mm
Tip series	102
Weight	0.1 kg
Manufacturer	Ersa
Manufacturer Nr.	0102SDLF06
EAN	4003008079104
GPSR manufacturer information	Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Ausführung	abgewinkelt
ESD version	TEC
ESD equipment	ESD Lötstationen
Certification	RoHS 2011/65/EU
Tip diameter/width [mm]	0.6
Soldering tip coating	Dauerlötspitze
Soldering tip shape	abgewinkelt
Overall length [mm]	30.5
Shank outer diameter [mm]	5.2
Shank inner diameter [mm]	3.5
Series	102
