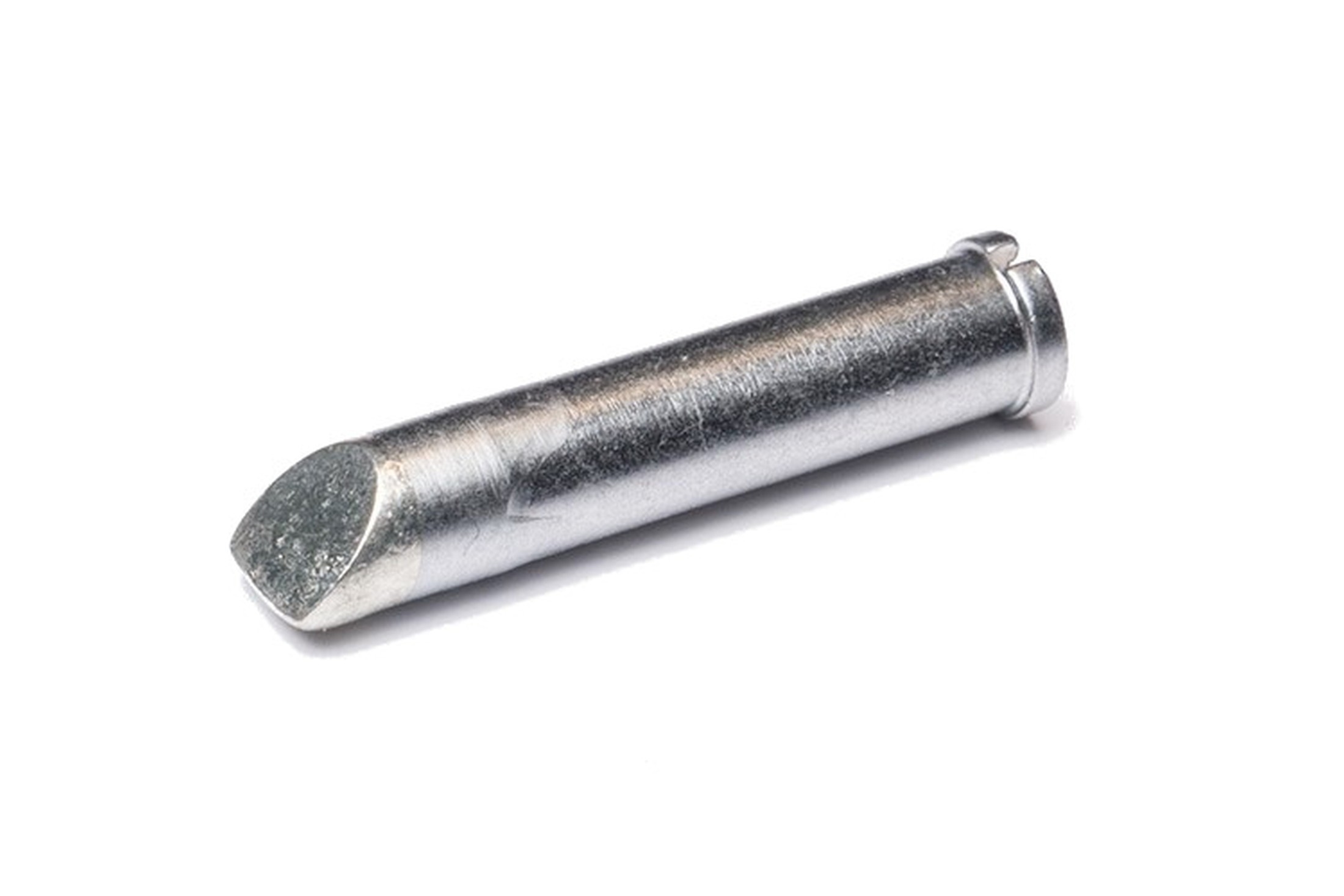

High-Performance soldering tip i-Tool, chisel-shaped asymmetric 4.6 mm - Ersa 0102CDLF46A

ERSA i-Tip high-performance permanent soldering tip, straight, chisel-shaped, 4.6 mm, with ERSADUR-LF coating. Suitable for the i-Tool soldering iron (0100CDJ) of the i-CON soldering stations in versions 0IC1000A, 0IC1100A, 0IC1100V, 0IC2000A, 0IC2000AIT, 0IC2000AC, 0IC2000AXT, 0IC2200V, 0IC2200VC, 0IC2200VIT, 0IC2200VXT, 0IC2100VC and 0IC2100VXT.

ERSADUR soldering tips are produced to a high standard and built for continuous operation. In a special process they are galvanically plated with an iron layer and protected against corrosion and oxidation by an additional chrome layer. Perfect heat transfer protects the heating element of the soldering iron from overheating and premature wear. ERSA offers a comprehensive range of soldering and desoldering tips for ERSA i-Tool, i-Tool Pico and i-Tool Nano.

The high-performance tips have an asymmetric design. This allows more flexible use than conventional shapes and a highly efficient heat input for through-hole (THT) components on thermally massive assemblies. One of the two legs of different length heats the connecting wire with up to 150 W, while the second leg rests on the solder joint and transfers the maximum soldering energy.

Technical data
