Ersadur Soldering Tip, straight, pencil-point, 1.1 mm for Multitip C25 - Ersa 0172BD

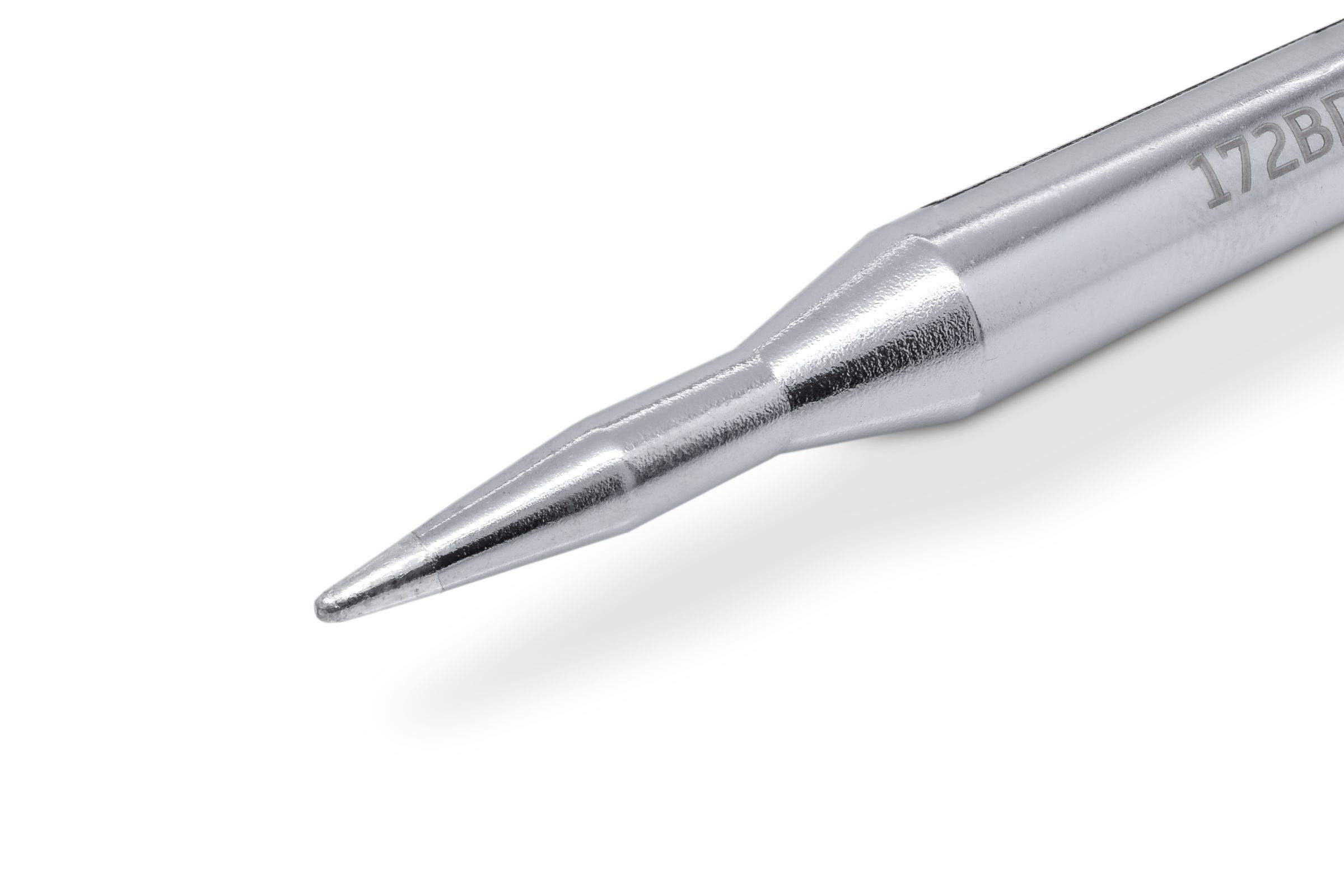

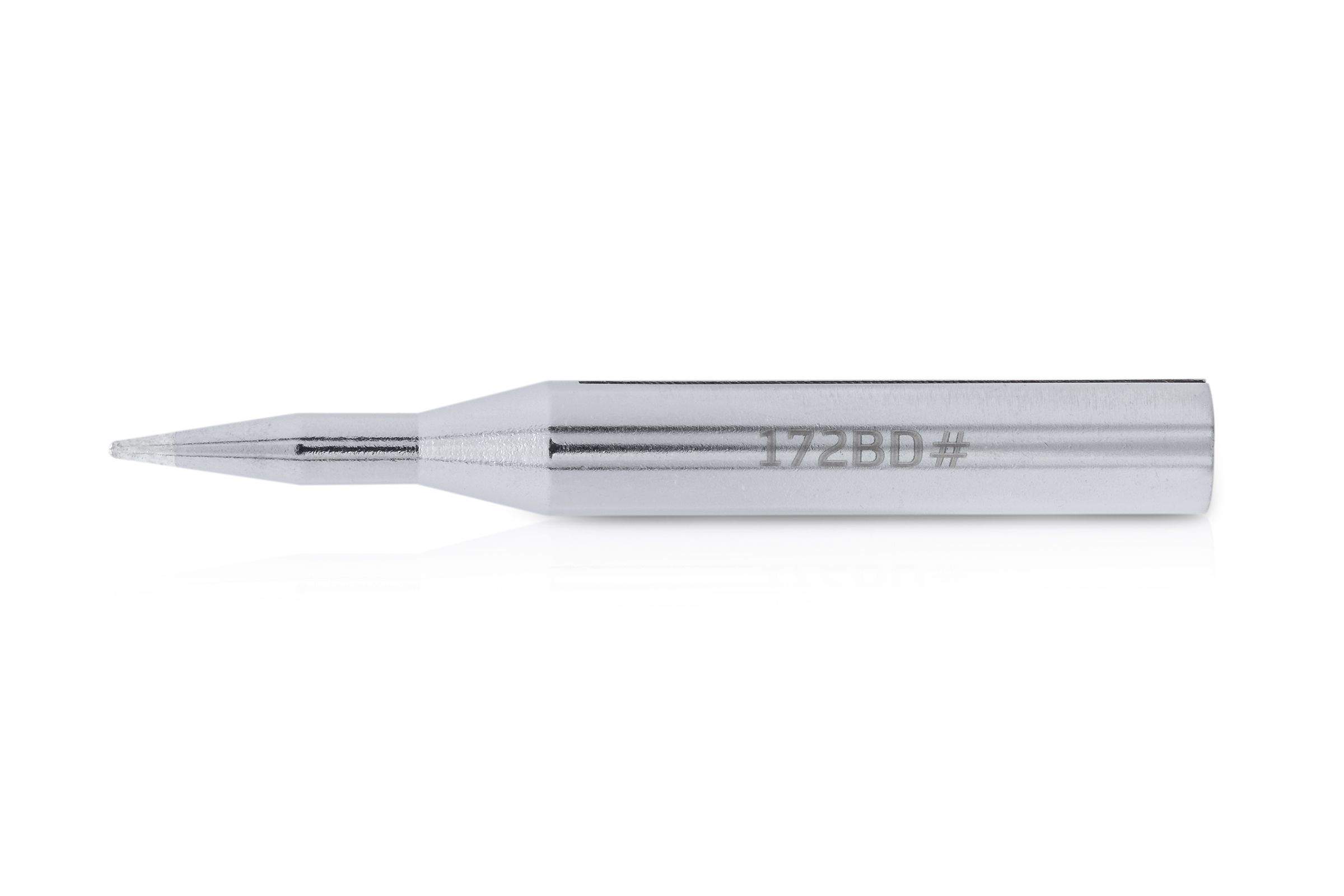

Straight, pencil-point Ersadur soldering tip with a 1.1 mm diameter for the MULTITIP C25 soldering iron. The electroplated long-life tip ensures perfect heat transfer and a long service life in continuous operation. Also fits the MS30 (L30) and MS250.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Straight, pencil-point Ersadur soldering tip with a 1.1 mm diameter for the MULTITIP C25 soldering iron. Also compatible with the MS30 (L30 soldering iron) and the MS250 with Multitip 25 W, 12 V soldering iron.
Ersadur soldering tips are produced to a high standard and built for continuous operation. In a special electroplating process they are plated with an iron layer and protected against corrosion and oxidation by an additional chromium layer. Perfect heat transfer protects the heating element of the soldering iron from overheating and premature wear.
Technical data
| RoHS compliant | Yes |
|---|---|
| Design | straight |
| Tip coating | Long-life tip |
| Tip shape | pencil-point |

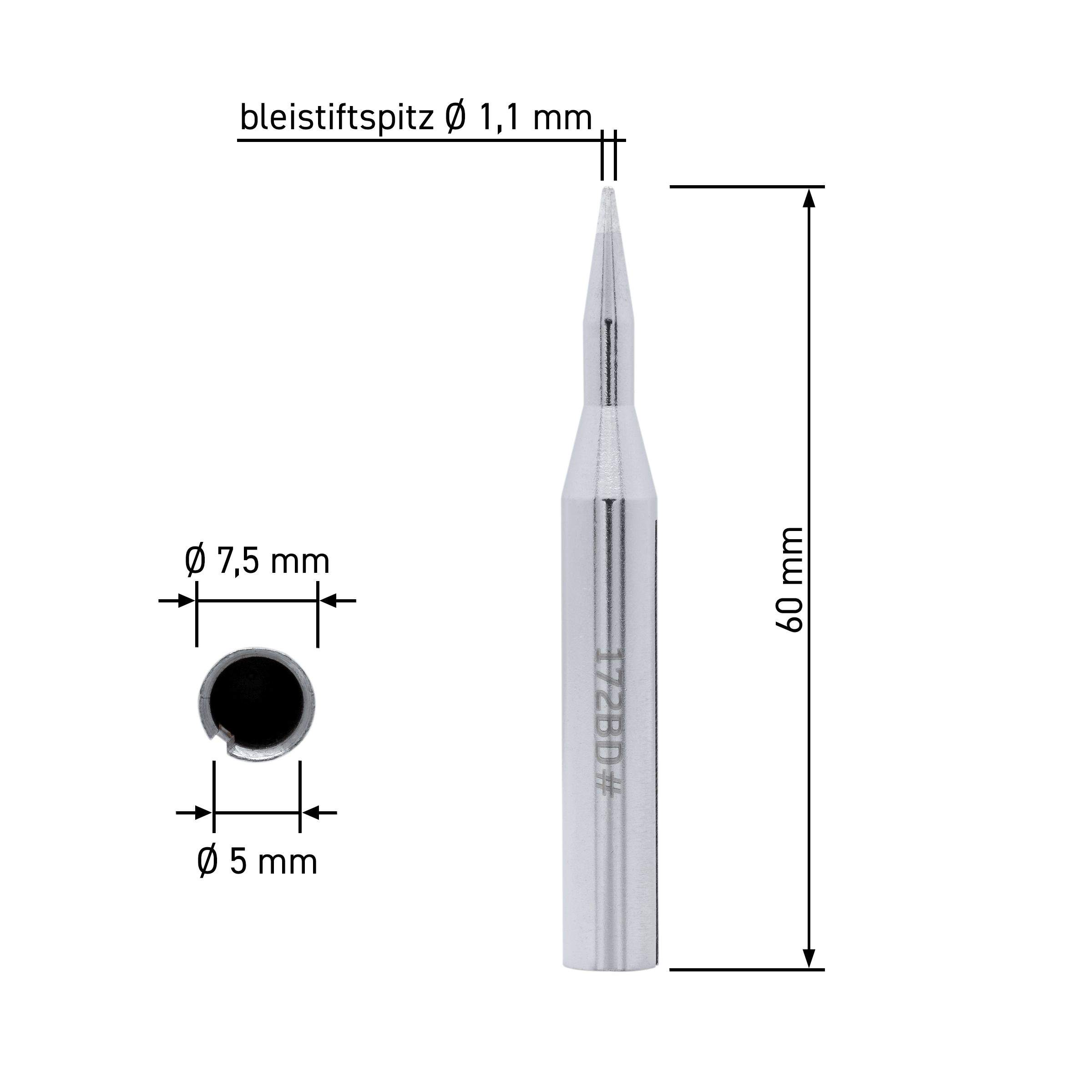

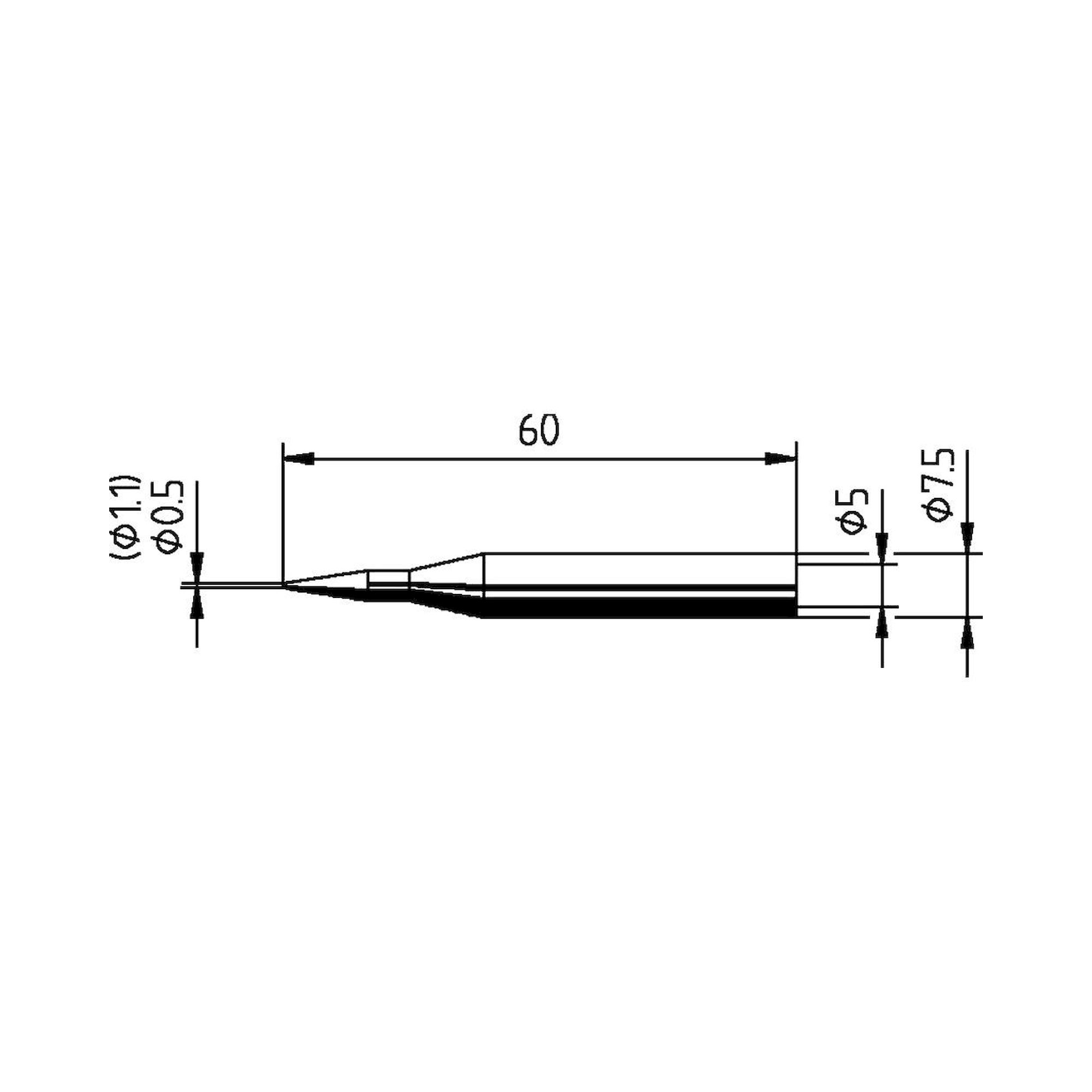

| Tip diameter/width | 1.10 mm |
| Shaft inner diameter | 5.00 mm |
| Shaft outer diameter | 7.50 mm |
| Total length | 60 mm |
| Weight | 0.1 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0172BD |
| EAN | 4003008052626 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | gerade |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Certification | RoHS 2011/65/EU |
| Tip diameter/width [mm] | 1.1 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | bleistiftspitze |
| Overall length [mm] | 60 |
| Shank outer diameter [mm] | 7.5 |
| Shank inner diameter [mm] | 5 |
