Antistatic 2-channel i-CON2V MK2 soldering station for intelligent lead-free hand soldering, compatible with all Vario tools. Supplied with i-Tool 150 W, Ersadur tip and tool stand; firmware update via micro SD and auto standby.
i-CON2V MK2 ESD 2-Channel Soldering Station with i-Tool 150 W and SD Slot - Ersa 0IC2205V
ERSA
Original product
Net price (excl. VAT)
€483.99
Item
ER-0IC2205V
Manufacturer no.
0IC2205V
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.0IC2205V
EAN4003008153743
Country of originGermany
ConditionNew
Article
ER-0IC2205V
Frequently Bought Together

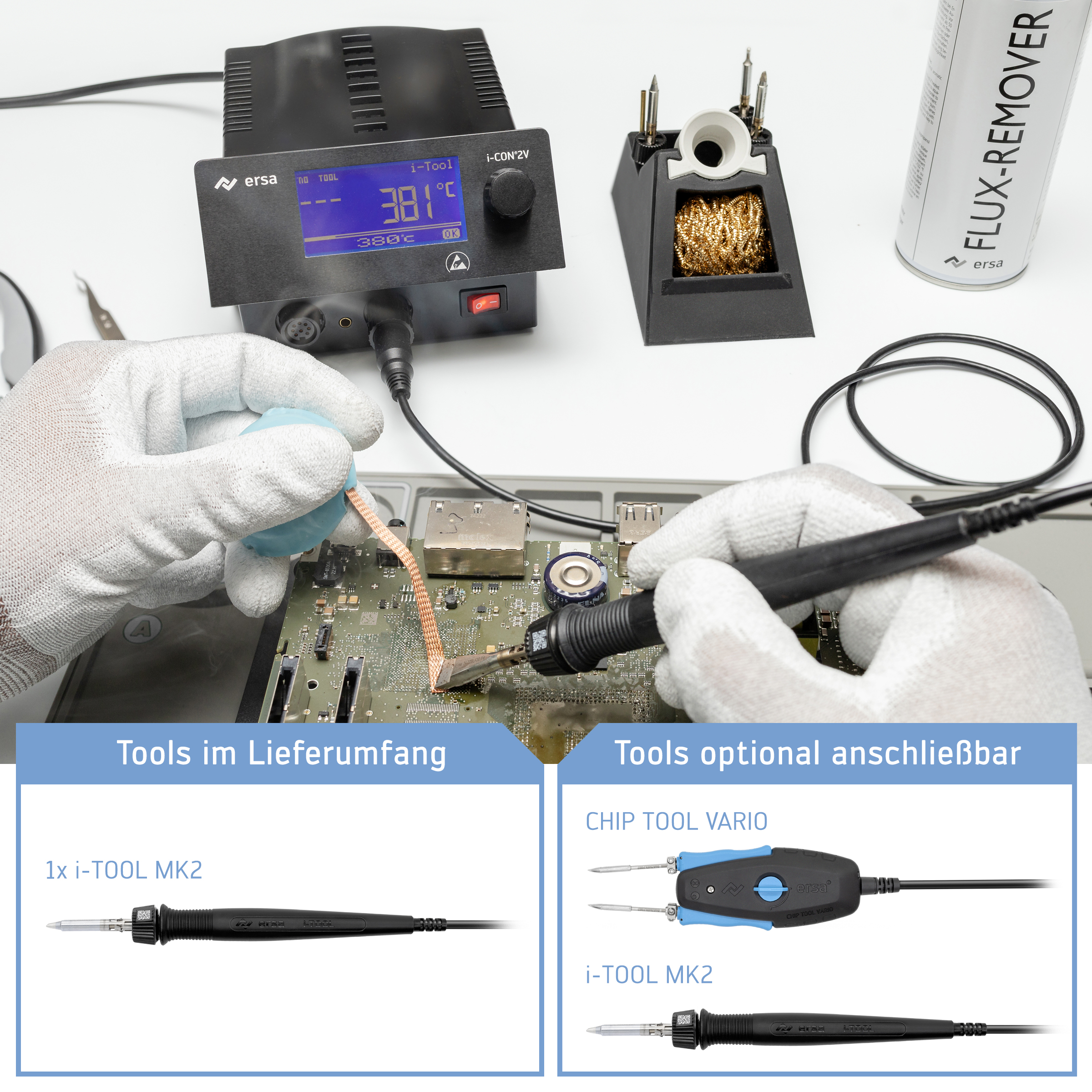

The Ersa i-CON2V MK2 is an antistatic 2-channel soldering station for intelligent hand soldering, compatible with all Vario tools. A second port accepts a further i-Tool or tools for desoldering SMD and through-hole components. Firmware updates are performed via the micro SD card slot.

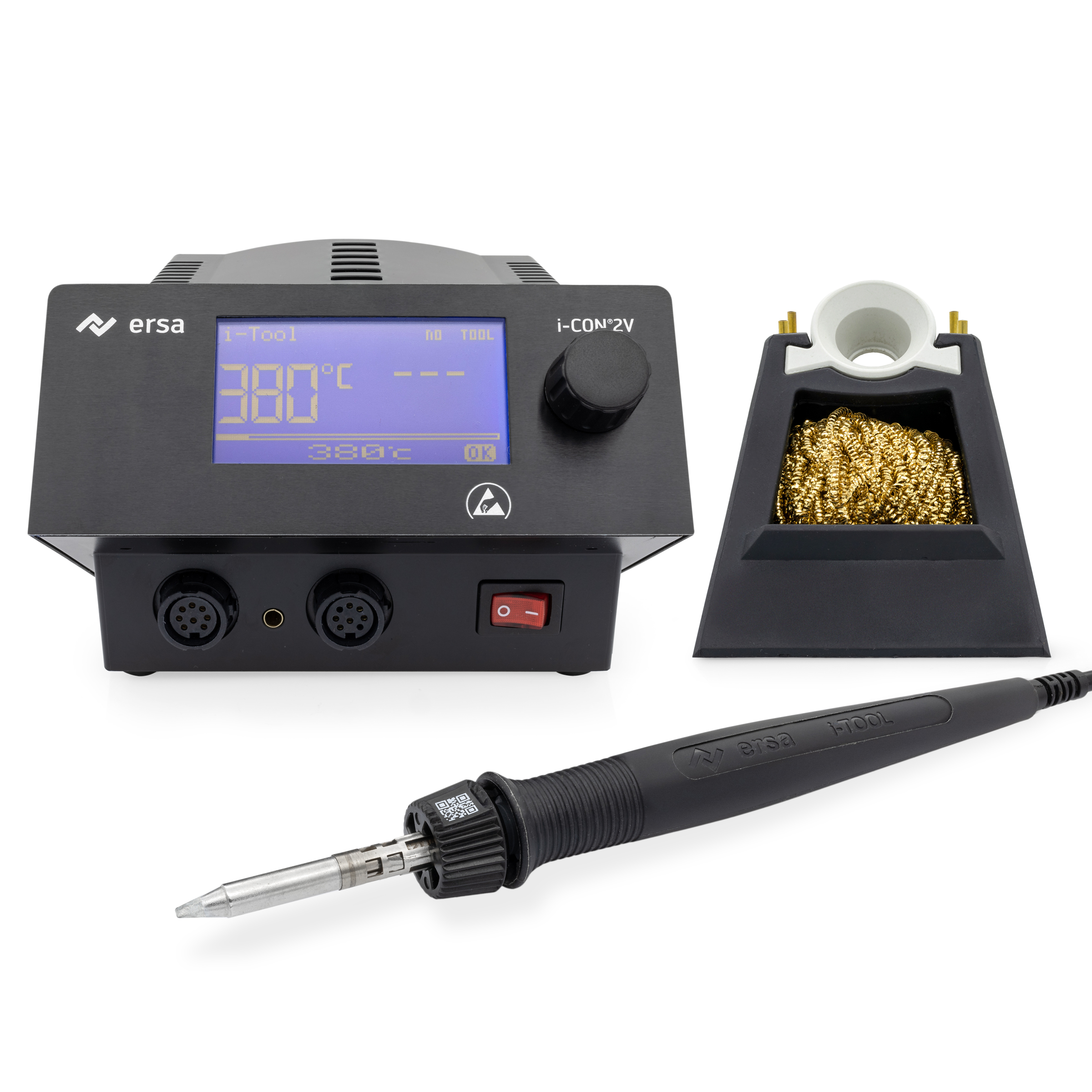

Scope of delivery
- Electronic station 120 W
- i-Tool antistatic soldering iron 150 W (0105CDJ)
- Ersadur chisel-shaped soldering tip 1.6 mm (0142CDLF16)
- Tool stand (0A59)

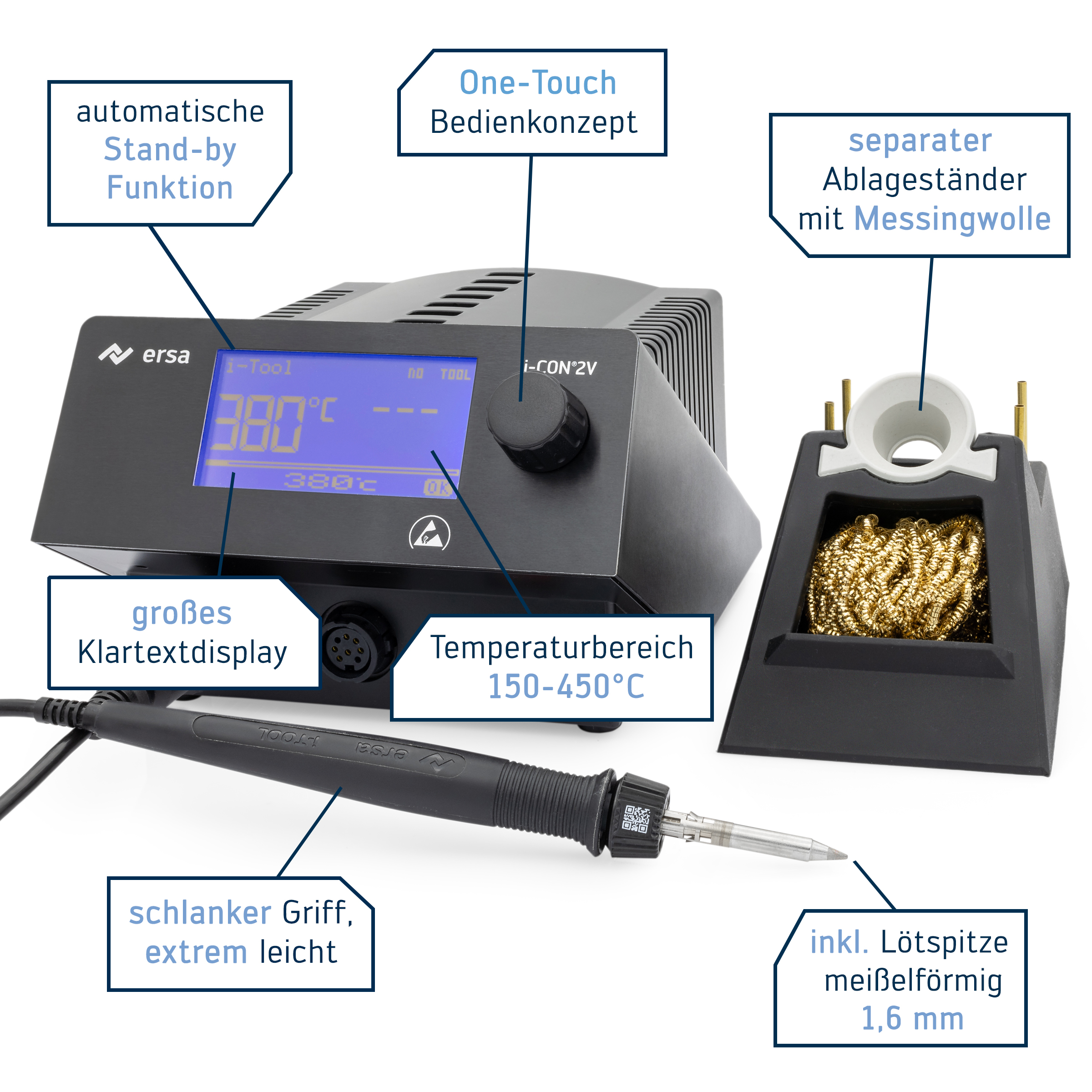

Highlights
- User-friendly One-Touch operation with online help and i-Op menu selection, large multifunction display
- Three power levels regulate the heating element to the heat demand; max. 150 W with no temperature overshoot at the low level
- Process window and alarm warn the operator visually and audibly when the temperature leaves the preset window
- With the i-Set Tool Vario option further stations can be configured and locked in approx. 5 s
- i-Tool with Tip'N'Turn bayonet lock: fast tip change and 20-25 % more performance than a screw connection
- Calibration data stored in the handle for station-independent calibration
- Standby power consumption approx. 20 W
Technical data
| Heat-up time | 9.00 sec. |
| Antistatic design | Yes |
| Digital display | Yes |
| Replacement heater | 016100J |
| Replacement soldering/desoldering iron | 0105CDJ |
| Soldering/desoldering tip | Series 0142CDLF16 |
| Max. power | 150 Watt |
| Max. tip temperature | 450 °C |
| Tip diameter/width | 1.60 mm |
| Tip series | 142 |
| Temperature range | 150-450 °C |
| ESD version | ESD (antistatic) |
|---|---|
| Manufacturer Nr. | 0IC2205V |
| Manufacturer | Ersa |
| Country of Manufacture | Germany |
| EAN | 4003008153743 |
| Weight | 0.100000 |
| GPSR manufacturer information | Ersa GmbH, Leonhard Karl Str. 24, DE-97877 Wertheim, www.kurtzersa.de |
| Article authenticity | Original product |
| Condition of article | New |
| Power | 150 W |
| Temperature range | 150-450 °C |
| Temperature (max.) | up to 450 °C |
| Series | 142 |
| Position sensing | No |
| Tip diameter/width [mm] | 1.600000 |
| Heat-up time [s] | 9.000000 |
| Digital display | Ja |
