i-CON Vario 2 MK2 ESD 2-Channel Desoldering Station with X-Tool vario 150 W - Ersa 0ICV2005XVI
- This Item: €1,451.18
- i-CON Vario 2 MK2 Soldering and Hot-Air Station, ESD, 2-Channel, 200 W, with Vacuum, without Tools - Ersa 0ICV2035AP €1,313.59
- i-CON Vario 4 MK2 ESD 4-Channel Soldering and Hot Air Station with Vacuum, 500 W - Ersa 0ICV4005AIC €2,449.50

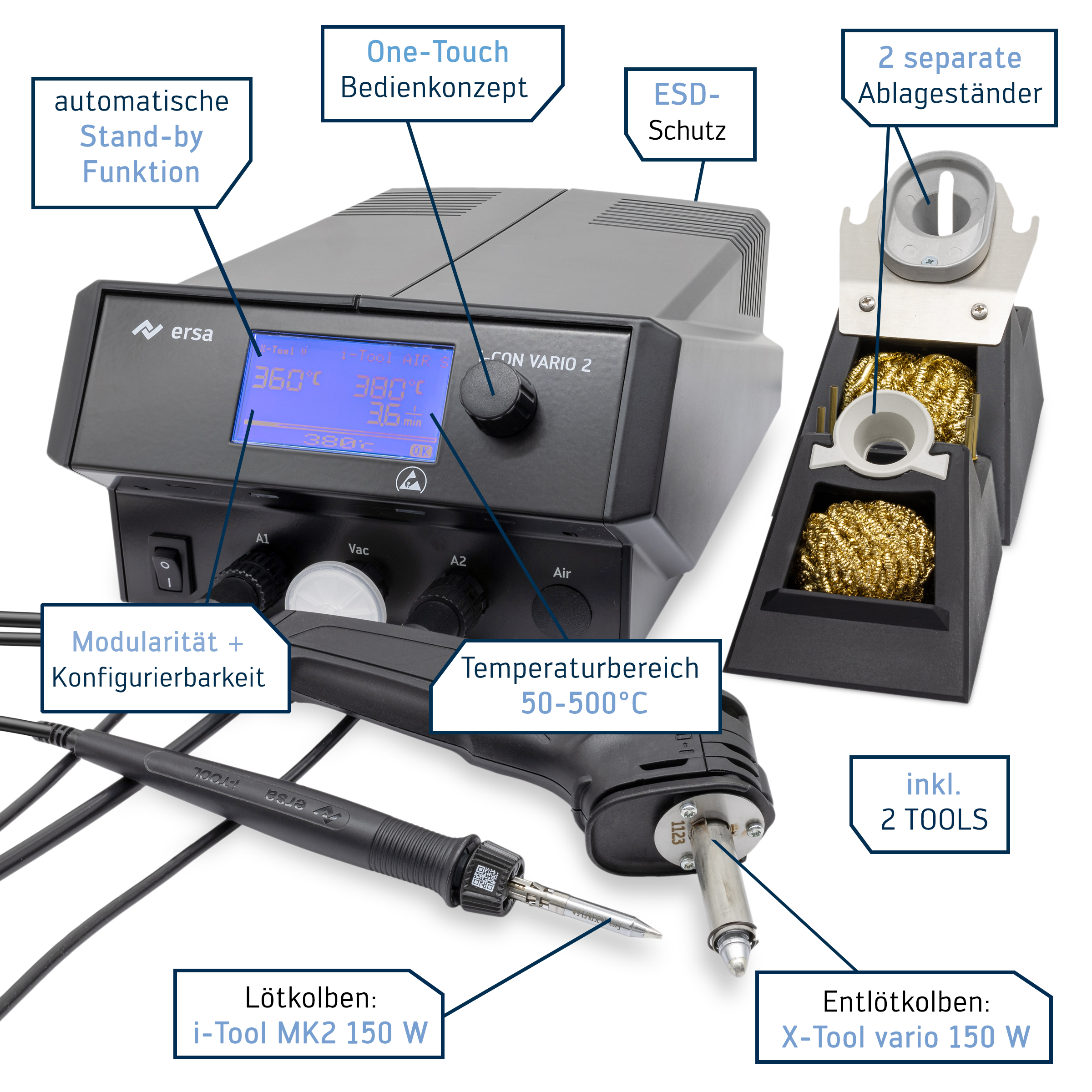

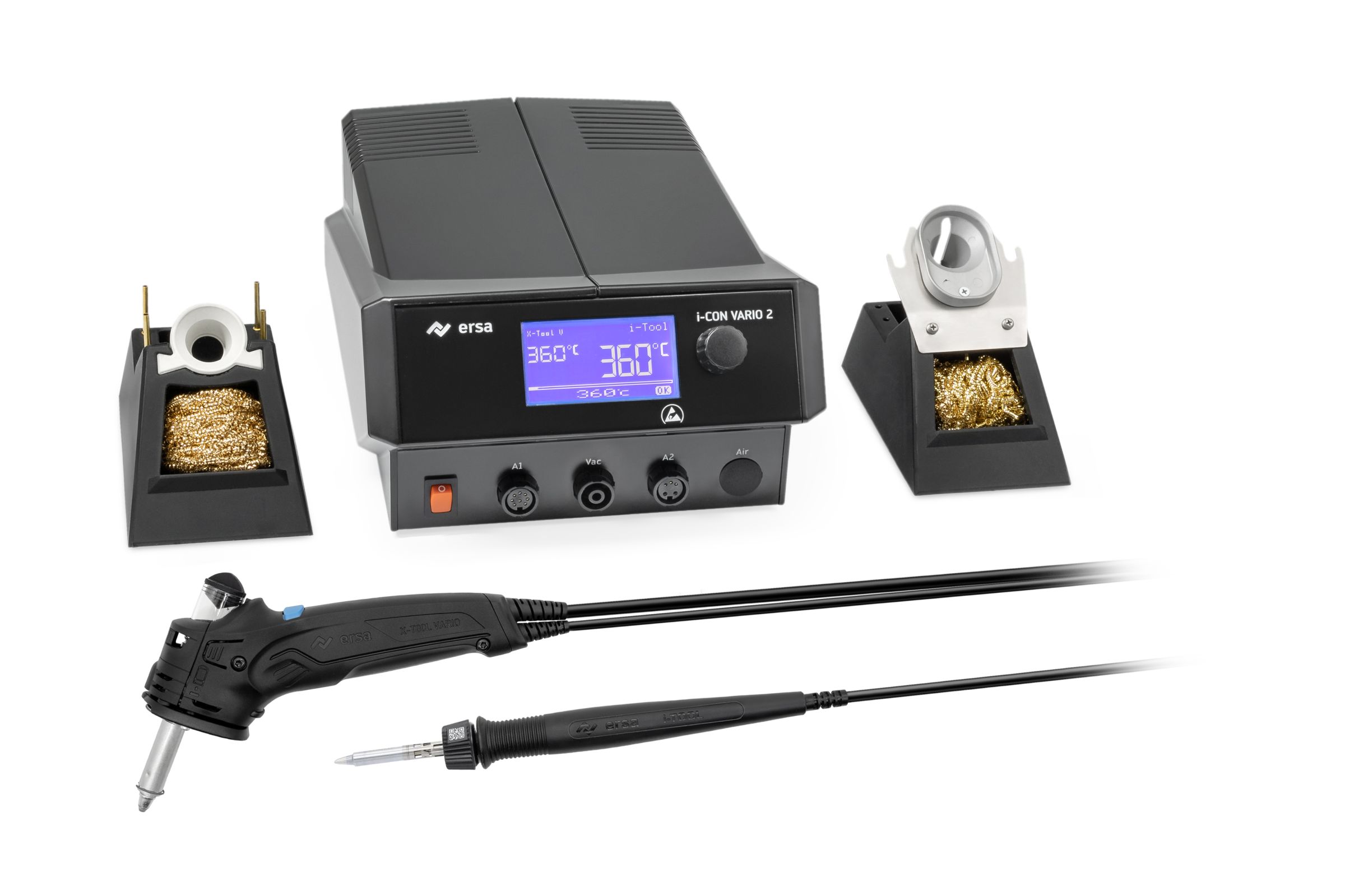

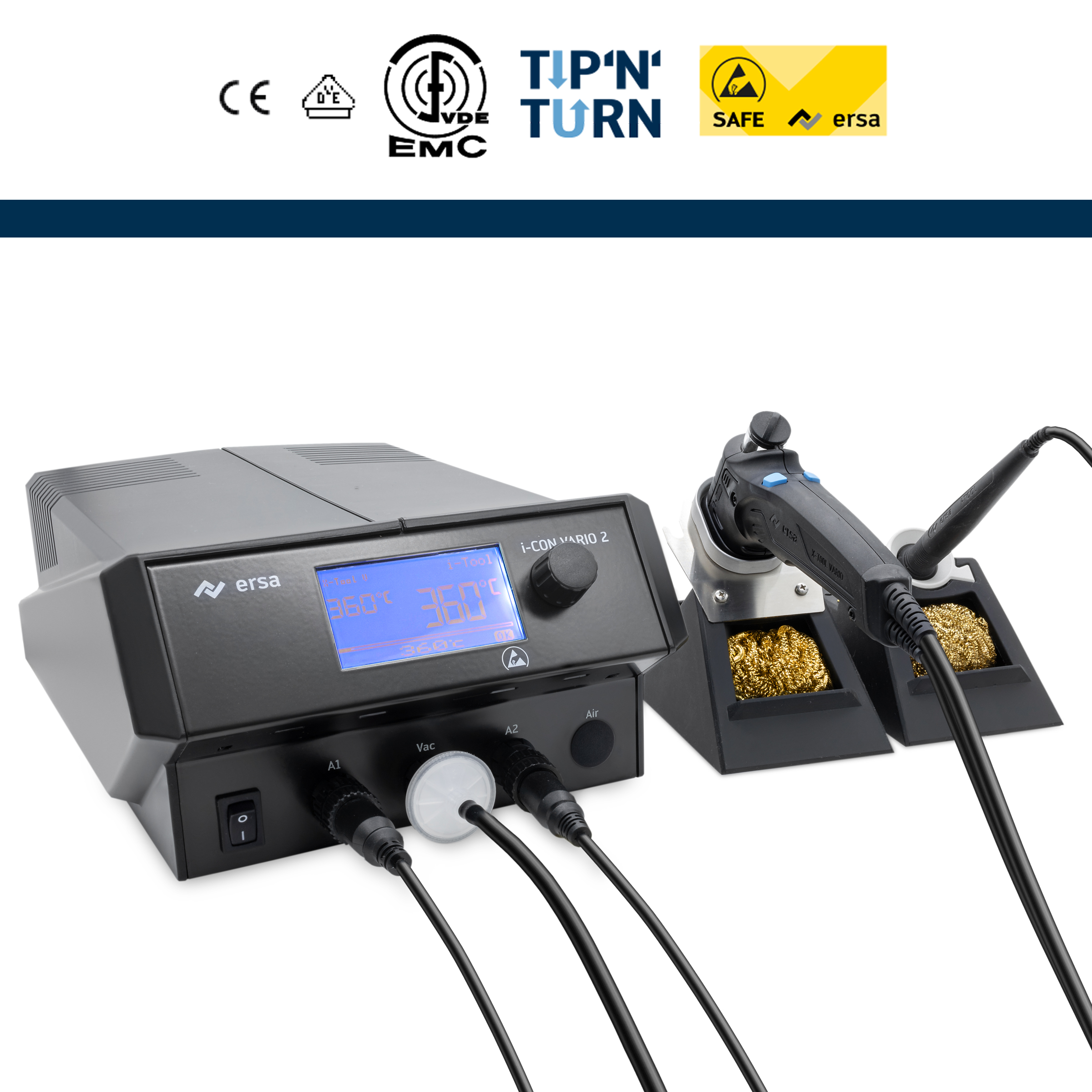

The Ersa i-CON VARIO 2 MK2 is an antistatic 2-channel soldering and desoldering station with vacuum pump, built for the highest demands in professional desoldering. Two Ersa tools can be operated at the same time - vacuum and contact soldering (no hot air on this model). It is supplied with the X-Tool vario (150 W) desoldering iron and the i-Tool (150 W) fine soldering iron.

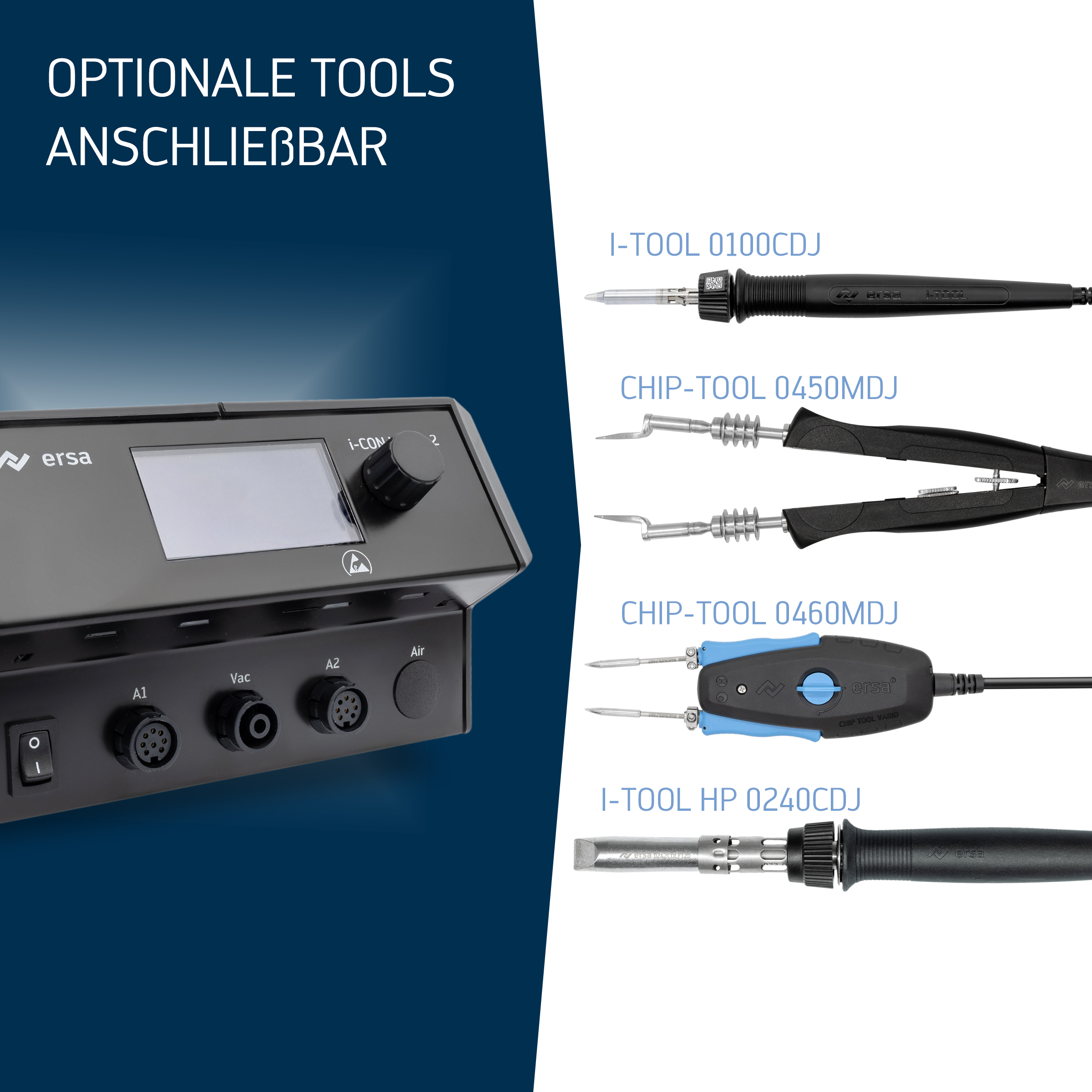

All soldering tools feature an acceleration sensor that, once the tool is set down, activates an automatic standby (150-300 °C) or a rest mode (room temperature). Moving the tool brings it back to operating temperature within seconds. In addition to the X-Tool vario, further Ersa soldering tools can be used optionally.
All functions are integrated into a central supply unit with very simple i-Op operation and clear displays. The station also provides interfaces for automatically switching on Ersa fume extraction units (via standby signal), control of Ersa infrared preheaters and a USB port. An optional microSD memory card allows the station and tools to be updated quickly and safely. The station is ideally suited for use in ESD protected areas.
X-Tool vario: One of the most powerful desoldering irons with 150 W heating power, very easy desoldering-tip changes and an easy-to-clean residual-solder container. Designed for the most demanding desoldering of conventional components on high-mass PCBs. Please use desoldering tips of the 0742ED series.
i-Tool: An extremely light, powerful fine soldering iron with a wide range of low-cost long-life tips. 150 W ensure the fastest heat-up and reheat behaviour. Process-window alarm, energy power levels and automatic standby sensor give the i-CON user unmatched process control. The integrated Tip'N'Turn bayonet lock allows simple, fast tip changes and delivers 20-25 % more performance compared with a screw connection.
The unit is supplied without an integrated hot-air module. The Ersa i-Tool AIR cannot be used with this station.

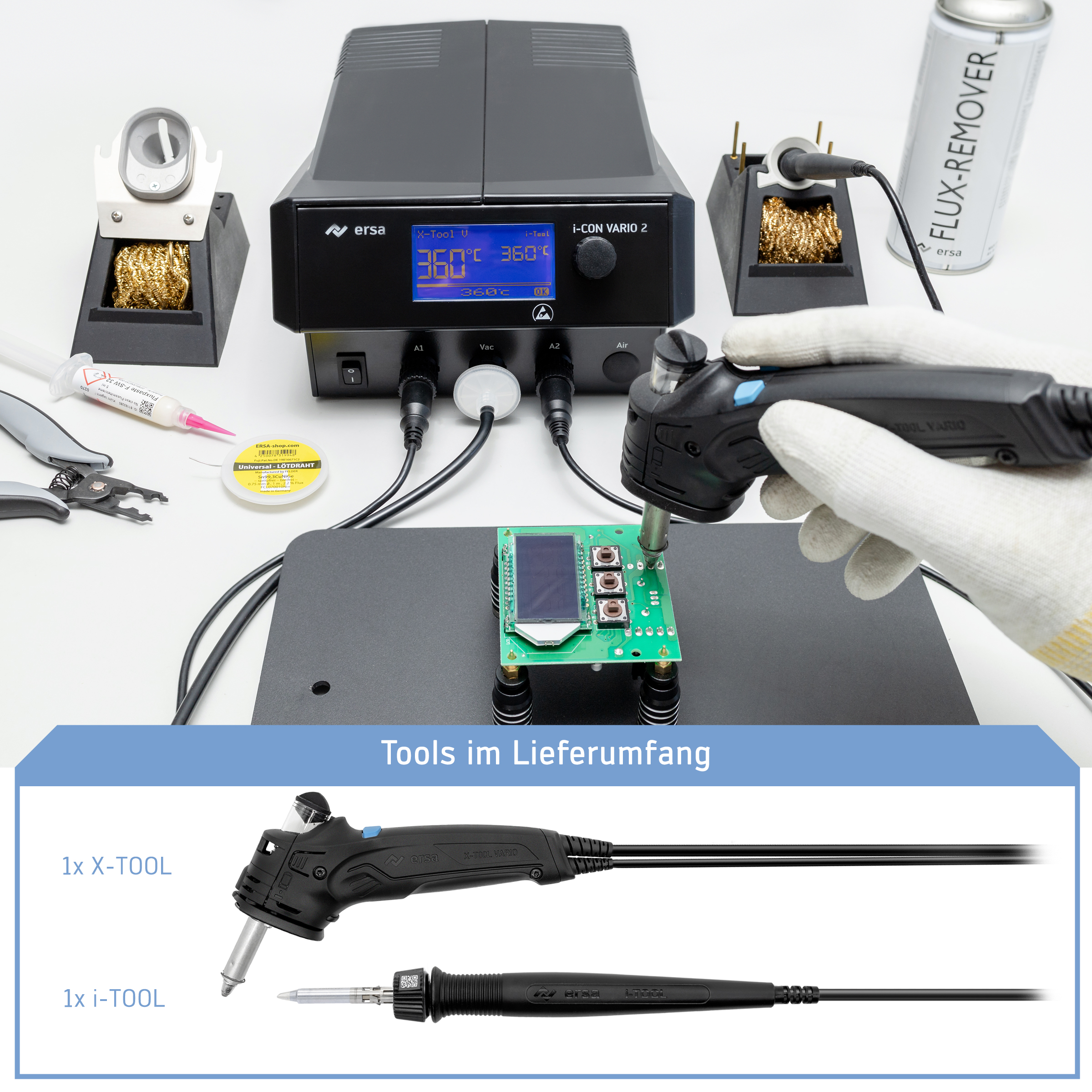

Scope of delivery:
- 0ICV2035X control station i-CON VARIO 2, 200 W, antistatic, with 230 V mains cable
- 0740EDJ X-TOOL VARIO desoldering iron, 24 V, 150 W, antistatic, with desoldering tip 0742ED1225H (1.2 mm inner)
- 0A56 holder for X-Tool vario desoldering iron
- 0105CDJ i-Tool soldering iron 150 W with soldering tip 0142CDLF16 (1.6 mm chisel)
- 0A59 holder for i-Tool
Technical data
| Antistatic design | Yes |
| Digital display | Yes |
| Max. power of control station | 200 W (360 W short-term) |
| Input / output | 230 V~ / 24 V~ |
| Max. vacuum | 700 mbar |
| Temperature range | 150-450 °C (50-550 °C i-Tool AIR S) |
| Max. tip temperature | 450 °C |
| Resistance tip to ground | <2 Ohm |
| Standby power consumption | approx. 25 W |
| Front connections | Mains switch, i-OP push/turn knob, 2 tool ports with vacuum and pressure, microSD slot |
| Rear connections | 230 V~ IEC inlet, 2x RS232, 1x USB, air inlet with filter, 4 mm equipotential bonding socket |
| Replacement heater | 016100J |
| Replacement desoldering iron | 0740EDJ |
| Desoldering tip | 0742ED1225H series (742) |
| Tip diameter/width | 1.20 mm |

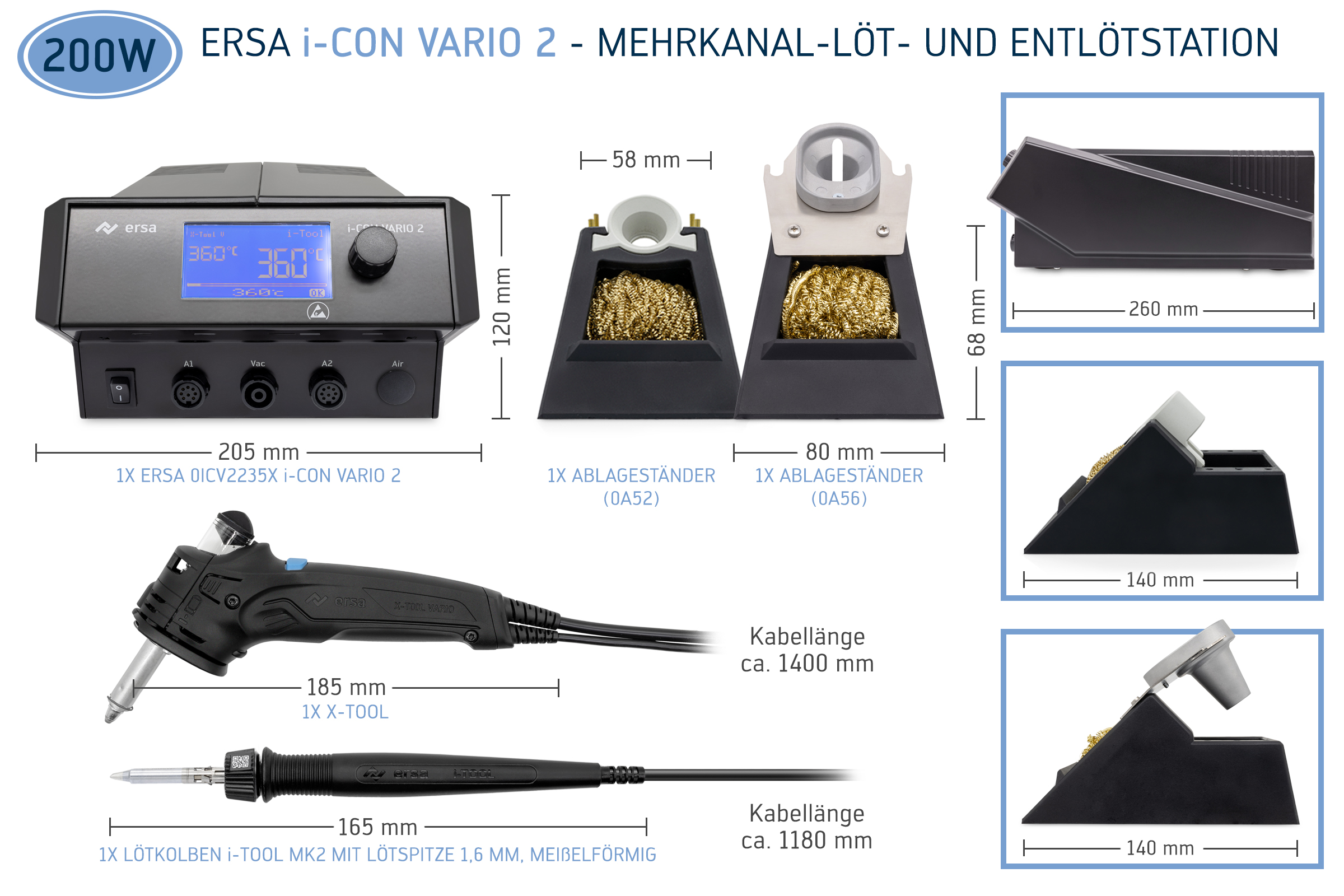

| Control station dimensions | 180 x 280 x 115 mm, approx. 6 kg |
| ESD version | ESD (antistatic) |
|---|---|
| Manufacturer Nr. | 0ICV2005XVI |
| Manufacturer | Ersa |
| Country of Manufacture | Germany |
| EAN | 4003008153811 |
| Weight | 0.100000 |
| GPSR manufacturer information | Ersa GmbH, Leonhard Karl Str. 24, DE-97877 Wertheim, www.kurtzersa.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
