VARIO 4 MK2 ESD 4-Channel Soldering and Hot-Air Station with Vacuum - Ersa 0ICV4005AICXV

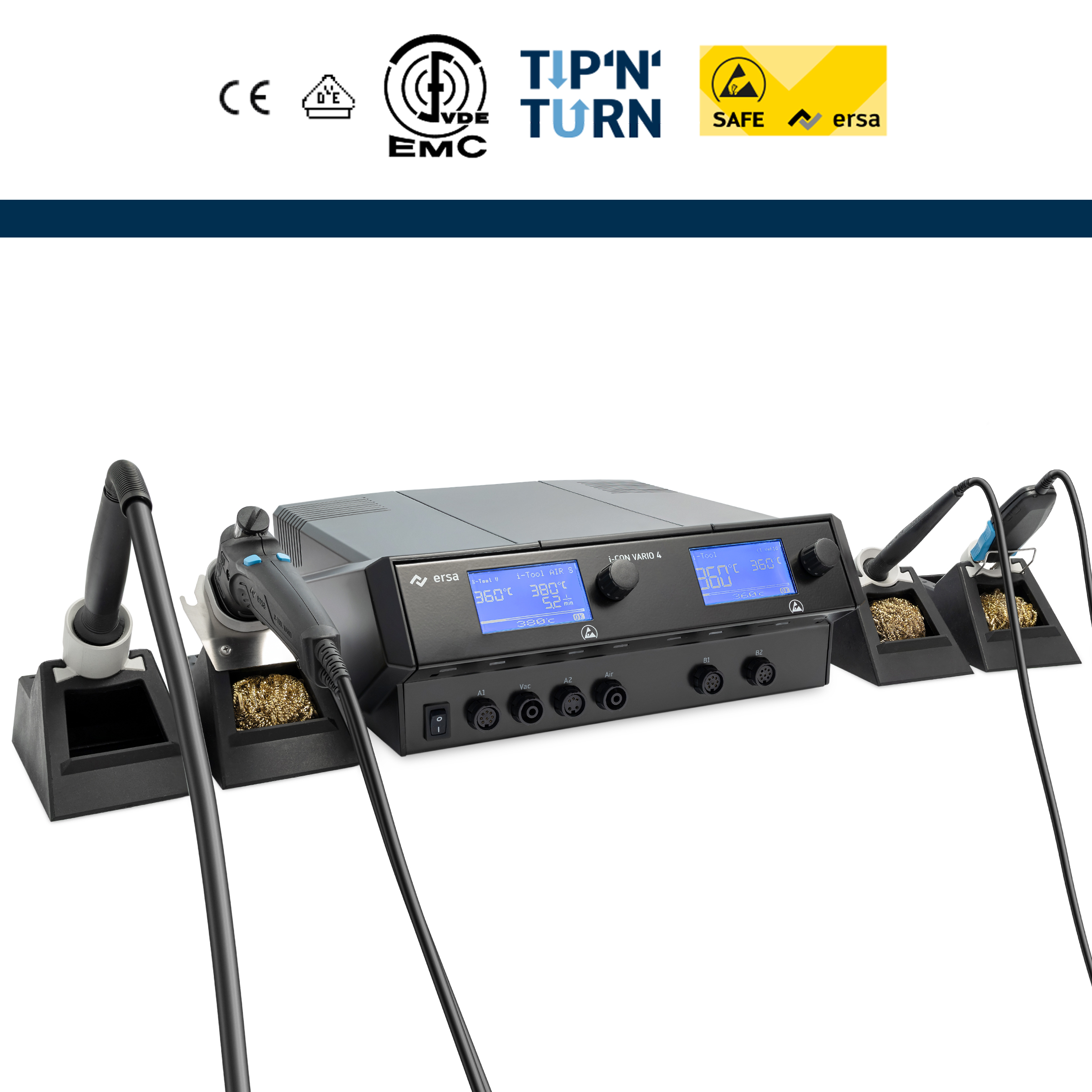

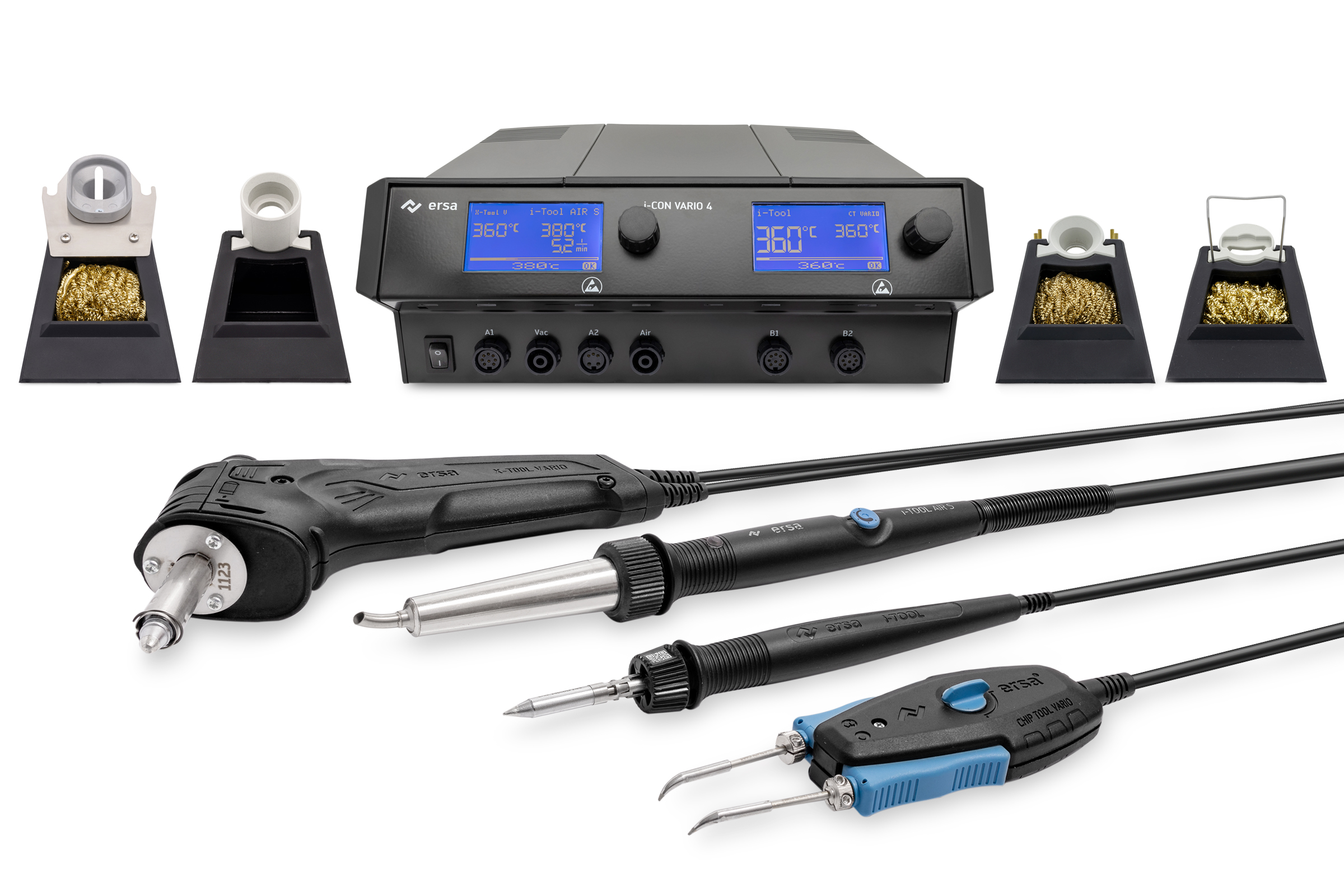

The Ersa i-CON VARIO 4 MK2 is an antistatic 4-channel soldering and hot-air station with vacuum pump. As the flagship of the i-CON family it provides four soldering tools at once: the i-AIR S-TOOL hot-air iron (200 W) for contactless energy transfer, the powerful 150 W i-TOOL soldering iron for efficient soldering, the CHIP TOOL VARIO desoldering tweezers (2x40 W) for the finest SMD components, and the X-TOOL VARIO (150 W) for desoldering through-hole components.

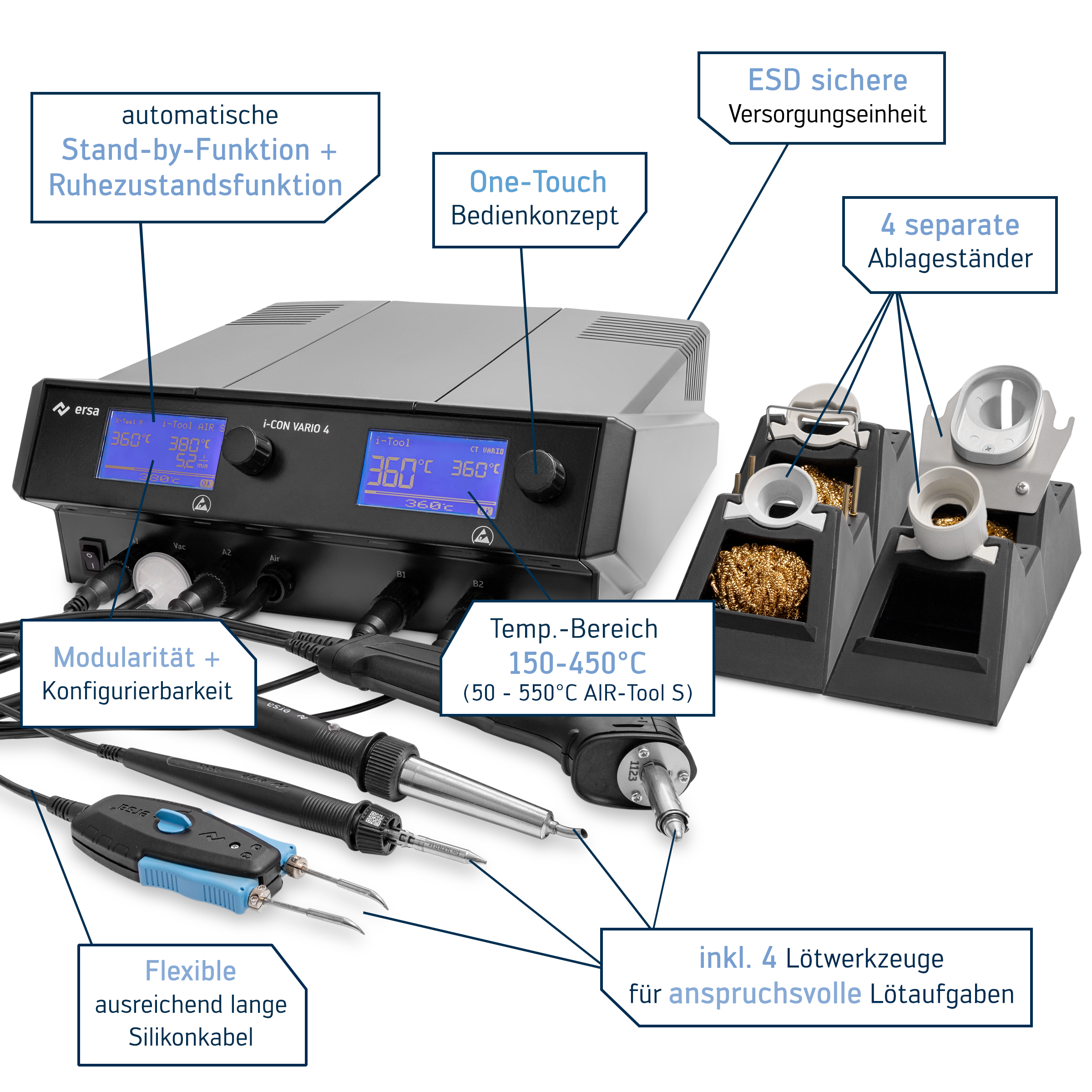

All soldering tools feature an acceleration sensor that automatically activates a standby mode (150-300 °C) or a sleep mode (room temperature) once the tool is set down; moving the tool brings it back to operating temperature within seconds. All functions, including air and vacuum generation, are integrated into a central supply unit with simple i-Op operation and clear displays. Interfaces allow automatic switching of Ersa fume extraction units, control of Ersa infrared preheaters and a USB connection; the station and tools can be updated via microSD. The station is ideally suited for use in ESD protected areas.

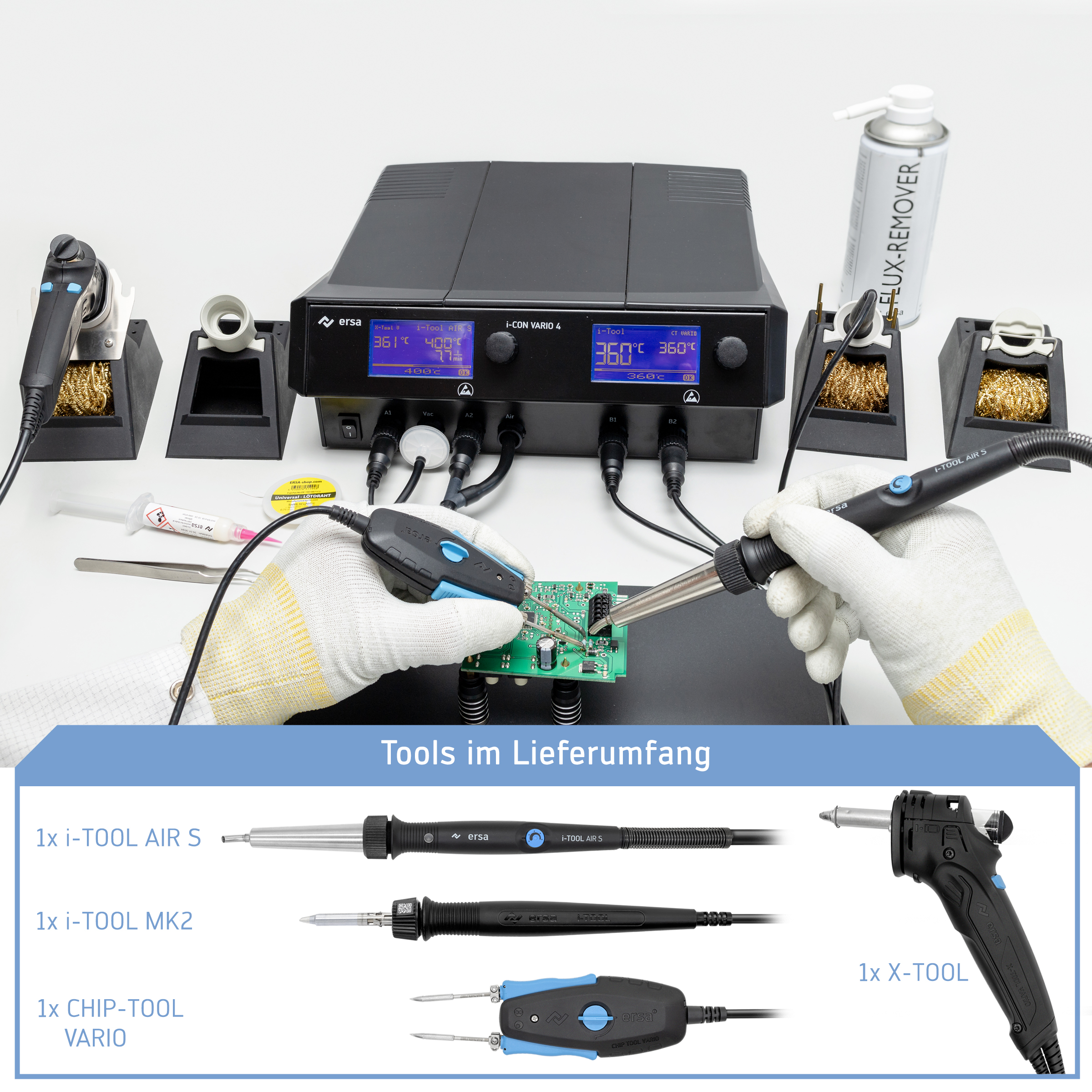

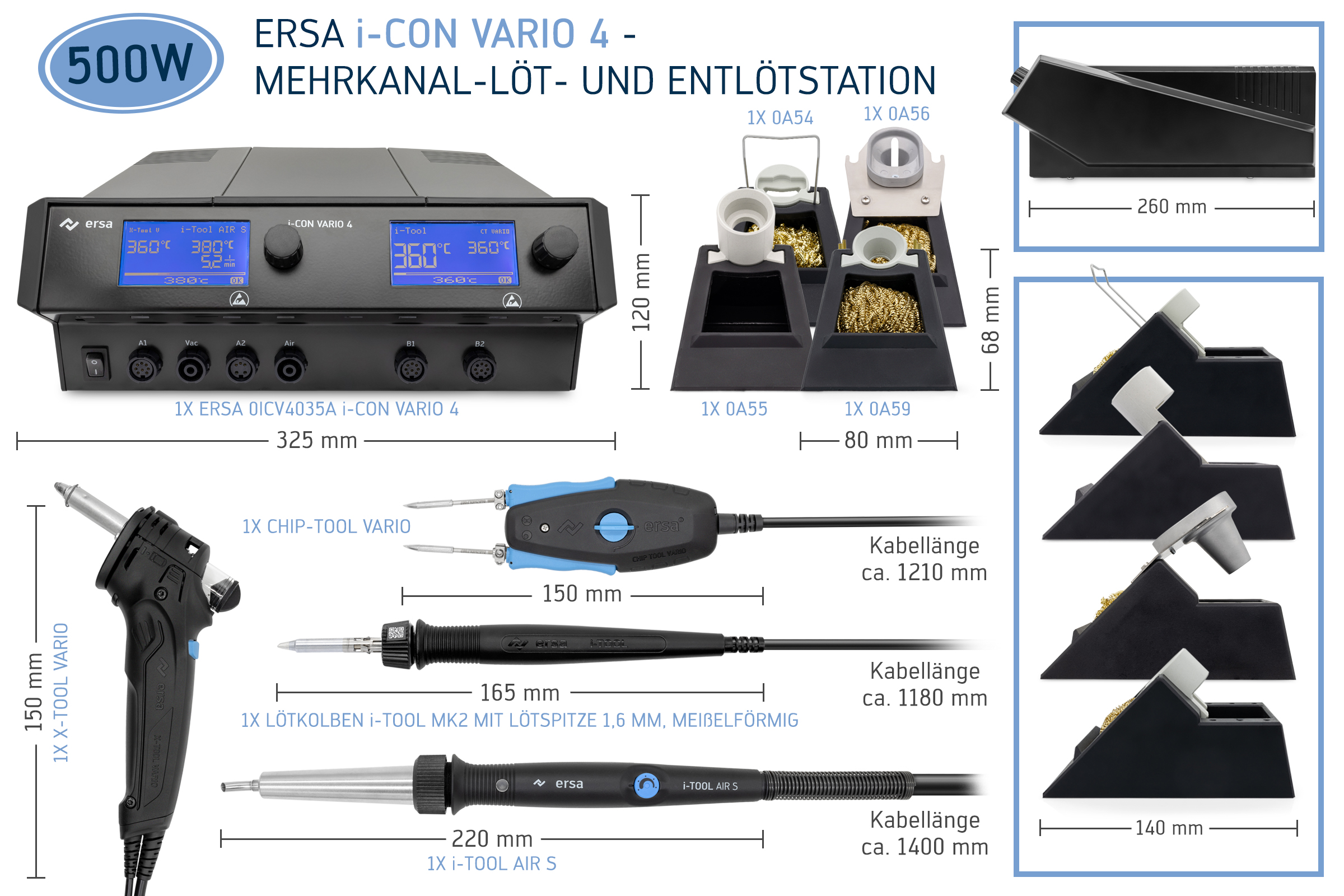

Scope of delivery

• 0ICV4035A control station i-CON VARIO 4 360 W, antistatic with 230 V mains cable
• 0470ERJ hot-air iron i-AIR S-TOOL, 24 V, 200 W, antistatic with hot-air nozzle 0472ER 3.5 mm round
• 0A55 holder stand for i-AIR-S TOOL, antistatic
• 0105CDJ soldering iron i-TOOL, 24 V, 150 W, antistatic with soldering tip 0142CDLF16 1.6 mm chisel
• 0A59 holder stand for i-TOOL, antistatic
• 0460MDJ desoldering tweezers CHIP TOOL VARIO, 24 V, 2x40 W, antistatic with desoldering tips 0462MDLF007 0.7 mm angled chisel
• 0A54 holder stand for CHIP TOOL VARIO, antistatic
• 0740EDJ desoldering iron X-TOOL VARIO, 24 V, 150 W, antistatic with desoldering tip 0742ED1225H 1.2 mm inner
• 0A56 holder stand for X-TOOL VARIO

Technical data
