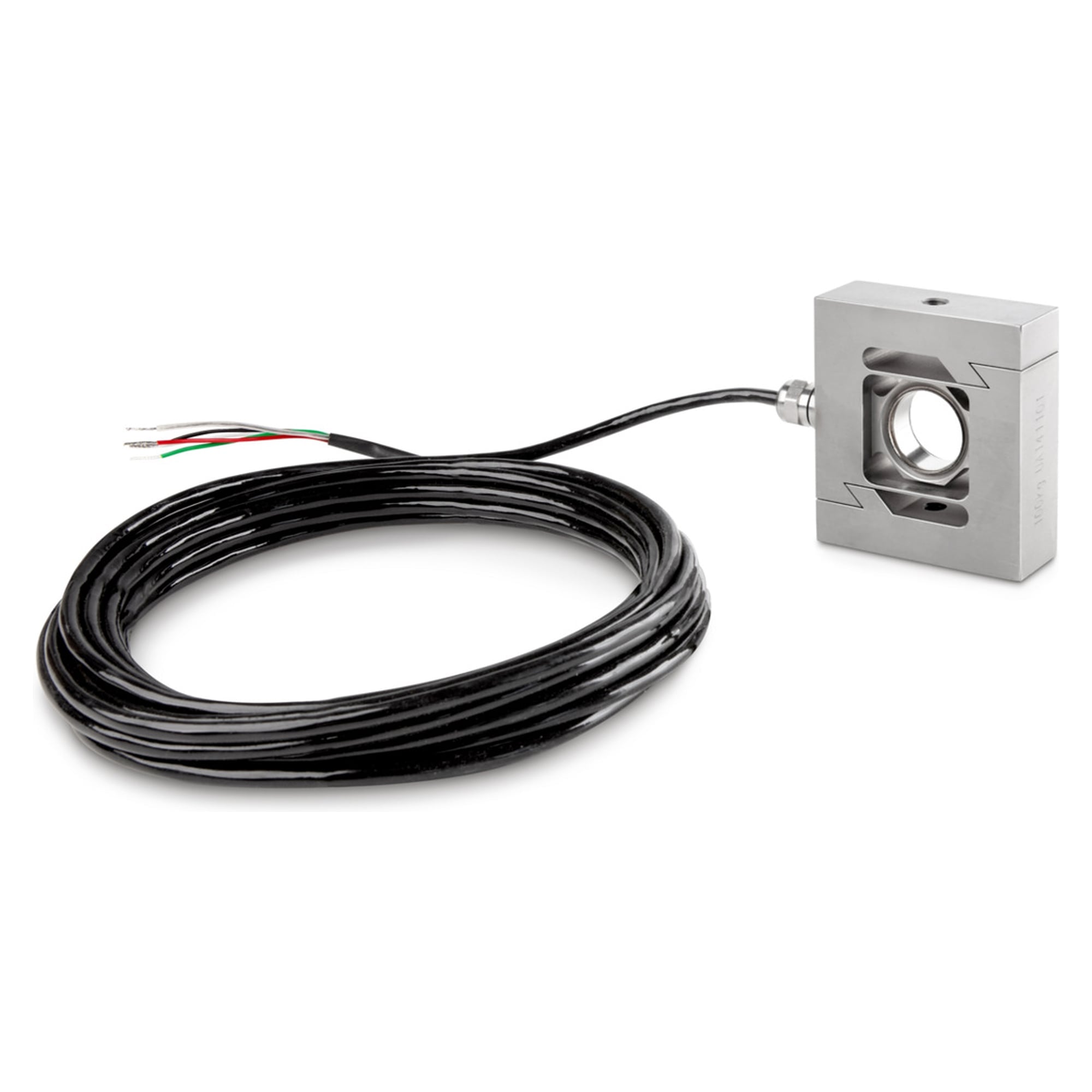

S-type load cell 50 kg / 500 N, stainless steel, C3 - SAUTER CS 50-3P2
S-type load and force cell SAUTER CS 50-3P2 made of stainless steel for tensile and compressive forces up to 500 N or loads up to 50 kg. Verifiable to OIML class C3 with 3000 e, IP68 protection and a 6 m cable with 4-wire connection. For hanging scales, silo scales and force test stands.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CS 50-3P2 measures mass and force in tension and compression up to 50 kg or 500 N. With its S shape and one M8 threaded hole at the top and bottom, it screws straight into the load path, for example between the suspension and the load of a hanging scale or into a force test stand.
Advantages
- Tension and compression: one cell for both directions of force.
- Verifiable to OIML C3: 3000 e with a combined error of 0.023 %, suitable for building legal-for-trade scales.
- IP68 and stainless steel: for use in damp or dusty environments.
- 6 m cable: the evaluation unit can be mounted away from the measuring point.
- Matching evaluation: can be combined with the DIN rail evaluation unit KERN CE HSN and the SAUTER FS 2 series force gauges.
Applications
Measurement of mass and force in hanging scales, silo scales, force test stands and other scales.
Conformity and origin
EAN 4045761232556. Warranty 24 months.
Technical data
| Weighing capacity (Max) | 50 kg |
|---|---|
| Force measuring range (Max) | 500 N |
| Design | S-type cell |
| Directions of force | tension, compression |
| Measuring applications | force, mass |
| Combined error | 0.023 % |
| OIML class | C3 |
| Resolution (verifiable) | 3000 e |
| Y-value | 12000 |
| Nominal output | 2 mV/V |
| Protection class | IP68 |
| Material | stainless steel |
| Connection | 4-wire |
| Cable length | 6 m |
| Force application | threaded hole M8 |
| Force dissipation | threaded hole M8 |
| Manufacturer | Sauter |
| EAN | 4045761232556 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
