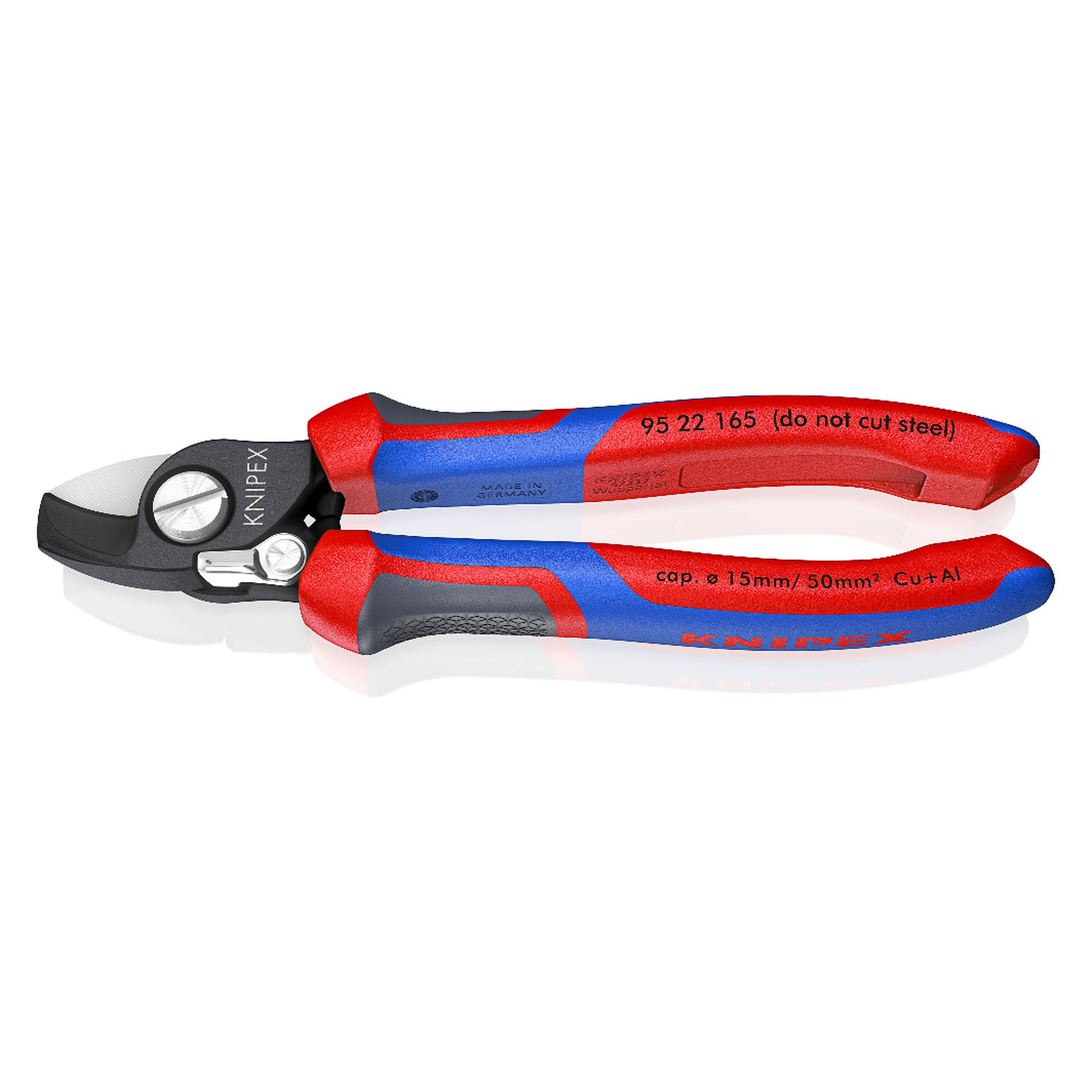

Cable shears with opening spring for copper and aluminium cables up to 50 mm², 165 mm - Knipex 95 22 165

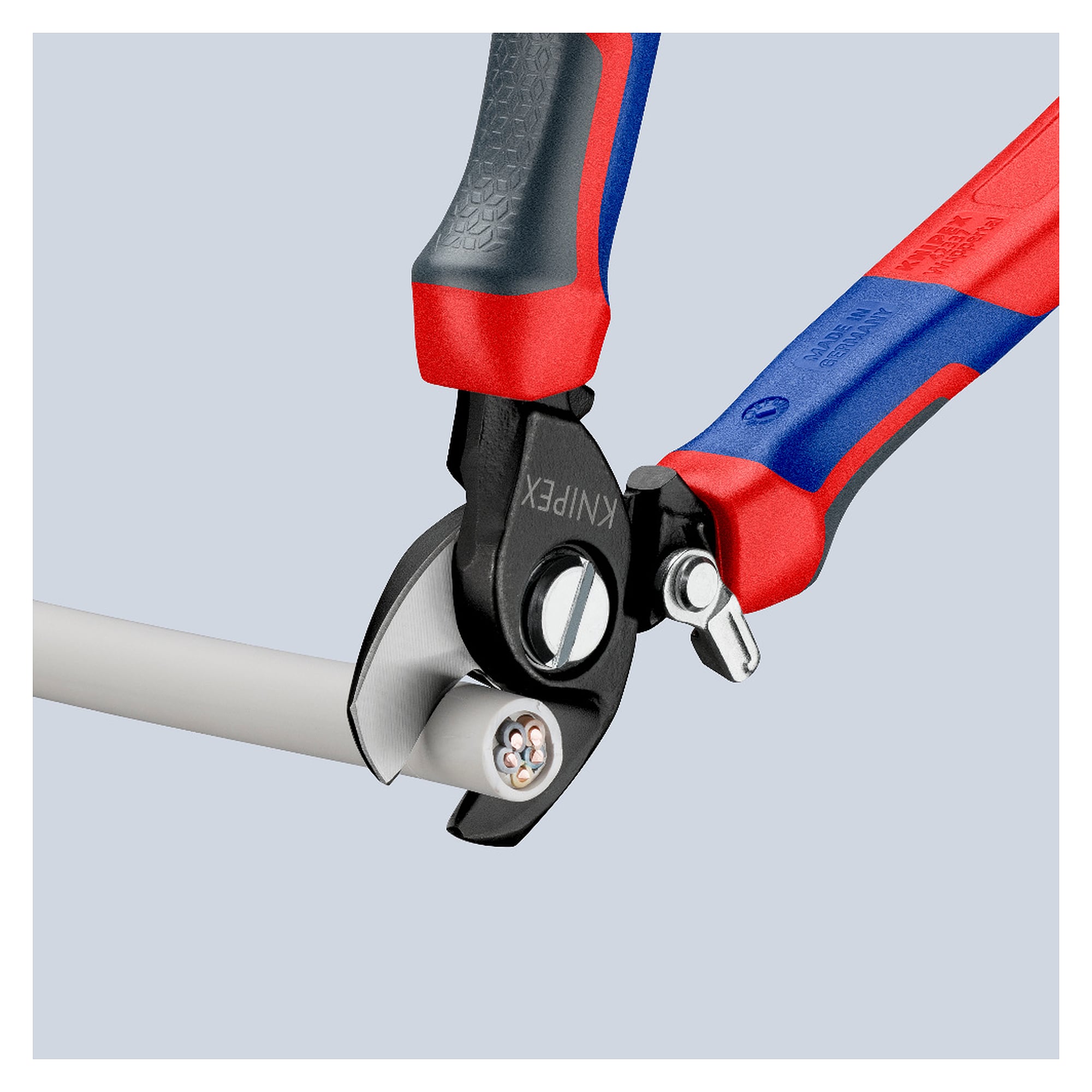

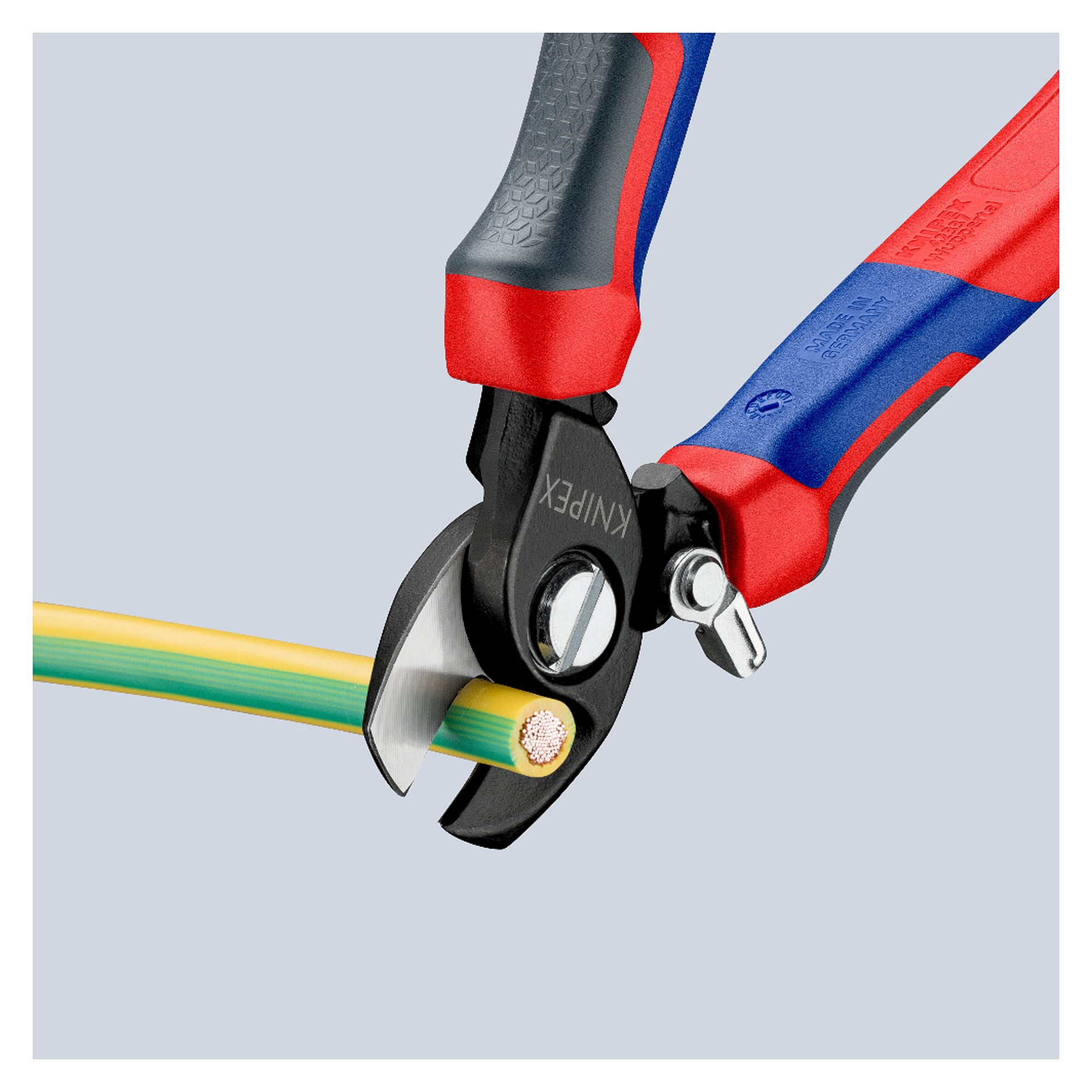

Anyone cutting fine-stranded copper and aluminium cable in a control cabinet needs a smooth cut without crushed cores. The 95 22 165 cable shears sever multi-core cable up to Ø 15 mm, that is up to 50 mm² conductor cross-section, in one stroke with one hand.

Benefits

• Cuts fine-stranded multi-core copper and aluminium cable up to Ø 15 mm, equal to 50 mm² or AWG 1/0.
• The cut stays clean and smooth, the cable is not crushed and can be processed further straight away.
• Opening spring for an easy cut in one-hand operation.
• Precision-ground hardened blades and an adjustable bolted joint with a self-retaining screw.
• Guard protects the fingers as the shears close.
• Comfort handles made of three ergonomic components with two KNIPEXtend interfaces for extensions.

Technical data

Areas of use

Electrical installation, control cabinet and control system building, photovoltaics and service work on machines and plant. According to the manufacturer the shears are not suitable for steel wire or hard drawn copper conductors.

Standards and conformity

The manufacturer states no tool standard for this model. According to the manufacturer the shears contain no substances of very high concern under REACH, the RoHS directive does not apply.
