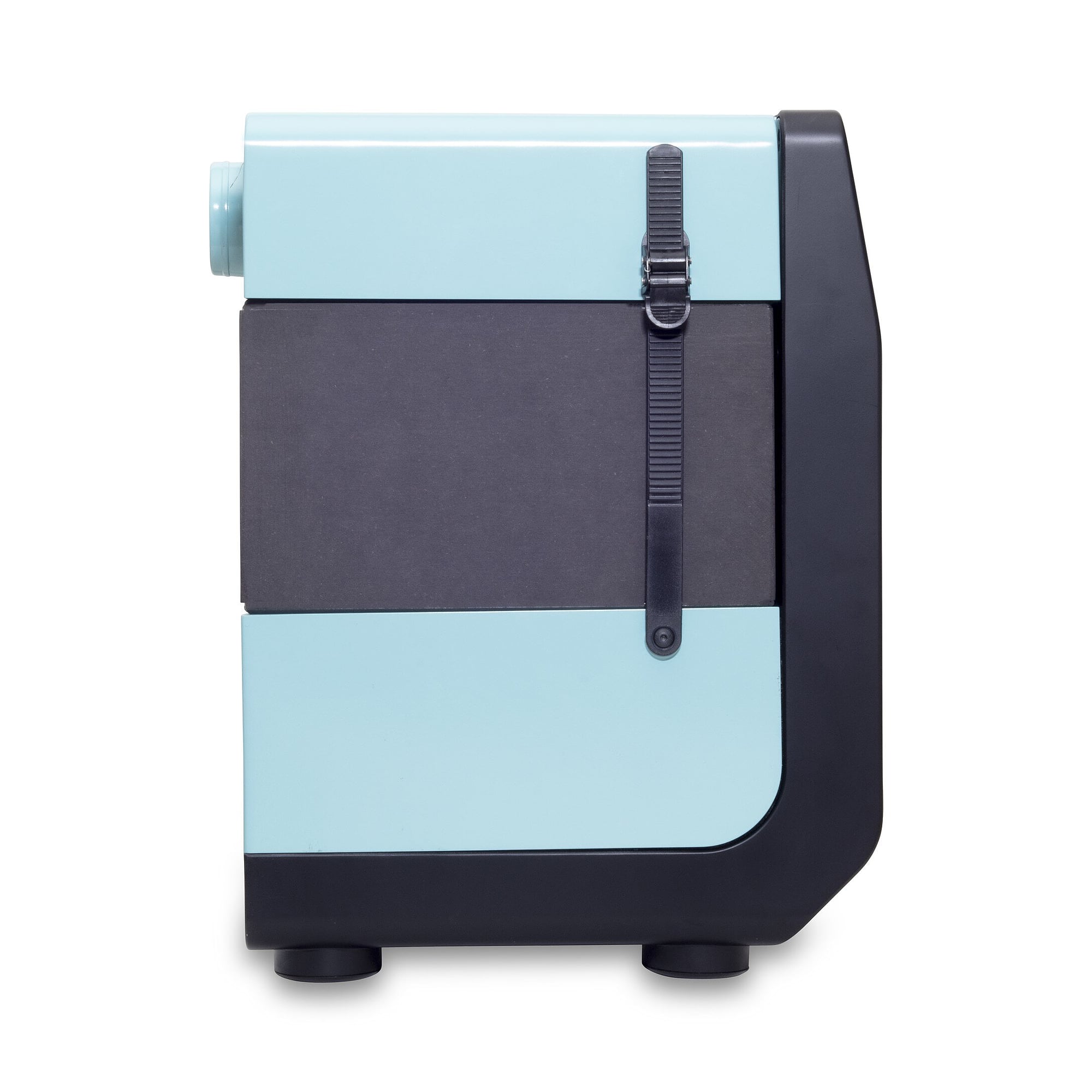

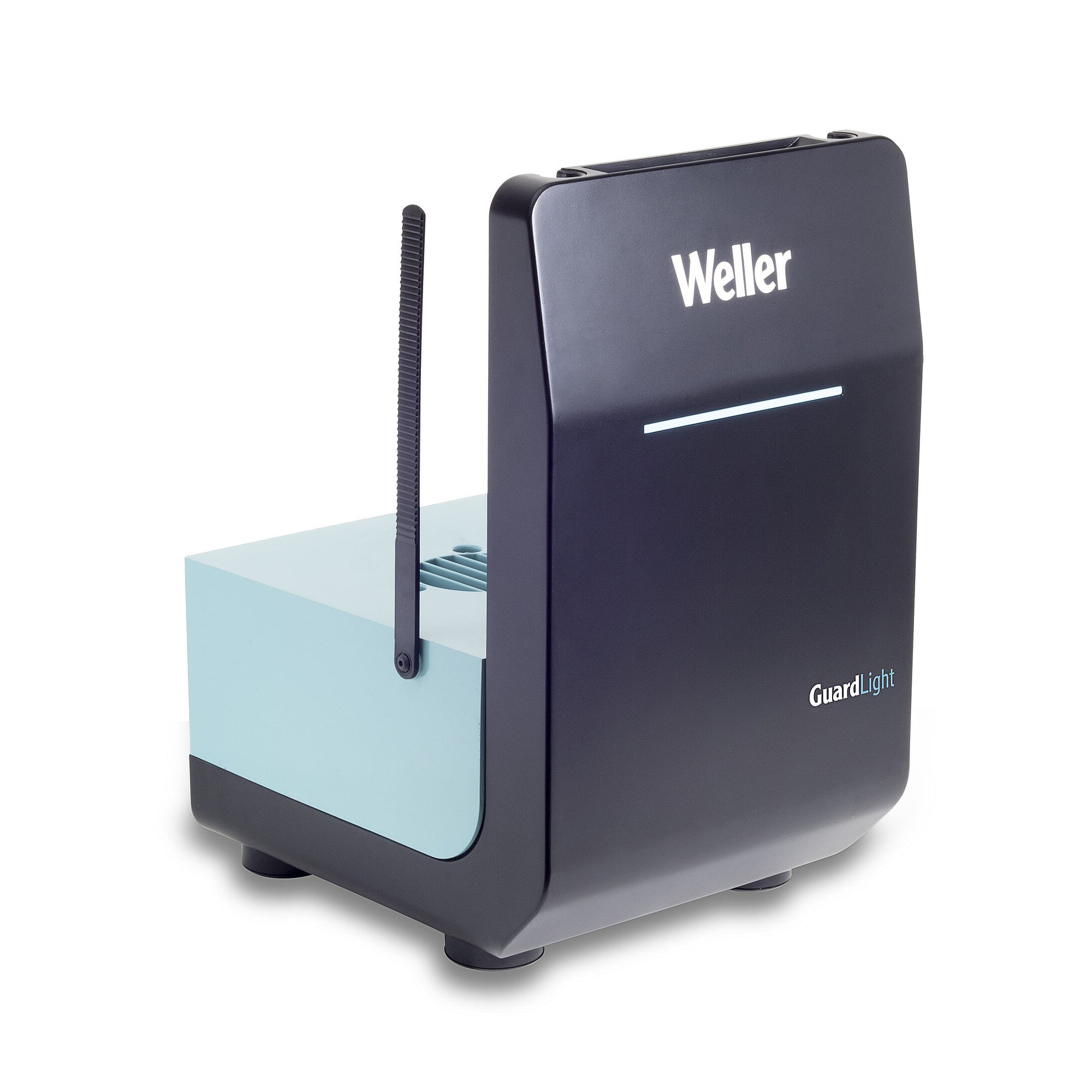

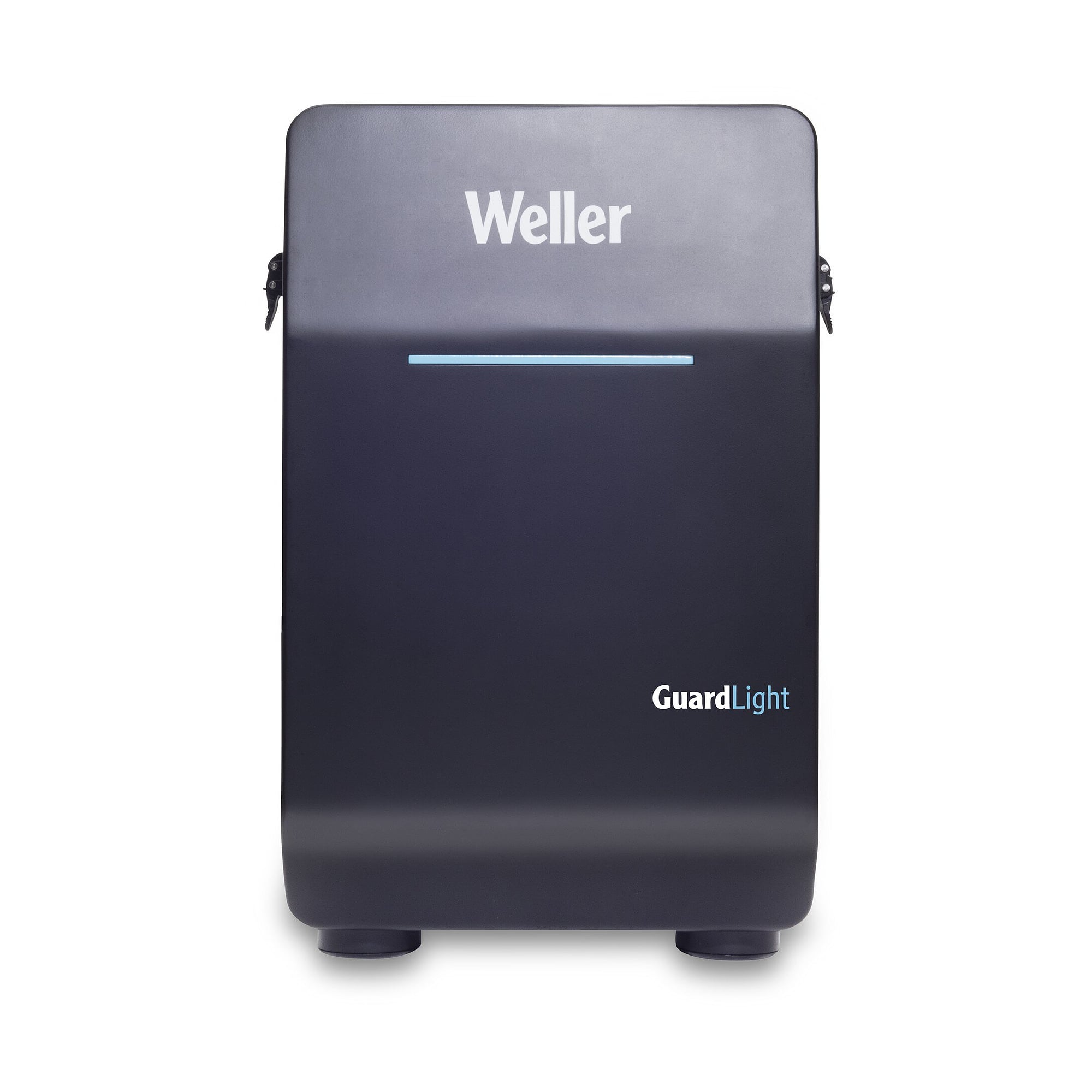

Solder fume extraction ZeroSmog Guard Light 100 m³/h with HEPA H13 for one workstation - Weller FT91020699

During hand soldering, flux gases and particles rise straight into the operator's breathing zone. The ZeroSmog Guard Light pulls them away with 100 m³/h of volume flow and 2700 Pa of vacuum before they reach the head, drawing 74 W from 220 to 240 V. The unit is sized for one hand soldering position.

Key benefits

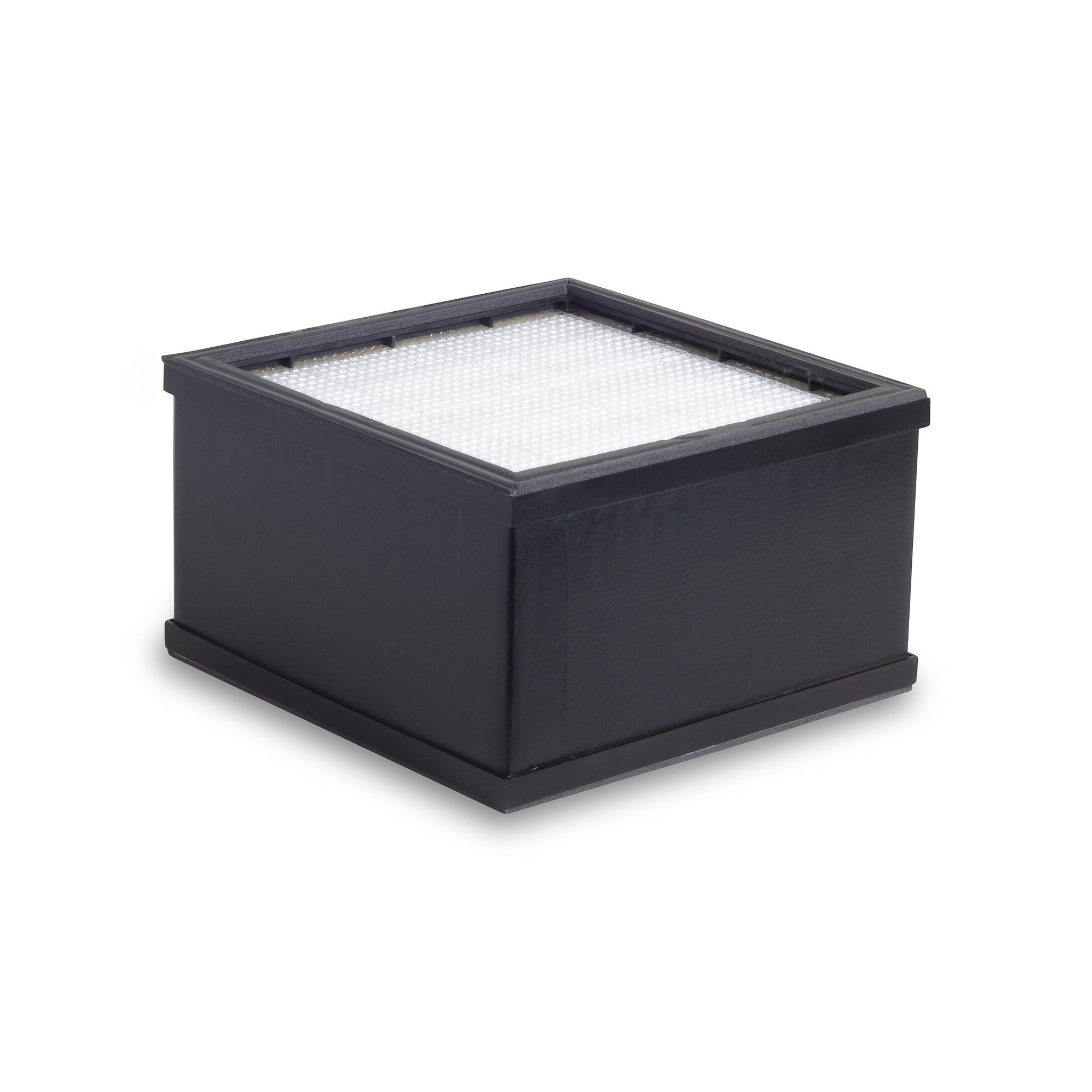

• The main filter with HEPA H13 particle stage and activated carbon binds solder particles and flux gases in a single cartridge.
• 2700 Pa of vacuum keep capture stable even over longer hose runs.
• 100 m³/h of volume flow cover one hand soldering position with a funnel or angled nozzle.

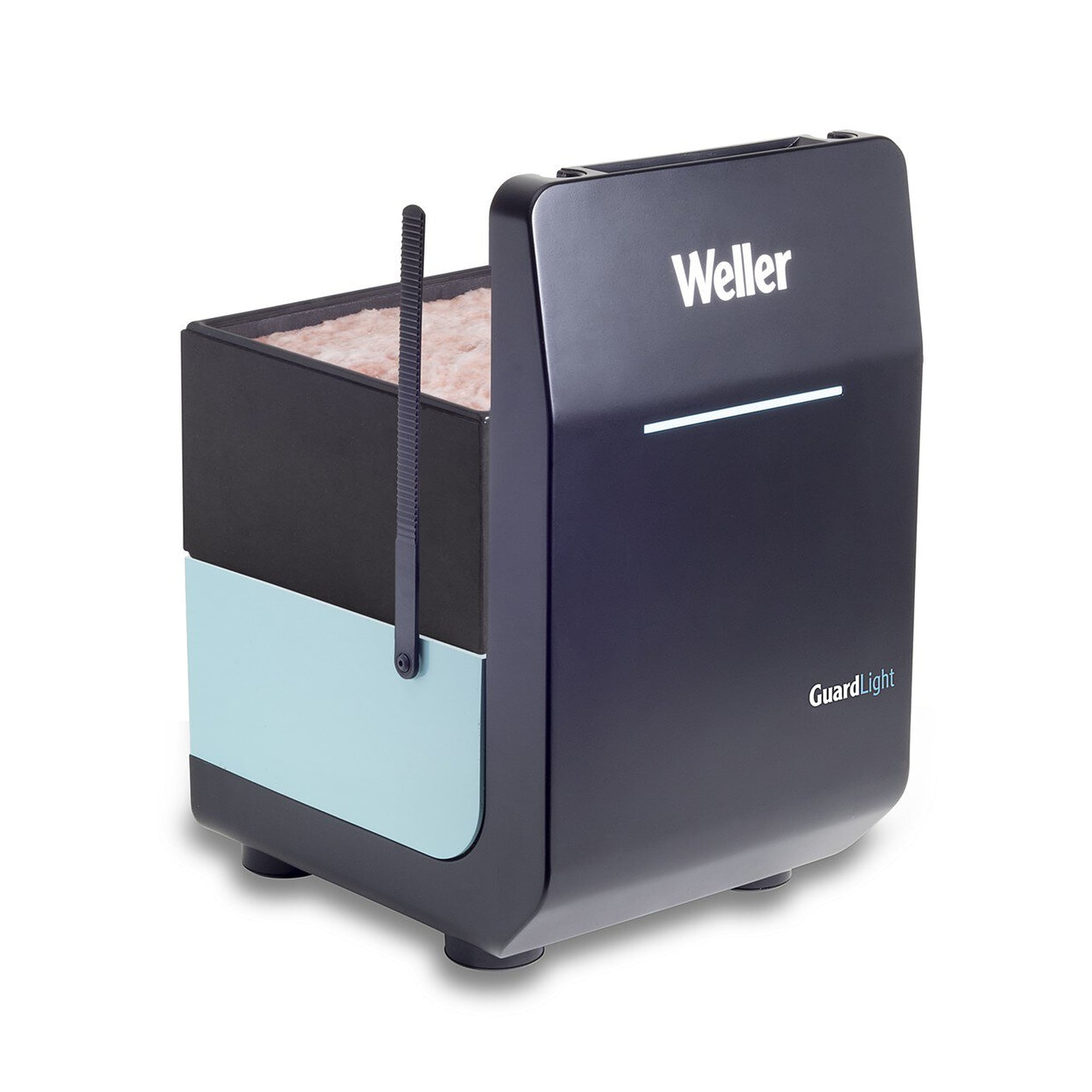

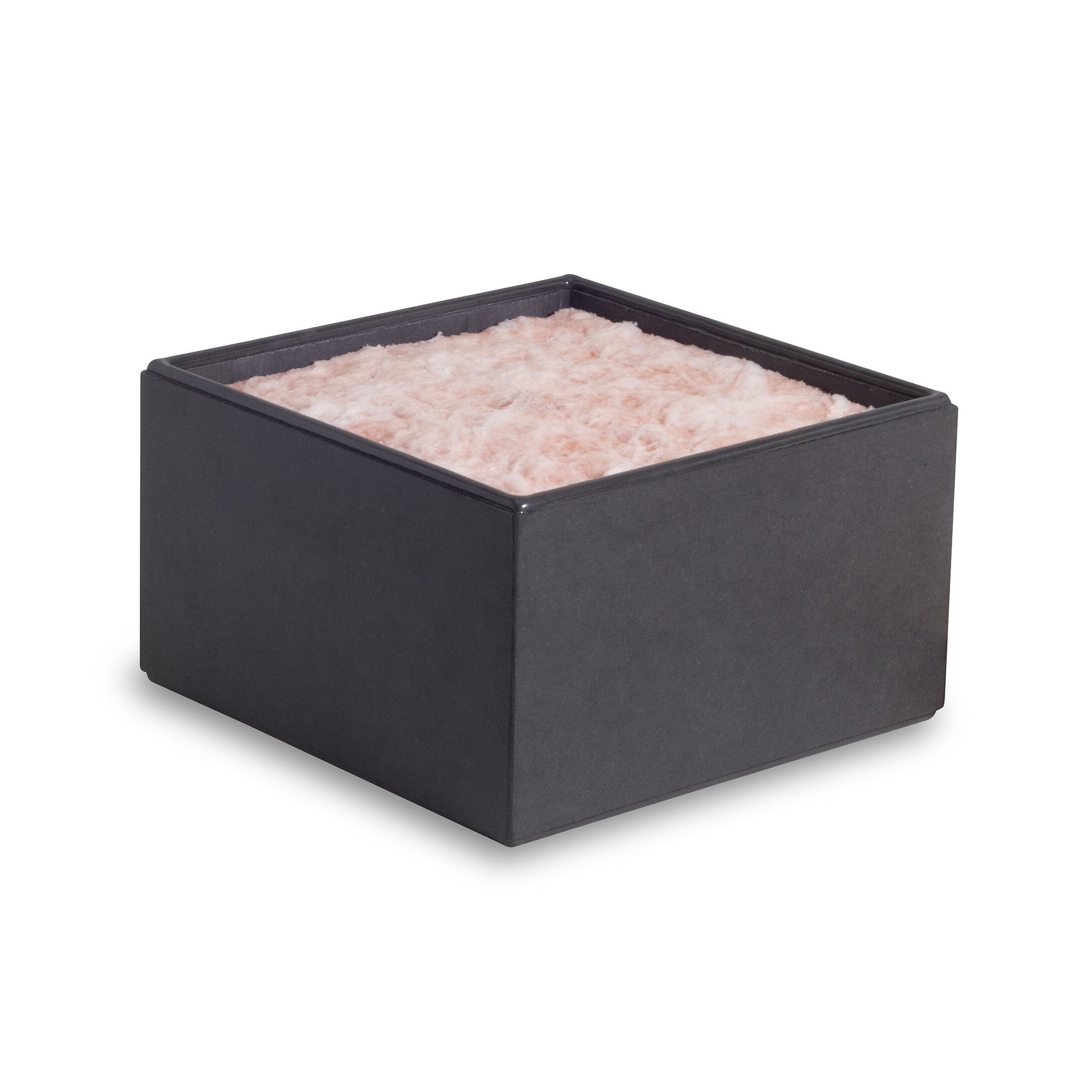

• Five ePM1-75 % pre-filters are included, and pre-filter and main filter change without tools.
• Connects to the Weller Easy-Click 60 hose system, so arms and nozzles simply plug in.
• ESD-safe design for electronics production workplaces.

Technical data

Applications

Hand soldering benches in electronics production, repair and test areas, laboratory and prototype work as well as training positions. The unit stands under or next to the workbench and serves one workstation.

Connection and scope of delivery

Connection uses the Weller Easy-Click 60 system with a 60 mm plug fitting. Extraction arm, nozzle and shut-off valve are not included and are selected to suit the bench. Supplied are the 230 V filter unit, one main filter with HEPA H13 and activated carbon plus five ePM1-75 % pre-filters.

Manufacturer and compliance

ESD-safe design for electronics workplaces according to the manufacturer's specification table. The manufacturer is WELLER Tools GmbH, Carl-Benz-Strasse 2, DE-74354 Besigheim, Germany.
