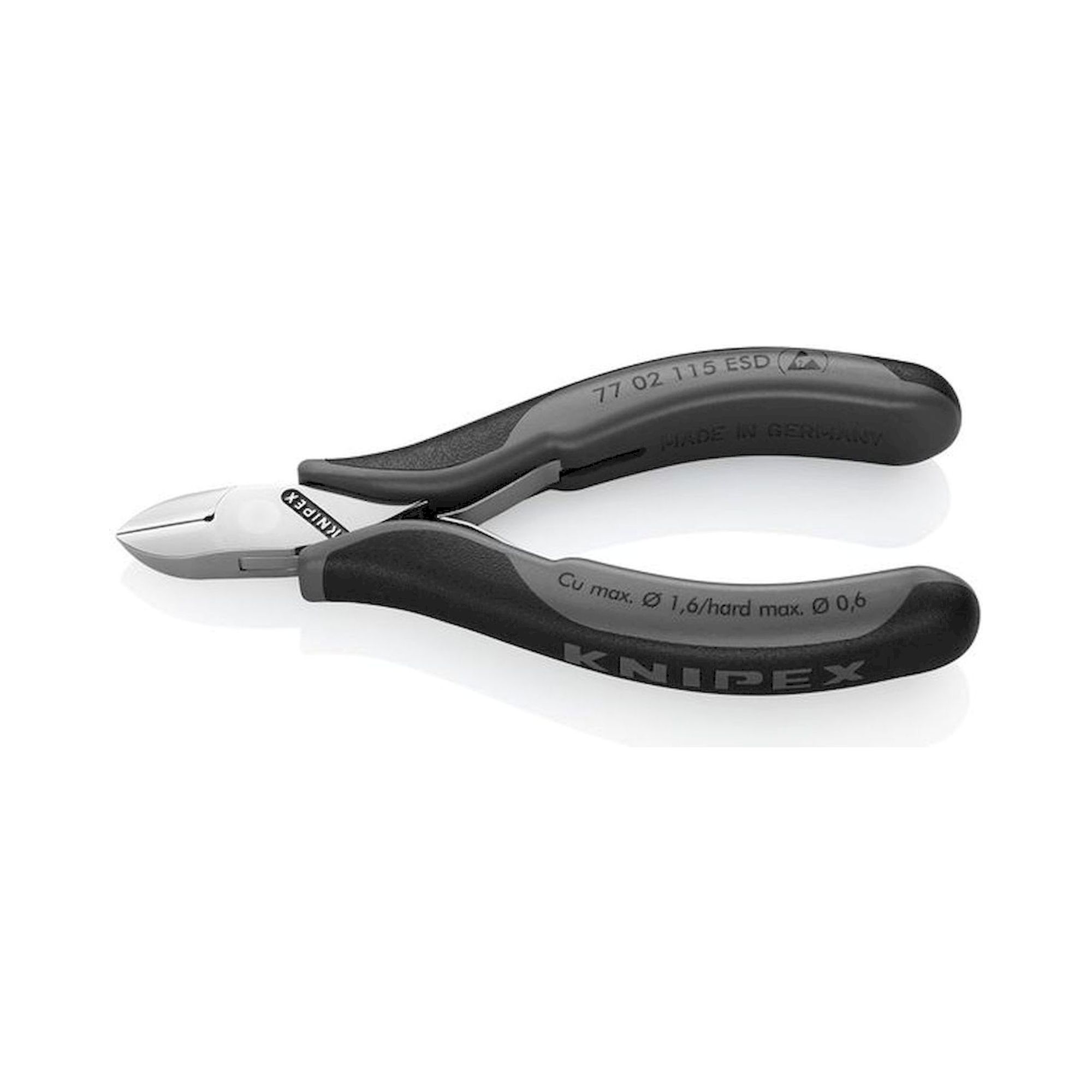

Electronics diagonal cutter ESD, round head with small bevel, 115 mm - Knipex 77 02 115 ESD

At ESD protected workstations the tool must not hold a charge. The 77 02 115 ESD electronics diagonal cutter has electrically dissipative handles to DIN EN 61 340-5 and a round head with a small bevel. The laser hardened edges reach approx. 62 HRC and cut soft wire from 0.3 to 1.6 mm dia.

Benefits

• Electrically dissipative handles to DIN EN 61 340-5, suitable for ESD protected work areas.
• Durable, load-optimised design with a through-pinned, backlash-free box joint that gives a more direct feel when working.
• Slim sleeves drawn up towards the head allow fine and comfortable gripping between thumb and index finger.
• Less physical effort thanks to the high transmission ratio, plus a low-friction double spring for smooth and even opening.
• Round head with a small bevel, only 11 mm wide, for access between closely spaced components.
• Mirror polished head with a fine oil film protects against rust. No chrome flakes come loose that could cause faults in the circuit.

Areas of use

Electronics production and service at ESD protected workstations, precision mechanics, laboratory work and prototyping. The dissipative handles allow work on assemblies that are sensitive to electrostatic discharge.

Standards and conformity

The pliers comply with DIN ISO 9654 and DIN EN 61 340-5. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
