ESD capable electronics diagonal cutter with a pointed head, small bevel and dissipative handles to DIN EN 61 340-5. Soft wire is cut from 0.3 to 1.3 mm dia. and hard wire up to 0.5 mm dia., edge hardness approx. 62 HRC. Length 115 mm, weight 67 g.

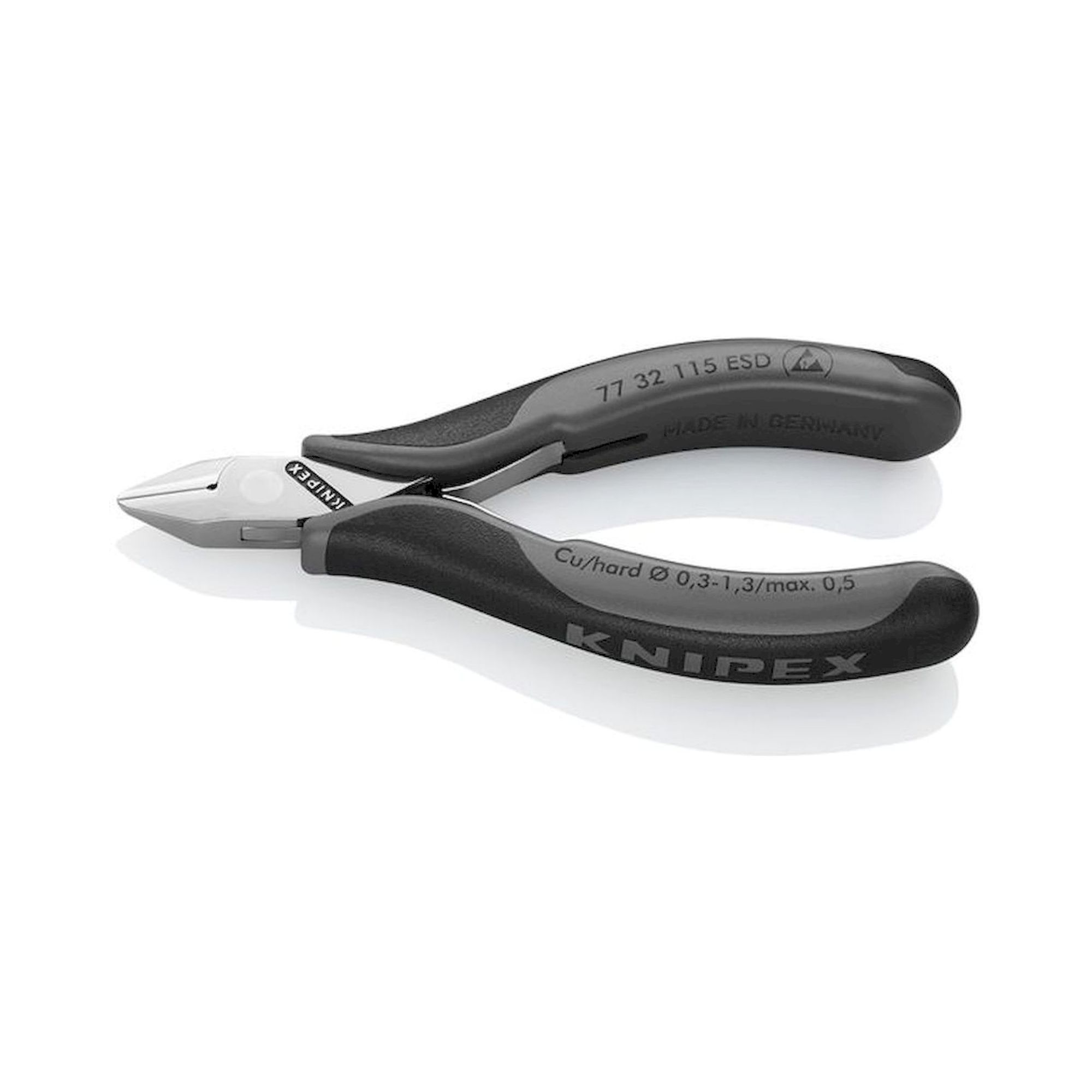

Electronics diagonal cutter ESD, pointed head with small bevel, 115 mm - Knipex 77 32 115 ESD
KNIPEX
Original product
Net price (excl. VAT)
€39.84
Item
WL19484
Manufacturer no.
77 32 115 ESD
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.77 32 115 ESD
EAN4003773025122
ConditionNew
Article
WL19484
Frequently Bought Together
-
This Item:
€39.84
-
Lindström 8163 CO. side cutters, 80 series, oval jaws, antistatic, with bevel, 0.4-2 mm
€75.77
-
Piergiacomi TR 20 M A. Diagonal cutter
€8.28
Total price
On ESD workstations components sit close together and are sensitive to discharge. The 77 32 115 ESD electronics diagonal cutter combines a pointed head with a small bevel, 11 mm wide, with dissipative handles to DIN EN 61 340-5 and cuts soft wire from 0.3 to 1.3 mm dia.
Benefits
- Electrically dissipative handles to DIN EN 61 340-5, suitable for ESD protected work areas.
- Durable, load-optimised design with a through-pinned, backlash-free box joint that gives a more direct feel when working.
- Slim sleeves drawn up towards the head allow fine and comfortable gripping between thumb and index finger.
- Less physical effort thanks to the high transmission ratio, plus a low-friction double spring for smooth and even opening.
- Pointed head with a small bevel, 11 mm wide, reaches densely populated component areas.
- Mirror polished head with a fine oil film protects against rust. No chrome flakes come loose that could cause faults in the circuit.
Technical data
| EAN | 4003773025122 |
|---|---|
| Head | mirror polished |
| Handles | with multi-component sleeves |
| Weight | 67 g |
| Dimensions | 115 x 54 x 17 mm |
| Standard | DIN ISO 9654, DIN EN 61 340-5 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Cutting capacity medium hard wire (diameter) | Ø 1.0 mm |
| Cutting capacity hard wire (diameter) | Ø 0.5 mm |
| Cutting capacity soft wire (diameter) | Ø 0.3 - 1.3 mm |
| Jaw length (B) | 14 mm |
| Jaw thickness (at joint) (D) | 7 mm |
| Head width (A) | 11 mm |
| ESD | yes |
Areas of use
Electronics production and service at ESD protected workstations, precision mechanics, laboratory work and prototyping. The dissipative handles allow work on assemblies that are sensitive to electrostatic discharge.
Standards and conformity
The pliers comply with DIN ISO 9654 and DIN EN 61 340-5. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
| Norm | DIN ISO 9654 |
|---|---|
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | 77 32 115 ESD |
| Manufacturer | Knipex |
| EAN | 4003773025122 |
| Weight | 0.067000 |
| Height | 17 mm |
| Width | 54 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 115.000000 |
