ESD version of the electronics diagonal cutter for workplaces to DIN EN 61 340-5, with a pointed head 13 mm wide and cutting edges without bevel. The backlash-free box joint and the laser hardened edges of approx. 62 HRC cut soft wire from Ø 0.3 to 1.6 mm and medium hard wire up to Ø 1.3 mm. Length 130 mm, weight 80 g.

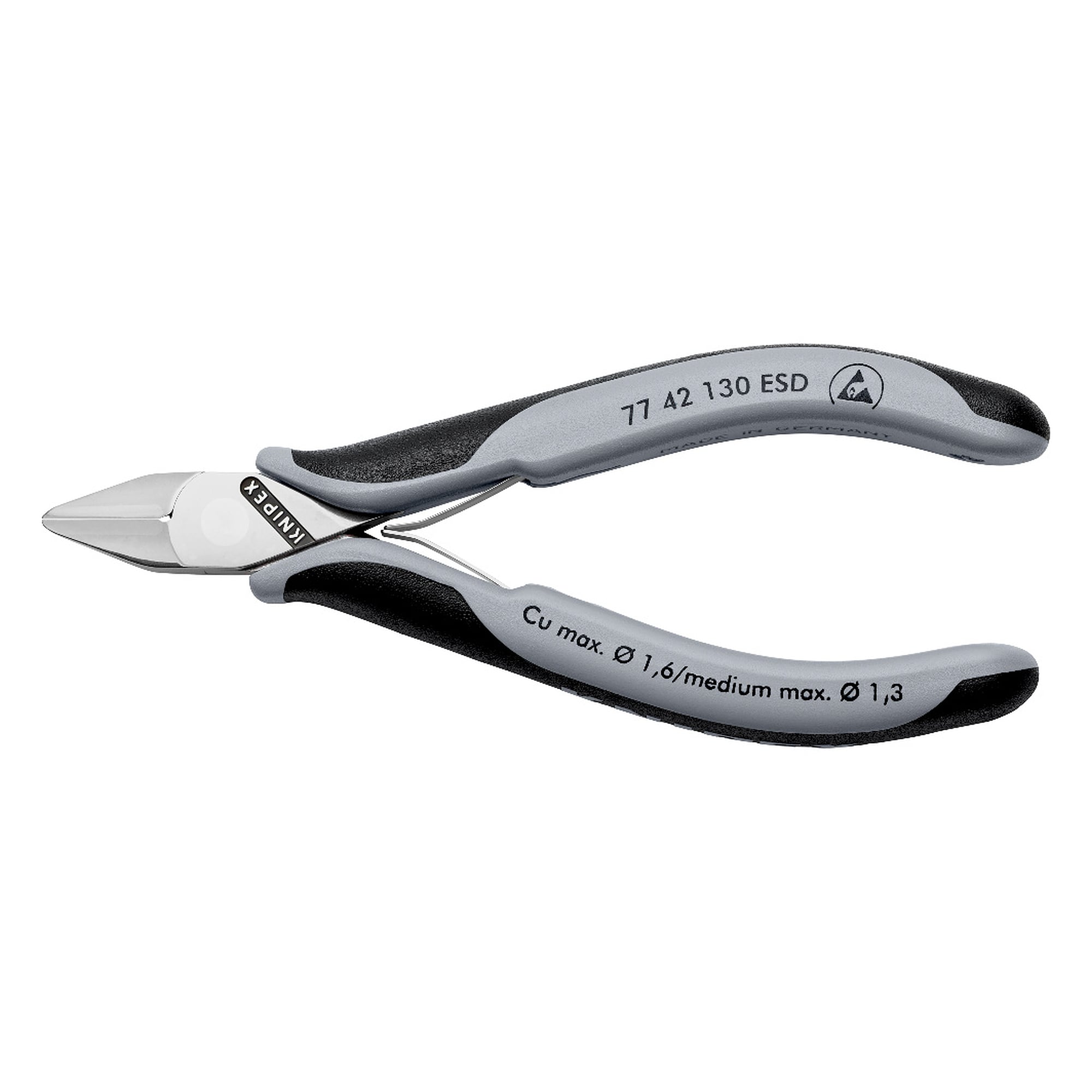

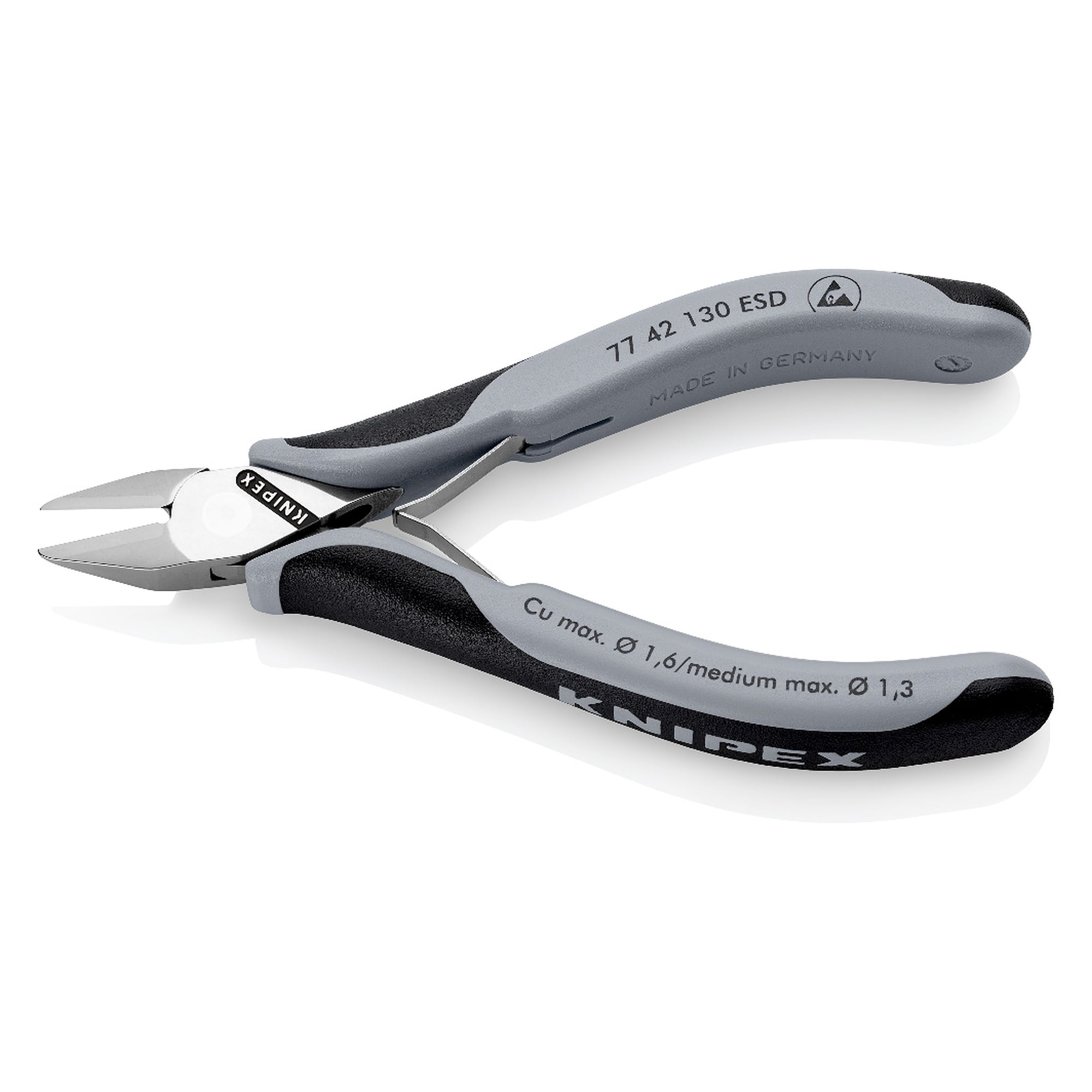

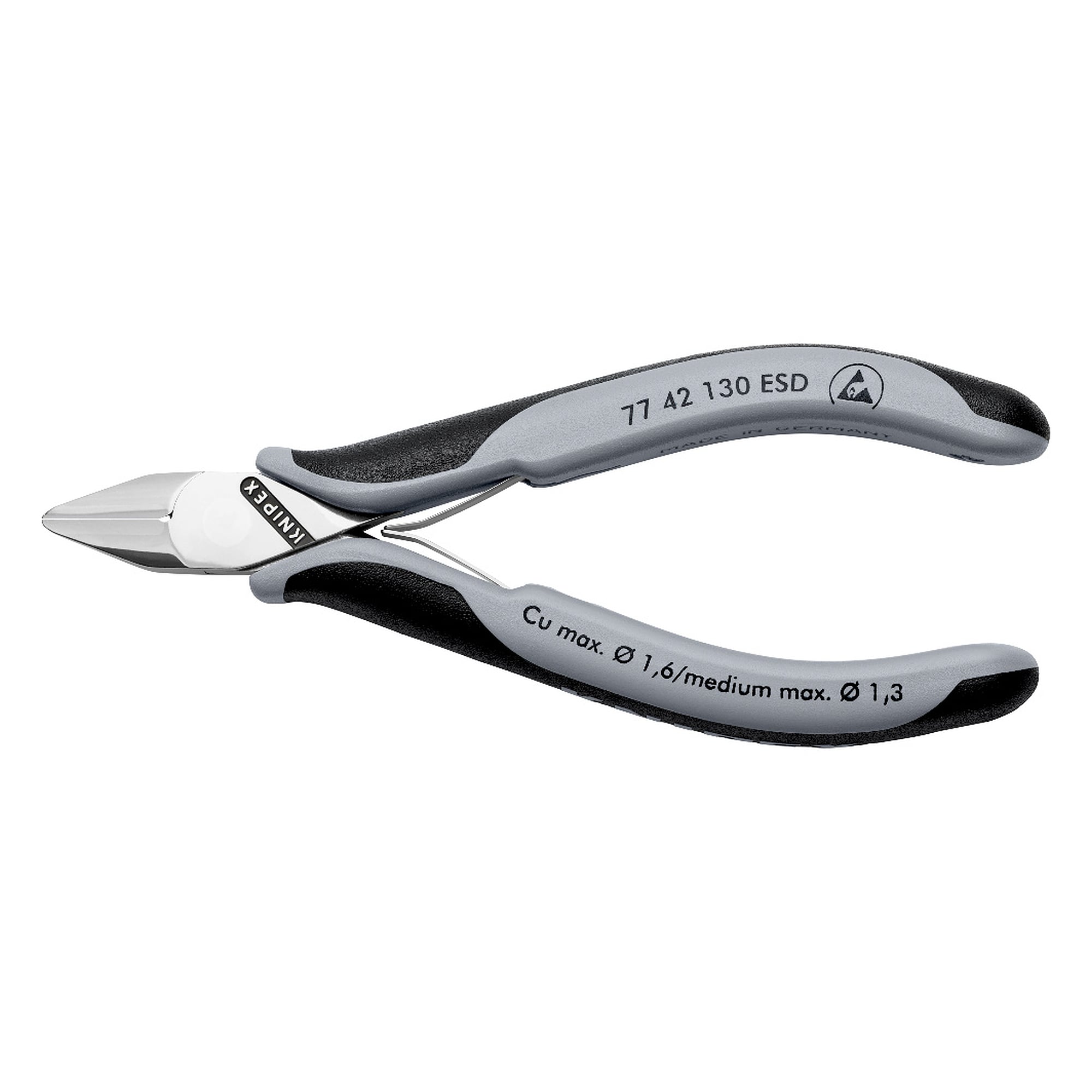

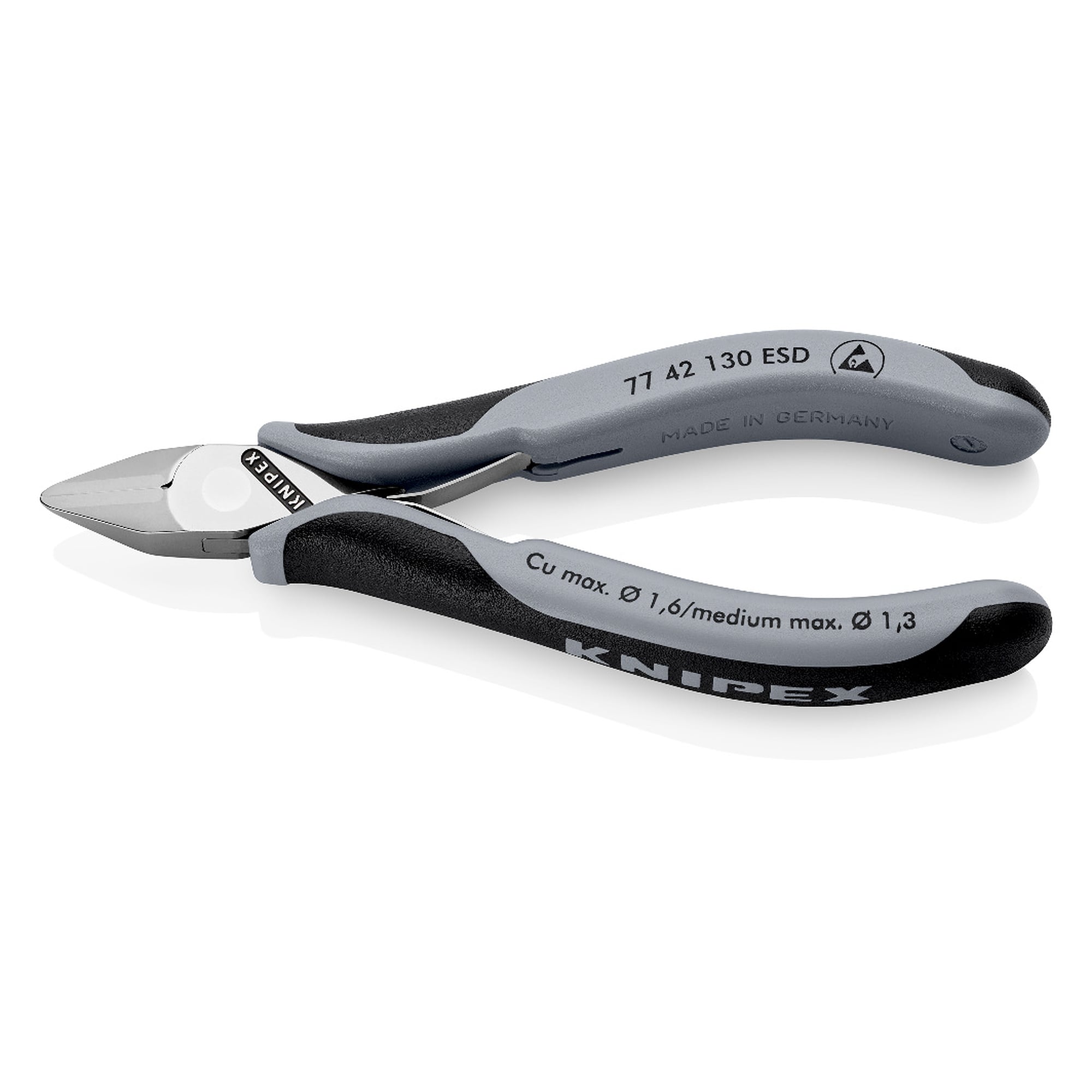

ESD electronics diagonal cutter with pointed head, without bevel, 130 mm - Knipex 77 42 130 ESD
KNIPEX
Original product
Net price (excl. VAT)
€41.08
Item
WL85135
Manufacturer no.
77 42 130 ESD
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.77 42 130 ESD
EAN4003773089216
ConditionNew
Article
WL85135
Frequently Bought Together
Anyone working on electrostatic sensitive assemblies needs a tool that fits the ESD protection concept and still cuts the lead close to the component. The 77 42 130 ESD electronics diagonal cutter is listed by the manufacturer as an ESD version to DIN EN 61 340-5 and has cutting edges without bevel on a head 13 mm wide.
Benefits
- ESD version to DIN EN 61 340-5, suitable for workplaces handling electrostatic sensitive devices.
- Cutting edges without bevel, so the wire is cut close to the workpiece.
- Pointed head with a width of 13 mm for access in densely populated assemblies.
- Backlash-free box joint in a load-optimised design keeps the cutting edges permanently aligned.
- Cutting edges additionally laser hardened to approx. 62 HRC over a cutting edge length of 16.2 mm.
- A high transmission ratio keeps the effort low and the low-friction double spring opens the tool smoothly and evenly.
Technical data
| EAN | 4003773089216 |
|---|---|
| Head | mirror polished |
| Handles | with multi-component grips |
| Weight | 80 g |
| Dimensions | 130 x 69 x 17 mm |
| ESD | yes |
| Cutting capacity soft wire (diameter) | Ø 0.3 - 1.6 mm |
| Cutting capacity medium hard wire (diameter) | Ø 1.3 mm |
| Jaw length (B) | 16.2 mm |
| Cutting edge length (C) | 16.2 mm |
| Head width (A) | 13 mm |
| Jaw thickness at the joint (D) | 8.5 mm |
| Standard | DIN ISO 9654, DIN EN 61 340-5 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Areas of use
ESD protected electronics production, board assembly, test areas, repair and service work on electrostatic sensitive modules. The slim multi-component grips drawn up towards the head allow fine handling between thumb and index finger.
Standards and conformity
The manufacturer states DIN ISO 9654 and DIN EN 61 340-5. According to the manufacturer the tool contains no substances of very high concern under REACH, and the RoHS directive does not apply.
| Norm | DIN ISO 9654, DIN EN 61340-5-1 |
|---|---|
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | 77 42 130 ESD |
| Manufacturer | Knipex |
| EAN | 4003773089216 |
| Weight | 0.080000 |
| Height | 17 mm |
| Width | 69 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 130.000000 |
