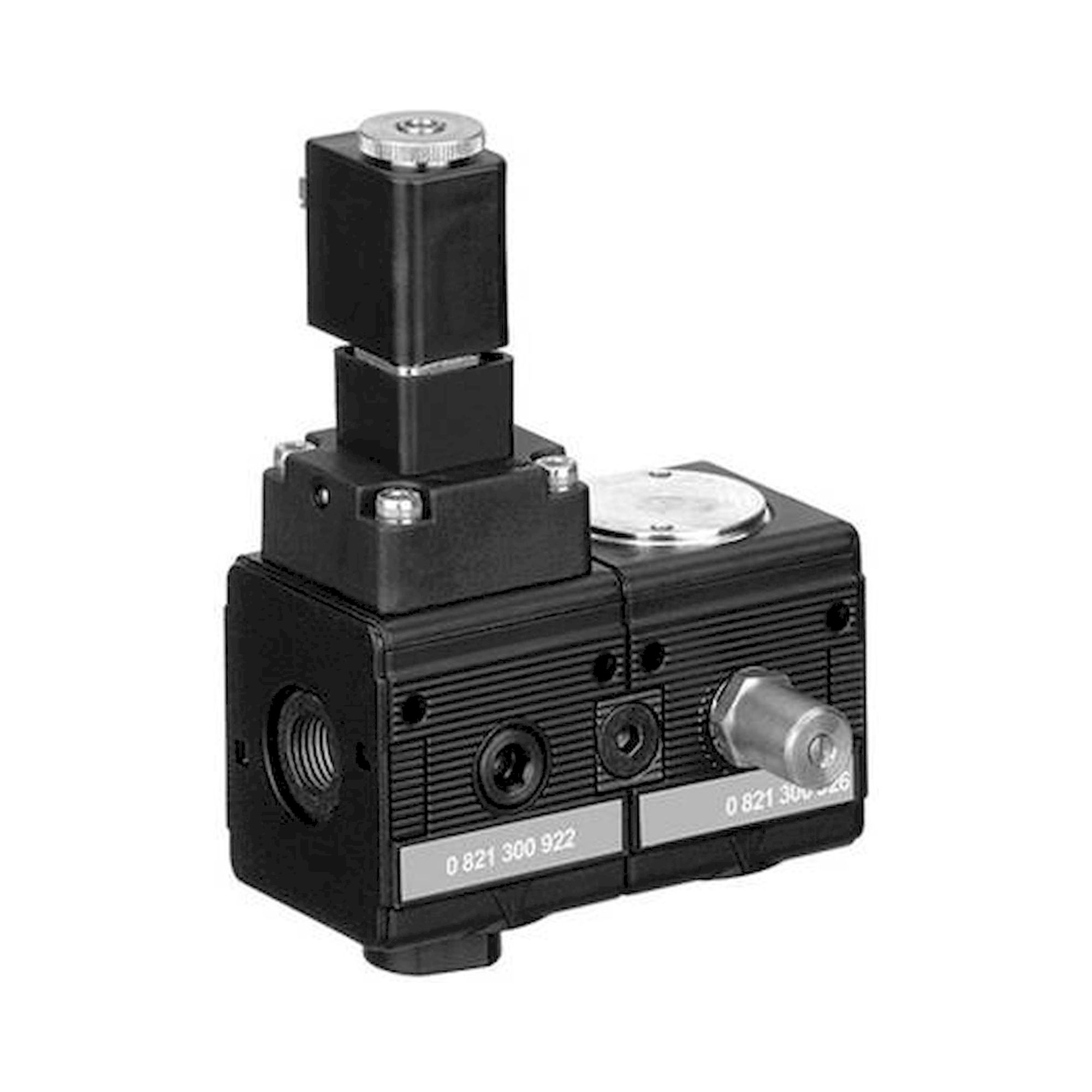

Series NL2

Maintenance units and components

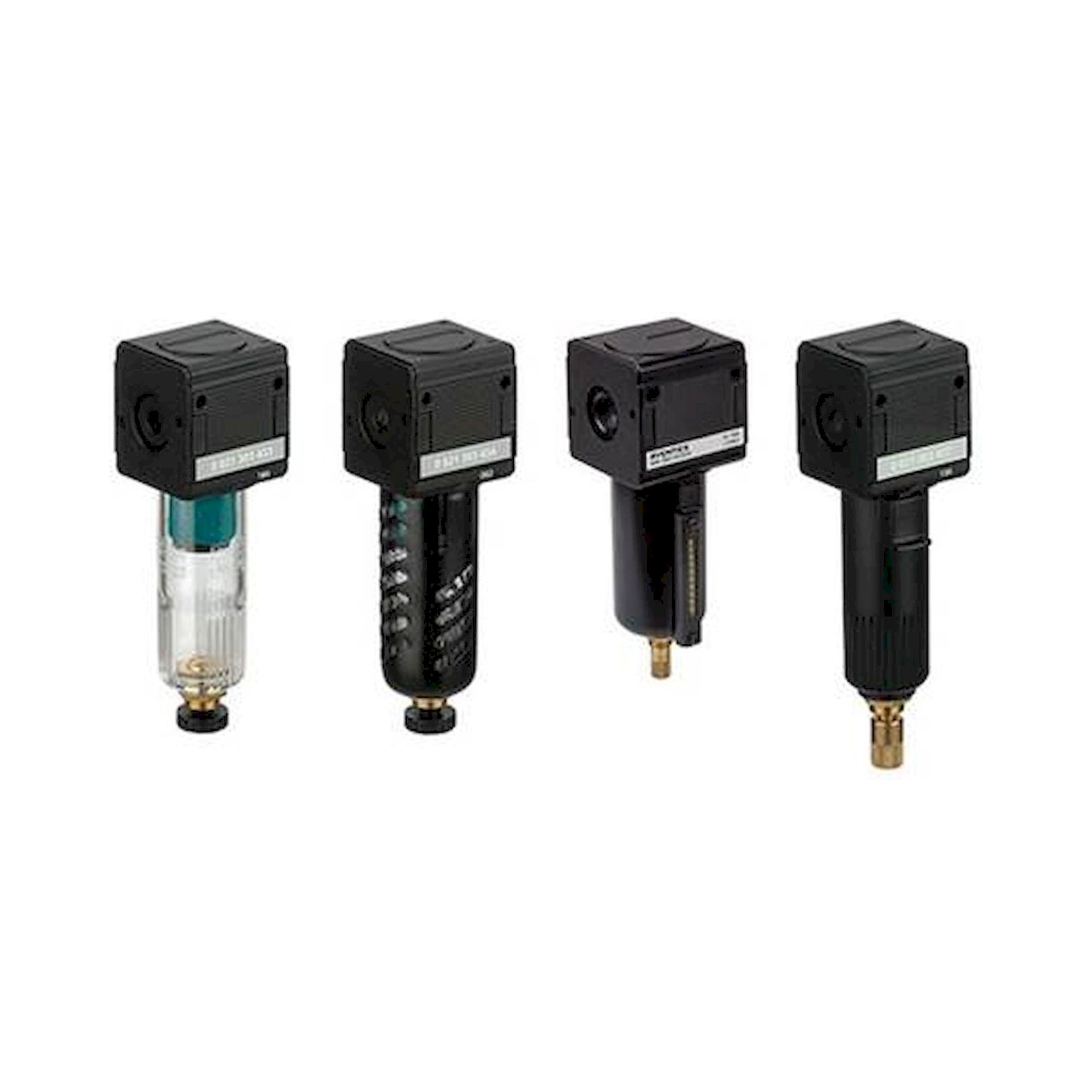

The Aventics Series NL2 provides a complete filter spectrum for compressed-air preparation in port sizes G 1/8 to G 3/8: standard filters (NL2-FLS, 5 µm), ultra-fine filters (NL2-FLC, 0.01 µm), pre-filters (NL2-FLP, 0.3 µm), activated-carbon filters (NL2-FLA) and pressure regulators (NL2-RGS). A combined filter-pressure regulator (NL2-FRE) is also available.

NL2-RGS pressure regulators cover control ranges of 0-30, 0-60 and 0-100 bar and are available in stainless-steel (SS) construction and with various gauge-port options. Filter bowls are made from SSS (stainless steel), PBS (polycarbonate with guard) and PNB (polycarbonate without guard); drains are either manual (HO) or automatic (AO).

Filter type	Fineness	Application

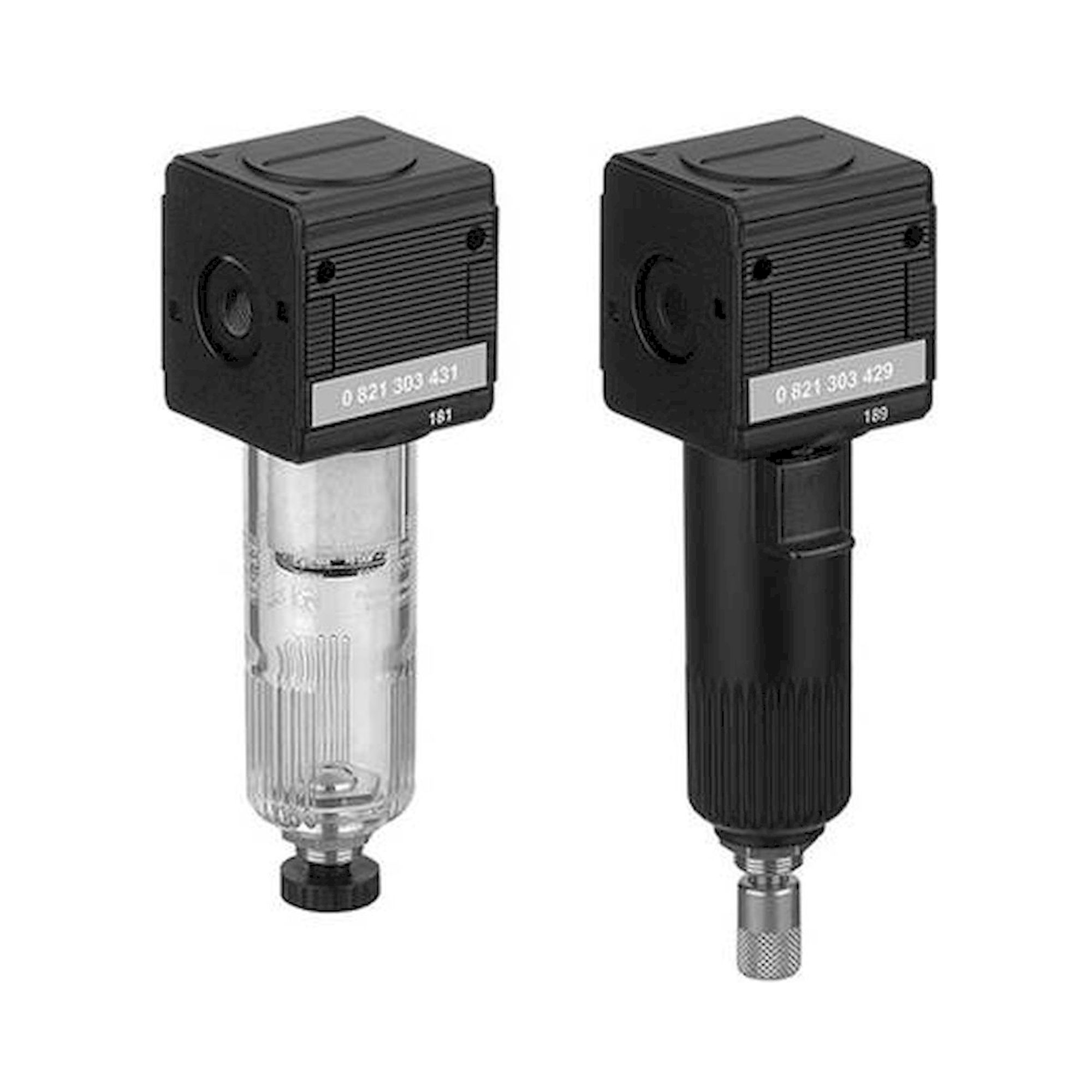

NL2-FLP	0.3 µm	Pre-filter, coarse particles and condensate protection
NL2-FLS	5 µm	Standard filtration for general pneumatics
NL2-FLC	0.01 µm	Ultra-fine filtration, oil aerosol separation
NL2-FLA	Activated carbon	Residual oil and odour reduction, quality grade

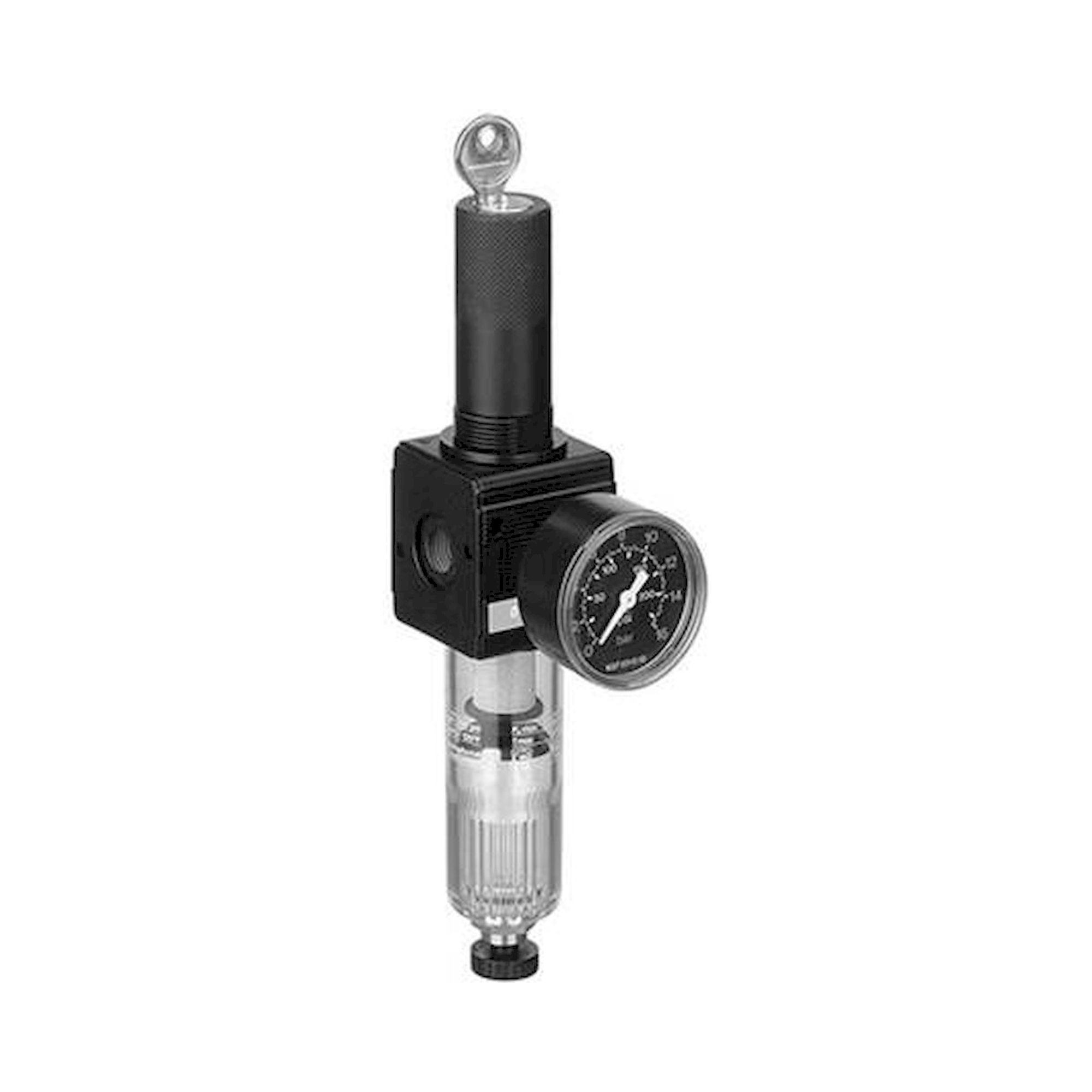

NL2-FRE	5 µm + regulator	Combined filter and pressure regulator G 1/4

For the NL2 filter stage selection: FLP as the first stage where inlet air is heavily contaminated, FLS as the main stage for general industrial pneumatics, FLC for low-oil compressed air (e.g., upstream of instruments or spray guns), FLA as the final stage for food and pharmaceutical environments. NL2-RGS pressure regulators in SS construction suit corrosive environments or applications where stainless steel is specified. Bowl material choice follows process medium and ambient conditions: SSS for aggressive media, PBS with sight glass for visual status checking.

Typical applications: Multi-stage compressed-air preparation lines in manufacturing automation, ultra-fine and activated-carbon filtration upstream of sensors and instrumentation, compressed-air supply for food machinery and pharmaceutical filling lines (FLC+FLA combination), individual protection of compressed-air outlets at assembly stations, and repair or extension of existing G 1/8 to G 3/8 maintenance units.
